Better Pipe Organ Database

Schantz Organ Co. Opus 649 (1964)

White Memorial Presbyterian Church: Sanctuary
1704 Oberlin Road
Raleigh, NC

Images

2023-05-21 - Right organ chamber and exposed pipes (Photograph by Ken Watkins/Ken Watkins)

2023-05-21 - Left organ chamber and exposed pipes (Photograph by Ken Watkins/Ken Watkins)

2023-05-21 - Console and Right organ chamber and pipes (Photograph by Ken Watkins/Ken Watkins)

2023-05-18 - Chancel, exposed pipes and console (Photograph by Nicole Keller, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

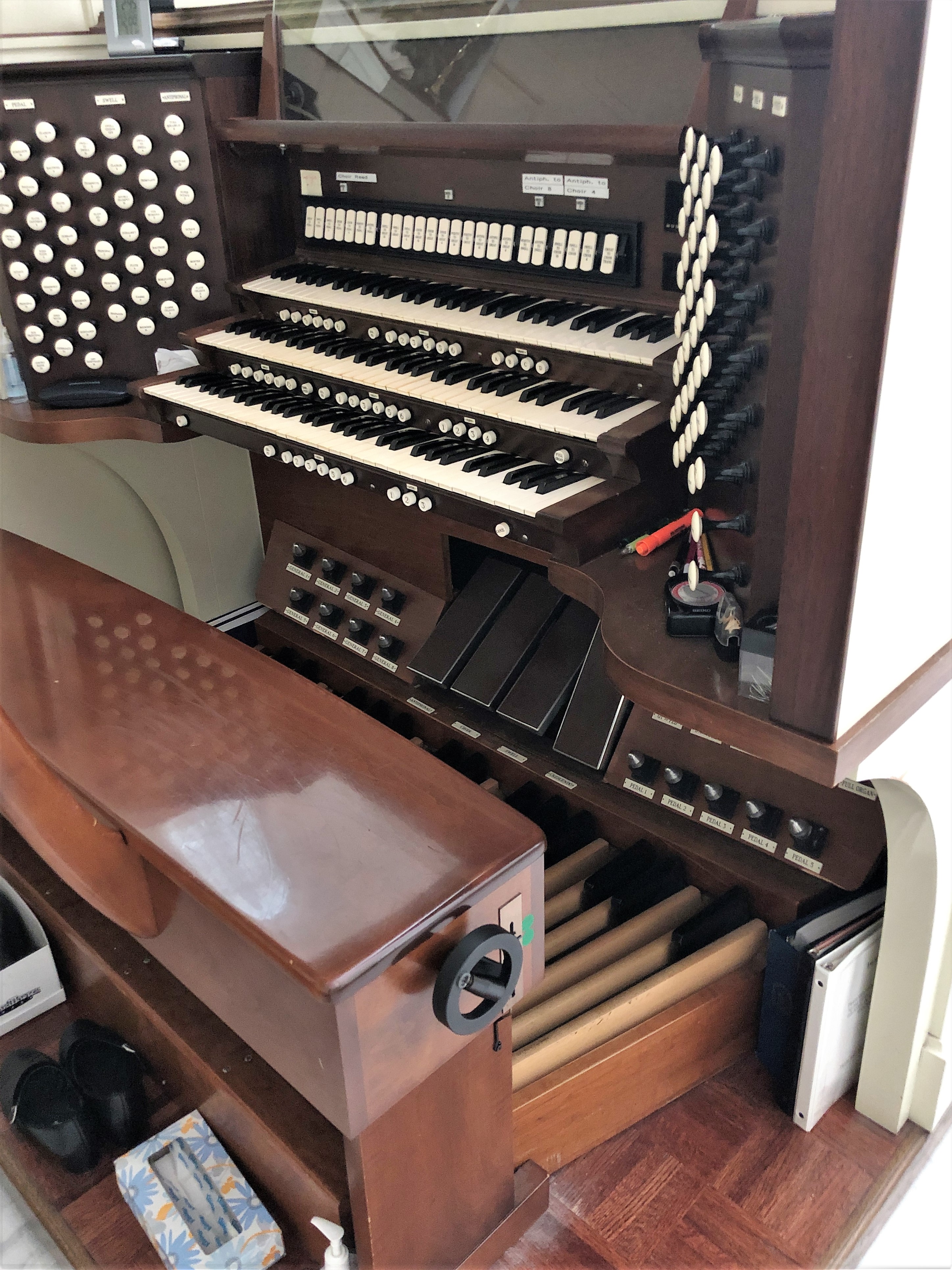

2020-09-29 - Current organ console. Located stage left. (Photograph by William Gard/William Gard)

2020-11-25 - Stage right pipe chamber (Photograph by William Gard/William Gard)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
33 stops
47 registers
6 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons

Notes

2011-08-05 - Identified through online information from Jeff Scofield. -Database Manager

2024-09-22 - Per Brock Downward on September 21, 2024: "The organ was rebuilt with some rescaling in 2000 by Dan Angerstein. It was expanded with many Walker digital stops." -Brad Engelland

Stoplist

Stoplist from <i>The Diapason</i> October 1964 Source: Source not recorded Date not recorded

        Raleigh, North Carolina
        White Memorial Presbyterian Church

        Schantz   Op. 649   1964   3/50
        ________________________________________________

        GREAT                        SWELL
    16' Gemshorn         61       8' Hohlflöte        61
     8' Prinzipal        61       8' Gamba            61
     8' Bordun           61       8' Gamba Celeste    49
     4' Octav            61       4' Flötenprinzipal  61
     4' Quintade         61       2' Octav            61
     2' Super Octav      61     III  Plein Jeu       183
    IV  Mixtur          244      16' Dulzian          61
     8' Trompete         61       8' Trompette        61
        Chimes                    4' Schalmey         61
                                     Tremolo
        PEDAL
    16' Prinzipal        32          CHOIR
    16' Bordun           32       8' Rohrflöte        61
    16' Gemshorn         GT       8' Erzähler         61
    16' Rohrflöte        12 SW    8' Erzähler Celeste 49
10 2/3' Quinte           --       4' Gemshorn         61
     8' Octav            12   2 2/3' Nasat            61
     8' Bordun           12       2' Blockflöte       61
     8' Gemshorn         GT   1 3/5' Terz             61
     8' Rohrflöte        SW       8' Krummhorn        61
     4' Super Octav      12          Tremolo
     4' Bordun           12
    II  Mixtur           64          ANTIPHONAL
    16' Bombarde         32       8' Lieblichgedackt  61
    16' Dulzian          SW       4' Spitzprinzipal   61
     8' Bombarde         12       2' Waldflöte        61
     4' Clairon          12     III  Mixtur          183

        ANTIPH PEDAL
    16' Lieblich Gedeckt 12 AN
     8' Lieblich Gedeckt AN

    [Received online from Jeff Scofield  August 6, 2011]
