Better Pipe Organ Database

Schantz Organ Co. Opus 1894 (1988)

Trinity Presbyterian Church: Sanctuary
1106 Alameda
San Carlos, CA

Images

2017-12-23 - Console (Photograph by Christiaan Dekter/Database Manager)

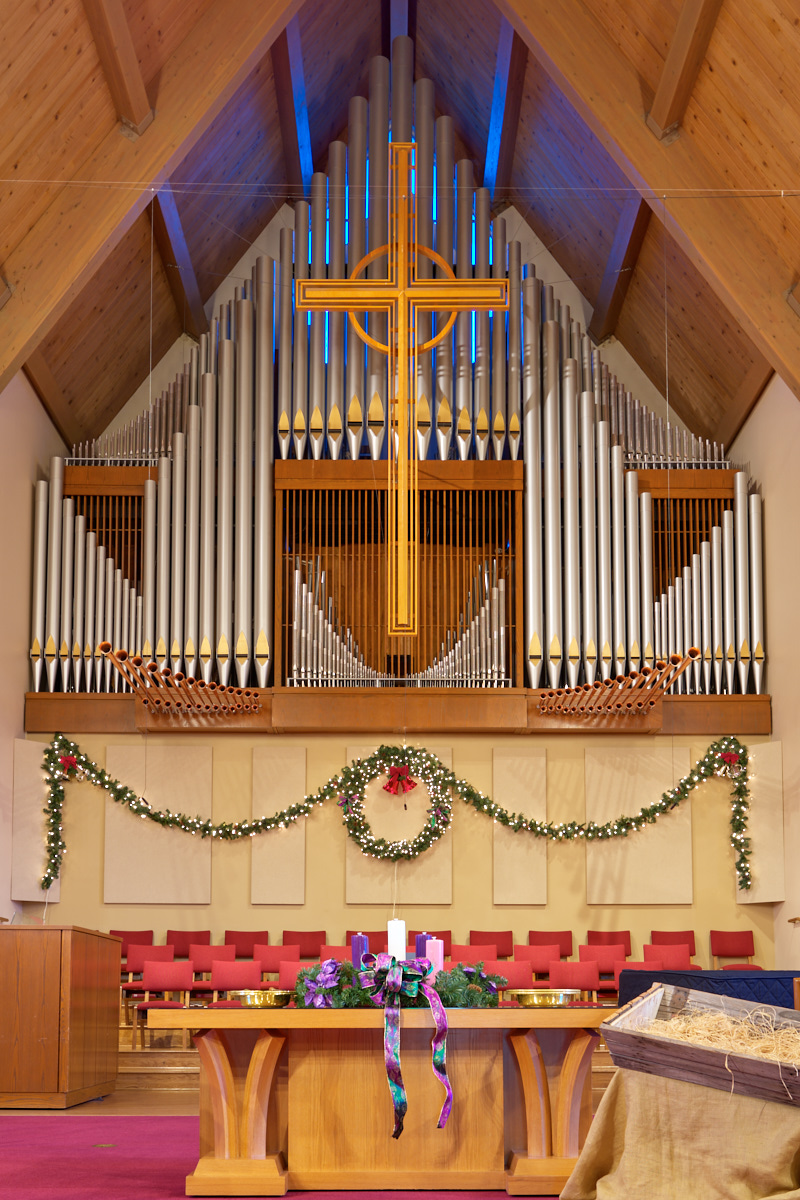

2017-12-23 - Casework/pipework viewed from nave (Photograph by Christiaan Dekter/Database Manager)

2017-12-23 - Trompette en chamade (Photograph by Christiaan Dekter/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
32 stops
41 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2011-08-08 - Identified through online information from Jeff Scofield. -- Trompette-en-Chamade added after the original installation. -Database Manager

2018-03-14 - Updated by Christiaan Dekter, who has heard or played the organ. -Database Manager

Stoplist

Stoplist courtesy of the Schantz Organ Co. Source: Source not recorded Date not recorded

    San Carlos, California
    Trinity Presbyterian Church

    Schantz   Op. 1894   1988   3/37
    _________________________________________________________

    GREAT                             SWELL
16' Violone              61        8' Gedackt              61
 8' Principal            61        8' Viola da Gamba       61
 8' Rohrflöte            61        8' Viola Celeste        61
 4' Octave               61        4' Prestant             61
 4' Spitzflöte           61        4' Koppelflöte          61
 2' Super Octave         61    2 2/3' Nazard               61
IV  Mixtur              244        2' Waldflöte            61
 8' Trompete             61    1 3/5' Tierce               61
    Tremulant                     IV  Plein Jeu           244
    Sub                           16' Basson-Hautbois      61
    Unison Off                     8' Trompette            61
    Super                          8' Hautbois             12
 8' Trompette-en-Chamade 61        4' Clairon              12
    Chimes                            Tremulant
    Blank                             Sub
                                      Unison Off
    PEDAL                             Super
32' Resultant            --
16' Contrabass           32           CHOIR
16' Subbass              32        8' Holzgedackt          61
16' Violone              GT        8' Gemshorn             61
 8' Octave               32        8' Gemshorn Celeste     49
 8' Bourdon              12        4' Hohlflöte            61
 4' Choralbass           12        2' Principal            61
 4' Weitflöte            32    1 1/3' Quinte               61
16' Posaune              32        8' Cromorne             61
16' Basson               SW           Tremulant
 8' Trompete             12           Sub
 4' Klarine              12           Unison Off
    Blank                             Super
                                   8' Trompette-en-Chamade GT

   [Received online from Jeff Scofield  August 14, 2011]
