Schantz Organ Co. Opus 1852 (1986)

Central College Presbyterian Church: Sanctuary
975 S. Sunbury Rd.
Westerville, OH

Images

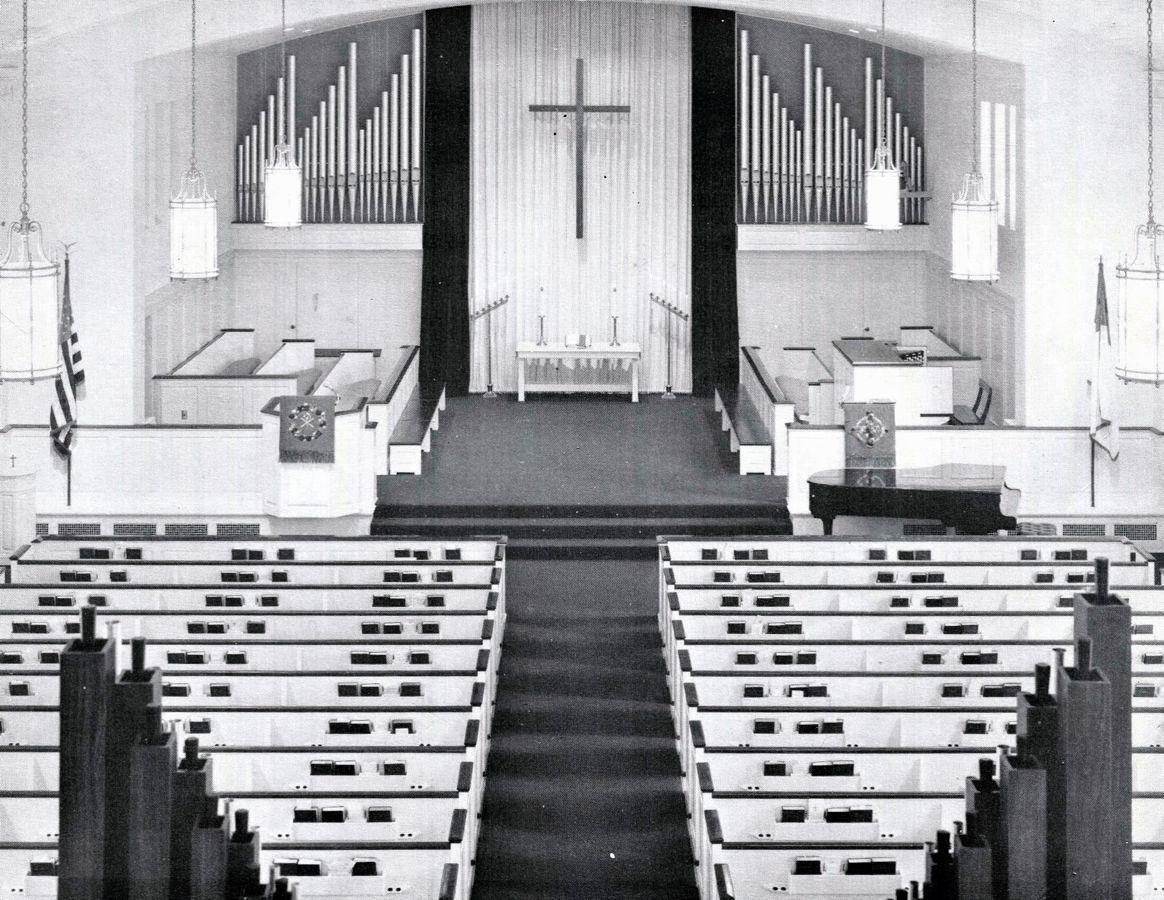

1987-11-11 - Antiphonal Pipe Display, Sanctuary Interior, Chancel, and Pipe Facade (Photograph from the Dedication Program; image courtesy of Jeff Scofield/Database Manager)

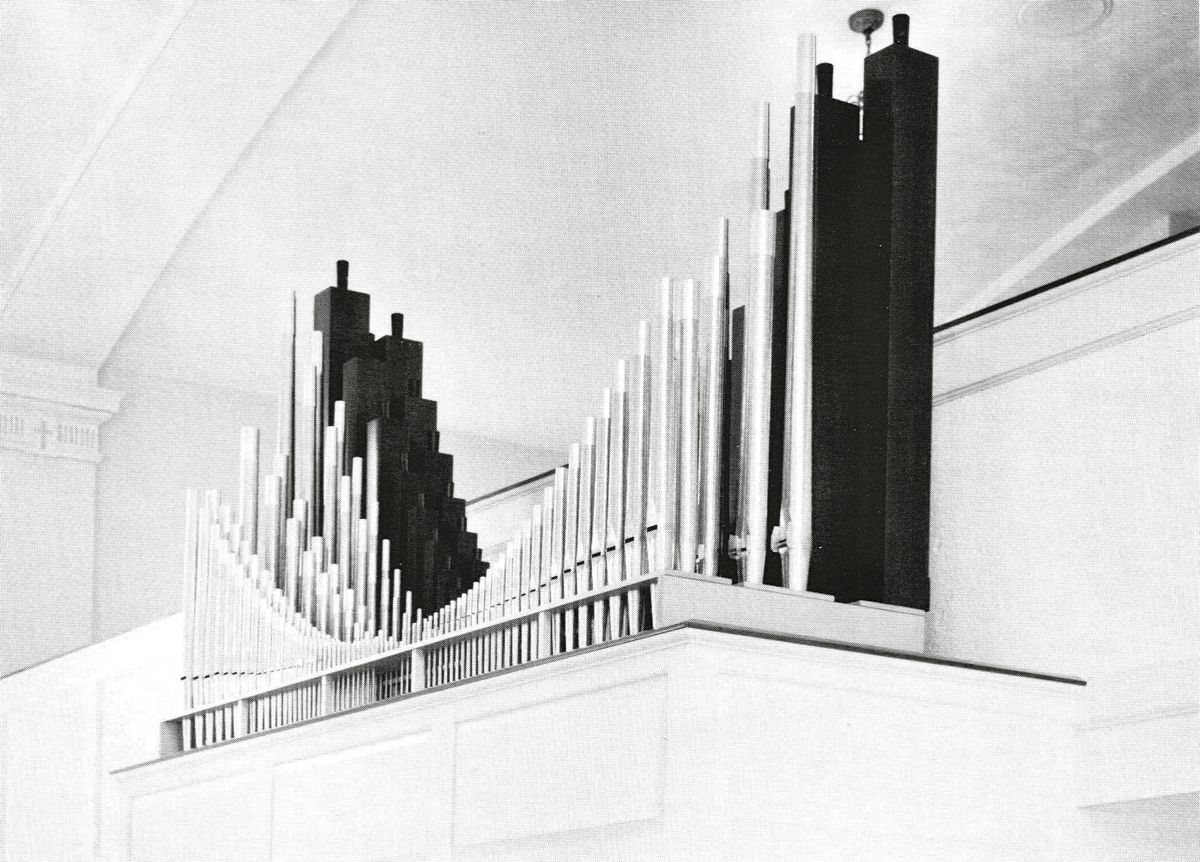

1987-11-11 - Antiphonal Pipe Display (Photograph from the Dedication Program; image courtesy of Jeff Scofield/Database Manager)

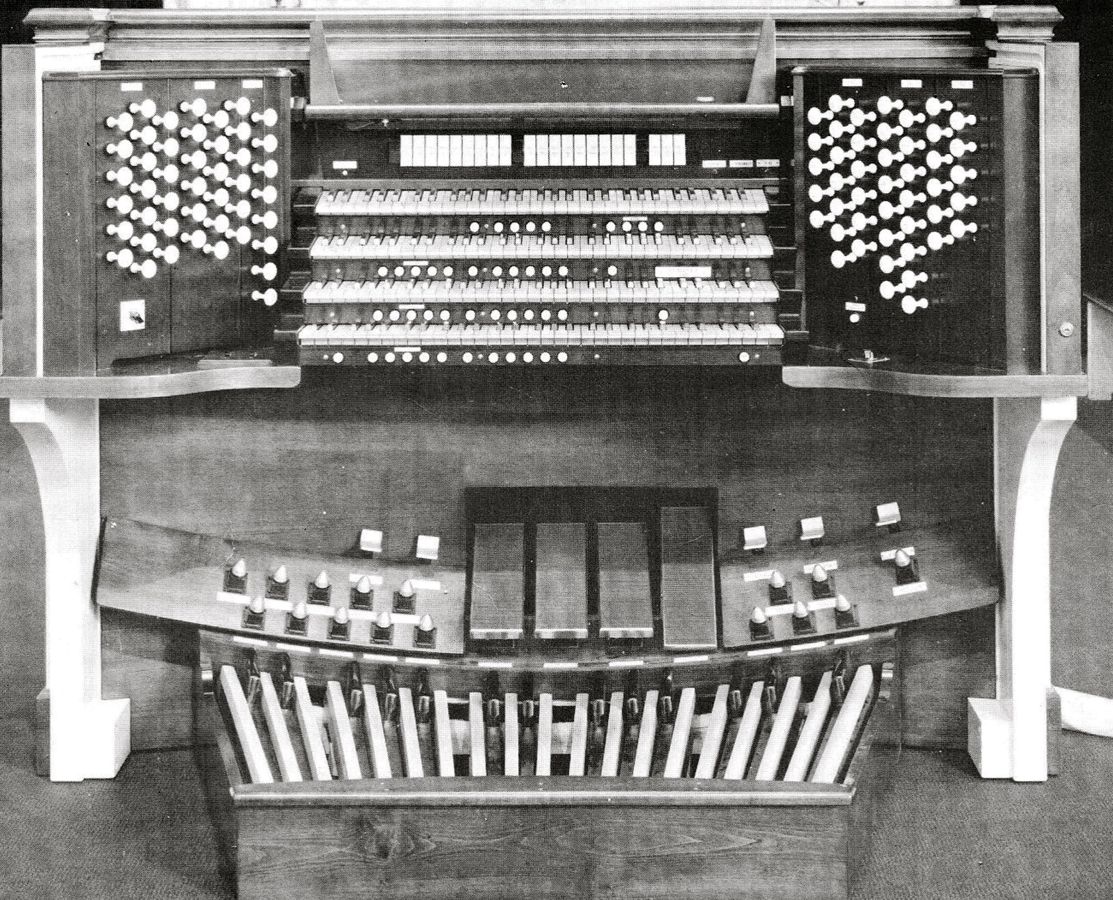

1987-11-11 - Console (Photograph from the Dedication Program; image courtesy of Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
4 manuals
54 stops
61 registers
5 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2011-08-18 - Identified through online information from Jeff Scofield. -- Solo and Antiphonal prepared-for -Database Manager

Stoplist

Stoplist courtesy of the Schantz Organ Co. Source: Source not recorded Date not recorded

       Westerville, Ohio
       Central College Presbyterian Church

       Schantz   Op. 1852   1987   4/69
       __________________________________________________

       GREAT                      SWELL
   16' Gedackt       61        8' Rohrflöte            61
    8' Principal     61        8' Viola                61
    8' Bordun        61        8' Viola Celeste        54
    8' Erzähler      61        4' Principal            61
    4' Octave        61        4' Nachthorn            61
    4' Spitzflöte    61    2 2/3' Nasard               61
2 2/3' Quinte        61        2' Blockflöte           61
    2' Octave        61    1 3/5' Tierce               61
1 3/5' Terz          61       IV  Mixture             244
   IV  Mixtur       244       16' Basson               61
  III  Zimbel       183        8' Trompette            61
   16' Dulzian       61        8' Oboe                 61
    8' Trompete      61        8' Vox Humana           61
       Chimes                  4' Clairon              61
       Zimbelstern                Tremulant

       PEDAL                      CHOIR
   32' Resultant     --        8' Holzgedackt          61
   16' Principal     32        8' Flute Conique        61
   16' Subbass       32        8' Flute Celeste        61
   16' Violone       32        4' Principal            61
   16' Gedacktbass   GT        4' Koppelflöte          61
    8' Octave        32        2' Octav                61
    8' Hohlflöte     32    1 1/3' Quinte               61
    8' Violone       12        1' Octav                61
    8' Gedacktbass   GT       IV  Mixtur              244
    4' Choralbass    32        8' Krummhorn            61
    4' Gedacktflöte  GT        8' English Horn         61
   II  Mixture       64        4' Regal                61
   II  Mixture       64           Tremulant
   32' Posaune       12
   16' Posaune       32           SOLO-ANTIPHONAL
   16' Basson        SW        8' Orchestral Flute     pf
    8' Trompette     32        8' Viole                pf
    4' Rohrschalmei  32        8' Viole Celeste        pf
       Chimes        GT        8' French Horn          pf
                               8' Clarinet             pf
                                  Tremulant
                               8' Trompette-en-Chamade 61
                               8' Stopped Flute        61
                               4' Gemshorn             61
                               2' Waldflöte            61
                              II  Grave Mixture       122

      [Received online from Jeff Scofield August 21, 2011]
