Better Pipe Organ Database


Schantz Organ Co. Opus 2300 (2011)

Church of the Gesu, Roman Catholic
1201 West Wisconsin Avenue
Milwaukee, WI

Images

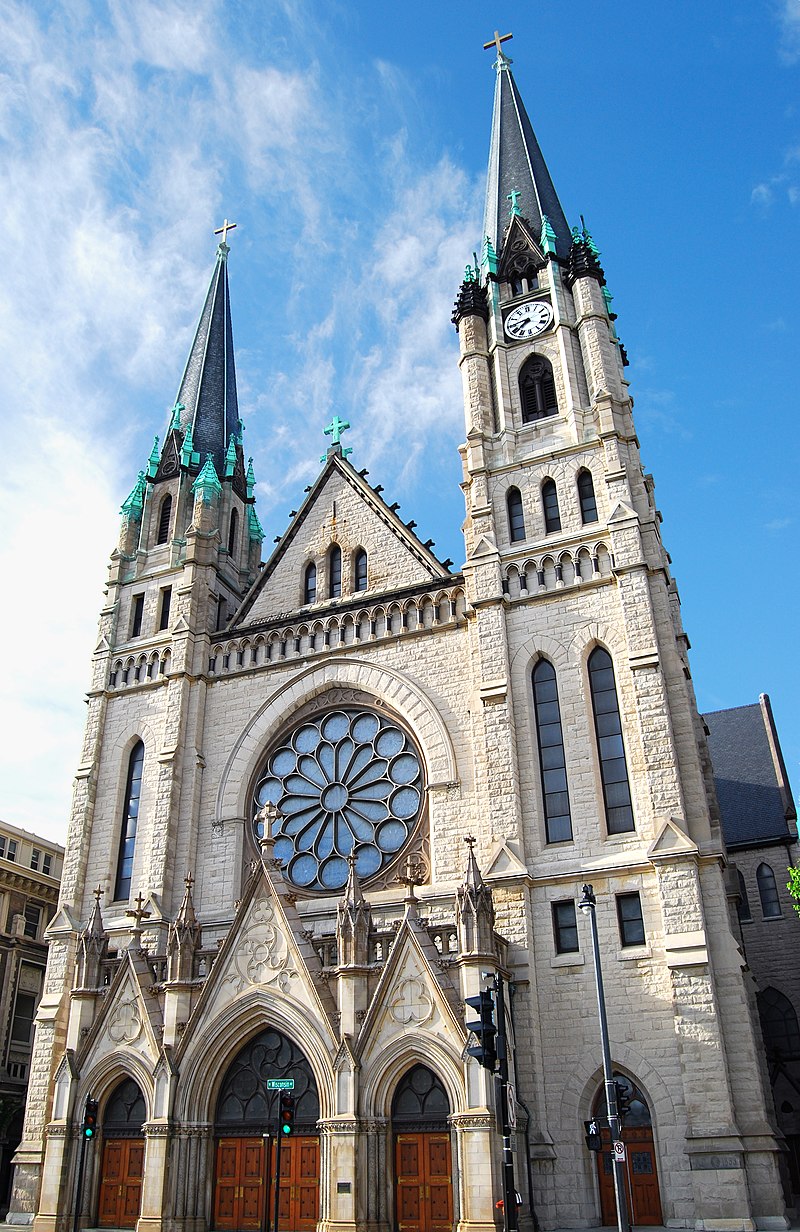

2008-06-18 - Church exterior (Photograph by Matthew Hendricks, via Wikipedia, submitted by Jeff Scofield/Jeff Scofield)

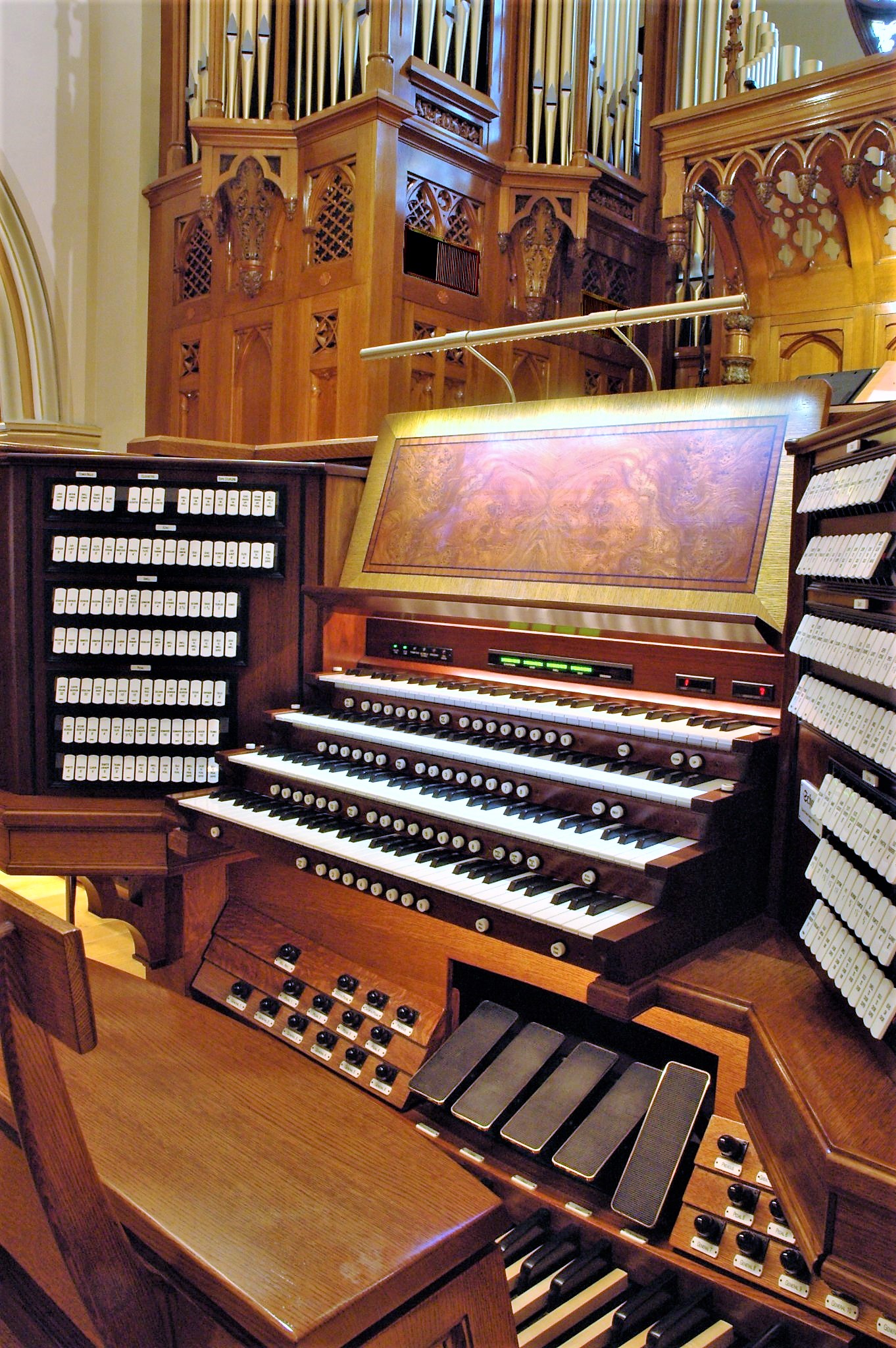

2020-01-20 - Console (Photograph provided by Andrew Schaeffer/Database Manager)

2020-01-20 - Church interior, gallery and organ case (Photograph provided by Andrew Schaeffer/Database Manager)

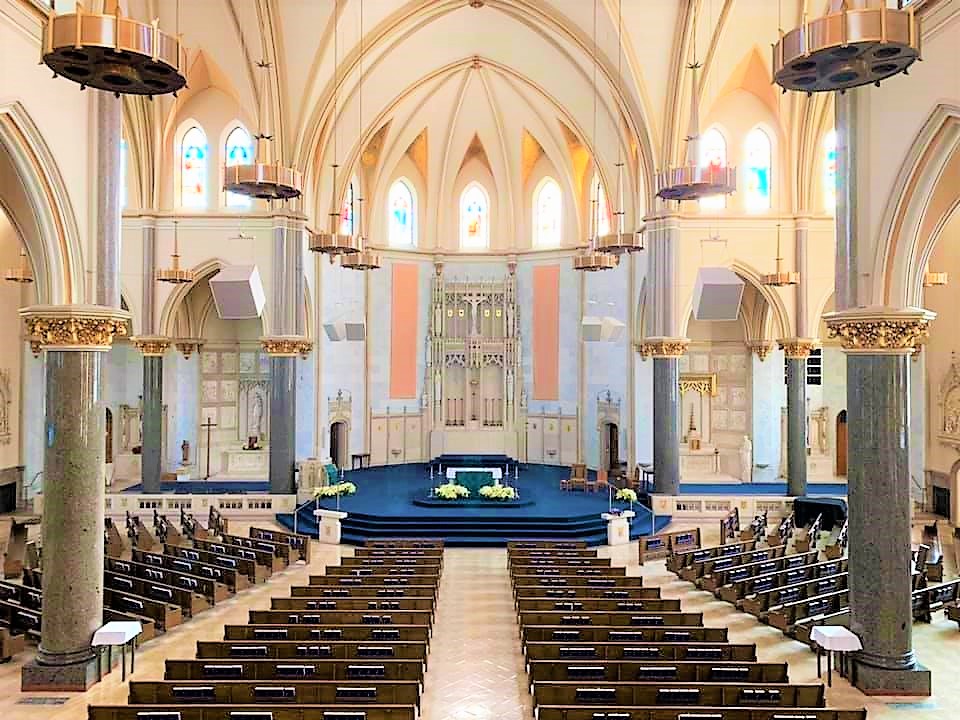

2020-01-20 - Church interior (Photograph provided by Andrew Schaeffer/Database Manager)

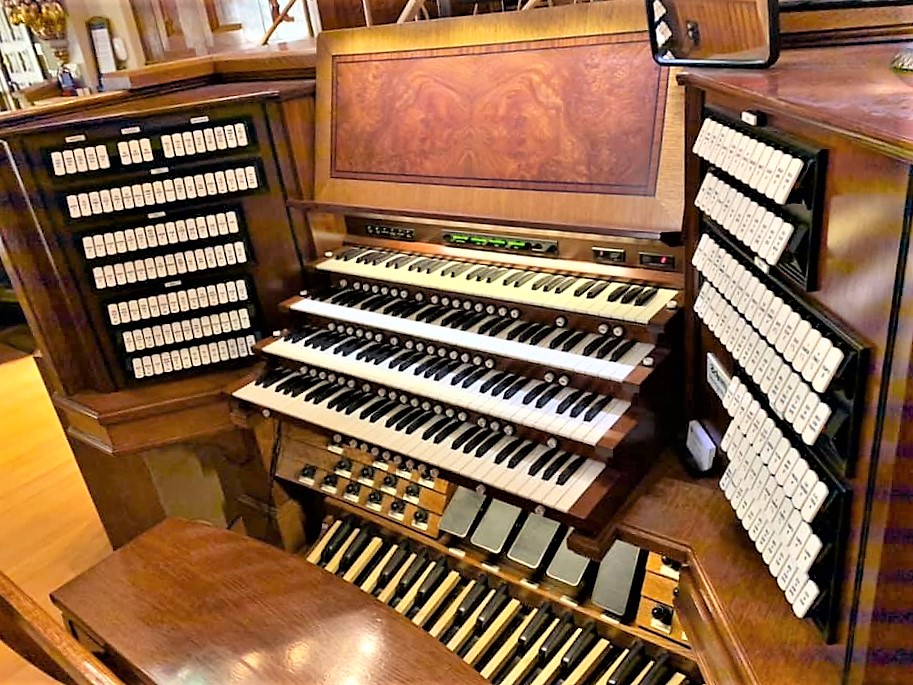

2011-09-30 - Console (Photograph by Paul Lohman/Database Manager)

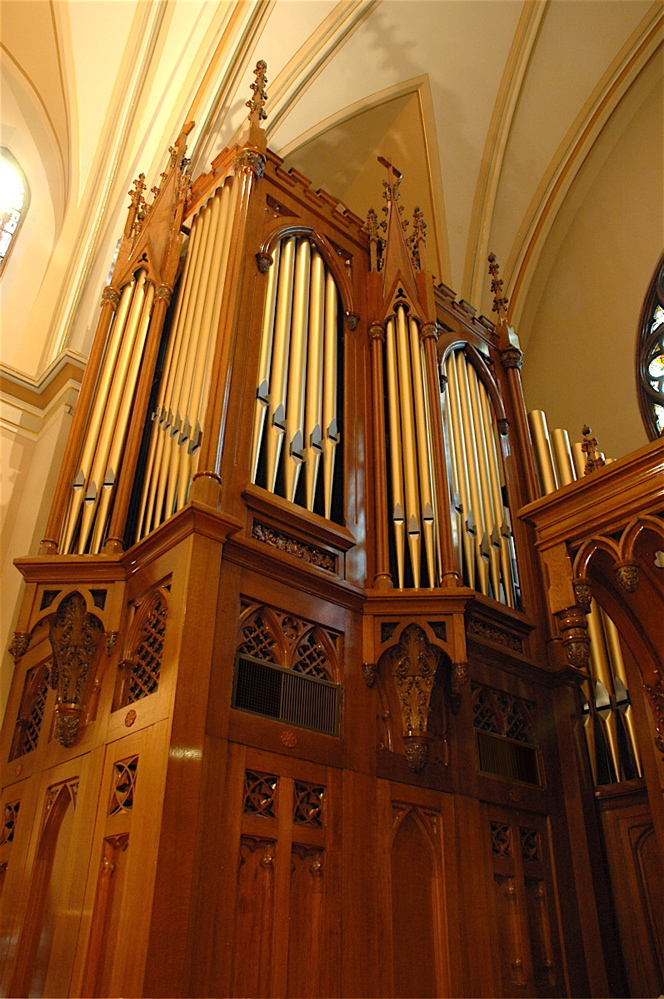

2011-09-30 - Organ Case (Photograph by Paul Lohman/Database Manager)

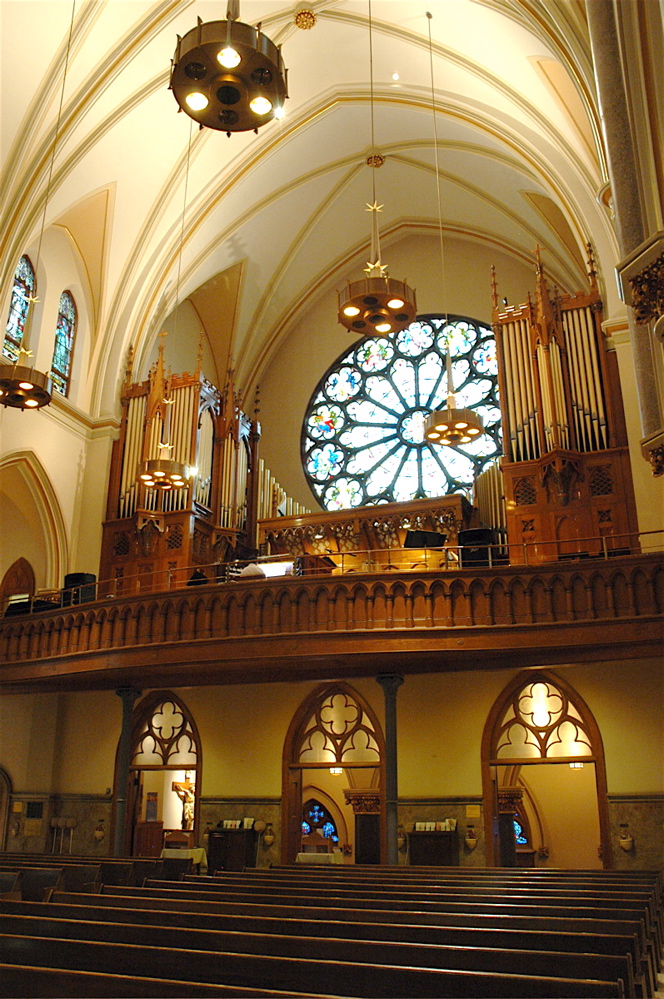

2011-09-30 - Nave, Balcony, and Organ Cases (Photograph by Paul Lohman/Database Manager)

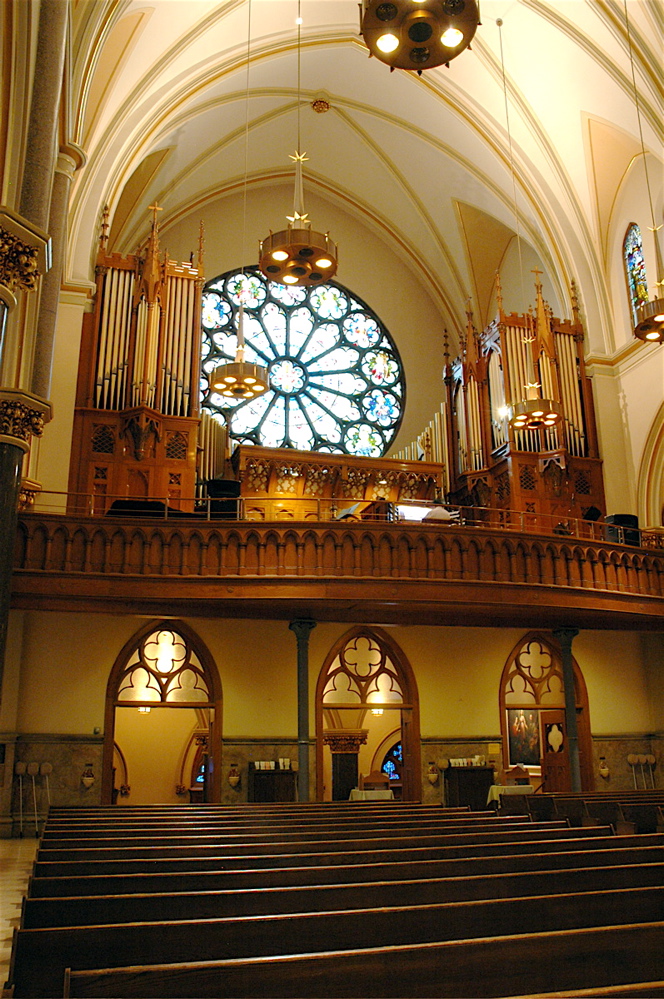

2011-09-30 - Nave, Balcony, and Organ Cases (Photograph by Paul Lohman/Database Manager)

Consoles

Main


Notes

2011-10-24 - The organ was originally built by W. W. Kimball in the late 1890's for the Studebaker Theater in Chicago. Kimball moved it to this location in 1904 or 1908. The organ was rebuilt and expanded in 1955 by Kilgen Organ Company. This work by Schantz was to completely rebuild the instrument and expand it to 115 ranks. Much of the Kimball/Kilgen pipework, as well as the Kimball casework, were retained. -Database Manager

2012-11-28 - Updated through online information from John Seboldt. -- I have e-mailed folks from Schantz to respond more authoritatively on the organ's status as a new organ which includes pipework from previous organs. They will confirm also about whether older casework was included. -Database Manager

2014-08-04 - Updated through online information from Dominic Joseph Radanovich. -Database Manager


Stoplist

Source: from Schantz website Date not recorded

Milwaukee, Wisconsin
CHURCH OF THE GESU

W. W. Kimball Company    1890's
Kilgen Organ Company     1955
Schantz Organ Company    2010
___________________________________________________________________________

GREAT:                                 SWELL:
16' Diapason              73           16' Bourdon              61
16' Violone               61           8' Diapason              61
8' Diapason I             61           8' Salicional            61
8' Diapason II            --           8' Voix Celeste          61
8' Gambe                  61           8' Muted Viole           61
8' Dulciane               61           8' Muted Viole Celeste   61
8' Flûte Harmonique       61           8' Bourdon               61
8' Bourdon                61           8' Ludwigtone            61
4' Octave                 61           4' Octave                61
4' Principal              61           4' Flûte Octaviante      61
4' Flûte Octaviante       61           2-2/3' Nasard            61
4' Flûte Cheminée         61           2' Octavin               61
2-2/3' Quinte             61           1-3/5' Tierce            61
2' Super Octave           61           V Plein Jeu 2'           305
1-3/5' Tierce             61           16' Waldhorn             73
V Fourniture 1-1/3'       305          16' Basson               73
IV Cymbale 1/2'           244          8' Trompette             61
8' Trompete               61           8' Cornopean             --
8' Tromba Real            TR           8' Hautbois              --
8' Trompette d'Orchestre  TR           4' Clairon               61
Tremulant                              8' Voix Humaine          61
Chimes                    SW           Tremulant
                                       Chimes                   21

CHOIR:                                 SOLO:
16' Dulciana              73           16' Bass Viole           73
8' Viole Diapason         61           8' Grand Diapason        61
8' Gambe                  61           8' Violoncello           61
8' Gambe Celeste          61           8' Violoncello Celeste   61
8' Flûte Ouverte          61           8' Bourdon               61
8' Flûte Céleste (TC)     49           4' Octave Major          61
8' Bourdon                61           4' Flûte Ouverte         61
8' Dulciana               --           VII Plein Jeu 2'         427
8' Unda Maris             61           16' Bombarde             85
4' Octave                 61           8' Trompette             61
4' Flûte Traversière      61           8' English Horn          61
4' Flûte à Fuseau         61           8' French Horn           61
2-2/3' Nasard             61           4' Clarion               --
2' Octavin                61           Tremulant
1-3/5' Tierce             61           Chimes                   SW
1-1/3' Quinte             61
1-1/7' Septime            61
1' Fife                   61
8/9' Neuvieme             61
IV Fourniture 1-1/3'      244
III Cymbale 2/3'          183
8' Trompette              61
4' Clairon                61
8' Clarinet               61
8' Trompette d'Orchestre  TR
Tremulant

TROMBA:                                ECHO:
8' Tromba Real            61           8' Diapason              61
8' Trompette d'Orchestre  61           8' Viole Sourdine        61
                                       8' Voix Angelique        61
                                       8' Cor de Nuit           61
                                       8' Flûte Conique         61
                                       8' Flûte Céleste (GG)    54
                                       4' Principal             61
                                       4' Chimney Flute         61
                                       8' Voix Humaine          61
                                       Tremulant

ECHO PEDAL:                            PEDAL:
16' Bourdon               32           32' Contre Violone        12
8' Cor de Nuit            EC           32' Contre Bourdon        56
4' Flûte                  CH           32' Resultant             --
                                       16' Contrebasse           32
                                       16' Principal             44
                                       16' Diapason              GT
                                       16' Violone               GT
                                       16' Bass Viole            SO
                                       16' Dulciana              CH
                                       16' First Bourdon         --
                                       16' Second Bourdon        SW
                                       8' Octave                 --
                                       8' Diapason               GT
                                       8' Cello                  GT
                                       8' Dulciana               CH
                                       8' First Bourdon          --
                                       8' Second Bourdon         SW
                                       4' Octave                 32
                                       4' Cantus Flute           32
                                       IV Fourniture 2-2/3'      128
                                       32' Contre Bombarde       44
                                       32' Grand Cornet          --
                                       16' Bombarde              --
                                       16' Bombarde              SO
                                       16' Waldhorn              SW
                                       16' Basson                SW
                                       8' Tromba                 44
                                       8' Trompette              SO
                                       8' Cornopean              SW
                                       4' Clarion                --
                                       8' Trompette Real         TR
                                       8' Trompette d' Orchestre TR
                                       Chimes                    SW
