Musical Instrument Museum: Europe Gallery - Organs (Cathedral) exhibit
4725 E. Mayo Blvd.
Phoenix, AZ
Images
2022-06-22 - Pipes inside of case (Photograph by Steven Gautsch /Steven Gautsch)
2022-06-22 - Facade pipes (Photograph by Steven Gautsch /Steven Gautsch )

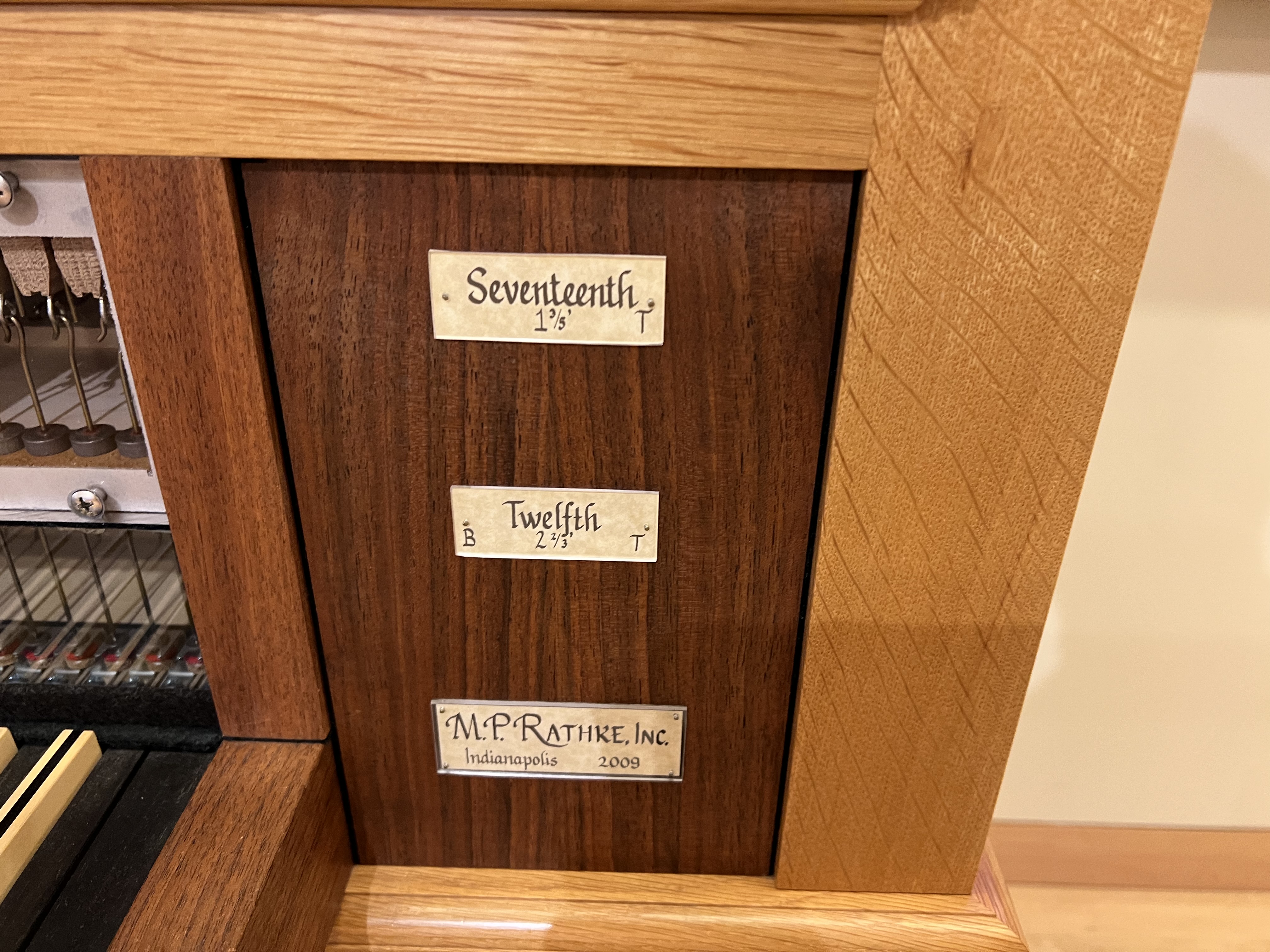

2022-06-22 - Right stop labels (Photograph by Steven Gautsch/Steven Gautsch)

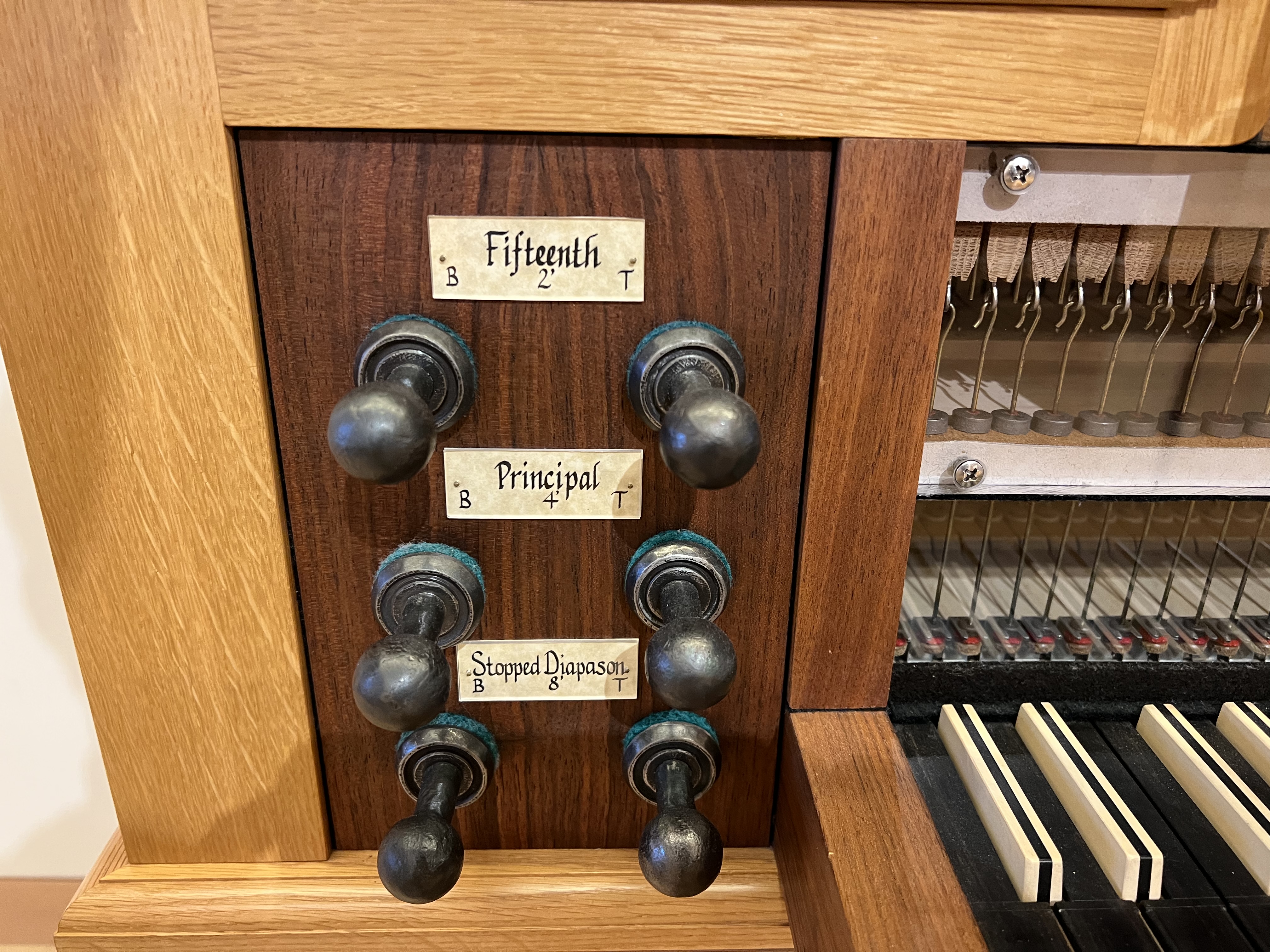

2022-06-22 - Left stop panel (Photograph by Steven Gautsch /Steven Gautsch)
2022-06-22 - Keyboard (Photograph by Steven Gautsch /Steven Gautsch)
2022-06-22 - Blower and reservoir (Photograph by Steven Gautsch/Steven Gautsch)
2022-06-22 - View of instrument (Photograph by Steven Gautsch/Steven Gautsch)

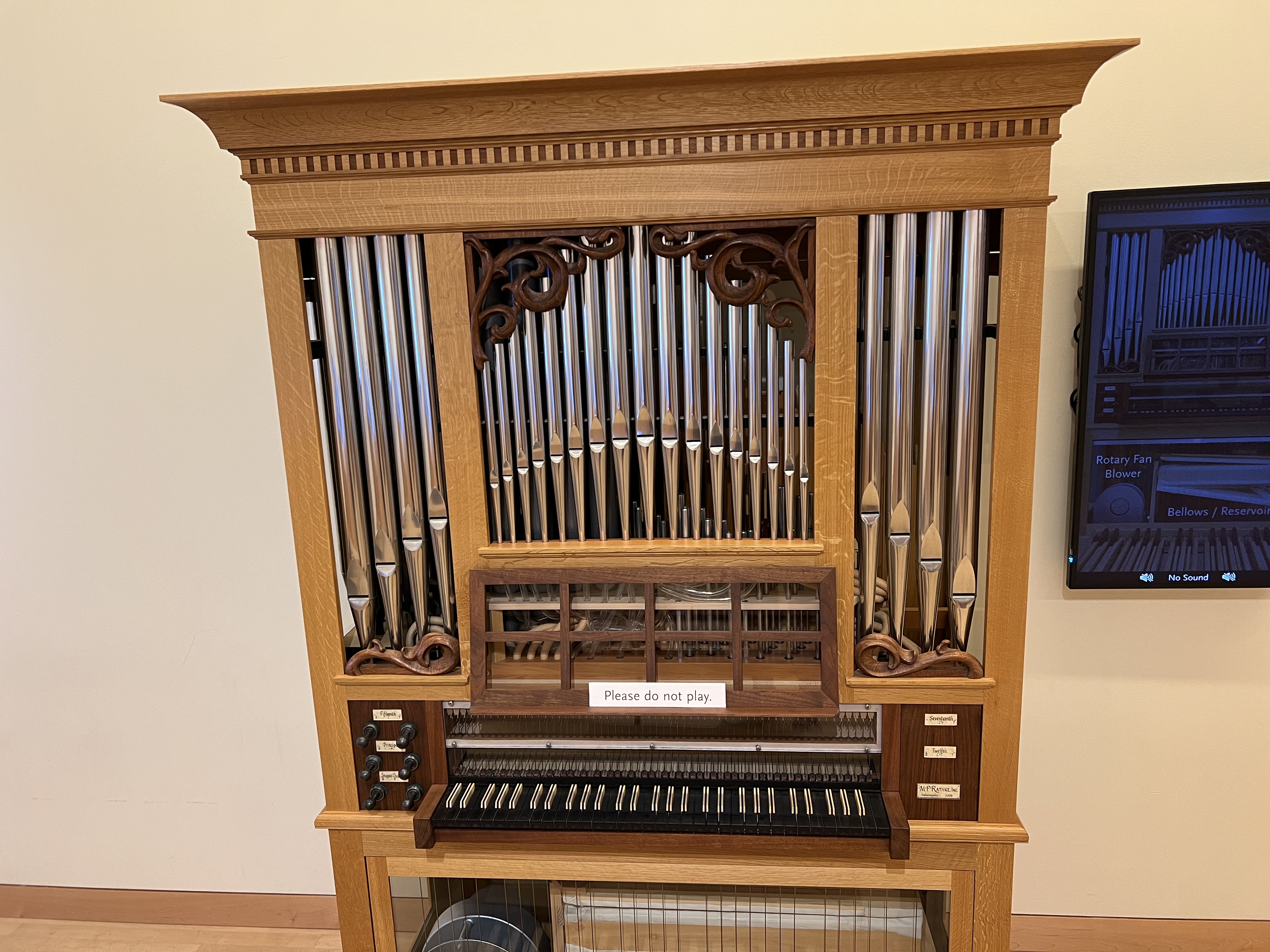

2022-06-22 - Front view of instrument (Photograph by Steven Gautsch /Steven Gautsch )
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Console in Fixed Position, Center
- 1 manuals
- 3 stops
- 6 registers
- 1 divisions
- Key action Type: Mechanical (Suspended Tracker)
- Stop action Type: Mechanical
- Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
- Manual compass: 61 notes
- Pedal compass: 30 notes
- Pedal Type: Flat Straight
- Expression Type: No Enclosed Divisions
- Combination action: None
Notes
2011-10-28 - Identified through online information from Clint Spell. -Database Manager
2012-05-23 - Updated through online information from James Gerber. -- The stops are labeled: Stopped Diapason, Principal, Fifteenth, (The fifteenth is a tapered stop, Gemshorn) The prepared stops are labeled: Twelfth and Seventeenth (not "Sesquialtera II"). -- pedal permanently coupled to the manual -Database Manager
2013-04-22 - Updated through online information from Michael Rathke. -Database Manager
Stoplist
Pedal: permanently coupled to manual
All stops divide treble/bass at middle C/C# Source: Copied from keydesk photos. Orig. submitted by Clint Spell
Manual Stopped Diapason T 8 (Treble of poplar & walnut), Stopped Diapason B 8 (Bass of spruce (primarily to reduce weight)), Principal T 4 (80% tin (10-32 in facade)), Principal B 4, Fifteenth B 2, Twelfth T 2 2/3 (Prepared for. No stop controls yet.), Fifteenth T 2 (spotted metal (retained from Marceau) ), Twelfth B 2 2/3, Seventeenth T 1 3/5
