Woodland Presbyterian Church: Sanctuary
5824 Berkley Drive
New Orleans, LA
Images

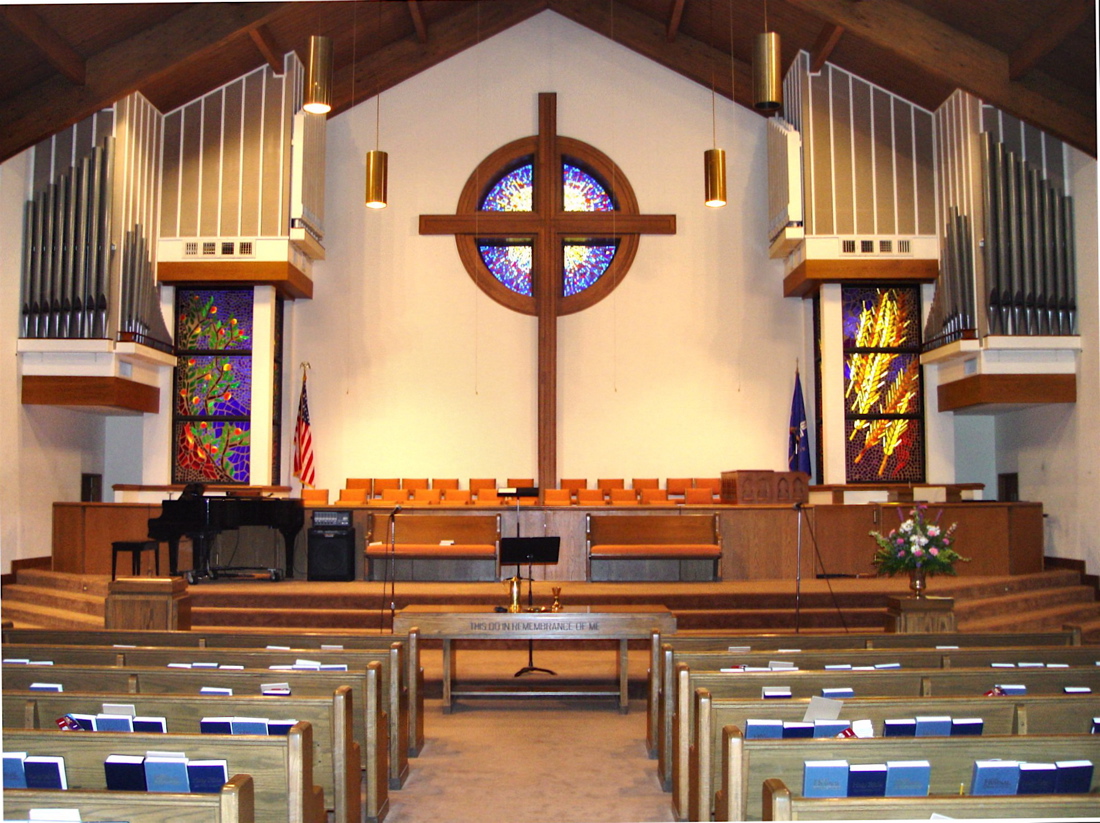

2004-01-21 - Sanctuary Interior, Chancel, and Pipe Displays (Photograph by John G. DeMajo/Database Manager)

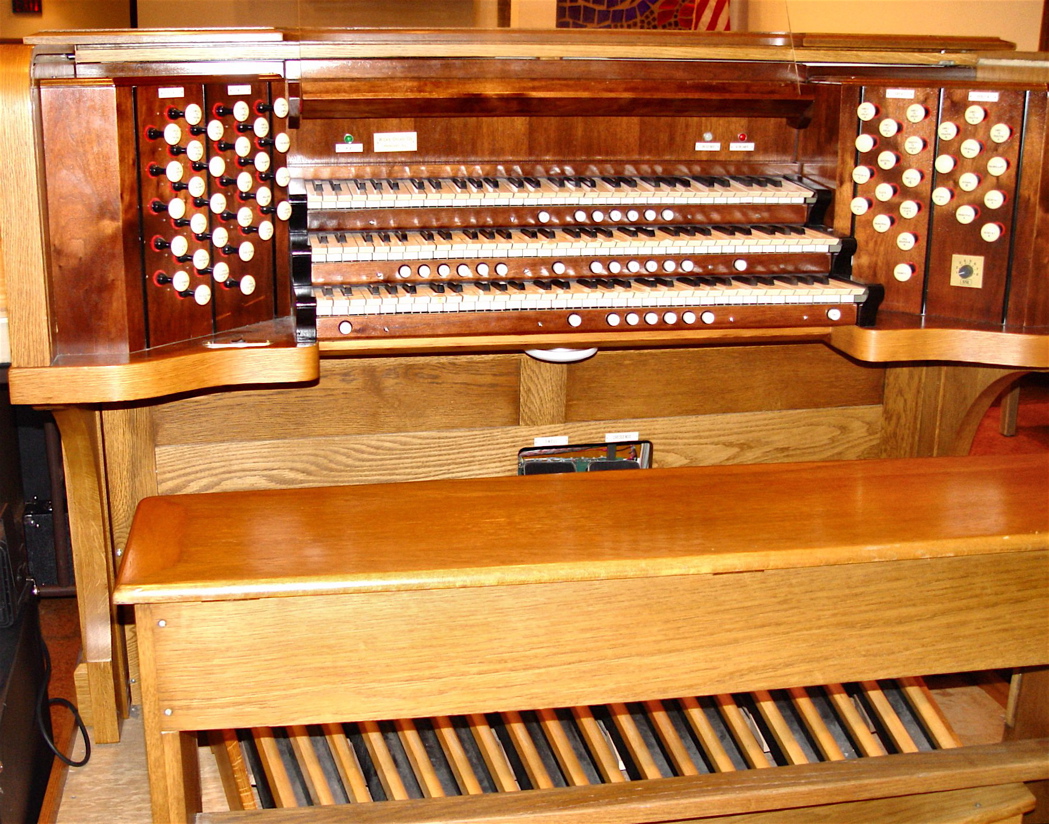

2004-01-21 - Console (Photograph by John G. DeMajo/Database Manager)
2004-01-21 - Left Stop Jamb (Photograph by John G. DeMajo/Database Manager)
2004-01-21 - Right Stop Jamb (Photograph by John G. DeMajo/Database Manager)
2004-01-21 - Right Chamber Grillework and Pipe Facades (Photograph by John G. DeMajo/Database Manager)
2004-01-21 - Church Exterior (Photograph by John G. DeMajo/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Right
- 3 manuals
- 34 stops
- 4 divisions
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Has combination thumb pistons
- Has coupler thumb pistons
- Has tutti thumb pistons
Notes
2012-01-31 - The organ uses materials from the 1947 Wicks organ that was at Holy Name of Jesus Church on the Loyola University campus in New Orleans. -Database Manager
Stoplist
Stoplist taken from the console 2004 Source: Source not recorded Date not recorded
New Orleans, Louisiana
Woodland Presbyterian Church
James J. Hammann, 1998
III/23
GREAT
16 Bourdon (Pos)
8 Principal
8 Harmonic Flute
4 Octave
4 Flute
2 2/3 Twelfth
2 Fifteenth
Mixture IV
Chimes
SWELL
8 Open Flute
8 Salicional
8 Voix Celeste (T.C)
4 Geigen Principal
4 Open Flute
2 2/3 Nazard
2 Flautina
1 3/5 Tierce
8 Trumpet
8 Oboe
Tremulant
POSITIV
8 Gedeckt
4 Principal
4 Gedeckt
2 Octave
Scharf III
8 Cremona
Tremulant
PEDAL
32 Resultant
16 Open Diapason
16 Subbass
16 Bourdon (Pos)
8 Principal
8 Flute
4 Octave
16 Trumpet
8 Trumpet (Sw)
4 Clarion (Sw)
[Received from Stephen Hall 2012-03-02.]
