Better Pipe Organ Database

Adam Stein, (Organ Works) (1902)

Raleigh Moravian Church
1816 Ridge Road
Raleigh, NC

Images

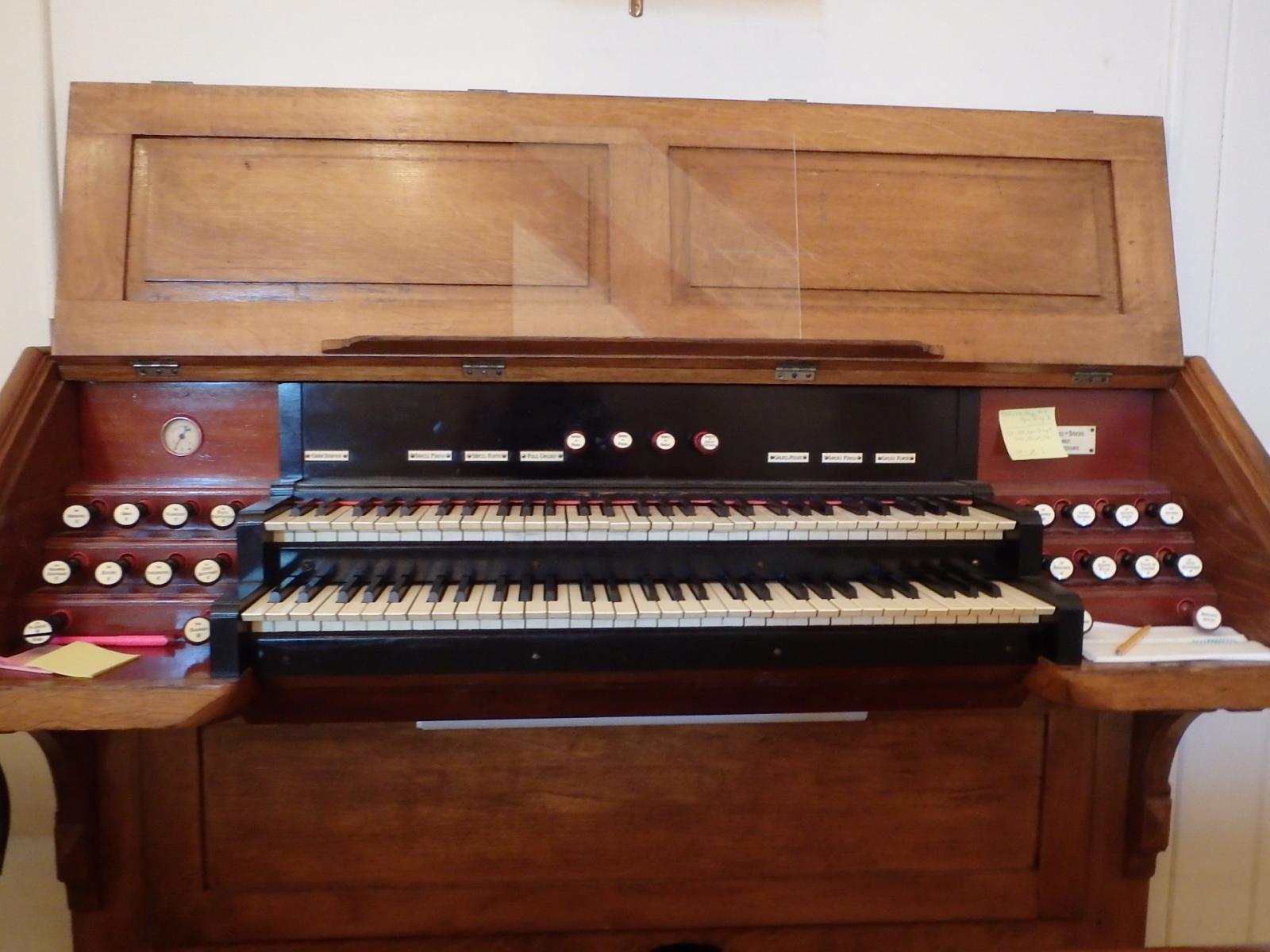

2016-03-29 - Keydesk (Photograph by Renee McBride/Database Manager)

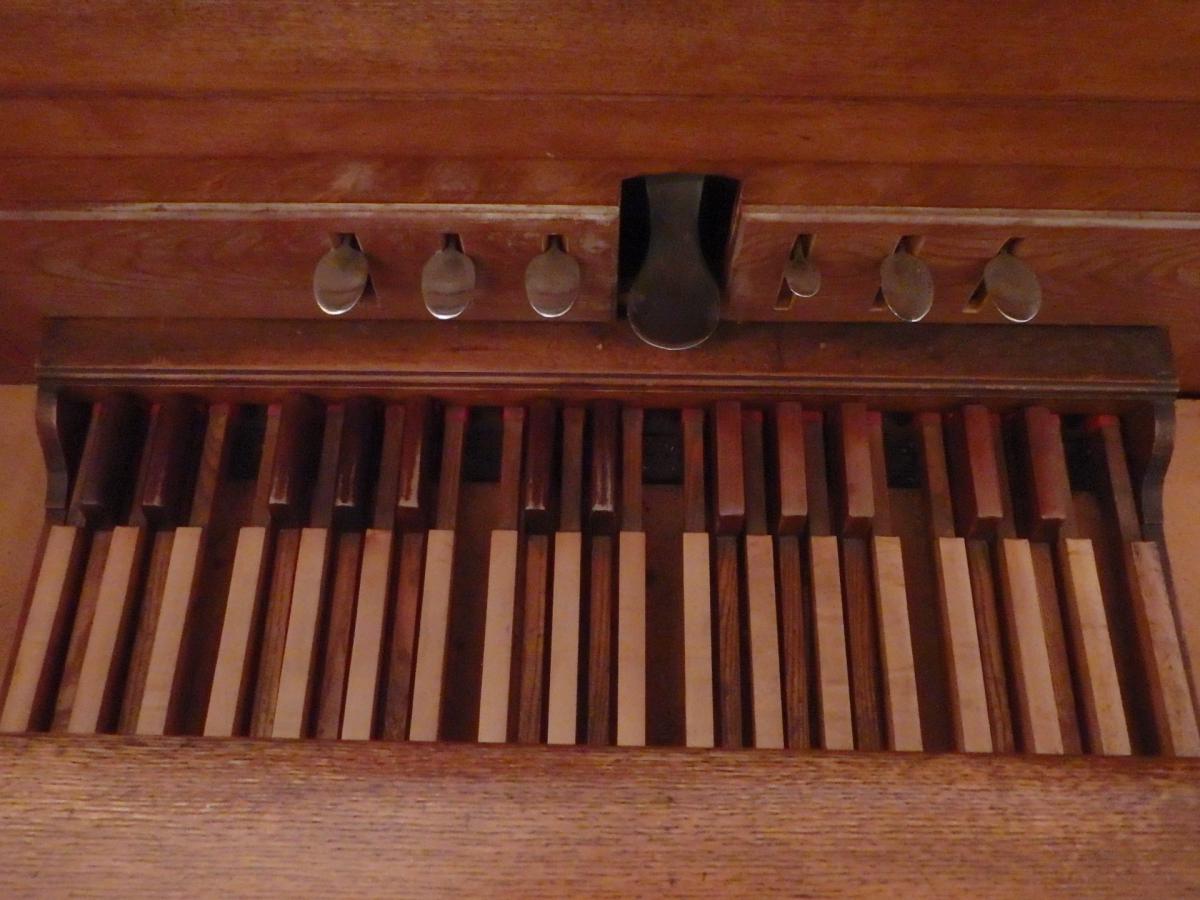

2016-03-29 - Pedalboard (Photograph by Renee McBride/Database Manager)

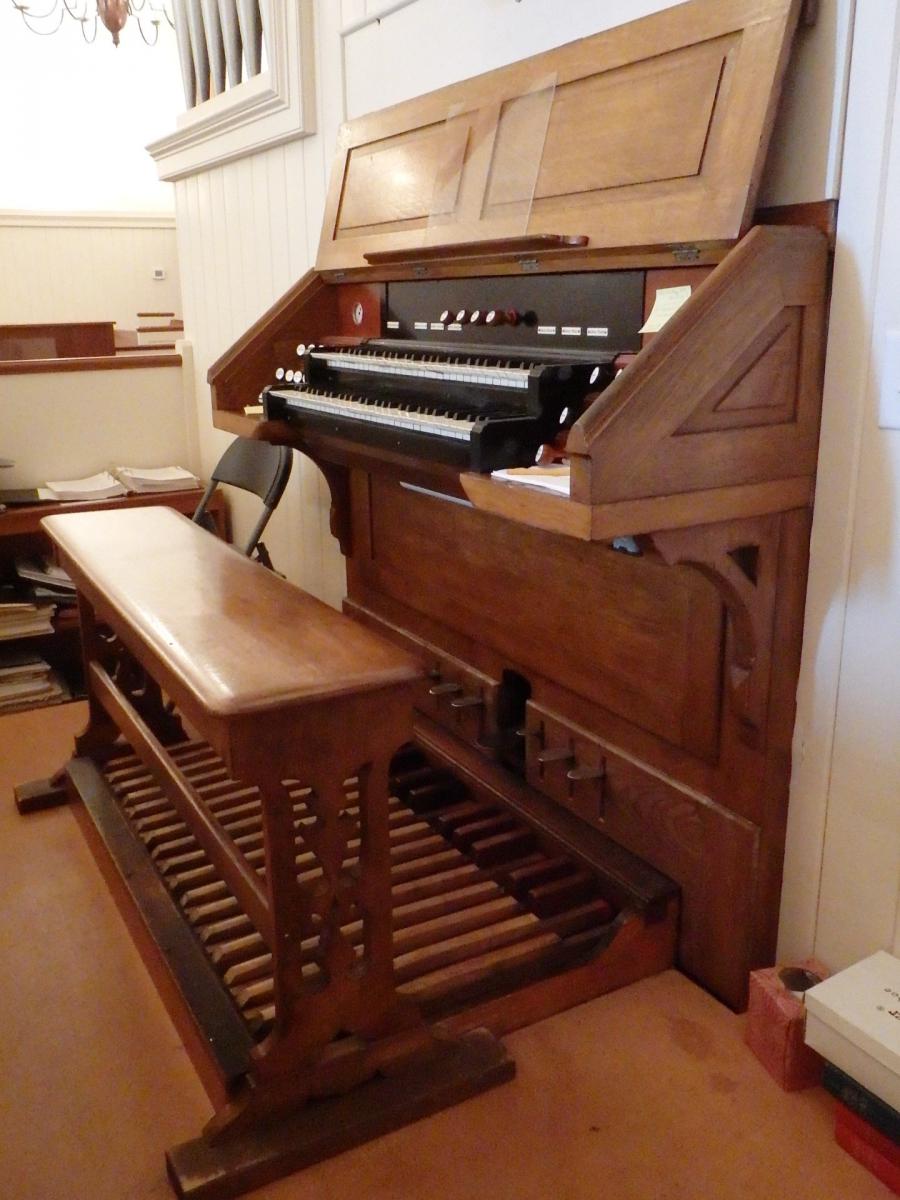

2016-03-29 - Keydesk (Photograph by Renee McBride/Database Manager)

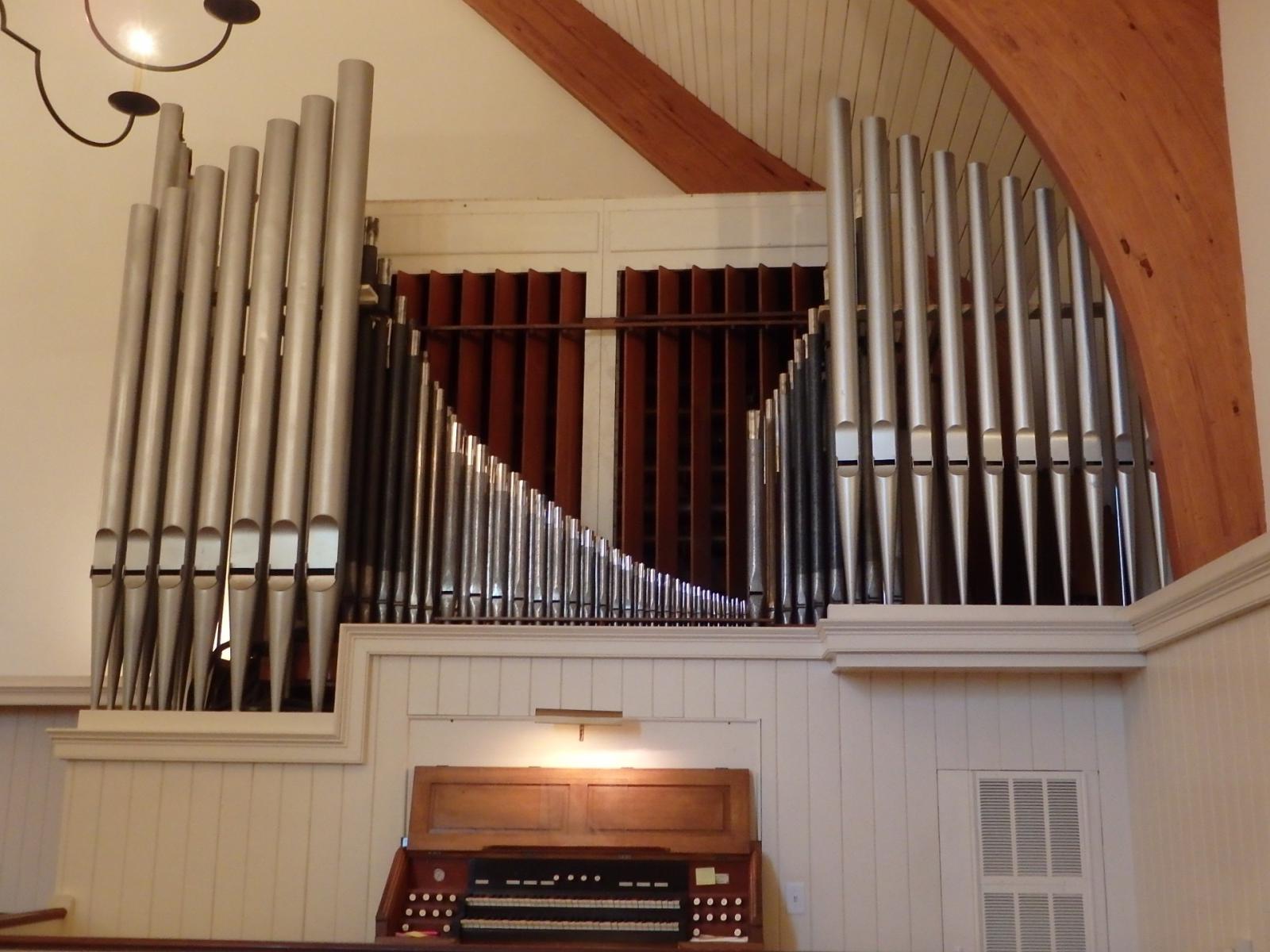

2016-03-29 - Keydesk and Pipe Display (Photograph by Renee McBride/Database Manager)

Consoles

Main

Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
Console position: Keydesk Attached
2 manuals
18 stops
17 registers
3 divisions
Key action Type: Mechanical (Suspended Tracker)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 61 notes
Pedal compass: 30 notes
Pedal Type: Flat Straight
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: Adjustable Mechanical

Notes

2012-06-13 - Updated through online information from Geoffrey Simon. -- Organ is on the back right-hand side of the room. Pedal Bourdon and the four Great 8' ranks are exposed. Remainder of Great enclosed with Swell ranks. -Database Manager

2015-01-08 - Updated through online information from Geoffrey Simon. -Database Manager

Stoplist

Stoplist taken from console 2012 Source: Source not recorded Date not recorded

Raleigh, North Carolina
Raleigh Moravian Church

Adam Stein, 1902

         Great                     Swell                     Pedal
    8' Open Diapason          16' Bourdon (1-12)        16'  Bourdon
    8' Viola di Gamba         16' Bourdon (13-58)
    8' Doppel Flote            8' Open Diapason
    8' Dulciana                8' Stopped Diapason
    4' Octave                  8' Aeoline
2 2/3' Octave Quint            8' Salicional
    2' Super Octave            4' Flute Harmonique
    8' Trumpet                 2' Flageolet
                               8' Bassoon (1-12)
   Swell Tremulant             8' Oboe (13-58)
   Bellows Signal (disconnected)

Suspended Action
Manuals: 61 notes
Pedal:   30 notes

Couplers:  Great to Pedal, Swell to Pedal
           Swell to Great, Swell to Great Octave

Combination Pedals:  SWELL PIANO / SWELL FORTE / FULL ORGAN (left of Swell Pedal)
                     GREAT TO PEDAL / GREAT PIANO / GREAT FORTE  (right of Swell Pedal)

 [Received from Geoffrey Simon 2012-06-13.]
