Better Pipe Organ Database

Owner (2000)

Heritage Netherlands Reformed Congregation: Sanctuary
540 Crescent Street NE
Grand Rapids, MI

Images

2012-07-18 - Left Drawknobs (Photograph by Chad Boorsma/Database Manager)

2012-07-18 - Right Drawknobs (Photograph by Chad Boorsma/Database Manager)

2012-07-18 - Church Exterior (Photograph by Chad Boorsma/Database Manager)

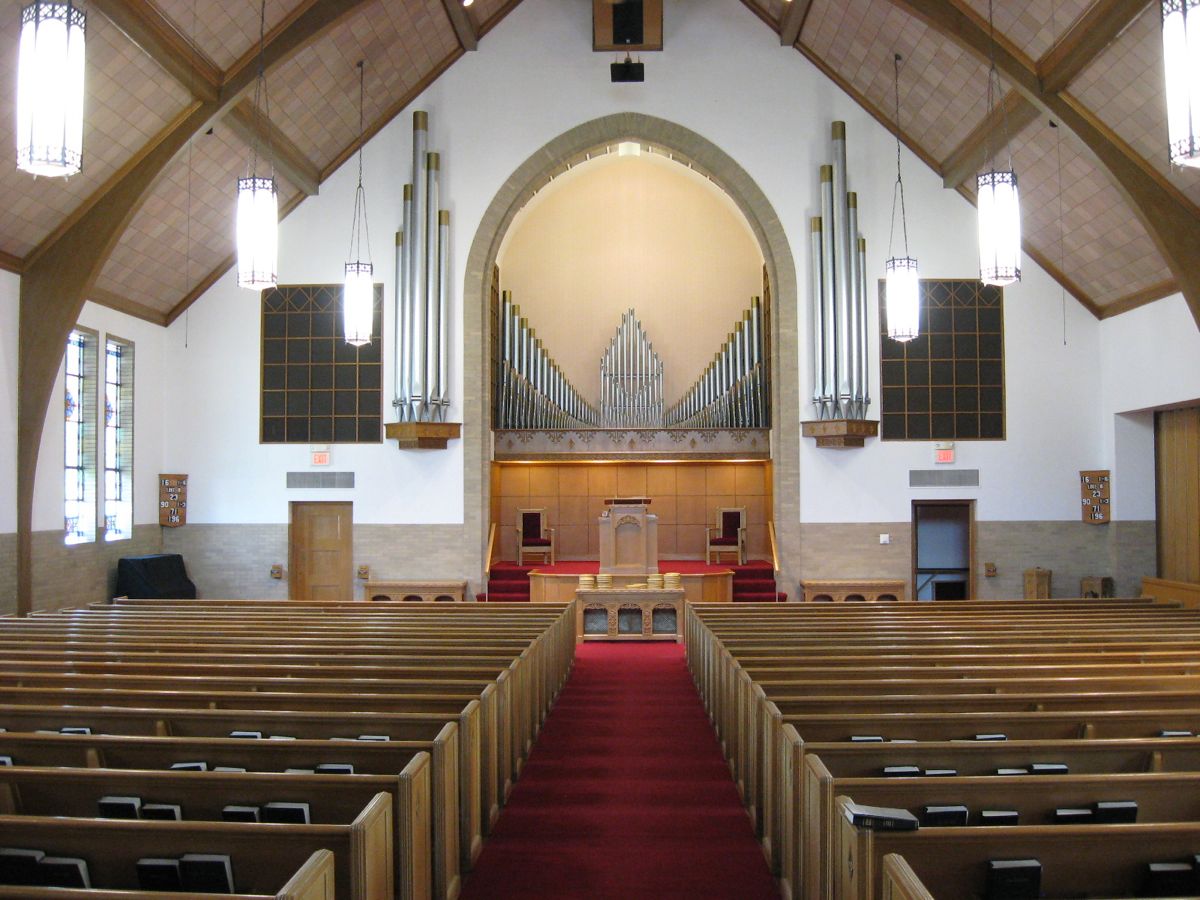

2012-07-18 - Sanctuary Interior, Chancel, and Pipe Display (Photograph by Chad Boorsma/Database Manager)

2012-07-18 - Chancel and Pipe Display (Photograph by Chad Boorsma/Database Manager)

2012-07-18 - Pipe Display (Photograph by Chad Boorsma/Database Manager)

2012-07-18 - Sanctuary Interior, Chancel, and Pipe Display (Photograph by Chad Boorsma/Database Manager)

2012-07-18 - Nave, Balcony, and Console (Photograph by Chad Boorsma/Database Manager)

2012-07-18 - Console (Photograph by Chad Boorsma/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
3 manuals
50 stops
4 divisions
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons

Notes

2012-07-19 - The project was an expansion of the church's 1951 Möller organ and took 12 years to complete. The congregation purchased a 1961 Wicks organ (Opus 4095) from North Park University and combined the two organs, using the Wicks console, which is located in the balcony. The Wicks instrument also includes pipework from the University's previous Möller organ (Opus 6688). Much of the work, including the chancel pipe display, was completed by members of the congregation, but other parts of the project were done by Lauck Pipe Organ Company. -Database Manager

Stoplist

Stoplist taken from the console (July 18, 2012) Source: Source not recorded Date not recorded

Grand Rapids, Michigan
HERITAGE NETHERLANDS REFORMED CONGREGATION

Organ by Owner     36 ranks      2000
__________________________________________________________________

GREAT:                            SWELL:
    8' Diapason 61                   16' Gedeckt 61
    8' Doppelflute 61                 8' Geigen Principal 61
    8' Spillflute 61                  8' Chimney Flute 61
    4' Octave 61                      8' Viol de Gamba 61
    4' Koppeflute 61                  8' Voix Celeste [TC] 49
2 2/3' Twelfth 61                     4' Geigen Octave 61
    2' Fifteenth 61                   4' Rohrflute 12
  III  Fourniture 183                 2' Piccolo 61
    8' Festival Trumpet 61          III  Plein Jeu 183
    4' Clarion 12                    16' Double Trumpet 12
                                      8' Trumpet 61
PEDAL:                                8' Vox Humana 61
   32' Untersatz                      4' Clarion 12
   32' Gedeckt [digital]                 Tremulant
   16' Diapason 12 [GT]
   16' Open Wood 32               CHOIR:
   16' Bourdon 32                     8' Diapason 61
   16' Gedeckt [SW]                   8' Melodia 61
    8' Octave 32                      8' Spitzflute 61
    8' Bourdon 12                     8' Flute Celeste 61
    8' Rohrgedeckt [SW]               8' Viola 61
5 1/3' Quint                          8' Viola Celeste [TC] 49
    4' Choral Bass 12                 4' Principal 61
   II  Mixture [CH]                   4' Spitzflute 12
   16' Trombone [SW]              2 2/3' Nazard 61
    8' Trumpet [SW]                   2' Blockflute 61
    4' Clarion [SW]               1 3/5' Tierce 7
                                      8' Oboe 61
                                         Tremulant

[Received online from Chad Boorsma • July 19, 2012]
