Union Evangelical Lutheran Church
408 W. Market St.
York, PA
Images
2019-10-18 - Sanctuary interior (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Sanctuary interior from floor (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Sanctuary interior to rear (Photograph by Jeff Scofield/Database Manager)

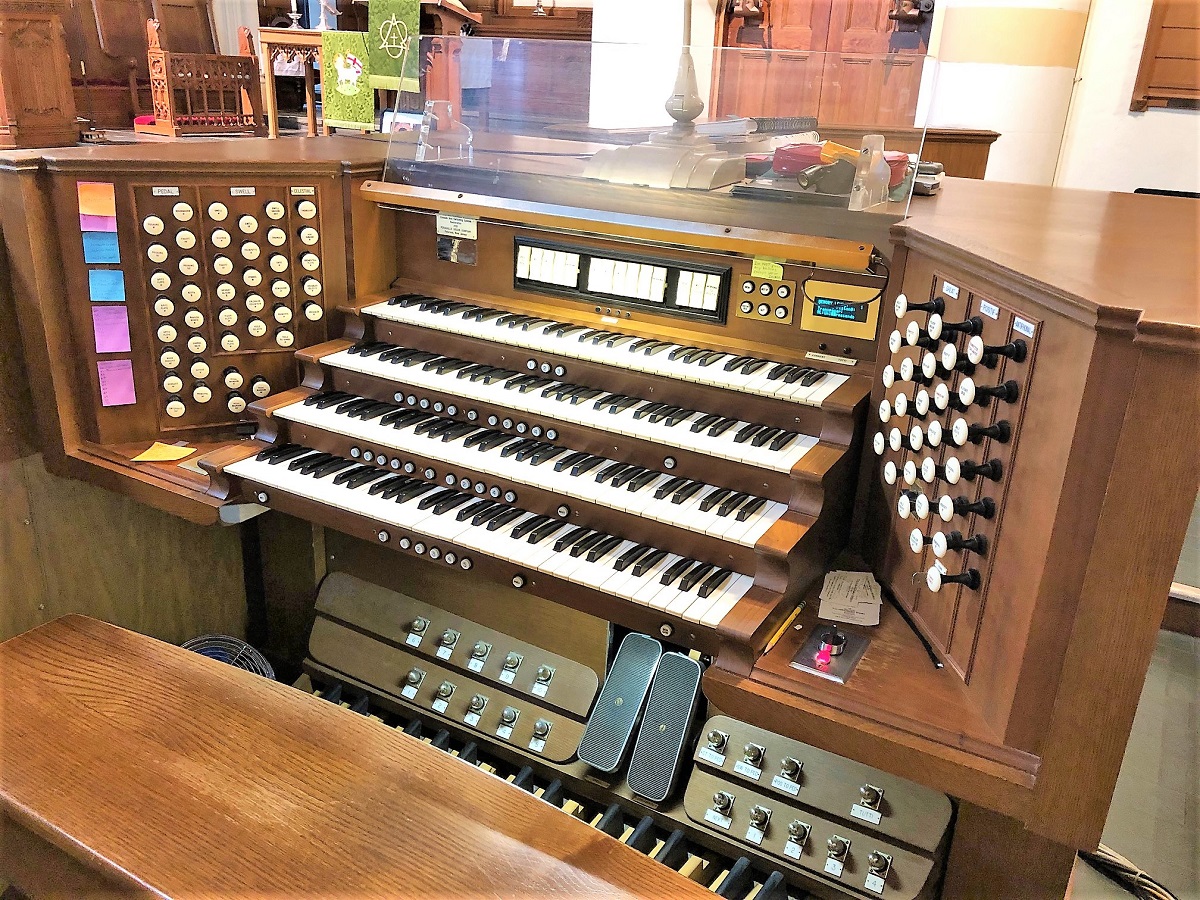

2019-10-18 - Console (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Left Stopjamb (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Builder name plates (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Facade pipes and choirloft (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Console and chancel (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Right Stopjamb (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Facade pipes and exposed pipes (Photograph by Jeff Scofield/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Movable Console
- 4 manuals
- 63 stops
- 34 registers
- 6 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Computerized/Digital
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2012-08-30 - Identified through online information from Scott Crowell. -- 2000 digital additions by Walker to existing the Möller organ that was previously refurbished in 1990 by Peragallo. Digital voices were for the antiphonal and celestial divisions. The organ is scheduled to be restored in the near future. -Database Manager
Stoplist
Source: Stoplist copied from the console October 26, 2019 and the Moller factory specifications Date not recorded
York, Pennsylvania
Union Lutheran Church
Möller Op. 10519 1969 4/46
Peragallo 1990 Refurbishment
Walker 2000 Digital additions
_________________________________________________
GREAT SWELL
16' Quintaton 61 8' Rohrflöte 61
8' Principal 61 8' Viole de Gambe 61
8' Bourdon 61 8' Viole Celeste 61
4' Octave 61 8' Erzähler Cel II 110
4' Spitzflöte 61 4' Principal 61
2' Super Octave 61 4' Flachflöte 61
IV-V Mixture 293 2' Gemshorn 61
8' Trompete 61 II Sesquialtera 122
Unison Off III Cymbel 183
Chimes 16' Fagott 61
8' Trompette 61
POSITIF 8' Oboe
4' Clairon 61
8' Holzgedeckt 61 Tremolo
8' Erzähler Cel II SW Sub
4' Principal 61 Unison Off
4' Koppelflöte 61 Super
2' Blockflöte 61
1 1/3' Quint 61 PEDAL
1' Sifflöte 61
III-IV Scharf 232 32' Bourdon 7
8' Krummhorn 61 32' Untersatz res
Tremolo 16' Principal 32
Sub 16' Subbass 32
Unison Off 16' Bourdon
16' Rohrgedeckt 12 SW
ANTIPHONAL 8' Octave 12
8' Principal 8' Spitzflöte 32
8' Gedeckt 8' Bourdon
4' Principal 4' Choral Bass 32
2' Waldflöte 4' Spitzflöte 12
II-IV Mixture 2' Spitzflöte 12
8' Trompette-en-Chamade II Rauschquinte 64
Chimes II Acuta 24
32' Posaune 12
CELESTIAL 16' Posaune 32
16' Fagott SW
8' Erzähler 8' Posaune 12
8' Erzähler Celeste 4' Krummhorn PO
4' Orchestral Flute
8' Vox Humana
Tremulant
[Received from Jeff Scofield October 26, 2019]
