W. Zimmer & Sons, Inc. Opus 170 (1976)

Trinity Moravian Church: Sanctuary
220 East Sprague Street
Winston-Salem, NC

Images

2014-11-30 - Chancel and Pipe Facade (Photograph by Jonathan G. Sidden/Database Manager)

Unknown - Pipe Facade and Chamber Grillework ((2014) Photograph by Tom Lewtak/Database Manager)

Unknown - Expression Pedal, Toe Studs, and Pedalboard ((2014) Photograph by Tom Lewtak/Database Manager)

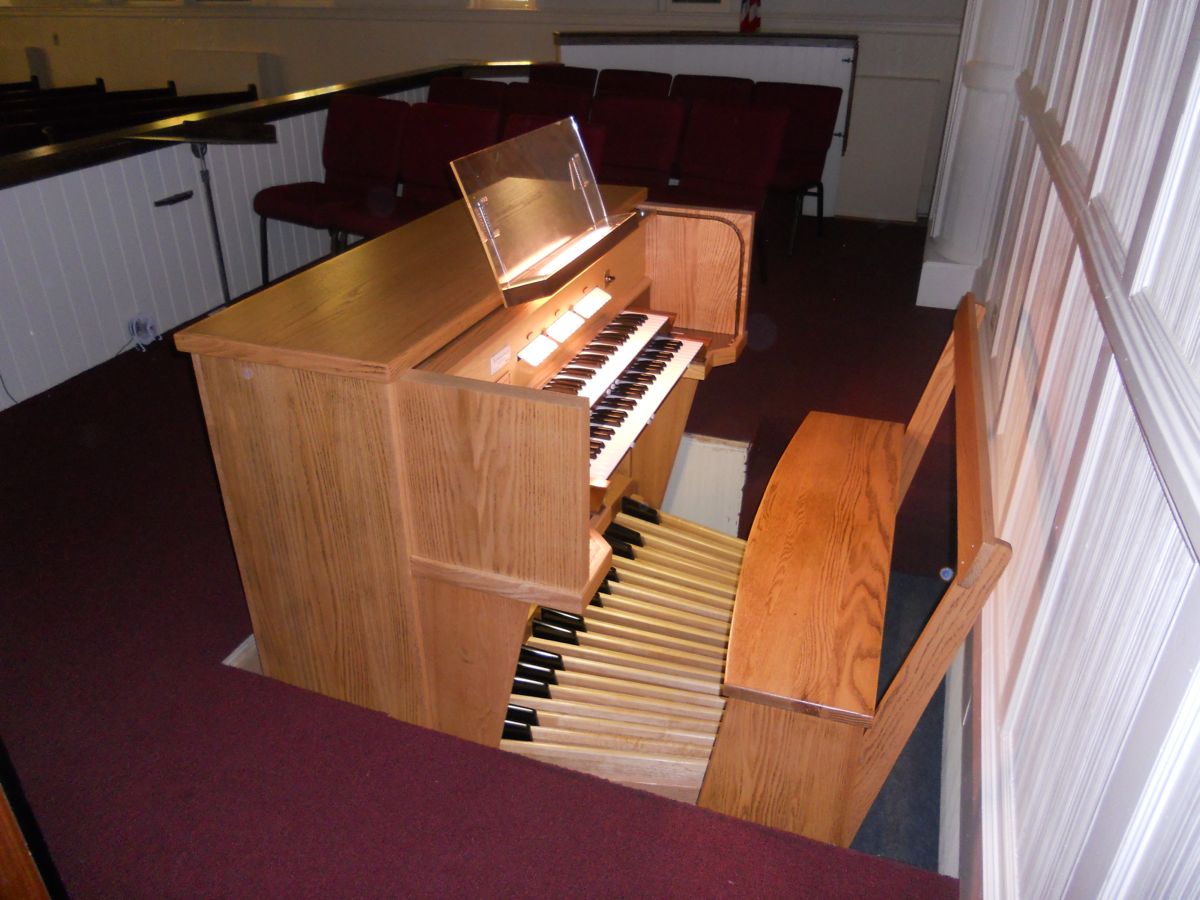

2014-03-11 - Console (Photograph by John Foltz/Database Manager)

2014-03-11 - Great Stopkeys (Photograph by John Foltz/Database Manager)

2014-03-11 - Builder's Nameplate (Photograph by John Foltz/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
2 manuals
16 stops
16 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler toe pistons

Notes

2012-11-08 - This entry describes an original installation of a new pipe organ. Identified by Phillip Lamb, based on personal knowledge of the organ. -- -Database Manager

2014-02-20 - Updated through online information from Phillip Lamb. -- Complete cleaning, restoration and re-voicing work undertaken by Tom Lewtak in February of 2014. -Database Manager

Stoplist

Source: Taken from the console during my 4 years as organist at this church Date not recorded

Winston-Salem, North Carolina
Trinity Moravian Church

W. Zimmer & Sons, Inc., Opus 170, 1976

       GREAT - I
8'     Principal
8'     Gedackt
4'     Octave
2'     Blockflöte
II     Sesquialtera (t.c.)
IV     Mixture  1-1/3'
       Chimes

       SWELL (Expressive) - II
8'     Rohrflöte
8'     Gemshorn
4'     Koppelflöte
2'     Principal
1-1/3' Quint
8'     Schalmei
       Tremulant

       PEDAL
16'    Subbass
8'     Octave
4'     Choralbass
16'    Fagott

COUPLERS
Swell to Pedal 8'
Great to Pedal 8'

Swell to Great 8'
Swell to Great 4'

FINGER PISTONS
General                        1 - 5
Sw  Ped                        (rev)
Gt  Ped                        (rev)
Gen Can

TOE STUDS
General                        1 - 5
Great  Ped                     (rev)
Swell  Ped                     (rev)
???

PEDAL MOVEMENTS
Swell Expression              (bal.)

Zimbelstern


[Received from Phillip Lamb 2012-11-13.]
