Better Pipe Organ Database

Patrick J. Murphy & Associates Organbuilders Opus 59 (2012)

Images

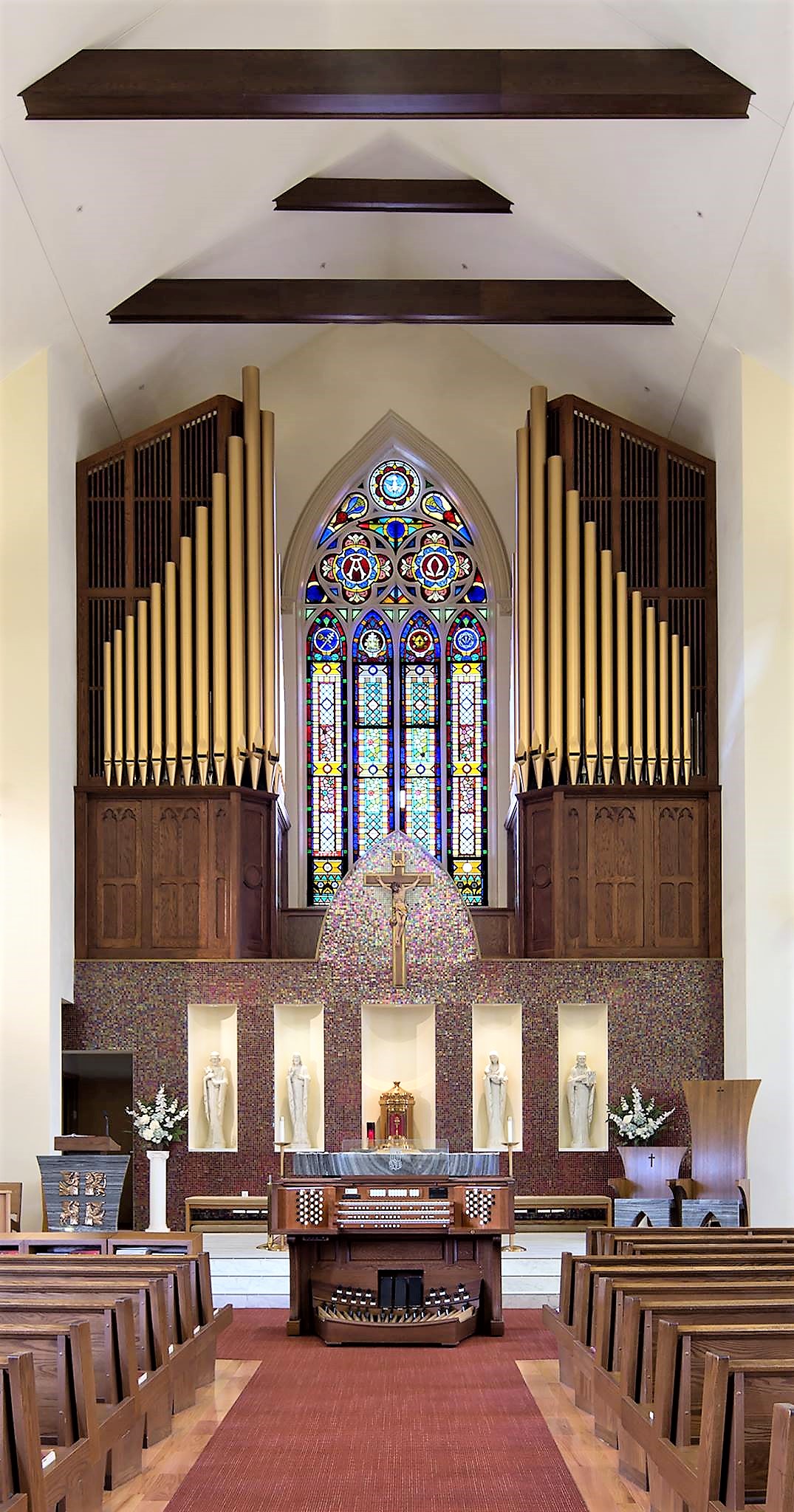

Unknown - Church interior and organ (Photograph by Phil Maye, via Patrick J Murphy, submitted by Jeff Scofield/Jeff Scofield)

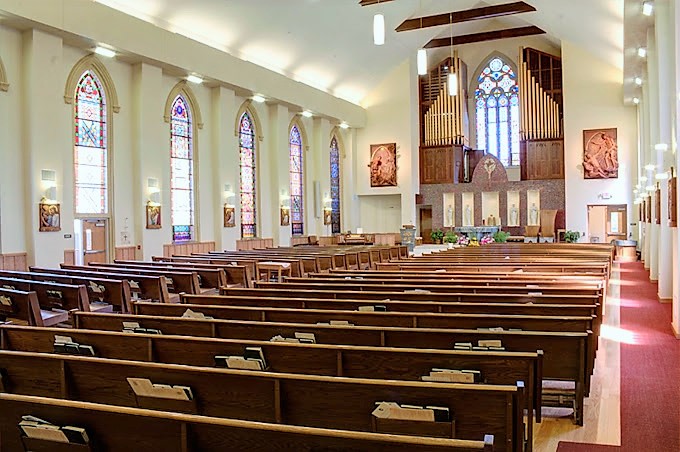

2023 - Church interior and organ (Photograph by Gabriel Ratliff, submitted by Jeff Scofield/Jeff Scofield)

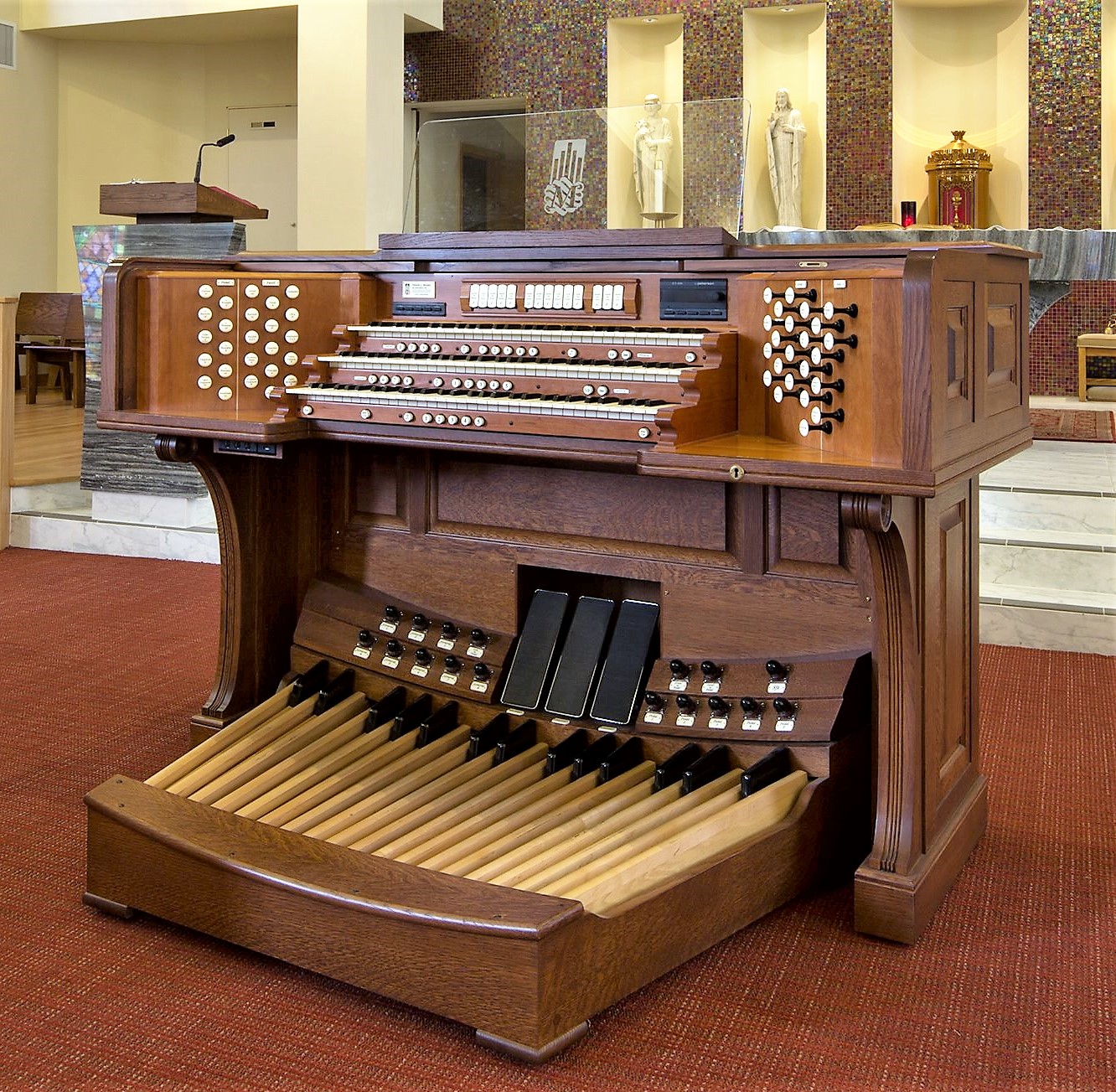

Unknown - Console (Photograph by Phil Maye, via Patrick J Murphy, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

• Organ type: Traditional With Roll Top
• Console position: Movable Console
• 3 manuals
• 22 stops
• 4 divisions
• Key action Type: Electrical
• Stop action Type: Electrical
• Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
• Manual compass: 61 notes
• Pedal compass: 32 notes
• Pedal Type: Concave Radiating (Meeting AGO Standards)
• Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
• Combination action: Computerized/Digital
• Has sequencer

Notes

2013-01-25 - This entry describes an original installation of a new pipe organ. Identified by T. Daniel Hancock, using information found in "Recent Installations." The American Organist, Vol. 46, No. 10 [October 2012], p.100. -- -Database Manager

2014-07-03 - Updated through online information from Nicholas Will. -Database Manager

Stoplist

Typed stoplist (Source: Patrick J. Murphy website, 2013-01-28) Source: Source not recorded Date not recorded

  Parish of St. Elizabeth Ann Seton
  Carnegie, Pennsylvania
  Patrick J. Murphy & Associates, Opus 59, 2012
  OHS ID: 50906
__________________________________________________________________________________________
  GREAT                   SWELL                   SOLO                   PEDAL
16 Bourdon              8 Violin Diapason       8 Hohlflute (Gt)      32 Resultant
 8 Diapason             8 Stopped Diapason      8 Chimney Flute (Gt)  16 Open Diapason [1]
 8 Principal [1]        8 Viola da Gamba        8 Dulciana            16 Bourdon
 8 Chimney Flute        8 Viola Celeste         8 Unda Maris           8 Diapason [1]
 8 Viola da Gamba (Sw)  4 Principal             4 Chimney Flute (Gt)   8 Bourdon
 4 Octave [1]           4 Harmonic Flute    2-2/3 Cornet III           4 Super Octave [1]
 4 Hohlflute        2-2/3 Twelfth               8 Clarinet            16 Posaune
 2 Fifteenth            2 Flautino              8 Trumpet (Gt)        16 Bassoon
   Fourniture V     1-1/3 Nineteenth              Tremulant            8 Trumpet
16 Bassoon (Sw)        16 Bassoon                                      4 Clarion
 8 Trumpet              8 Trompette
                        8 Oboe
                          Tremulant

   NOTES
1. Unenclosed.
2. Contains most typical inter-manual and intra-manual coouplers.
3. Peterson ICS-4000 includes transposer with playback features and 99 levels of memory.
4. According to Organbuilder website, "22 stops of carefully selected repurposed pipework
   rescaled and voiced . . . "
__________________________________________________________________________________________
[Received online from T. Daniel Hancock, 2012-01-28]

Websites

• Opus 59, Parish of Elizabeth Ann Seton, Carnegit, PA - Photograph, description, stoplist (Check Internet Archive, archive.is)
