Residence: Santoianni/Slade
Durham, NC
Images
1992-11-05 - Organ Case (before restoration) (Photograph by John Santoianni/Database Manager)
1992-11-05 - Manual and Right Drawknobs (Photograph by John Santoianni/Database Manager)

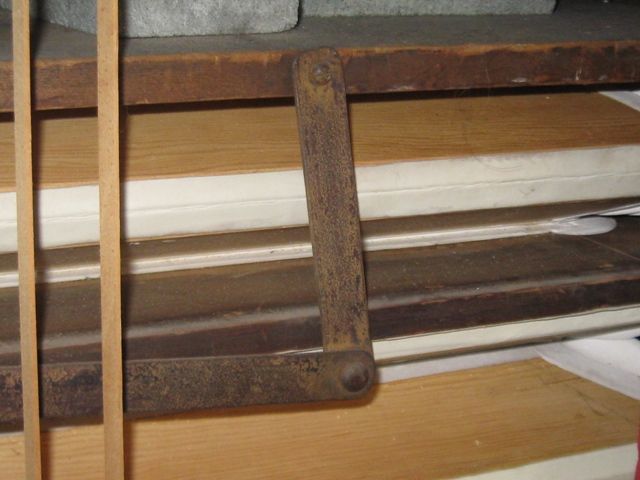

1997-06-01 - Rollerboard (C side) (Photograph by John Santoianni/Database Manager)
1997-06-01 - Trundles (Photograph by John Santoianni/Database Manager)

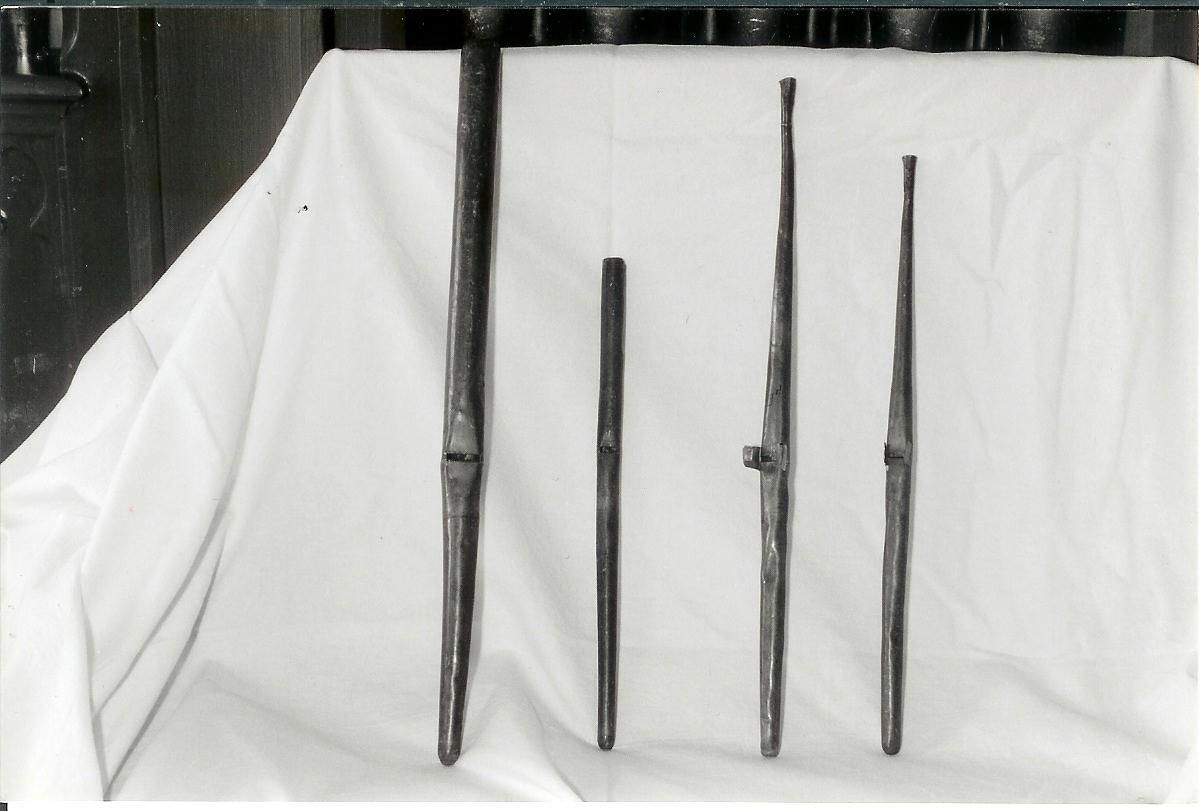

1997-04-10 - Original Pipework (Photograph by John Santoianni/Database Manager)
1997-04-10 - Original Pipework (Photograph by John Santoianni/Database Manager)
1997-06-01 - Right Drawknobs (Photograph by John Santoianni/Database Manager)
1997-04-10 - Pedal Pipe (low C) (Photograph by John Santoianni/Database Manager)
2013-05-08 - Gedeckt Pipe (low B) (Photograph by John Santoianni/Database Manager)
2013-05-08 - Bung Board (Photograph by John Santoianni/Database Manager)
2013-05-08 - Pallet Box (Photograph by John Santoianni/Database Manager)
2013-05-08 - Double-Fold Reservoir (Photograph by John Santoianni/Database Manager)
2013-05-08 - Restored Organ Case (Photograph by John Santoianni/Database Manager)
Consoles
Main
- Organ type: Traditional With Hinged Doors That Enclose Keyboards
- Console position: Keydesk Attached, Manuals Set Into Case
- 1 manuals
- 6 stops
- 2 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Mechanical
- Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
- Manual compass: 54 notes
- Pedal compass: 12 notes
- Pedal Type: Flat Straight
- Expression Type: No Enclosed Divisions
- Combination action: None
Notes
2013-05-17 - This entry describes alterations to an existing organ.
Identified by John Santoianni, based on personal knowledge of the organ.
-- The instrument was given to me in 1992 by Jim Lauck of Otsego, MI, who had purchased it years before at a flea market. Most of the original metal pipework was missing, save 20 pipes or so, as was the majority of the natural key coverings. Most of the wooden pipes (pedal Gedekt 8, bass of the manual Gedekt 8, Principal 4, Flöte 4) were extant. Only two of the six stop faces were with the organ.<br>The original location of the organ is unknown. Case and console details are very much like the organ at St. Francis Xavier Church in Falmouth, KY. -Database Manager
2013-05-23 - Updated through online information from John Santoianni. -- The 12 note pedal ventil cone chest is attached to the rear of the case. -Database Manager
Stoplist
Stoplist taken from console May 2013 Source: Source not recorded Date not recorded
Durham, NC
Santoianni/Slade residence
Mathias Schwab, 1854
Single manual Pedal
8 Gedekt (tenor f) 41 pipes (wood) 8 Gedekt 12 pipes
8 Violin (tenor f) 41 pipes (metal)
8 Gedekt Bass (C-tenor e) 13 pipes (wood)
4 Principal 54 pipes (1-12 wood, remainder metal)
4 Flöte 54 pipes (Rohrflute, 1-5 wood, remainder metal)
[Received from John Santoianni 2013-05-20.]
