Hann-Wangerin-Weickhardt Co. (1909)

Images

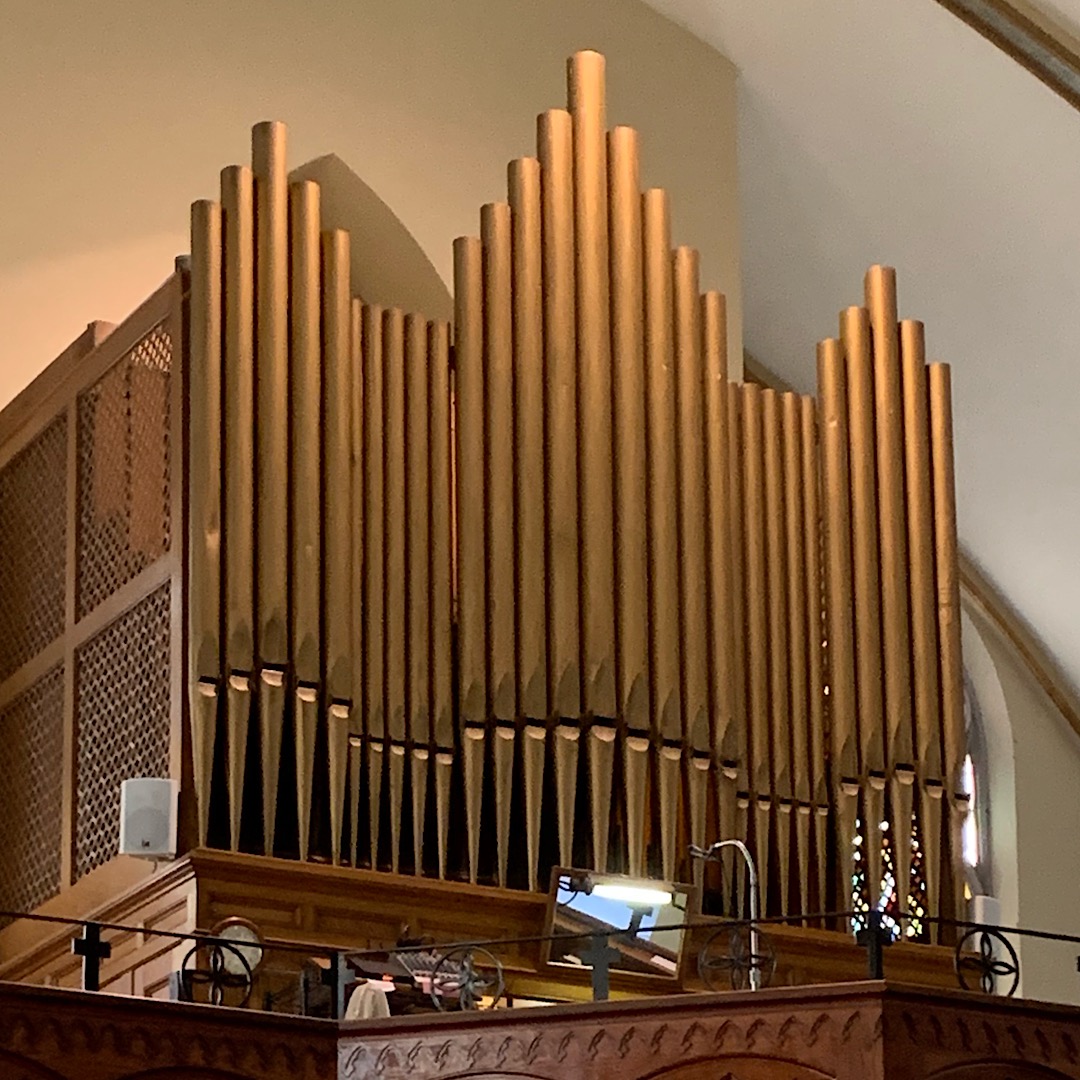

2019-10-17 - Organ Case (Photograph by Thad Reynolds/Database Manager)

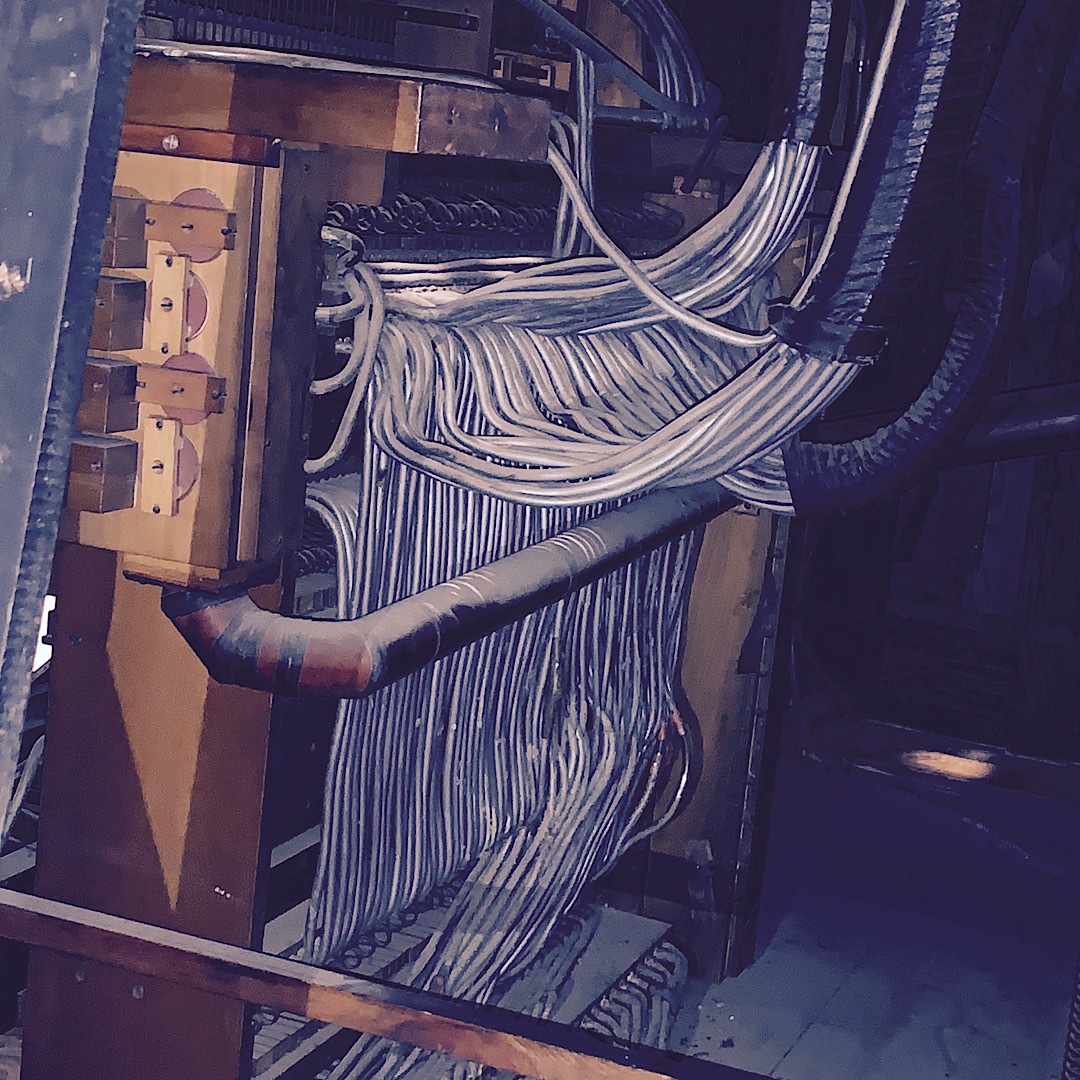

2019-10-17 - Pneumatic Tubing (Photograph by Thad Reynolds/Database Manager)

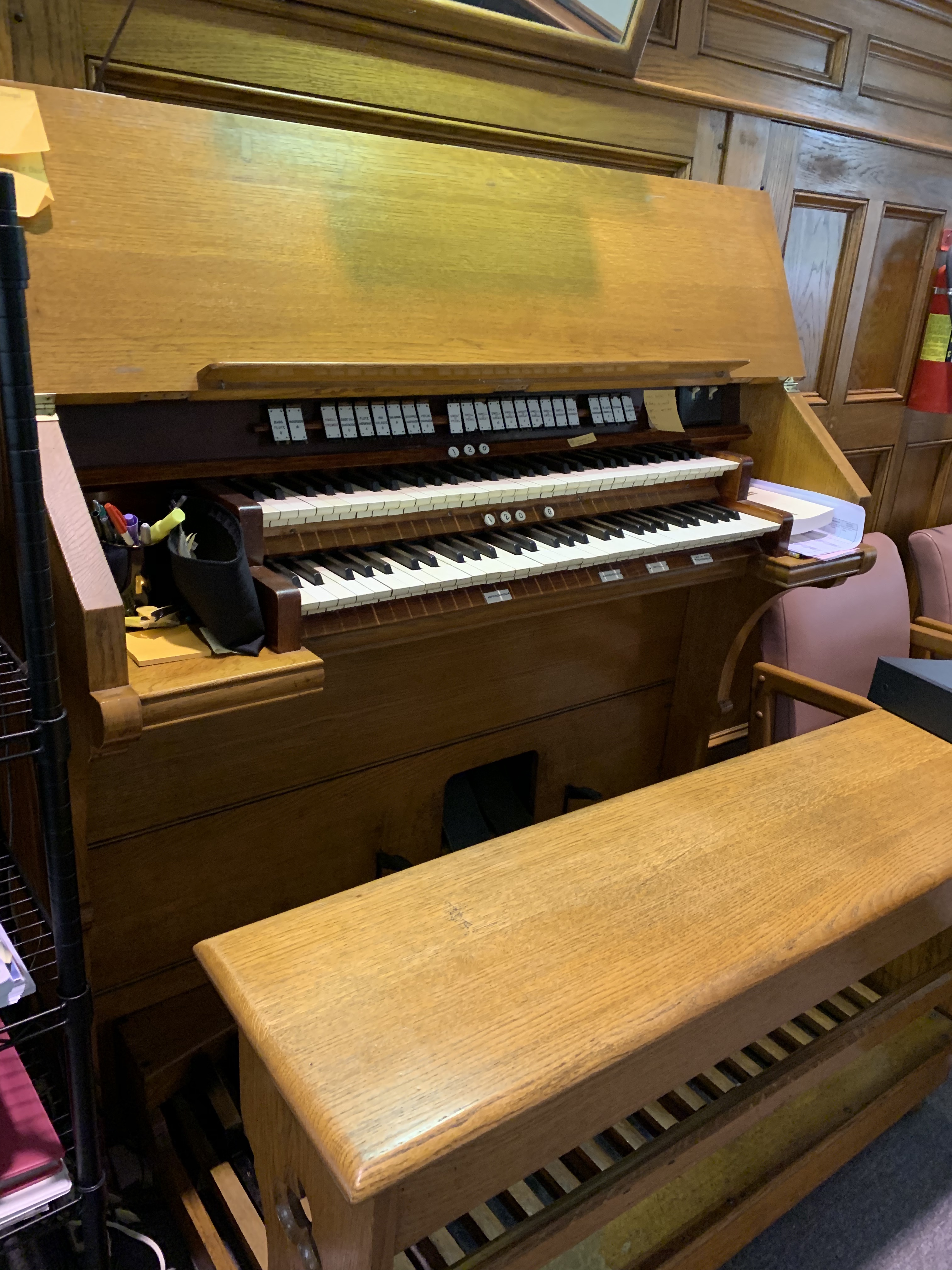

2019-10-17 - Keydesk (Photograph by Thad Reynolds/Database Manager)

Consoles

Keydesk

• Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
• Console position: Keydesk Attached
• 2 manuals
• 11 stops
• Key action Type: Tubular Pneumatic (Details Unknown)
• Stop action Type: Tubular Pneumatic (Pressure)
• Stop layout Type: Tilting/Rocking Tablets Above Top Manual
• Manual compass: 61 notes
• Pedal compass: 30 notes
• Pedal Type: Concave Radiating (Not Meeting AGO Standards)
• Expression Type: Balanced Expression Shoes/Pedals (Not Meeting AGO Standards)
• Has crescendo

Notes

2013-05-23 - This entry describes an original installation of a new pipe organ. Identified by John Speller, using information found in "The Diapason,� 1:1 (January 1909), p. 2. -- -Database Manager

Stoplist

rec'd 2019-10-24 Source: document from Thad Reynolds

Great Open Diapason 8 (partially in facade), Flauto Amabile 8, Dulciana 8, Flute d’Amour 4

Swell Violin Diapason 8, Voix Celeste 8 (TC), Stopped Diapason 8, Salicional 8, Flute Harmonic 4, Hautbois and Bassoon 8, Tremolo

Pedal Bourdon 16, Bass Flute 8
