St. Hyacinth Roman Catholic Church
3151 Farnsworth Ave.
Detroit, MI
Images
2019-11-09 - Facade and casework (Photograph by Roman Lizak, submitted by Brad Engelland/Brad Engelland)
2018-04-21 - Church exterior (Photograph from an archival source: Church Facebook, submitted by Jeff Scofield/Jeff Scofield)
2015-12-25 - Ceiling frescoes (Photograph from an archival source: Church Facebook, submitted by Jeff Scofield/Jeff Scofield)
2019-11-09 - Church interior to rear and gallery (Photograph by Roman Lizak, submitted by Jeff Scofield/Jeff Scofield)

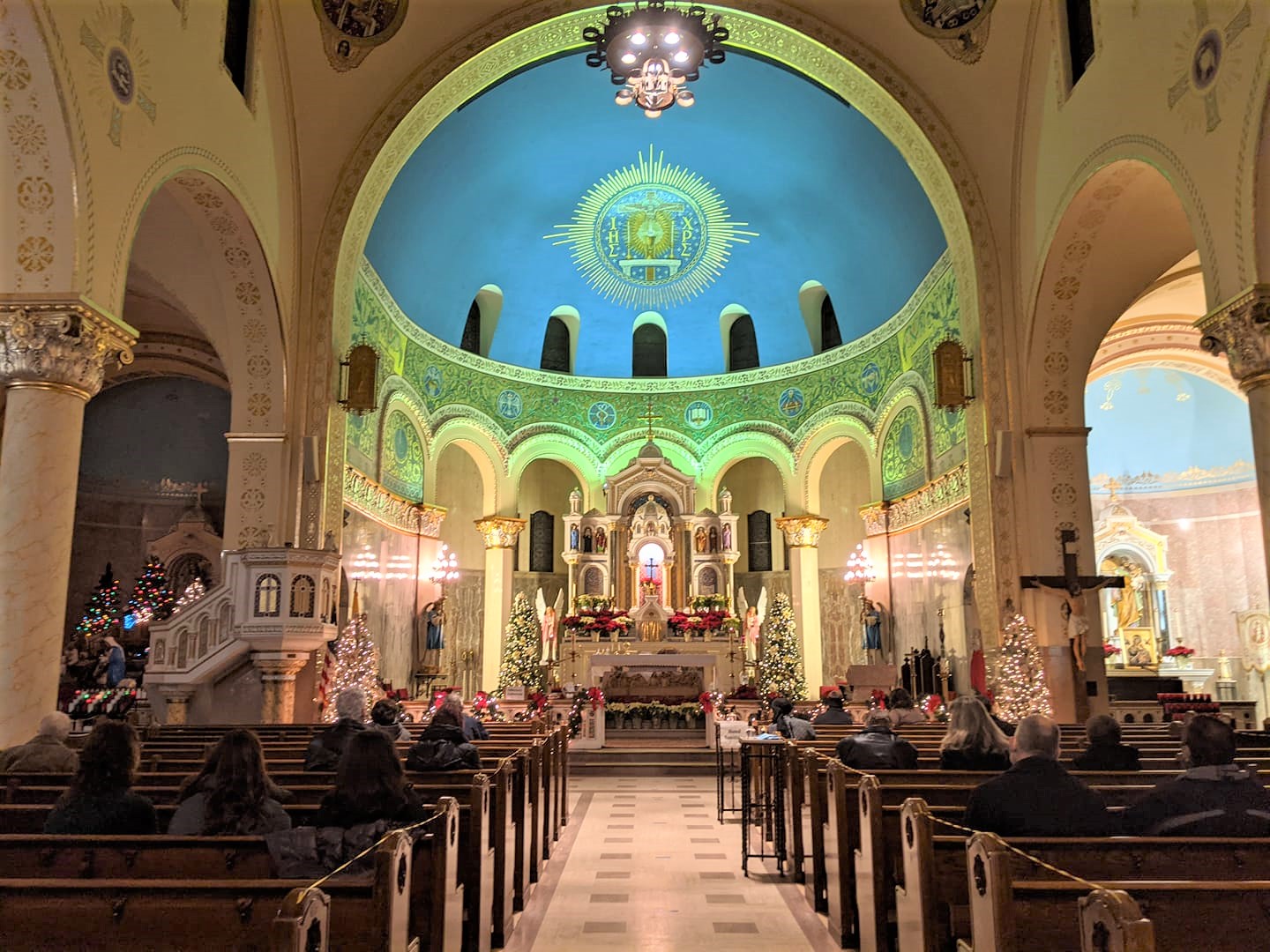

2020-12-26 - Church interior and altar (Photograph from an archival source: Church Facebook, submitted by Jeff Scofield/Jeff Scofield)
2019-11-09 - Right stopjamb (Photograph by Roman Lizak, submitted by Jeff Scofield/Jeff Scofield)
2019-11-09 - Left stopjamb (Photograph by Roman Lizak, submitted by Jeff Scofield/Jeff Scofield)
2019-11-09 - Console (Photograph by Roman Lizak, submitted by Jeff Scofield/Jeff Scofield)
2019-11-09 - Console (Photograph by Roman Lizak, submitted by Jeff Scofield/Jeff Scofield)

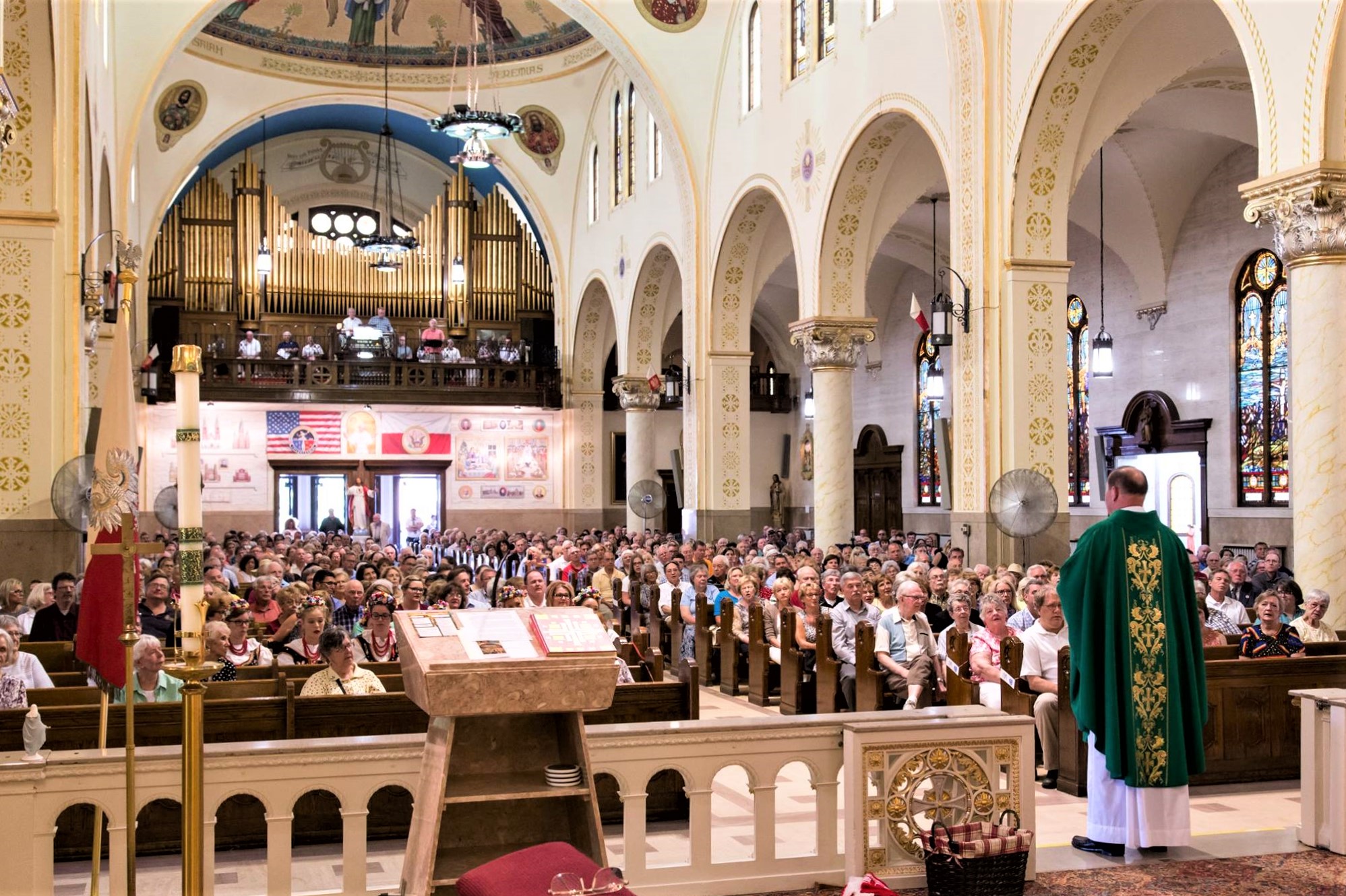

2018-04-10 - Church interior to gallery and organ case (Photograph from an archival source: Church Facebook, submitted by Jeff Scofield/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 3 manuals
- 25 stops
- 39 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Combination action: Adjustable Combination Pistons
Notes
2013-06-09 - Installed in 1924 as Moller 3/27 Op. 3858; rebuilt in 1973 as Moller Op. R-884; new console in 1979 as Moller Op. M-9866. -Database Manager
Stoplist
Stoplist copied from the factory specifications via the OHS Archives Source: Source not recorded Date not recorded
Detroit, Michigan
St. Hyacinth R. C. Church
Möller Op. 3858 1924 3/27
Möller Op. R-884 1973 Rebuild
Möller Op. M-9866 1979 Console
________________________________________________
GREAT (encl w/CH) SWELL
16' Violone 61 16' Bourdon 73
8' Principal 73 8' Principal 73
8' Violone 12 8' Holzgedeckt 12
8' Doppelflöte 73 8' Salicional 73
8' Melodia 61 8' Voix Celeste 61
8' Viole de Gambe 73 8' Quintadena 73
4' Geigen Octave CH 8' Aeoline 73
4' Traverse Flute 12 4' Harmonic Flute 73
8' Trumpet 73 2' Flautino --
Sub III Cornet 219
Unison Off 16' Posaune 73
Super 8' Trumpet 73
Chimes 8' Oboe 73
8' Vox Humana 61
PEDAL Tremolo
Sub
32' Resultant -- Unison Off
16' Contrebasse 32 Super
16' Subbass 32
16' Violone GT CHOIR
16' Bourdon SW
8' Principal 12 8' Geigen Principal 73
8' Flute 12 8' Concert Flute 73
8' Viole de Gambe GT 8' Viole de Gambe GT
16' Posaune SW 8' Dulciana 73
Blank 8' Unda Maris 61
Blank 4' Flute (Concert) --
8' Clarinet 73
Tremolo
Sub
Unison Off
Super
[Received from Jeff Scofield July 11, 2015]
