Holy Trinity Evangelical Lutheran Church
51 Central Park West
New York City: Manhattan, NY
Images

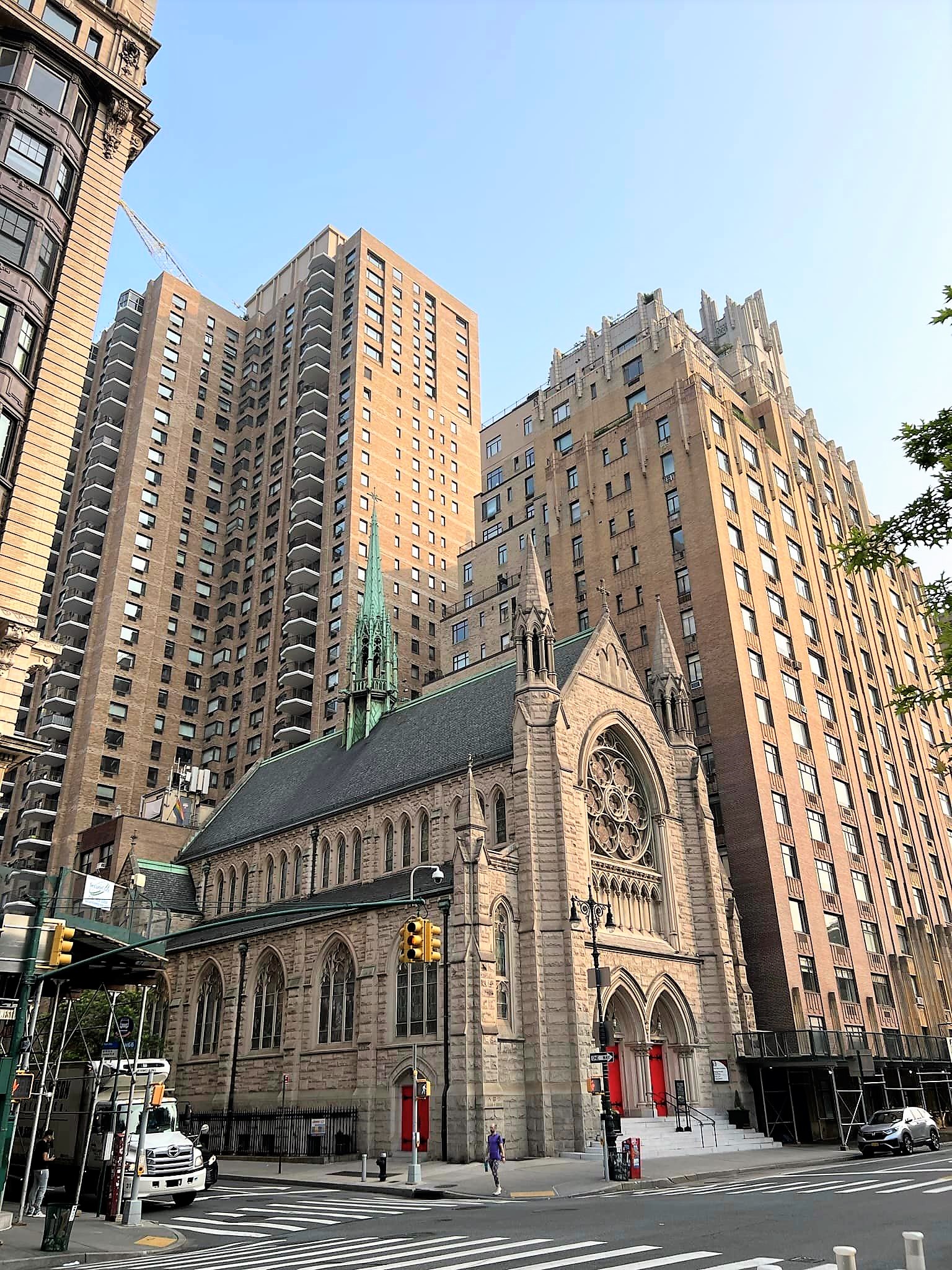

2023-08-08 - Church exterior (Photograph by Kevin R. Cartwright, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

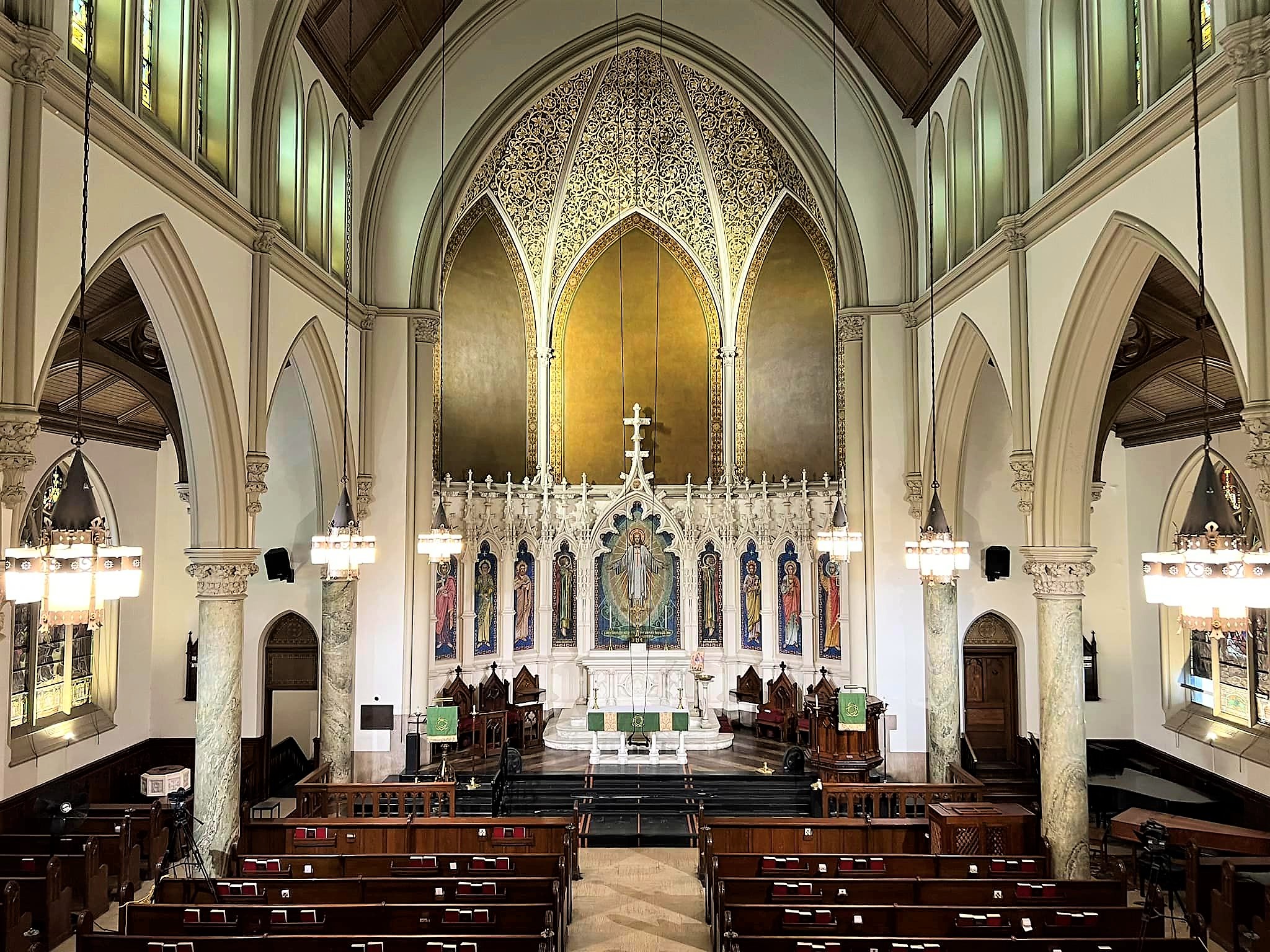

2023-08-08 - Church interior to front (Photograph by Kevin R. Cartwright, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

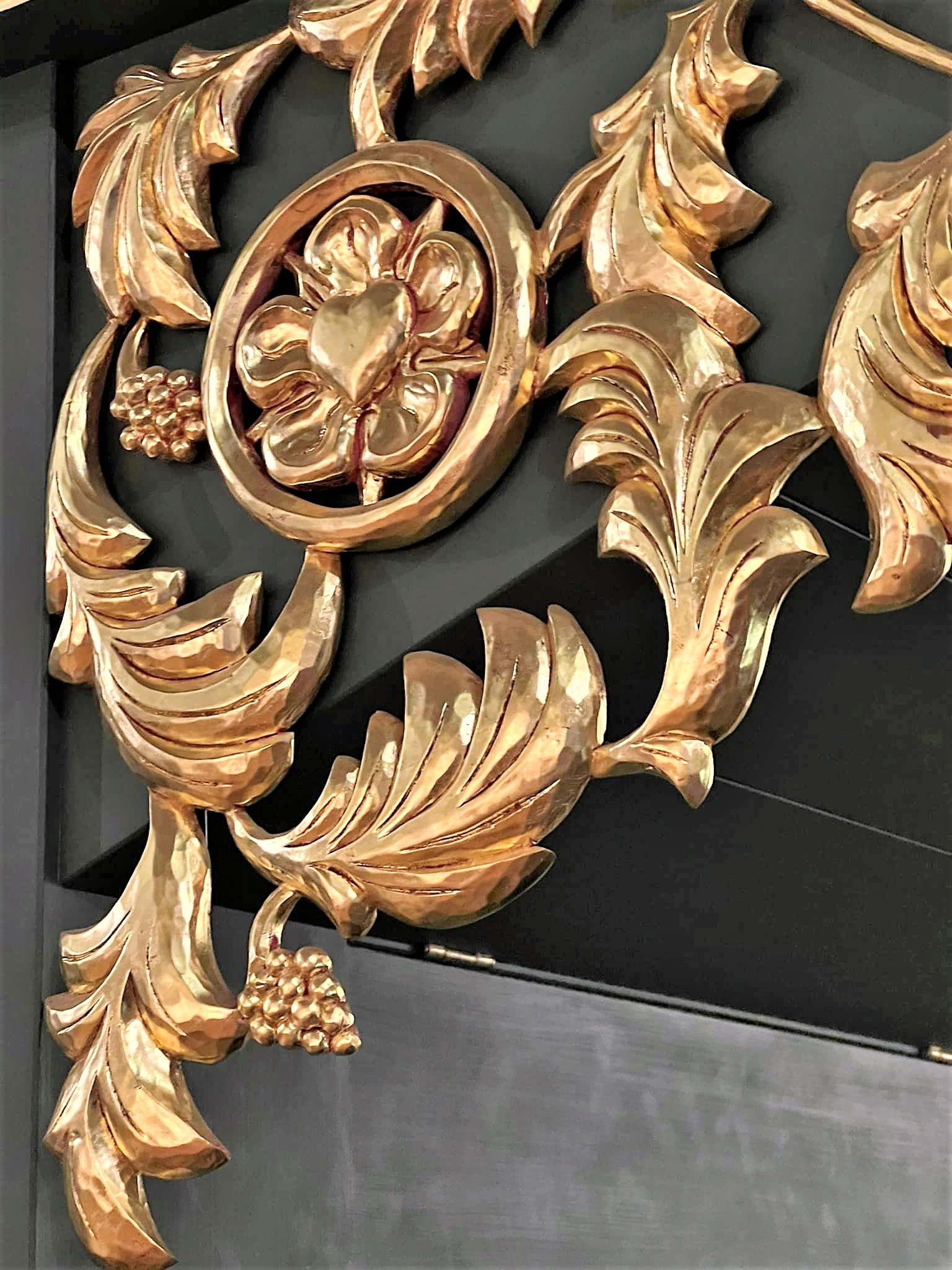

2023-08-08 - Case ornamentation (Photograph by Kevin R. Cartwright, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

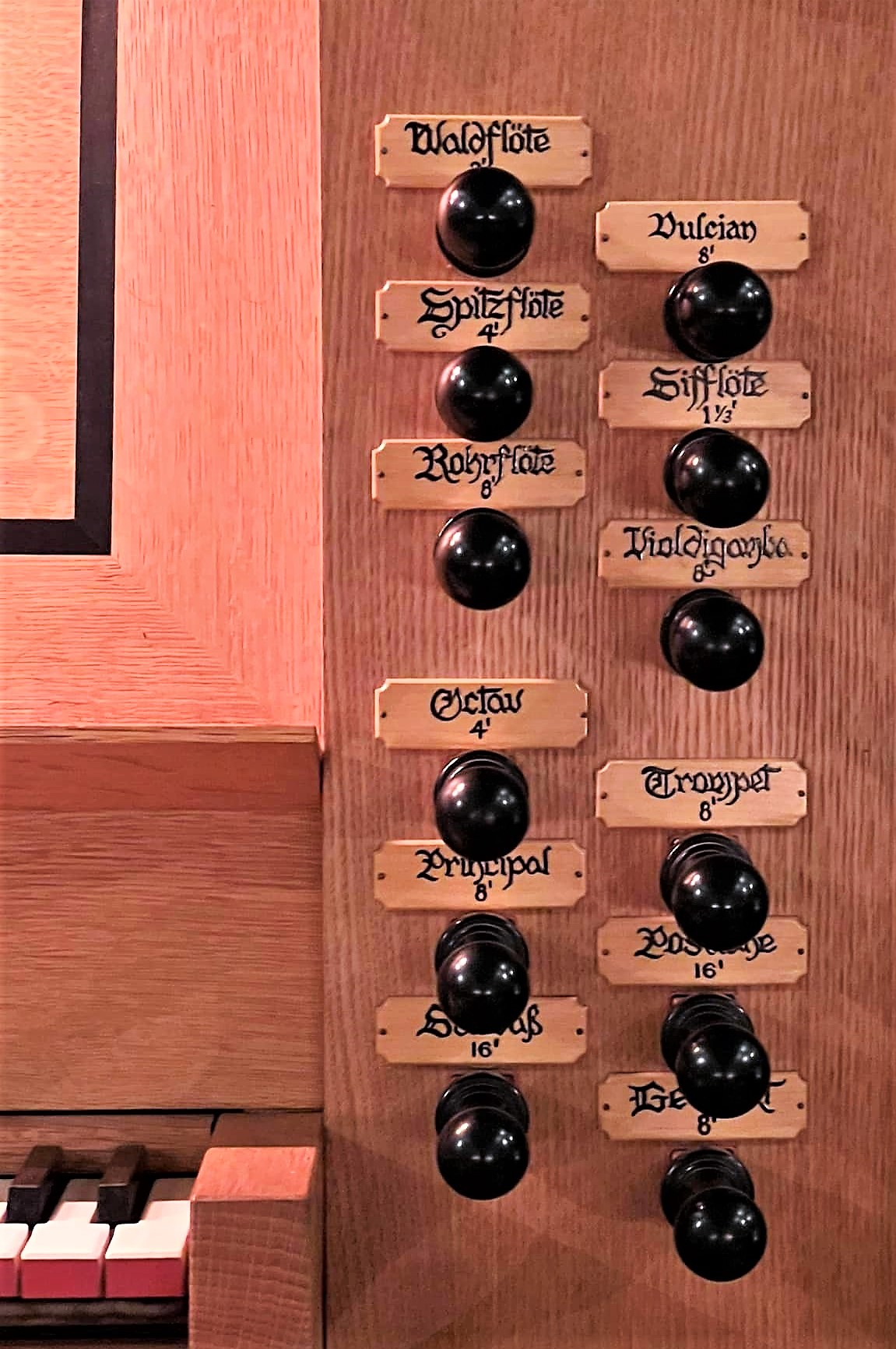

2023-08-08 - Right stopjamb (Photograph by Kevin R. Cartwright, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

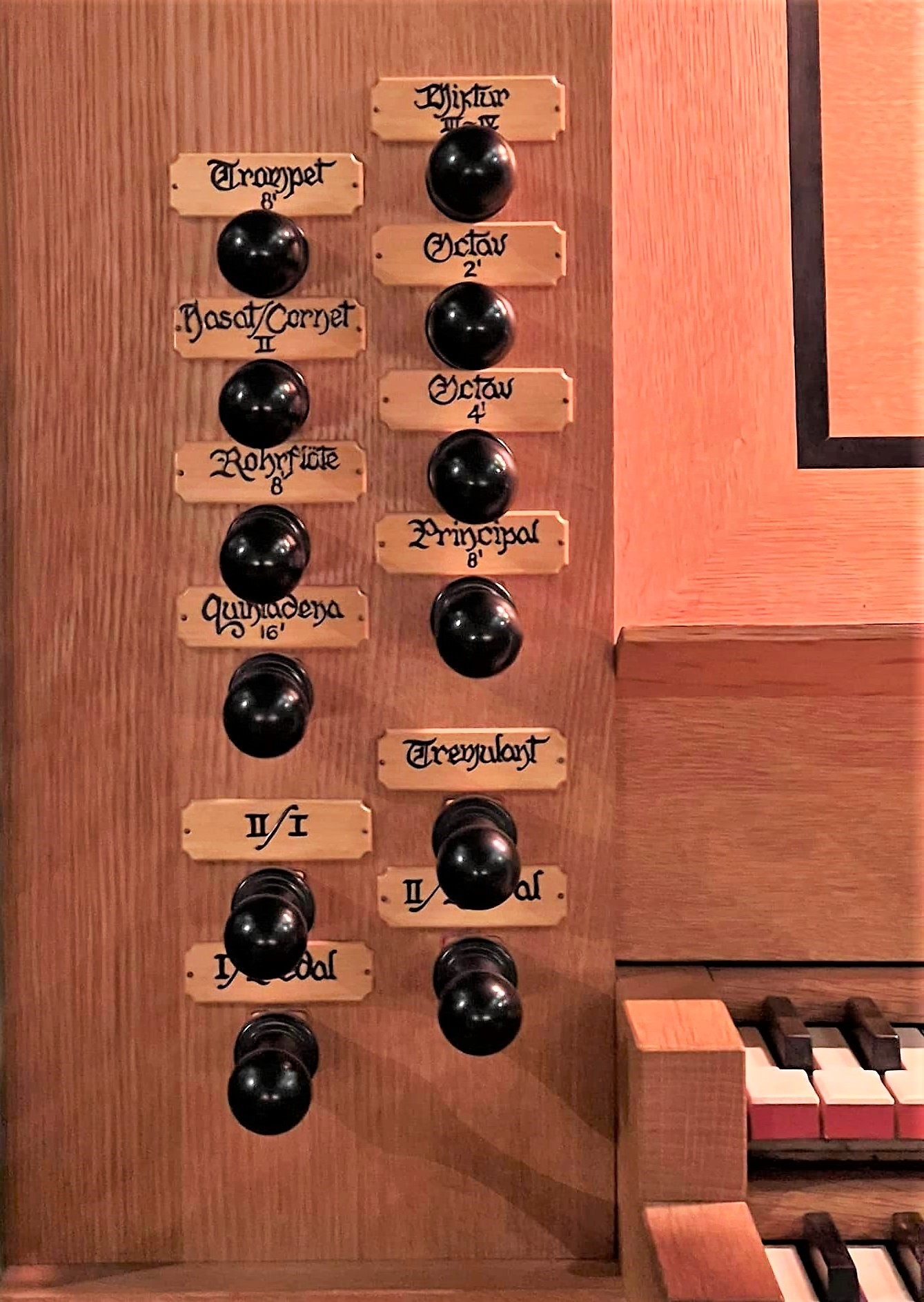

2023-08-08 - Left stopjamb (Photograph by Kevin R. Cartwright, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

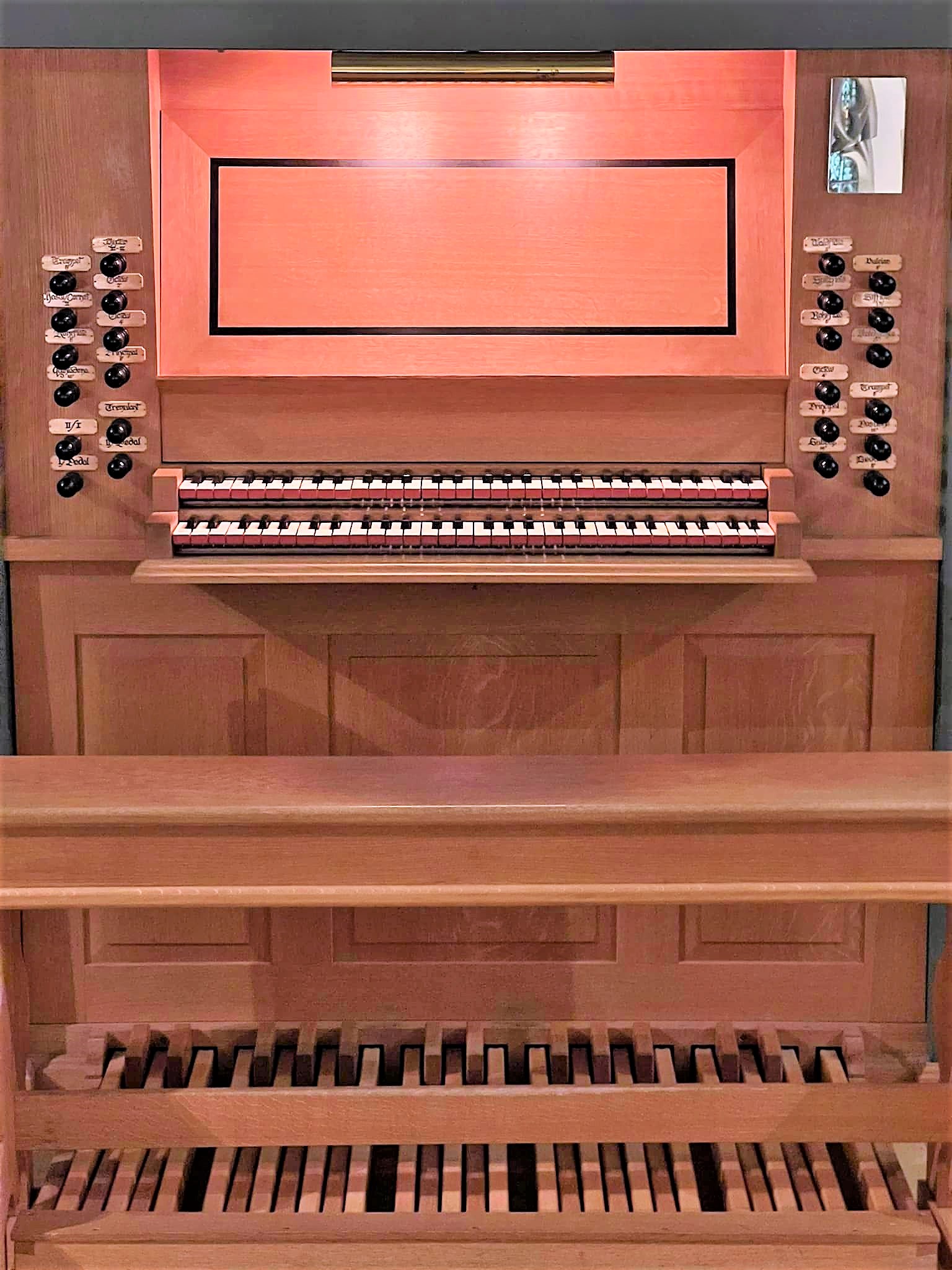

2023-08-08 - Console (Photograph by Kevin R. Cartwright, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

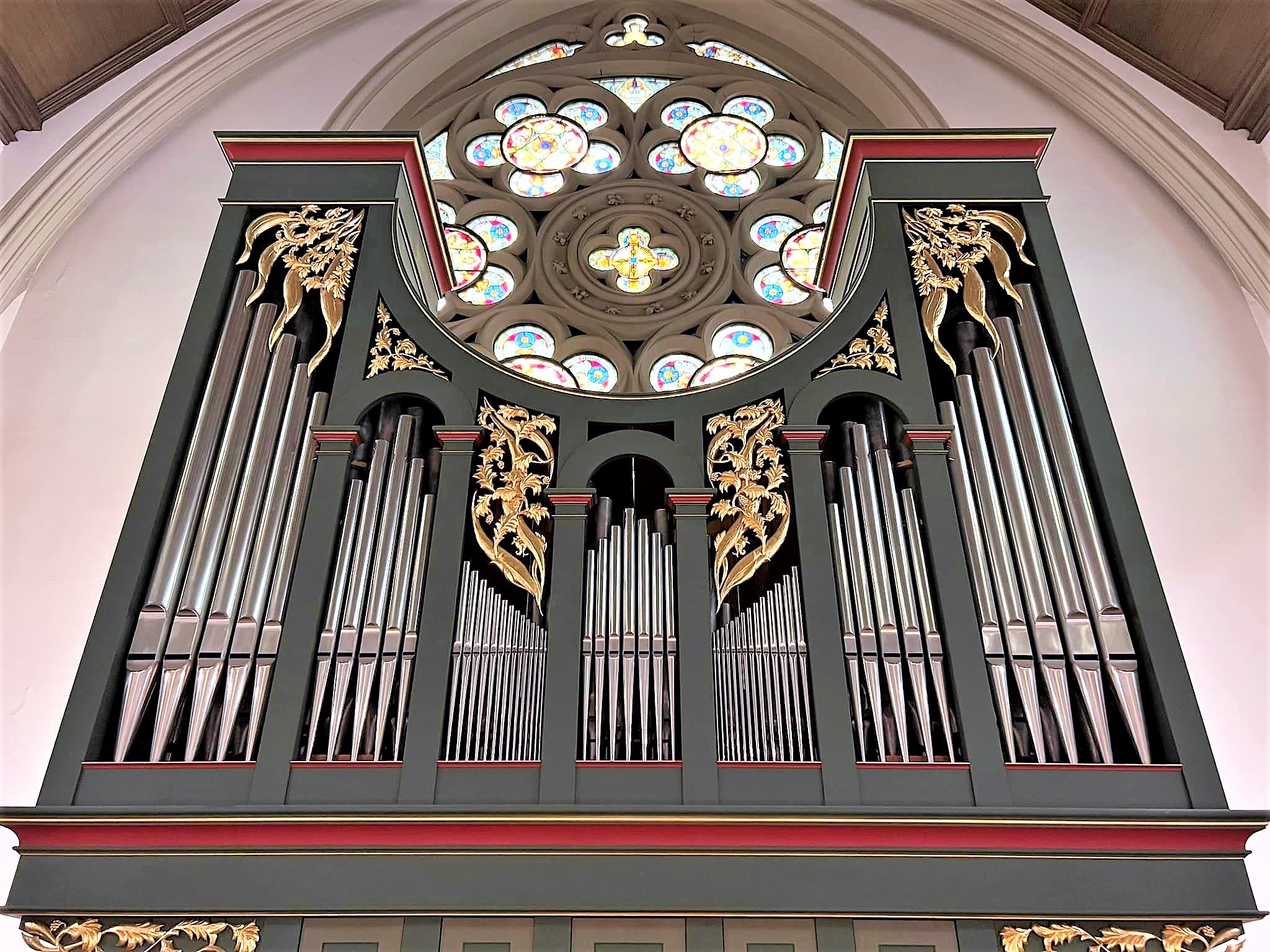

2023-08-08 - Organ case (Photograph by Kevin R. Cartwright, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

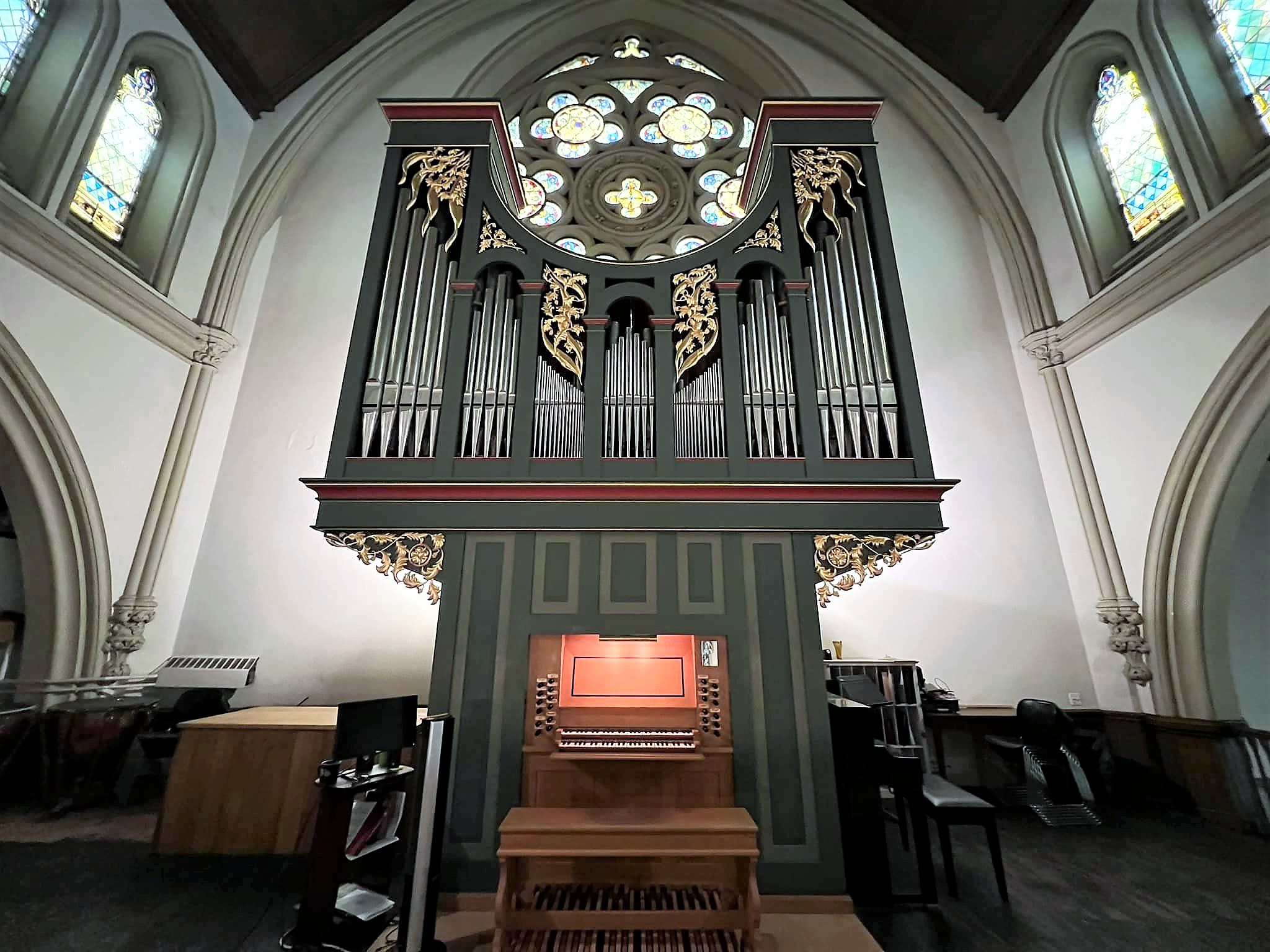

2023-08-08 - Organ and organ case (Photograph by Kevin R. Cartwright, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

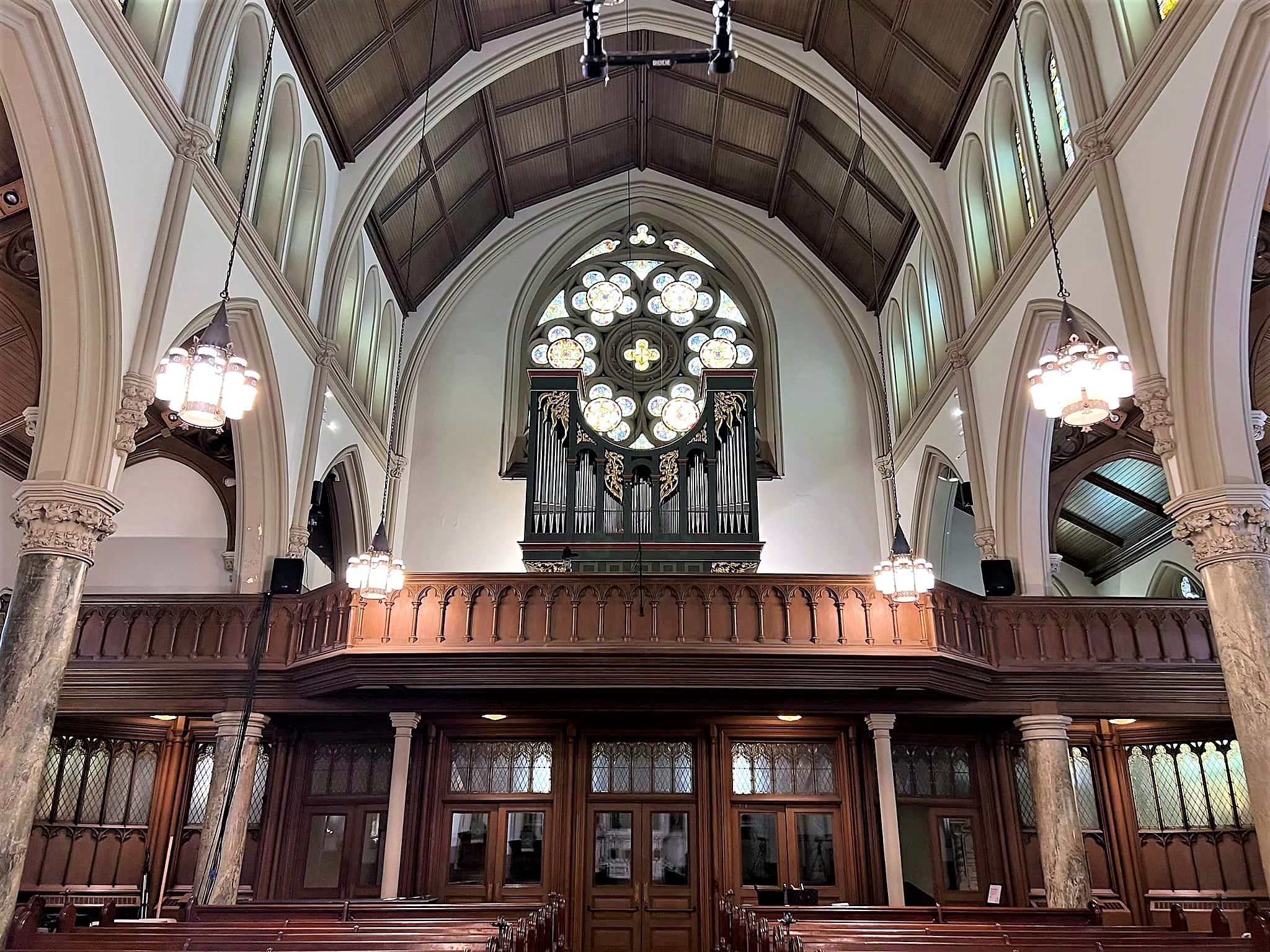

2023-08-08 - Gallery and organ (Photograph by Kevin R. Cartwright, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

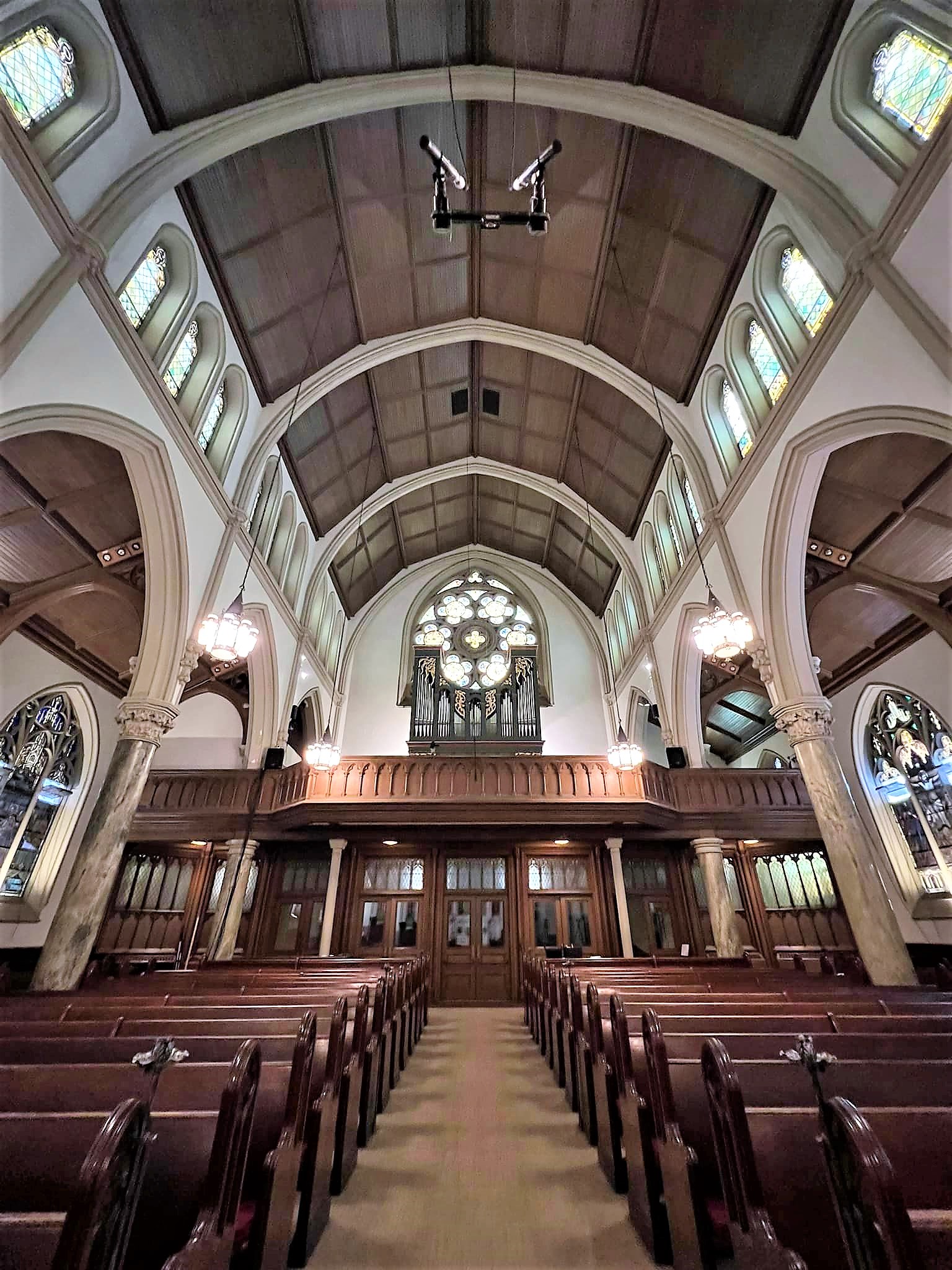

2023-08-08 - Church interior to rear and organ (Photograph by Kevin R. Cartwright, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

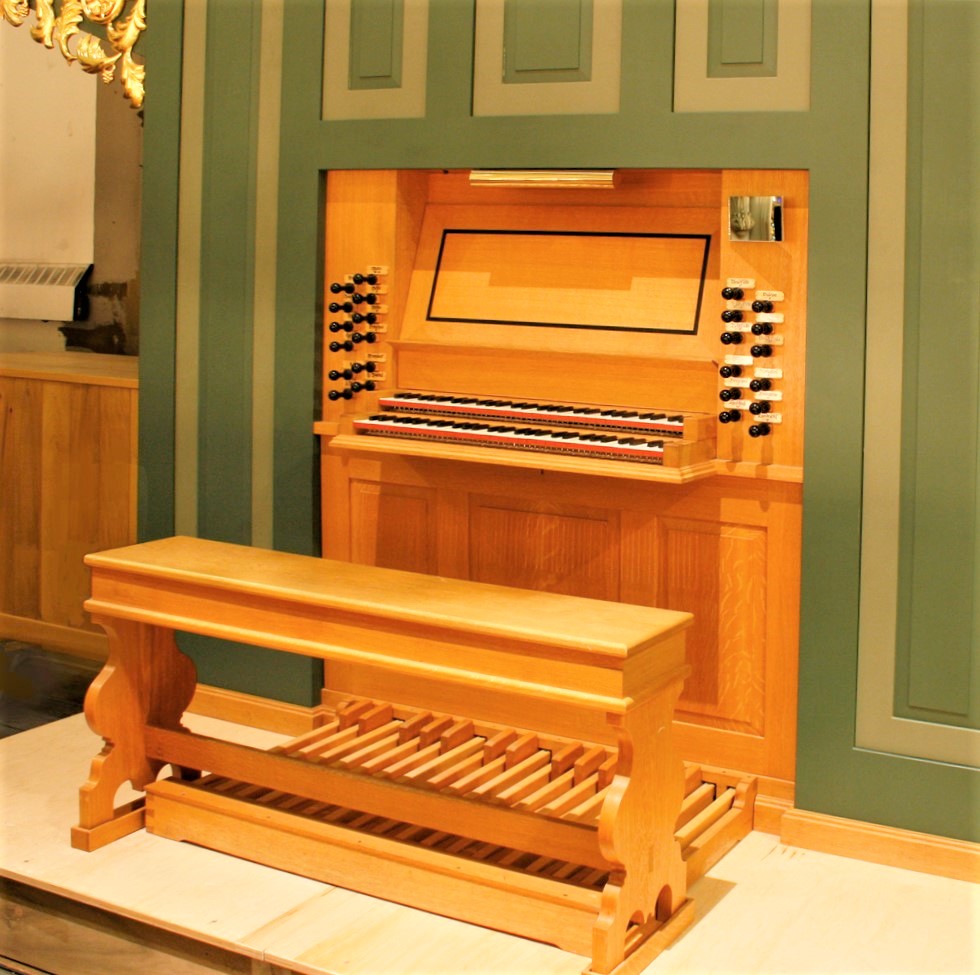

2002-09-09 - Console and organ case (Photograph by Steven E. Lawson/Database Manager)

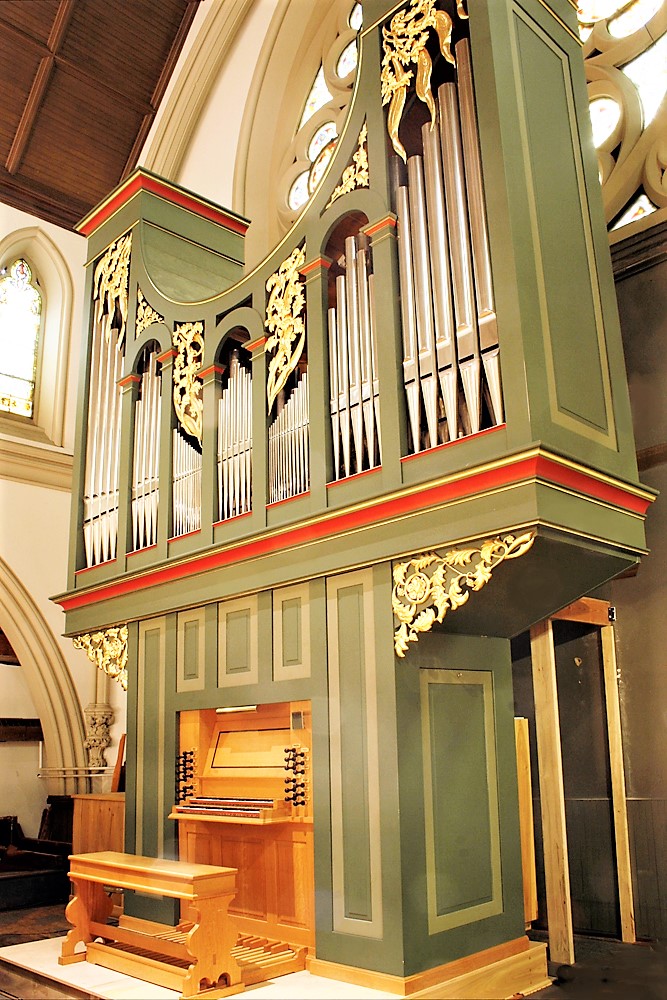

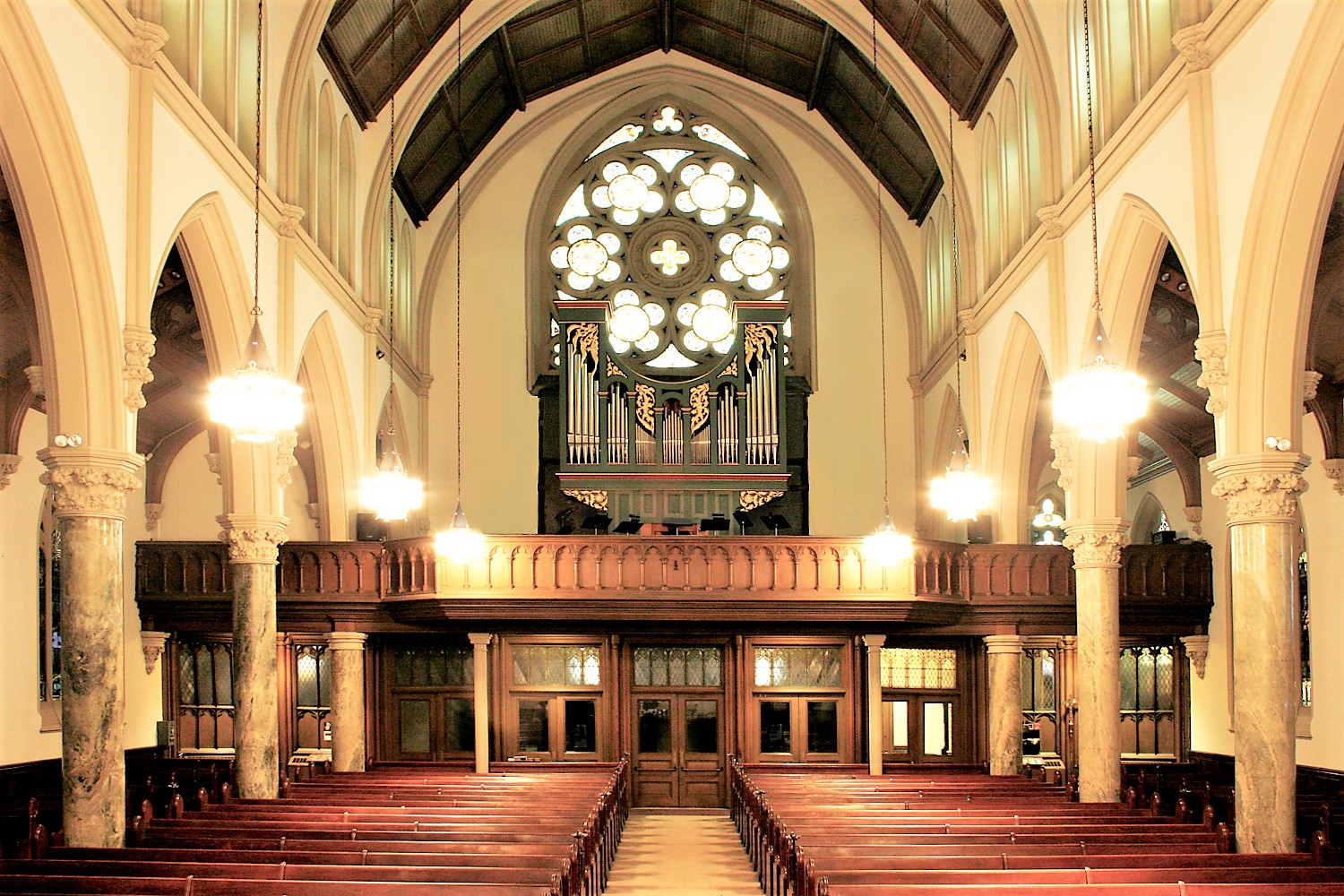

2002-09-09 - Church interior, gallery and organ case (Photograph by Steven E. Lawson/Database Manager)
2002-09-09 - Console (Photograph by Steven E. Lawson/Database Manager)
Consoles
Main
- Console position: Keydesk Attached, Manuals Set Into Case
- 2 manuals
- 20 stops
- Key action Type: Mechanical (Suspended Tracker)
- Stop action Type: Mechanical
- Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
- Manual compass: 58 notes
- Pedal compass: 30 notes
- Pedal Type: Flat Straight
- Combination action: None
Notes
2013-08-21 - Originally built in 1994 for Bethany Lutheran Church in Tulsa, Okla. After Bethany closed their doors in August 2011, the organ was reclaimed by Paul Fritts, who then transported and installed the instrument in Holy Trinity Lutheran Church. The church has secured a long-term lease on the organ, with plans to commission a larger Fritts instrument in the future. -Database Manager
Stoplist
Stoplist provided by Steven E. Lawson Source: Source not recorded Date not recorded
New York City, New York
Holy Trinity Evangelical Lutheran Church
Paul Fritts & Company Opus 16 1994 (moved 2011)
2 manuals, 20 stops, 20 ranks
_________________________________________________________________________
MANUAL I PEDAL
16' Quintadena 58 16' Subbaß 30
8' Principal 58 8' Principal 30
8' Rohrflöte 58 8' Gedackt * --
4' Octave 58 4' Octave * --
II Nasat/Cornet 116 16' Posaune 30
2' Octave 58 8' Trompet * --
IV Mixture 232
8' Trompet 58 COUPLERS
II/I
MANUAL II I/P
8' Rohrflöte * -- II/P
8' Violdigamba 58
4' Spitzflöte 58
2' Waldflöte 58
1 1/3' Sifflöte 58
8' Dulcian 58 * Transmissions
[Received from Steven E. Lawson June 19, 2014]
