Better Pipe Organ Database

Lewis Condit (L.C.) Harrison (& Co.) Opus 1337 (1892)

Six Mile Run Reformed Church: Sanctuary; front
3037 State Route 27
Franklin Park, NJ

Images

2022-08-28 - Chancel with organ (Photograph from an archival source: Church Facebook page; still capture from video, submitted by Jim Stettner/Jim Stettner)

2022-12-24 - Sanctuary interior with organ in front (Photograph from an archival source: Church Facebook page; video still capture, submitted by Jim Stettner/Jim Stettner)

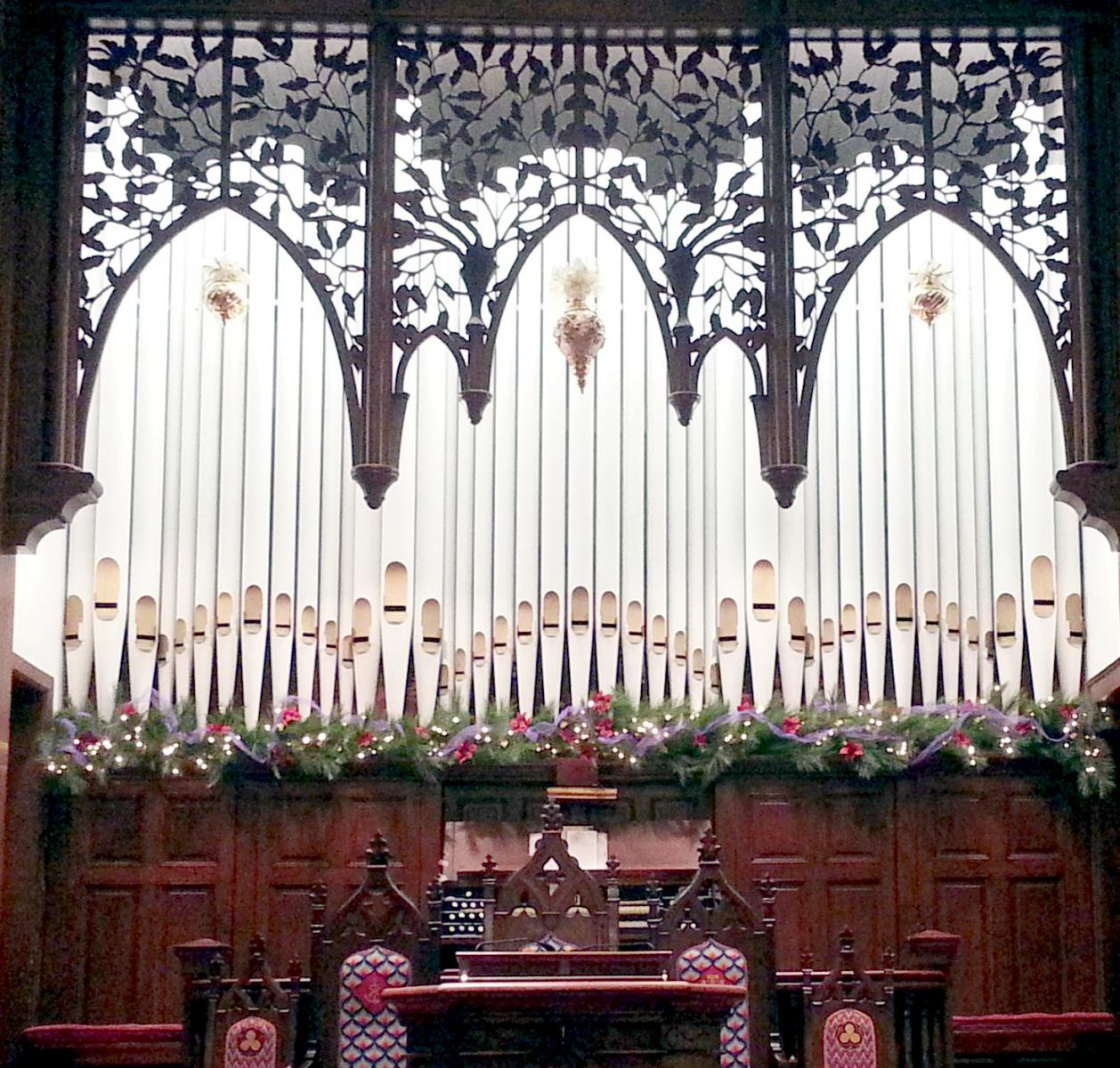

2014-12-10 - Chancel and Pipe Facade (Photograph by Robin Suydam/Database Manager)

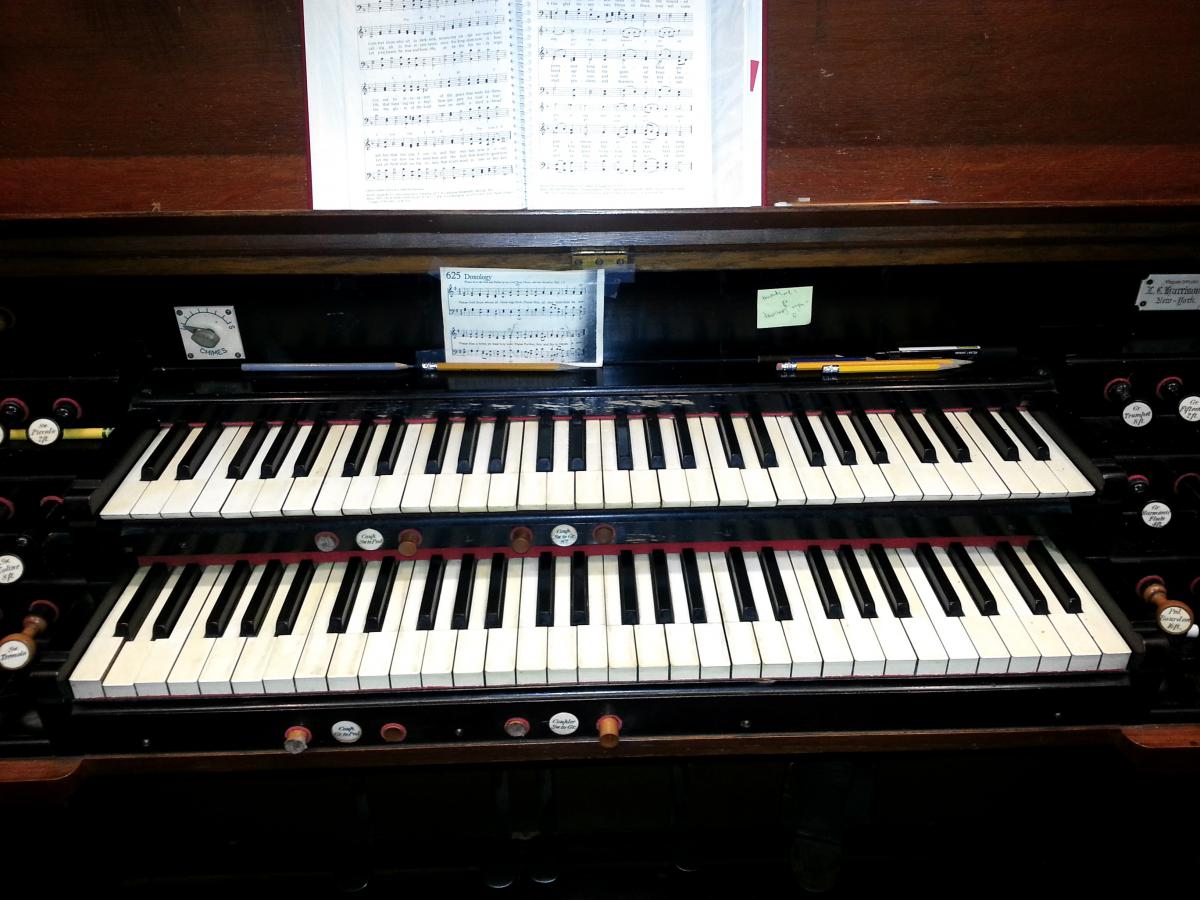

2014-12-10 - Keydesk (Photograph by Robin Suydam/Database Manager)

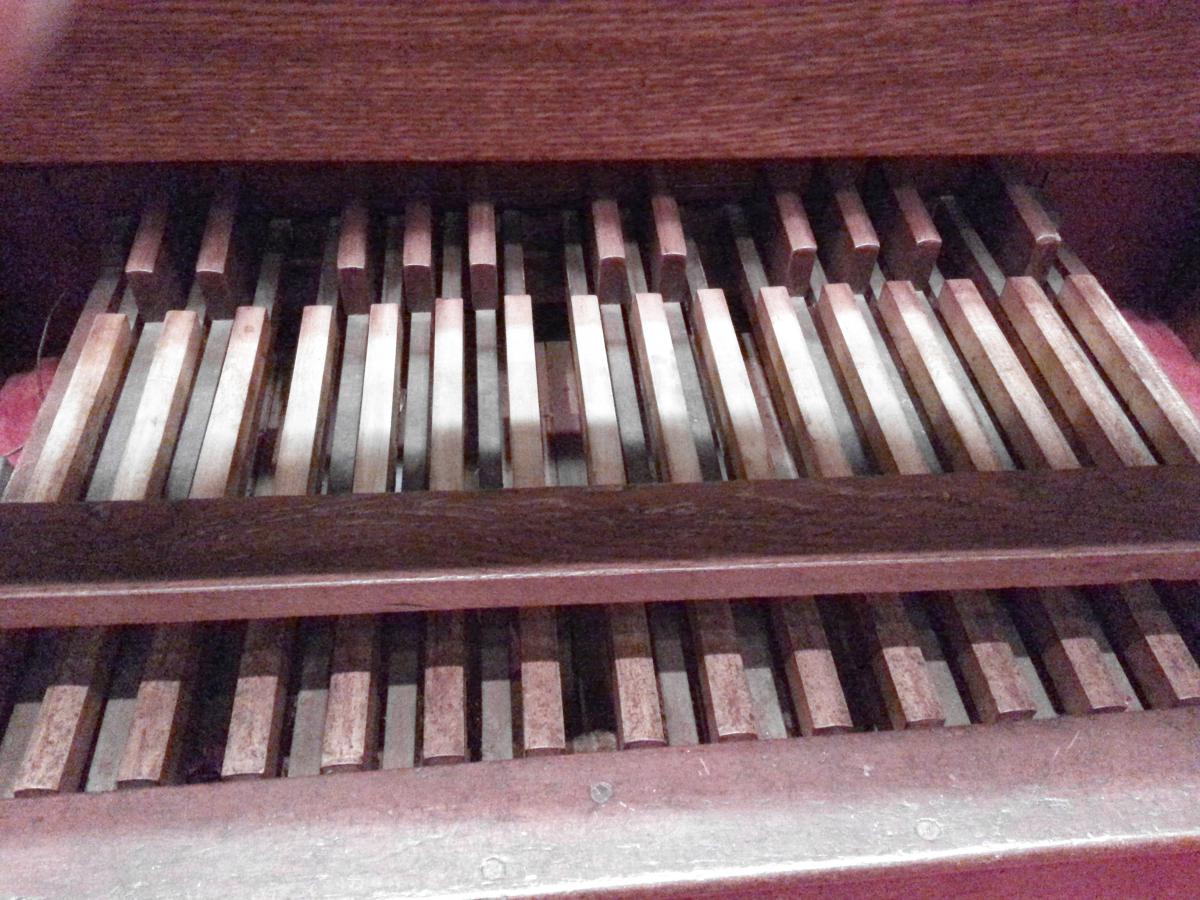

2014-12-10 - Pedalboard (Photograph by Robin Suydam/Database Manager)

Consoles

Main

Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
Console position: Keydesk Attached
2 manuals
21 stops
23 registers
3 divisions
Key action Type: Tubular Pneumatic (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 58 notes
Pedal compass: 27 notes
Pedal Type: Flat Straight
Expression Type: Balanced Expression Shoes/Pedals (Not Meeting AGO Standards)
Combination action: Fixed Mechanical

Notes

2004-10-30 - Status Note: There 1973 -Database Manager

2004-10-30 - Compass 58/27. Stop, coupler and combinaction are mechanical. -Database Manager

2008-06-23 - Updated through on-line information from James R. Stettner. -Database Manager

2009-02-10 - Updated through information posted to OHS members list by Sdcot Huntington February 9, 2009: -- "... slider chests and 1/2" dia. zinc tubing. The repetition is slow due to the large tubing size and small exhaust ports but even after 120 years ... still extremely reliable." -Database Manager

2014-11-20 - Updated through online information from Davis Folkerts. -- This instrument has accessibility issues making tuning and maintenance difficult. It has noticeably deteriorated in the last decade and is now plagued with dead notes (water damage) and severely out of tune notes. The Trumpet stop is unusable. -Database Manager

Stoplist

Source: Typed stoplist (Source: Ogasapian, 1977) 1977

      Six Mile Run Reformed Church
      Franklin Park, New Jersey
      L.C. Harrison, Opus 1337, ca.1892
      OHS ID: 5178
__________________________________________________________________________

      GREAT (C-a''',58n)
8     Open Diapason              58
8     Gamba                      58
8     Melodia                    58
8     Doppel Flute (Mel.Bass)    46
8     Dulciana                   58
4     Principal                  58
4     Harmonic Flute             58
2 2/3 Twelfth                    58
2     Fifteenth                  58
8     Trumpet                    58


      SWELL (C-a''',58n)
16    Bourdon Bass (C-B)         12
16    Bourdon (c-a''')           46
8     Open Diapason              58
8     Stop'd Diapason            58
8     AEoline                    58
4     Violina                    58
4     Wald Flute                 58
2     Piccolo                    58
III   Cornet                    174
8     Oboe (c-a''')              46
8     Bassoon (C-B)              12
      Tremolo


      PEDAL (CC-d,27n)
16    Double Open Diapason       27
16    Bourdon                    27


      COUPLERS
Swell to Pedal
Great to Pedal

Swell to Great
Swell to Great 4
__________________________________________________________________________
[Received online from T. Daniel Hancock, 2012-09-07]
