Good Shepherd Episcopal Church
533 E. Main Street
Lexington, KY
Images
2013 - Console (Photograph from an archival source: Builder's website, submitted by Paul R. Marchesano/Paul R. Marchesano)
2013 - Console and Swell-side case (Photograph from an archival source: Builder's website, submitted by Paul R. Marchesano/Paul R. Marchesano)
2025-02-18 - Church interior to rear and Antiphonal (D C Schroth, via Jeff Scofield/Jeff Scofield)

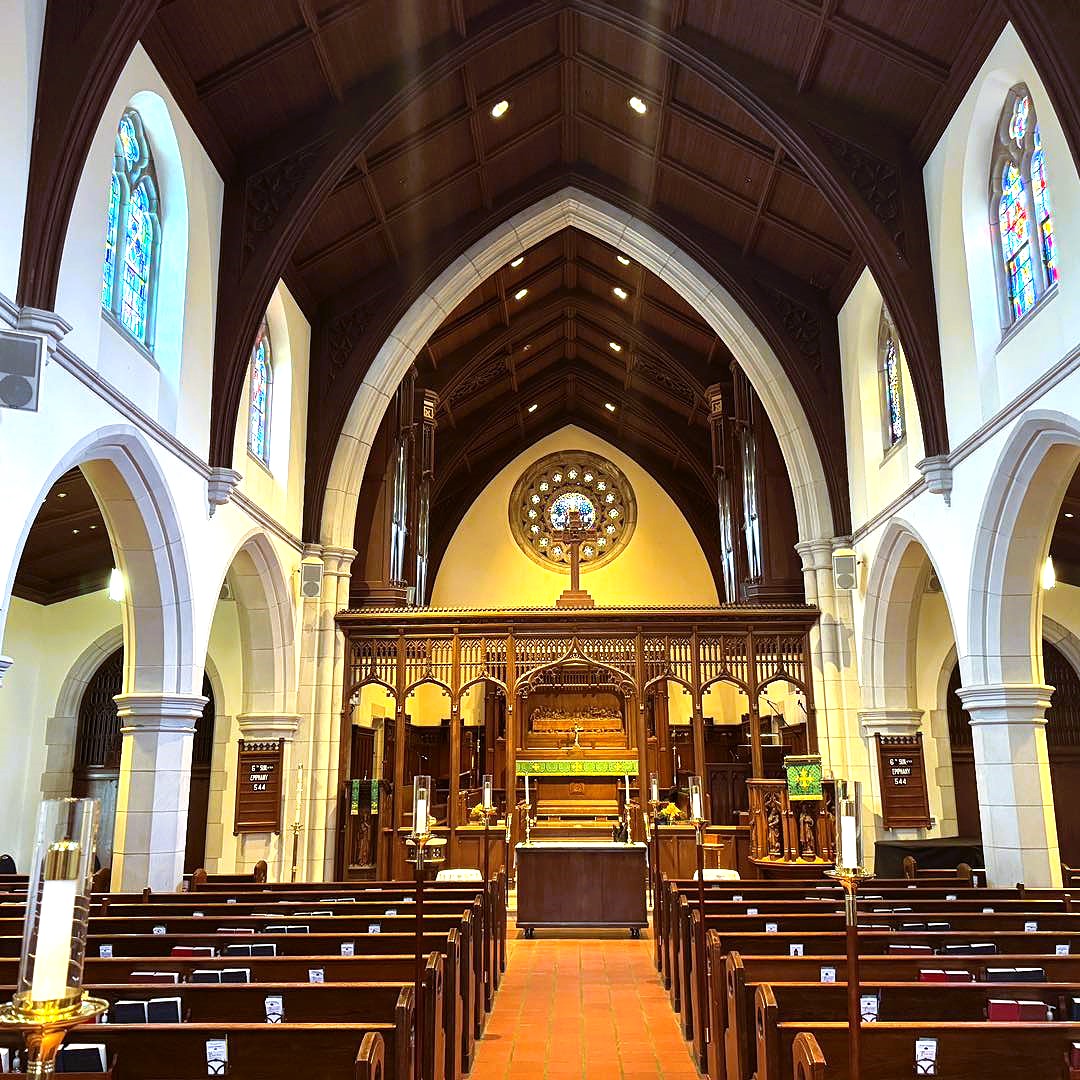

2025-02-18 - Church interior (D C Schroth, via Jeff Scofield/Jeff Scofield)
2025-02-18 - Right organ case (D C Schroth, via Jeff Scofield/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Movable Console
- 4 manuals
- 49 stops
- 72 registers
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2013-11-15 - This entry describes an original installation of a new pipe organ.
Identified by T. Daniel Hancock, using information found in <em>The Diapason</em>, September 2013.
-- -Database Manager
2013-11-16 - Updated through online information from T. Daniel Hancock. -Database Manager
Stoplist
Typed stoplist (Source: The Diapason, Vol. 104, No. 9) Source: Source not recorded Date not recorded
Church of the Good Shepherd (Episcopal)
Lexington, Kentucky
Goulding & Wood, 2013, Opus 50
OHS ID: 52114
___________________________________________________________________________________________________
GREAT SWELL CHOIR PEDAL
16 Gedeckt (Sw) 16 Gedeckt (wood) 8 Open Diapason 32 Contrabass [7]
8 Open Diapason* 8 Violin Diapason 8 Chimney Flute 32 Bourdon [8]
8 Gamba+ 8 Gedeckt (ext 8) 8 Dulciana 16 Principal
8 Harmonic Flute+ [3] 8 Viole de Gambe 8 Unda Maris [6] 16 Subbass
8 Bourdon+ 8 Voix Celeste [4] 4 Principal 16 Gedeckt (Sw)
4 Octave* 4 Principal 4 Spindle Flute 8 Octave (ext 16)
4 Open Flute+ 4 Traverse Flute 2-2/3 Nazard 8 Subbass (ext 16)
2-2/3 Twelfth* 2 Octave 2 Block Flute 8 Gedeckt (Sw)
2 Fifteenth* 2 Piccolo 1-3/5 Tierce 4 Octave (ext 16)
1-3/5 Seventeenth* 2 Mixture III-IV [5] 1-1/3 Larigot 4 Gedeckt (ext Sw)
1-1/3 Mixture IV 1 Cymbale III 8 Clarinet 32 Trombone [9]
8 Trumpet+ 16 Bassoon-Oboe 8 Tuba 16 Trombone
8 Tuba (Ch) 8 Trumpet 8 Fest'l Trumpet (Ant) 16 Bassoon (Sw)
8 Fest'l Trumpet (Ant) 8 Oboe (ext 16) Tremulant 8 Tromba (ext 16)
Sub-Coupler 8 Vox Humana Sub-Coupler 8 Bassoon (Sw)
Unison Off A [1] 4 Clarion Unison Off 4 Schalmey
Unison Off B [2] 8 Tuba (Ch) Super-Coupler 8 Tuba (Ch)
Super-Coupler 8 Fest'l Trumpet (Ant) 8 Fest Trmpt (Ant)
Zimbelstern Tremulant ANTIPHONAL
Sub-Coupler 8 Open Diapason ACCESSORIES
Unison Off 8 Diapason Celeste TC Great-Choir Manual
Super-Coupler 8 Stopped Diapason Transfer
NOTES 4 Octave Great Divisionals
1. Great A Unison Off (stops marked*). 4 Spire Flute w/Ped Division
2. Great B Unison Off (stops marked+). 2 Fifteenth Toe Studs
3. 1-12 common with Bourdon 8. 1-1/3 Mixture II-III Swell Divisionals
4. From low G. 8 Tuba (Ch) on General Toe
5. Draws 2' Octave. Tremulant Studs
6. From tenor C. Sub-Coupler Typical Couplers
7. Digital extension of 16' Principal. Unison Off and Combination
8. Digital extension of 16' Subbass. Super-Coupler Action Pistons
9. Digital extension of 16' Trombone. 8 Festival Trumpet
_________________________________________________________________________________________
[Received online from T. Daniel Hancock, 2013-11-15]
