St. Mark's Episcopal Church
2822 Frankfort Avenue
Louisville, KY
Images

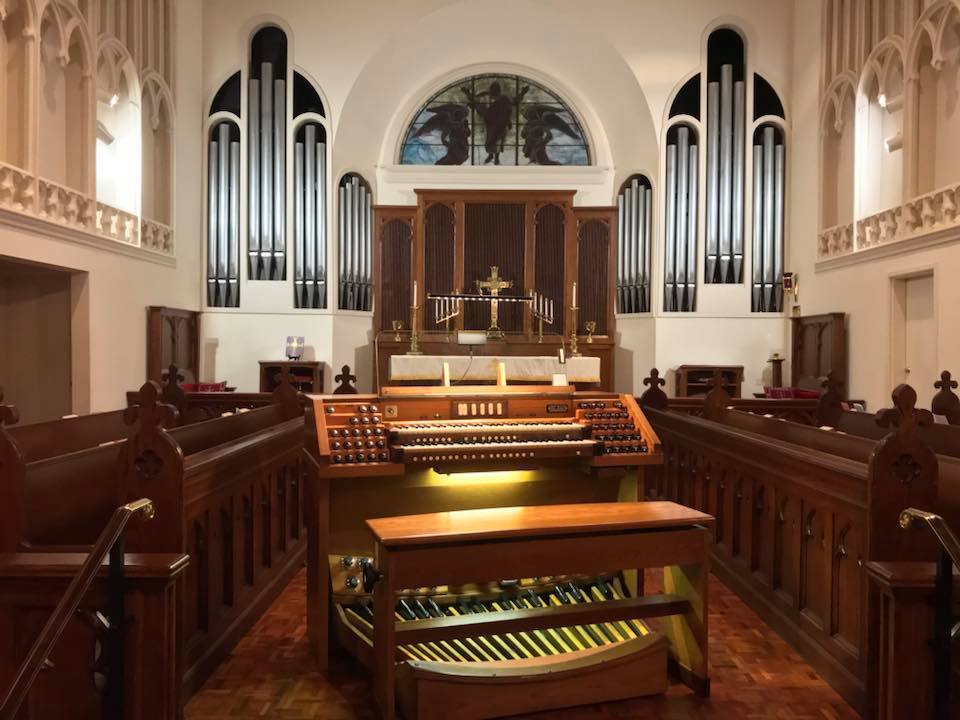

2018-04-17 - Schroth Console (Photograph by David Schroth Jr./Database Manager)

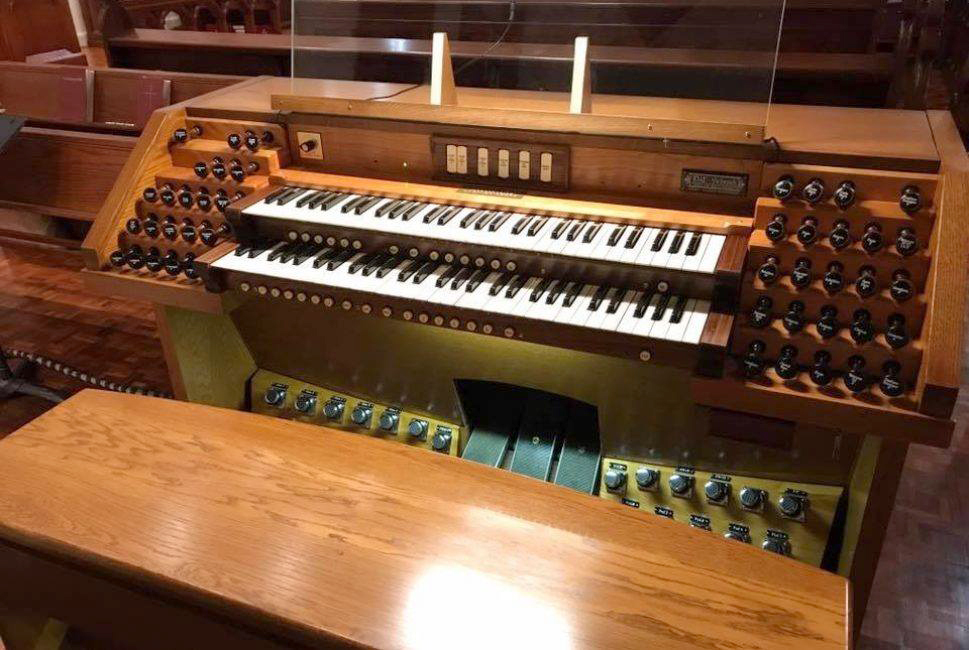

2017-06-30 - Rebuilt Console by D. C. Schroth Organ Builders (2017) (Photograph by David Schroth/Database Manager)

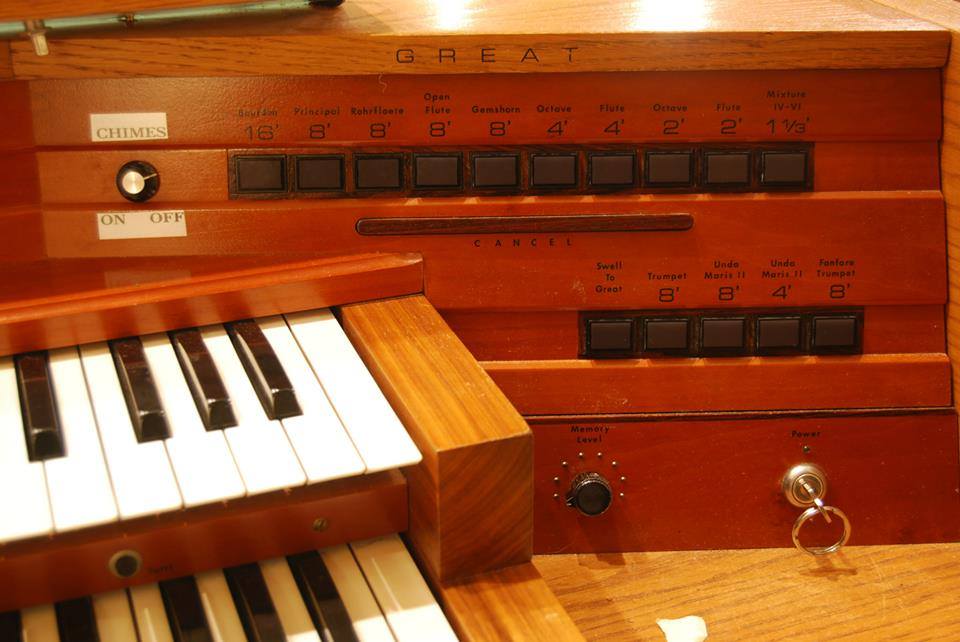

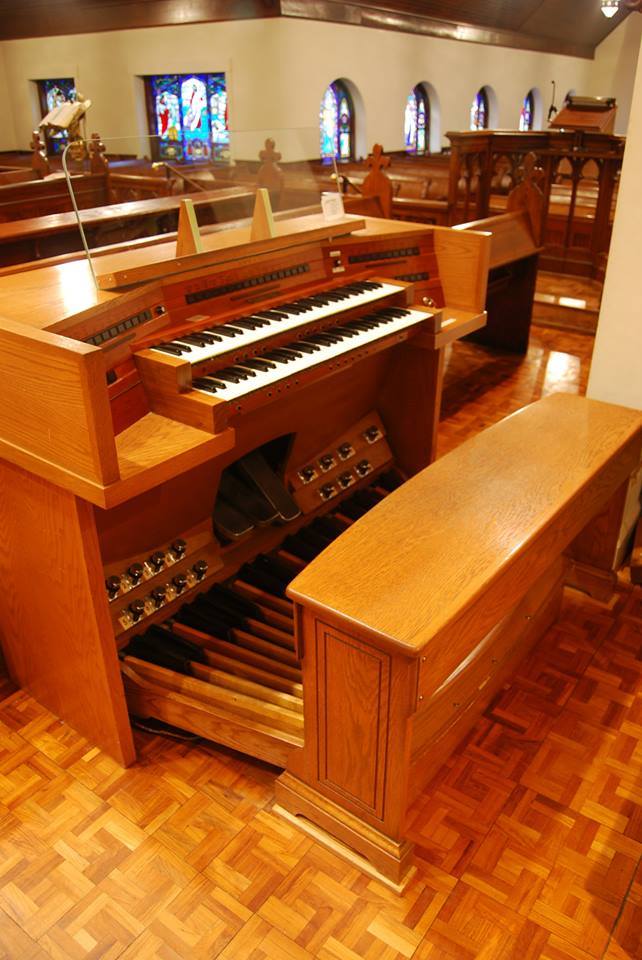

2015-01-01 - Steiner-Reck Console (Photograph by Stephen Schnurr/Database Manager)
2015-01-01 - Steiner-Reck Console (Photograph by Stephen Schnurr/Database Manager)

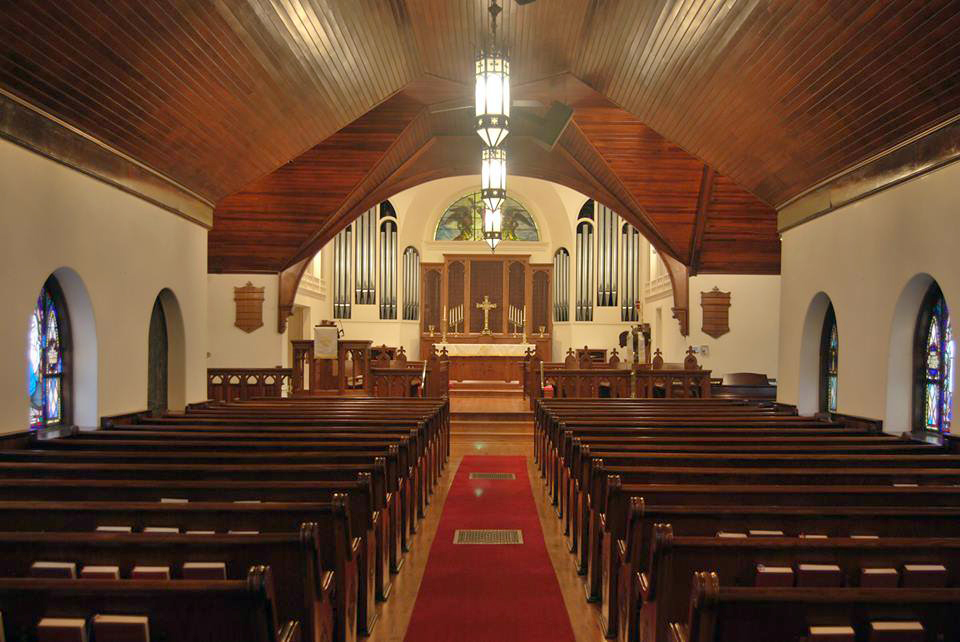

2016-01-01 - Nave (Photograph by Josh Duncan/Database Manager)

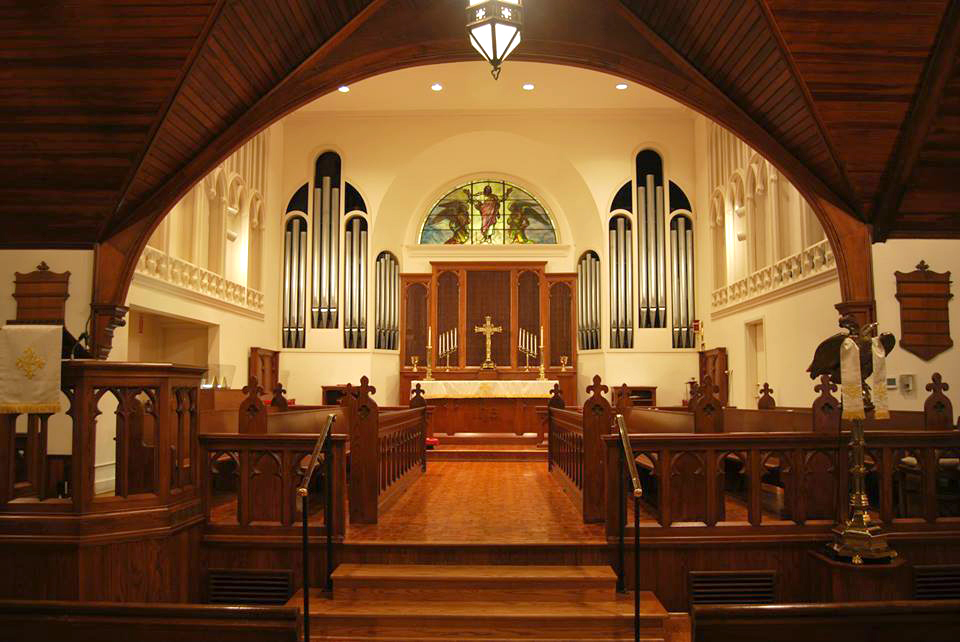

2016-01-01 - Chancel and Pipe Facade (Photograph by Josh Duncan/Database Manager)

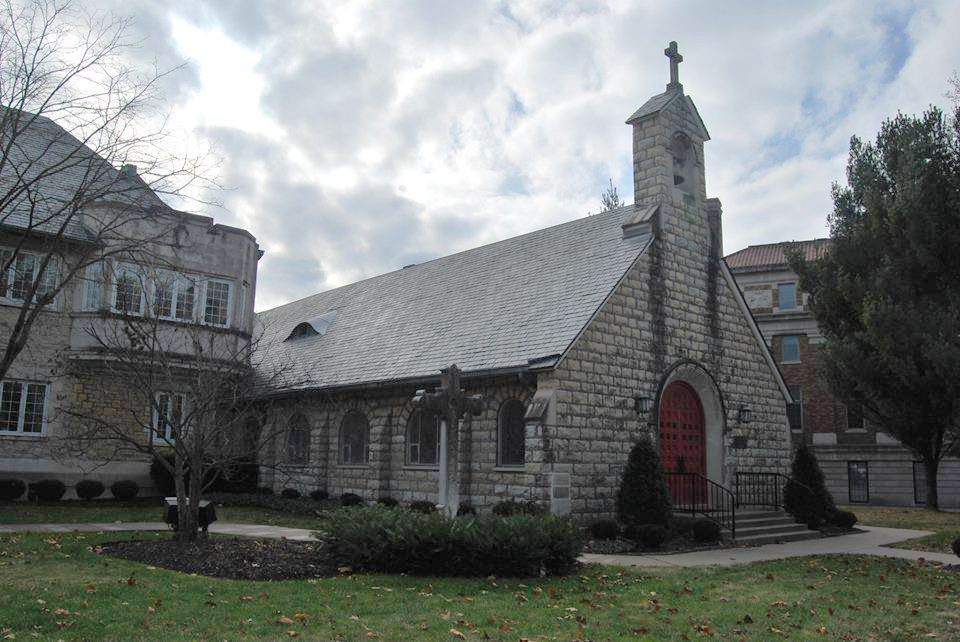

2016-01-01 - Exterior (Photograph by Josh Duncan/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Console in Fixed Position, Left
- 2 manuals
- 26 stops
- 45 registers
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
Notes
2014-02-22 - This entry describes an original installation of a new pipe organ.
Identified by Paul Marchesano, using information from this web site: http://stmarks.episcopalky.org/Worship/music-at-worship.html.
-- The organ reportedly retained a small number of ranks from the previous Moller installation (perhaps a celeste). -Database Manager
2017-05-27 - Console rebuilt in 2017 by D. C. Schroth Organ Builders. Push-button stops replaced by oblique drawknobs on side terraces. -Database Manager
Stoplist
Typed specification Source: From Josh Duncan Date not recorded
Louisville, Kentucky
St. Mark's Episcopal Church
Steiner-Reck Organ Co. 1983 2 manuals, 45 registers, 26 stops, 37 ranks
______________________________________________________________________________
GREAT ORGAN SWELL ORGAN
16' Bourdon 73 8' Cor de Nuit 61
8' Principal 61 8' Gamba 61
8' Rohrflöte (fr. Bdn) -- 8' Gamba Celeste (TC) 49
8' Open Flute 85 4' Principal 61
8' Gemshorn 61 4' Harmonic Flute 73
4' Octave 73 2 2/3' Nazard 73
4' Flute 73 2' Piccolo (fr. Hrm. Fl.) --
2' Octave (fr. 4') 61 1 3/5' Terz 61
2' Flute (fr. 4') -- 1 1/3' Quinte (fr. Nazard) --
Mixture IV-VI 336 Mixture III-IV 228
8' Trumpet 61 16' Cromorne 73
8' Unda Maris II (Sw) -- 8' Hautbois 61
4' Unda Maris II (Sw) -- 8' Cromorne (fr. 16') --
8' Fanfare Trumpet 61 8' Unda Maris II 134
4' Unda Maris II (fr. 8') --
COUPLERS 8' Fanfare Trumpet (Gt) --
Great to Pedal 8'
Swell to Pedal 8' PEDAL ORGAN
Swell to Great 8' 32' Sub Bass (resultant) --
Chimes on Great 16' Sub Bass 56
Tremulant on Swell 16' Bourdon (Gt) --
Zimbelstern 8' Principal 32
8' Gemshorn (Gt) --
COMBINATIONS (1,500 levels) 8' Sub Bass (fr. 16') --
Generals 12 (thumb & toe) 4' Choral Bass 32
Swell 6 (thumb) 4' Flute (fr. Gt Op. Fl.) --
Great 6 (thumb) 2' Mixture III 96
Pedal 5 (toe) 16' Trumpet Bass 56
General Cancel (thumb) 16' Cromorne (Sw) --
Set (thumb) 8' Posaune (fr. Trpt.Bs.) --
4' Clarion (fr. Trpt.Bs.) --
REVERSIBLES 4' Cromorne (Sw) --
Swell to Pedal (thumb & toe) 8' Fanfare Trumpet (Gt) --
Great to Pedal (thumb & toe)
Tutti (thumb & toe)
ACCESSORIES
EXPRESSION Indicator light - Wind
Balanced Pedal - Great Indicator light - Tutti
Balanced Pedal - Swell Indicator light - Crescendo
Balanced Pedal - Crescendo Adjustable bench
[Received from Steven E. Lawson 2017-06-30]
