Church of Jesus Christ of Latter-day Saints - Sharon East Stake Center
2400 N 1060 E
Provo, UT
Images

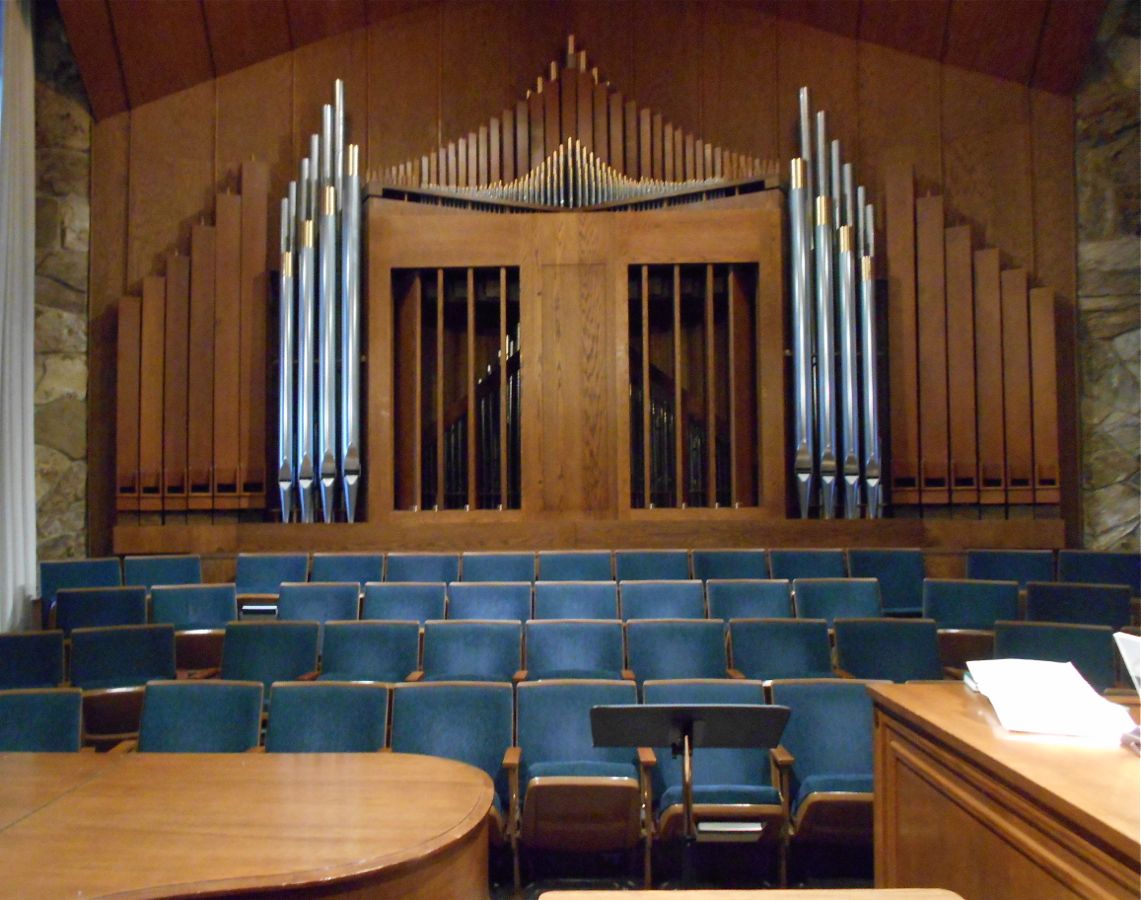

2014-01-20 - Interior, Chancel, and Pipe Display (Photograph by Mike Olson/Database Manager)
2014-01-20 - Pipe Display and Swell Box (Photograph by Mike Olson/Database Manager)
2014-01-20 - Console (Photograph by Mike Olson/Database Manager)
2014-01-20 - Pipework (Photograph by Mike Olson/Database Manager)
2014-01-20 - Pipework (Photograph by Mike Olson/Database Manager)
2014-01-20 - Stopkeys (Photograph by Mike Olson/Database Manager)
2014-01-20 - Stopkeys (Photograph by Mike Olson/Database Manager)
2014-01-20 - Stopkeys (Photograph by Mike Olson/Database Manager)
2014-01-20 - Stopkeys (Photograph by Mike Olson/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 2 manuals
- 24 stops
- 9 registers
- 2 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Stop Keys Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has combination toe pistons
Notes
2014-02-25 - This entry describes an original installation of a new pipe organ.
Identified by Michael Olson, based on personal knowledge of the organ.
-- The organ is on the central axis of the room. The key action and stop action are electric. The console has an adjustable bench. -Database Manager
2014-04-15 - Updated through online information from James R. Stettner. -Database Manager
Stoplist
Stoplist taken from the console January 2014 Source: Source not recorded Date not recorded
Pedal: 0 ranks, 24 pipes, split C-C# sides
16’ Sub Bass* (12 pipes common with Lieblich Gedeckt - variable pressure)
16’ Lieblich* Gedeckt
8’ Principal (Gt.)
8’ Rohr Flöte (Sw.)
4’ Choral Bass (Gt.)
2’ Copula (Sw. Koppel)
16’ Trompette 12 pipes F/L outside swell box (Ext. Sw.)
4’ Trompette (Sw.)
8’ Great to Pedal
4’ Great to Pedal
8’ Swell to Pedal
4’ Swell to Pedal
Swell:
8’ Rohr Flöte 61
8’ Salicional 49 TC (1-12= 8’ Rohr Flöte)
8’ Voix Celeste 49 TC – (tuned as a relatively slow celeste)
4’ Koppel Flöte 61
2-2/3’ Quinte 20 (ext. 8’ Rohr)
2’ Block Flöte 6 (ext. 8’ Rohr)
1’ Sifflöte 12 (ext. 4’ Koppel, top octave doubles back to same pipes)
8’ Trompette 61
Tremulant
16’ Swell to Swell
Unison Off
4’ Swell to Swell
Great: 6 ranks, 378 pipes, C-C# sides, mostly on the top of the swell box with 8 offset principal basses.
8’ Principal 61 pipes
8’ Gedeckt 61 pipes
8’ Salicional (Sw.)
4’ Prestant 12 pipes (ext. 8’)
4’ Rohr Flöte (ext. 8’ Rohr)
2’ Principal 61 pipes (independent of 8')
III Mixture 183 pipes
8’ Trompette (Sw.)
16’ Great to Great
4’ Great to Great
16’ Swell to Great
8’ Swell to Great
4’ Swell to Great
[Received from Michael Olson 2014-04-04.]
