Better Pipe Organ Database

Andover Organ Co. Opus 118 (2014)

First Parish
50 Cochituate Rd.
Wayland, MA

Images

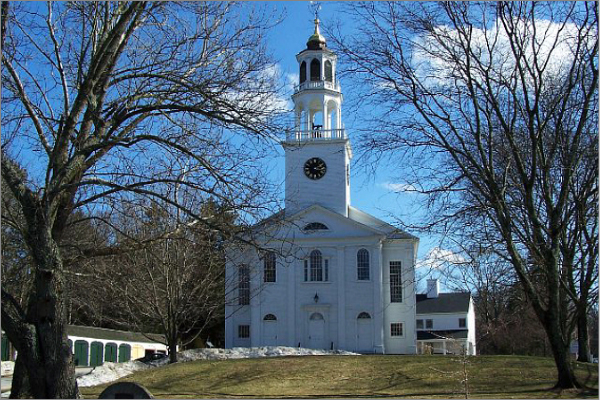

2014 - Building (Photograph by Andover, submitted by John Roper/John Roper)

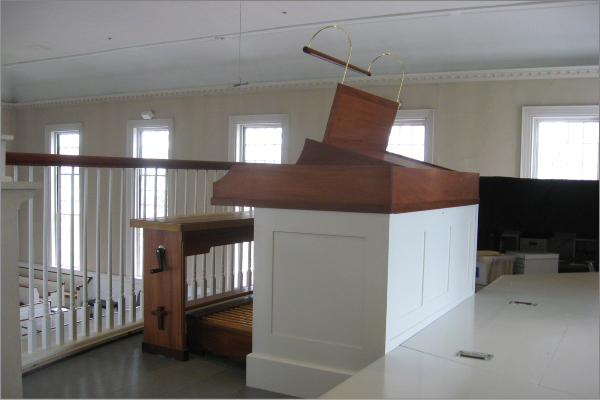

2014 - Console back and tracker run (Photograph by Andover, submitted by John Roper/John Roper)

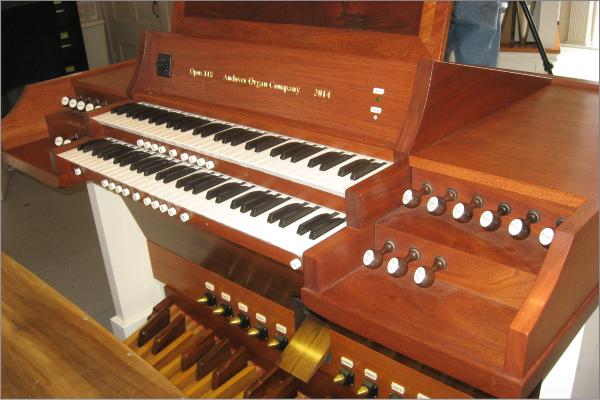

2014 - Console (Photograph by Andover, submitted by John Roper/John Roper)

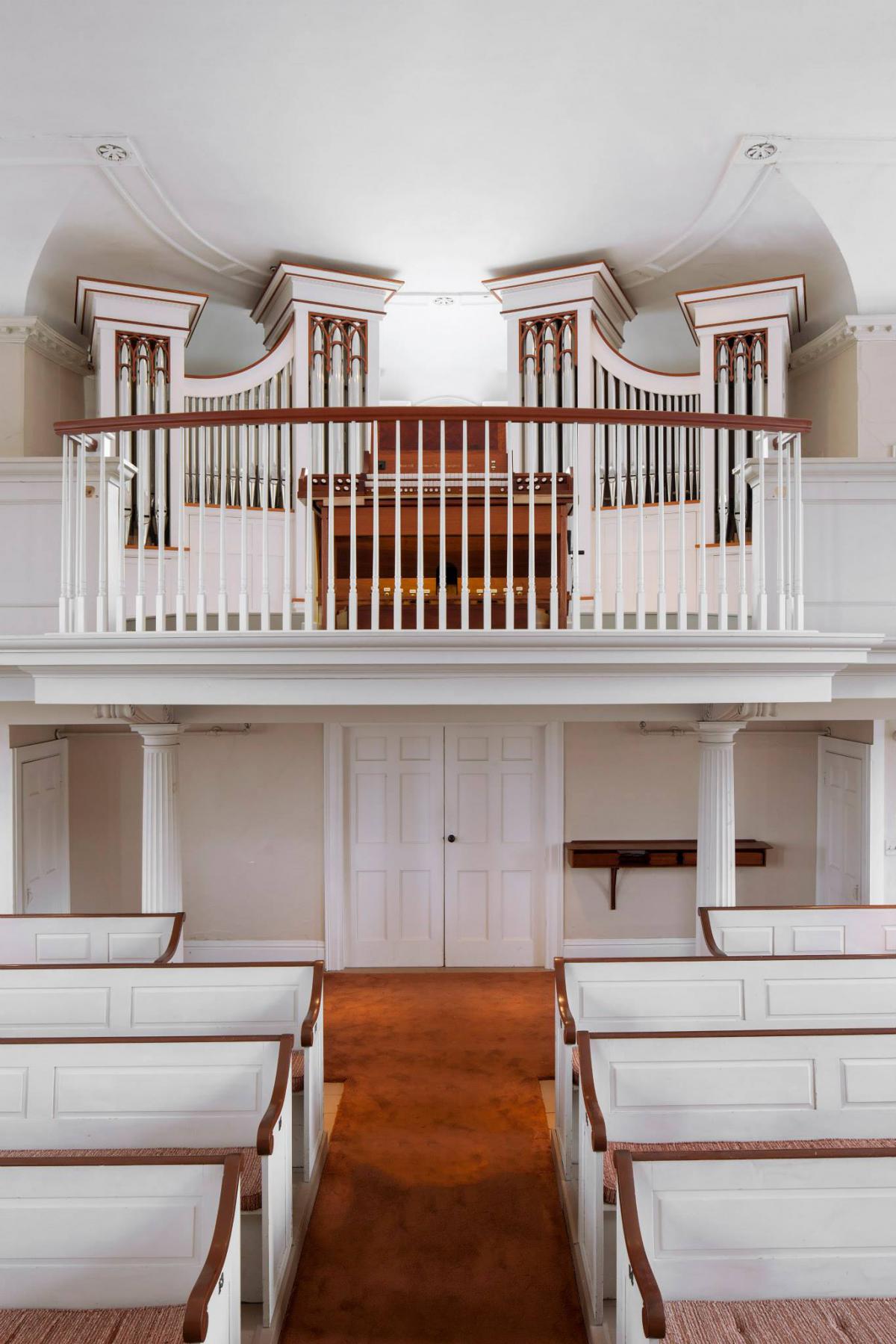

2014-03-01 - Gallery, Console, and Organ Cases (Photograph by Len Levasseur/Database Manager)

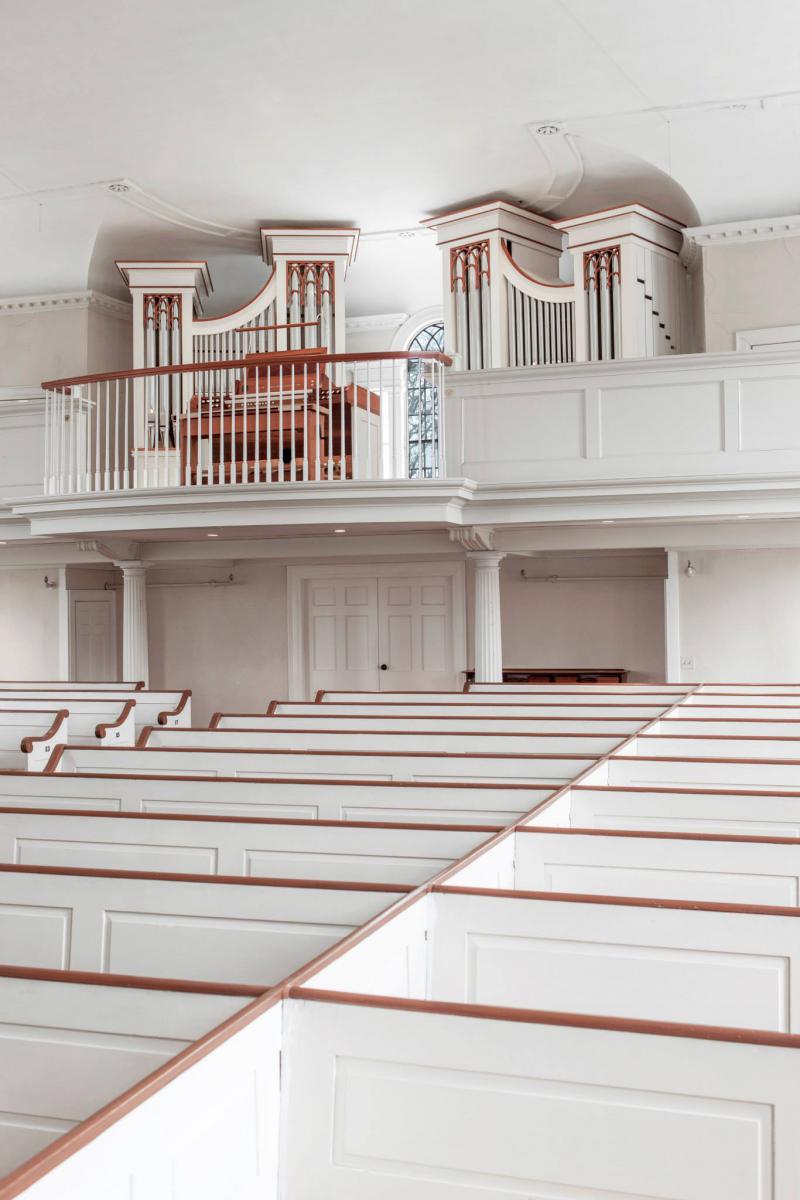

2014-03-01 - Nave, Gallery, and Organ Cases (Photograph by Len Levasseur/Database Manager)

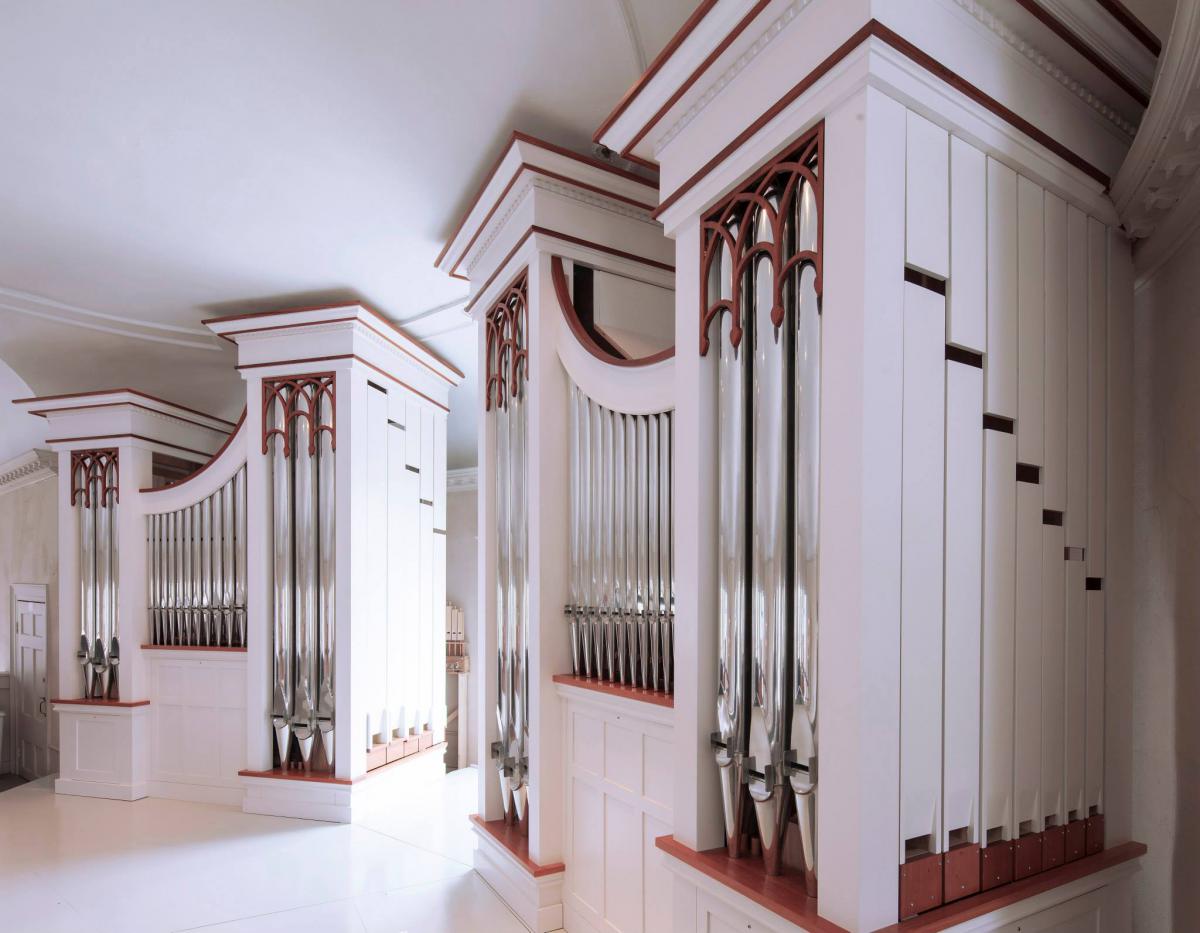

2014-03-01 - Organ Cases (Photograph by Len Levasseur/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Center
2 manuals
11 stops
13 registers
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Electrical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 58 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons

Notes

2014-03-31 - This entry describes an original installation of a new pipe organ. Identified by James R. Stettner, based on information from Photos by Len Levasseur posted to Facebook on Sunday, March 30, 2014. -- -Database Manager

2015-02-13 - Updated through online information from James R. Stettner. -- The organ is installed in two mirror-image cases in the rear gallery with a detached console facing the cases. This, the fifth pipe organ in this congregation, is the first to allow the central Palladian window to be seen. The Great is in the left case, and the Swell in the right. The Pedal Bourdon and Principal ranks are divided diatonically between the two cases and play on electro-pneumatic action. The white-painted cases have mahogany trim, and the detached console is of oiled mahogany. Each of the twin cases has 18 pipes en facade arranged: 3-12-3. The low 24 pipes of the 16' Bourdon form the outer walls of the four case towers. The polished tin facade pipes comprise the lowest 24 pipes of the Great 8' Principal and the Pedal 4' Choral Bass. The organ was premiered on Palm Sunday, April 13, 2014. The Great has a II Mixture prepared-for. -Database Manager

Stoplist

Stoplist copied from the contract specifications. Source: Source not recorded Date not recorded

FIRST PARISH CHURCH • WAYLAND, MASSACHUSETTS
ANDOVER ORGAN COMPANY, OPUS 118 (2014)

GREAT
8'	Open Diapason                   58 Pipes
8'      Chimney Flute                   58 Pipes
4'      Octave                          58 Pipes
2 2/3'  Twelfth                         58 Pipes
2'      Fifteenth                       58 Pipes
II      Mixture                         Prepared

SWELL   (expressive)
8'      Stopped Diapason                58 Pipes
8'      Salicional                      58 Pipes
4'      Flute                           58 Pipes
2'      Principal                       58 Pipes
8'      Oboe                            58 Pipes
        Tremolo


PEDAL
16’     Subbass                         32 Pipes
8'      Flutebass (ext. Subbass)        12 Pipes
4'      Choralbass (from Gt. 8’ Open)   12 Pipes

COUPLERS
Swell to Great
Great to Pedal
Swell to Pedal



 [Received from Matthew M. Bellocchio 2016-04-24.]
