Better Pipe Organ Database

Southfield Organ Builders (1994)

St. Andrew's Episcopal Church
232 Durham Rd.
Madison, CT

Images

2016-04-30 - Console (Photograph by Jeremiah Mead/Database Manager)

2016-04-30 - Builder's Nameplate (Photograph by Jeremiah Mead/Database Manager)

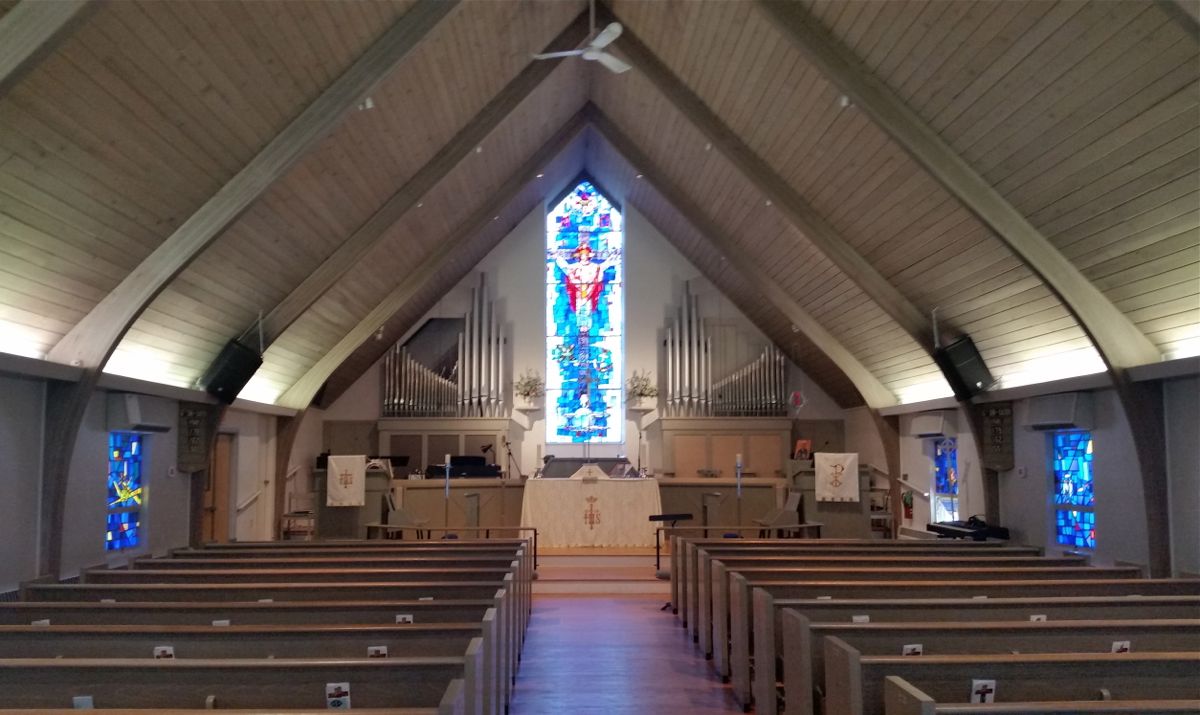

2016-04-30 - Church Interior, Altar, and Pipe Displays (Photograph by Jeremiah Mead/Database Manager)

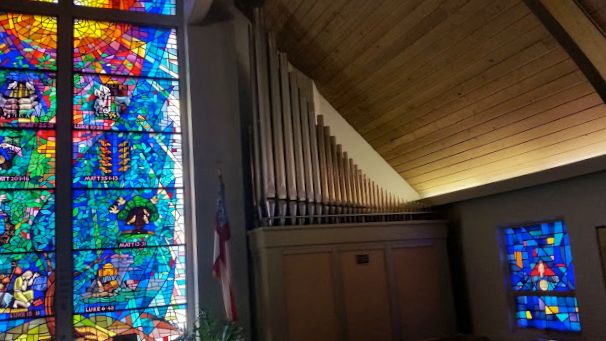

2016-04-30 - Left Pipe Facade ( Great and Pedal) (Photograph by Jeremiah Mead/Database Manager)

2016-04-30 - Right Pipe Facade ( Swell and Pedal) (Photograph by Jeremiah Mead/Database Manager)

2016-04-30 - Antiphonal Pipe Display (Photograph by Jeremiah Mead/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
20 stops
24 registers
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has combination toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2014-05-09 - This entry describes an original installation of a new pipe organ. Identified by Trevor Paraiso, based on personal knowledge of the organ. -- Designed by Timothy Smith and Walden Moore. -Database Manager

2016-05-21 - Updated through online information from Jeremiah Mead. <br>Most of the organ is in the front but there is 3 ranks (antiphonal) in the back right exposed -Database Manager

Stoplist

Source: from console Date not recorded


Great:
16' Gedeckt
8' Hohlflöte
8' Principal
8' Gemshorn
4' Octave
2 ⅔' Nasard
II-III 1 ⅓' Mixture
8' Trumpet  (SW)
Great 4’
Chimes

Antiphonal(played on Great):
8' Geigen
8' Dulcianna
4' Octave
Great 4' effects this division as well

Swell:
8' Gedeckt
8' Viola
8' Viola Celeste (TC)
4' Spitz Flute
2' Principal
8' Trumpet
Tremolo
Swell 16’
Swell unison off
Swell 4’

Pedal:
32' Resultant ( from 16' Subbase)
16' Subbase
16' Lieblich
8' Principal
8' Bourdon
4' Choral bass
16' Trombone
Chimes (GT)

Couplers:
Great to Pedal 8’
Great to Pedal 4’
Swell to Pedal 8’
Swell to Pedal 4’
Swell to Great 16’
Swell to Great 8’
Swell to Great 4’


 [Received from Jeremiah Mead 2016-05-02.]
