Better Pipe Organ Database

J.A. Hebert and Son / J.A. Hébert & Son (2000)

St. Anastasia Roman Catholic Church
4571 John R. Road
Troy, MI

Images

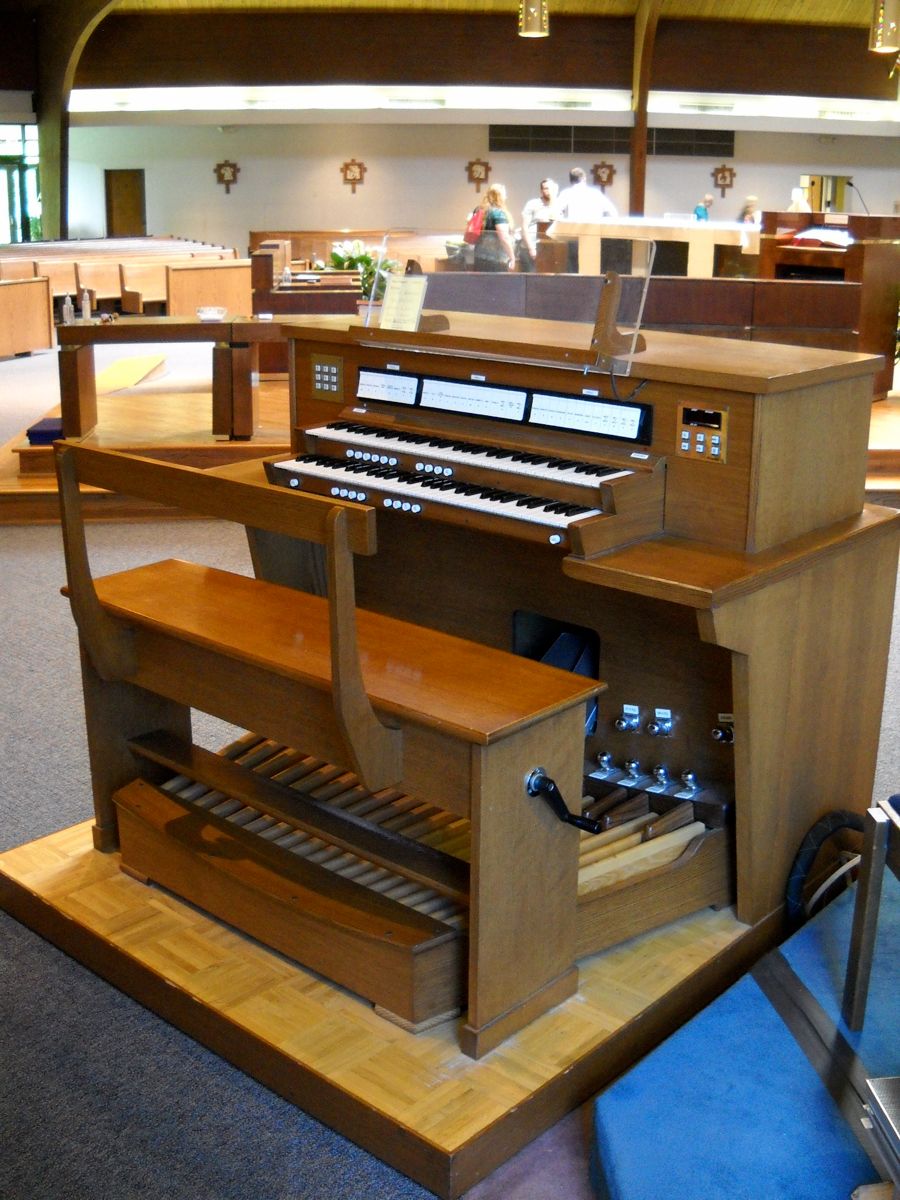

2014-06-22 - Console (Photograph by Timothy Tikker/Database Manager)

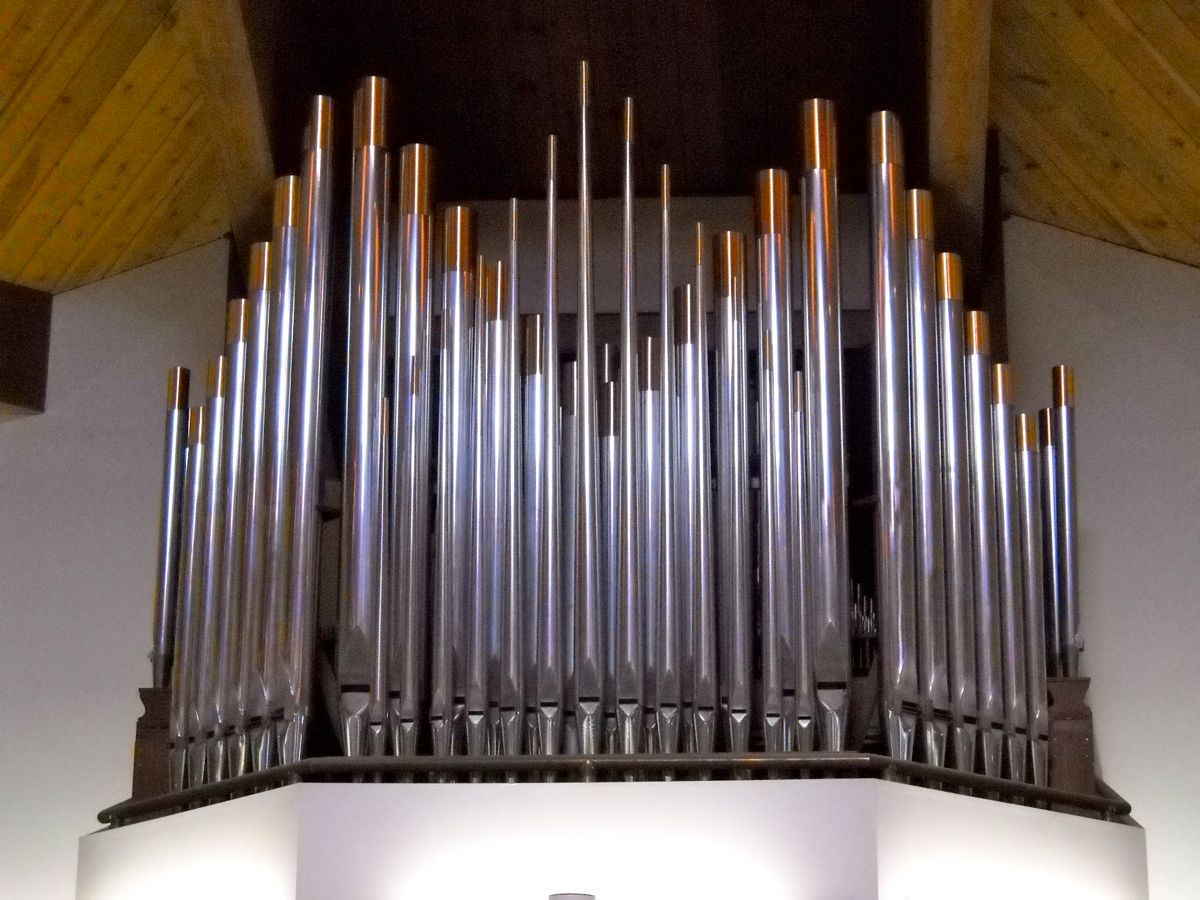

2014-06-22 - Pipe Facade (Photograph by Timothy Tikker/Database Manager)

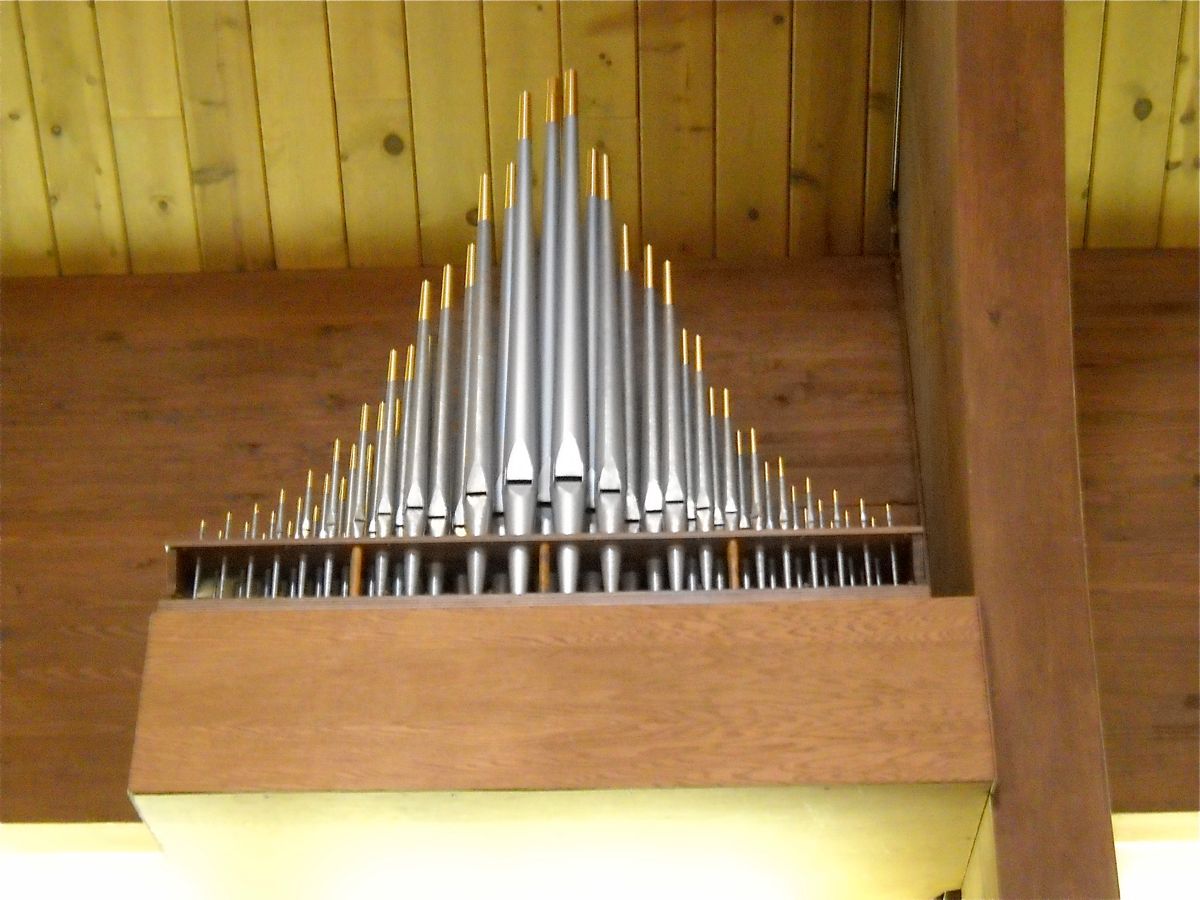

2014-06-22 - Pipe Display (Photograph by Timothy Tikker/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
2 manuals
16 stops
23 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical

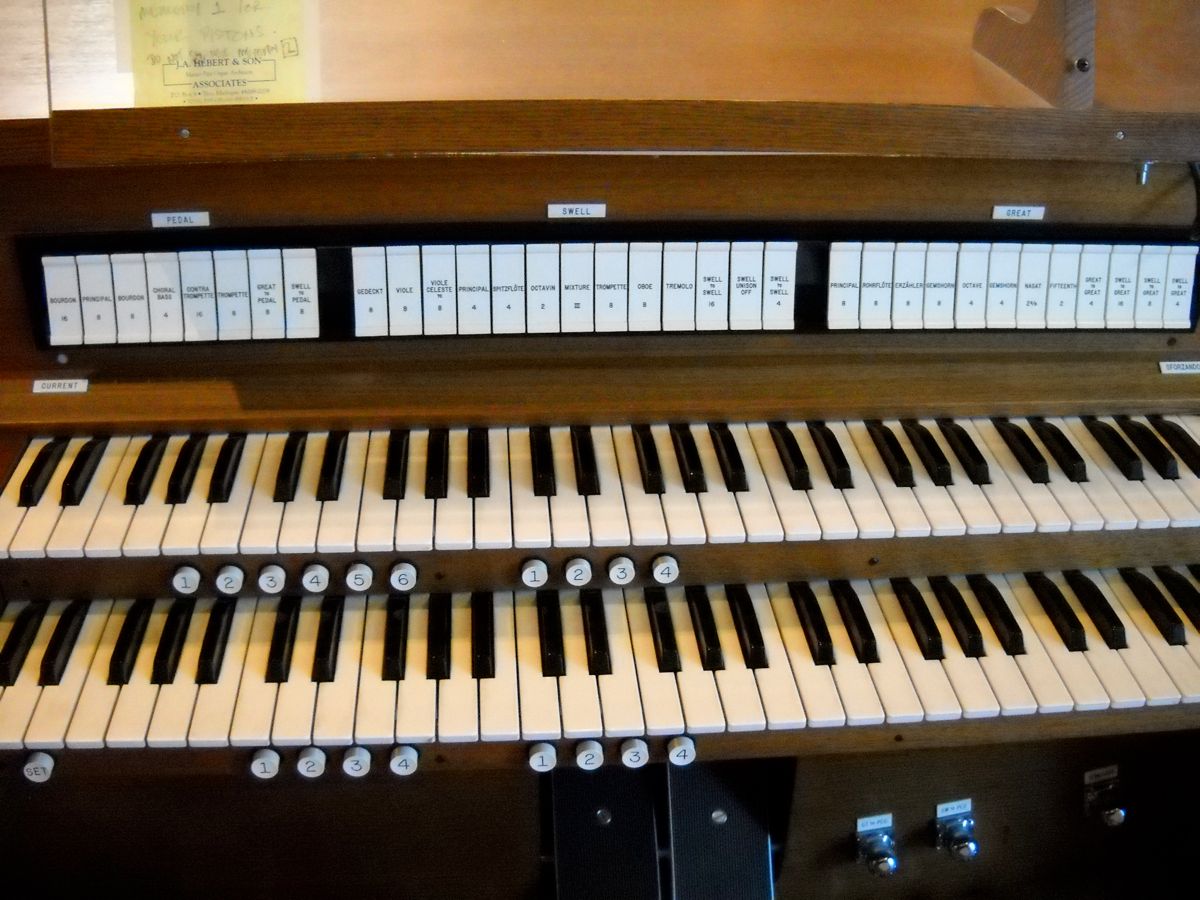

Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has combination thumb pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2014-06-20 - This is a rebuild of an existing organ. Identified by Timothy Tikker, based on personal knowledge of the organ. -- This organ is an enlargement of an earlier Wicks organ. I have not yet ascertained the year the original organ was built and where it was located, or when the organ was rebuilt & enlarged. -Database Manager

2014-06-24 - Updated through online information from Timothy Tikker. -- The organ is located above the main entrance at the rear of the church. The console is on a movable platform near the choir loft at the left side of the church, next to the choir risers. The Great Gemshorn rank is located on the wall above the choir risers. -Database Manager

2014-09-24 - Updated through online information from Timothy Tikker. -- The Swell 8' Viole is only 49 pipes; the low 12 notes are common with the 8' Gedeckt. -Database Manager

2015-02-23 - Updated through online information from Timothy Tikker. -- I have corrected the number of stops, ranks and pipes to reflect that the Pedal 16' & 8' Bourdons are not independent, but are actually extended/borrowed from the Swell 8' Gedeckt. -Database Manager

Stoplist

stoplist taken from the console May 25, 2014 Source: Source not recorded Date not recorded

Troy, Michigan
Saint Anastasia Roman Catholic Church


         GREAT (I)                             pipes:

      8’ Principal                              61
      8’ Rohrflöte                              61
      8’ Erzähler                               61
      8’ Gemshorn                               -- (from 4’, TC)
      4’ Octave                                 61
      4’ Gemshorn                               61 (above choir loft)
  2-2/3’ Nasat                                  61
      2’ Fifteenth                              61
      4’ Great to Great
     16’ Swell to Great
      8’ Swell to Great
      4’ Swell to Great


         SWELL (II, enclosed)

      8’ Gedeckt                                61
      8’ Viole                                  61
      8’ Viole celeste (TC)                     49
      4’ Principal                              61
      4’ Spitzflöte                             73
      2’ Octavin                                -- (from Spitzflöte)
         Mixture III                           183
      8’ Trompette                              61
      8’ Oboe                                   61
         Tremolo
     16’ Swell to Swell
         Swell Unison Off
      4’ Swell to Swell


         PEDAL

     16’ Bourdon                                12 (Swell extension)
      8’ Principal                              44
      8’ Bourdon                                SW (from SW Gedeckt)
      4’ Choralbass                             -- (from Principal)
     16’ Contra Trompette                       12 (Swell extension)
      8’ Trompette                              -- (from Swell)
      8’ Great to Pedal
      8’ Swell to Pedal

Swell Mixture III composition:

C      19 22 26
c’     15 19 22
g’’    12 15 19
g#’’’   8 12 15


Combination pistons (Classic system):

6 General (thumb & toe)
4 Great (thumb)
4 Swell (thumbs; actually function as generals)
4 Pedal (thumb & toe)
99 memory levels
controls: up, down, alt, setup, reg seq


Reversible pistons (toe):

Great to Pedal
Swell to Pedal
Sforzando (= full with all couplers)


MIDI controls (settable on combination system):

Great A, B, C
Swell A, B, C
Pedal A, B, C


Balanced Pedals:

Swell
Crescendo (16 stages, to full with all couplers)


Indicator lights:

Current (white)
Crescendo (red)







 [Received from Timothy Tikker 2014-06-24.]
