St. John's Lutheran Church: Sanctuary
16592 N 4000 E Road
Anchor, IL
Images

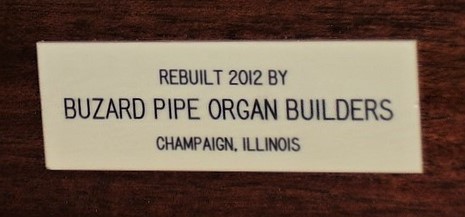

2012-09-21 - Rebuilder's nameplate (Photograph by Buzard Pipe Organ Builders, submitted by Jim Stettner/Jim Stettner)

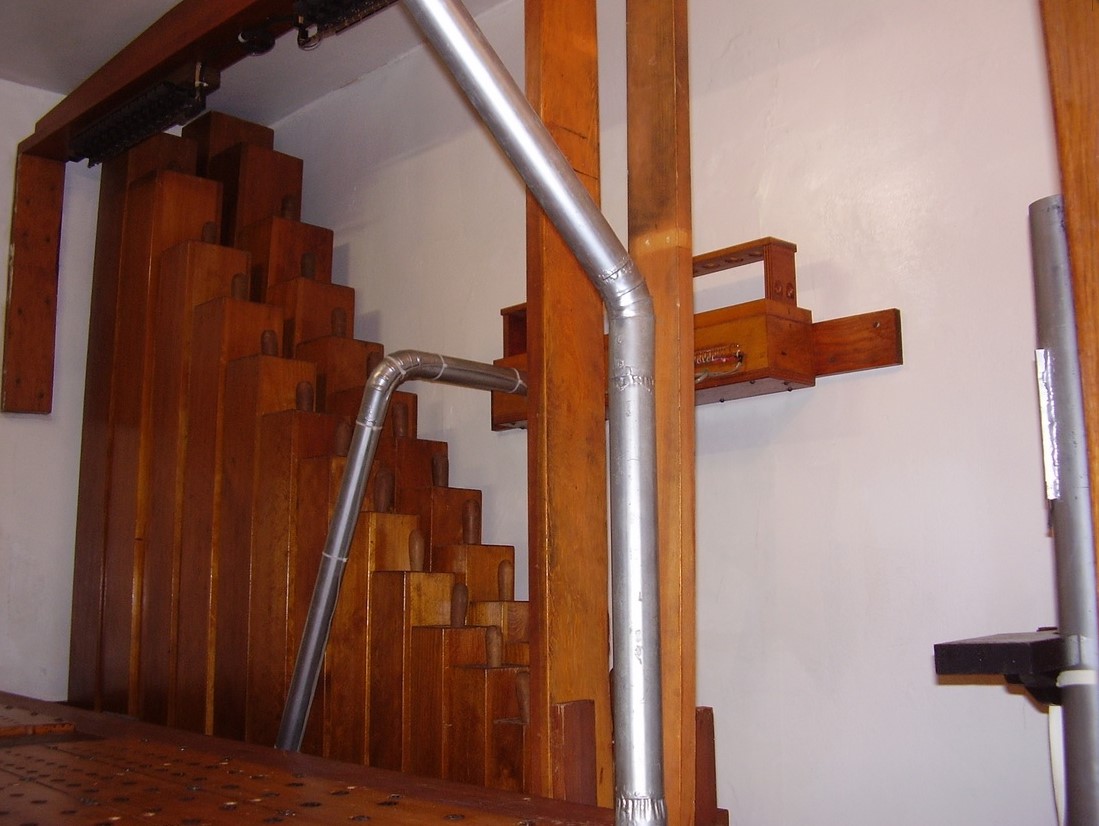

2012-09-21 - Pipe chamber showing Pedal 16' Bourdon at the back. (Photograph by Buzard Pipe Organ Builders, submitted by Jim Stettner/Jim Stettner)
2012-09-21 - Pedalboard, Gr. to Ped. reversible, Expression & Crescendo shoes (Photograph by Buzard Pipe Organ Builders, submitted by Jim Stettner/Jim Stettner)

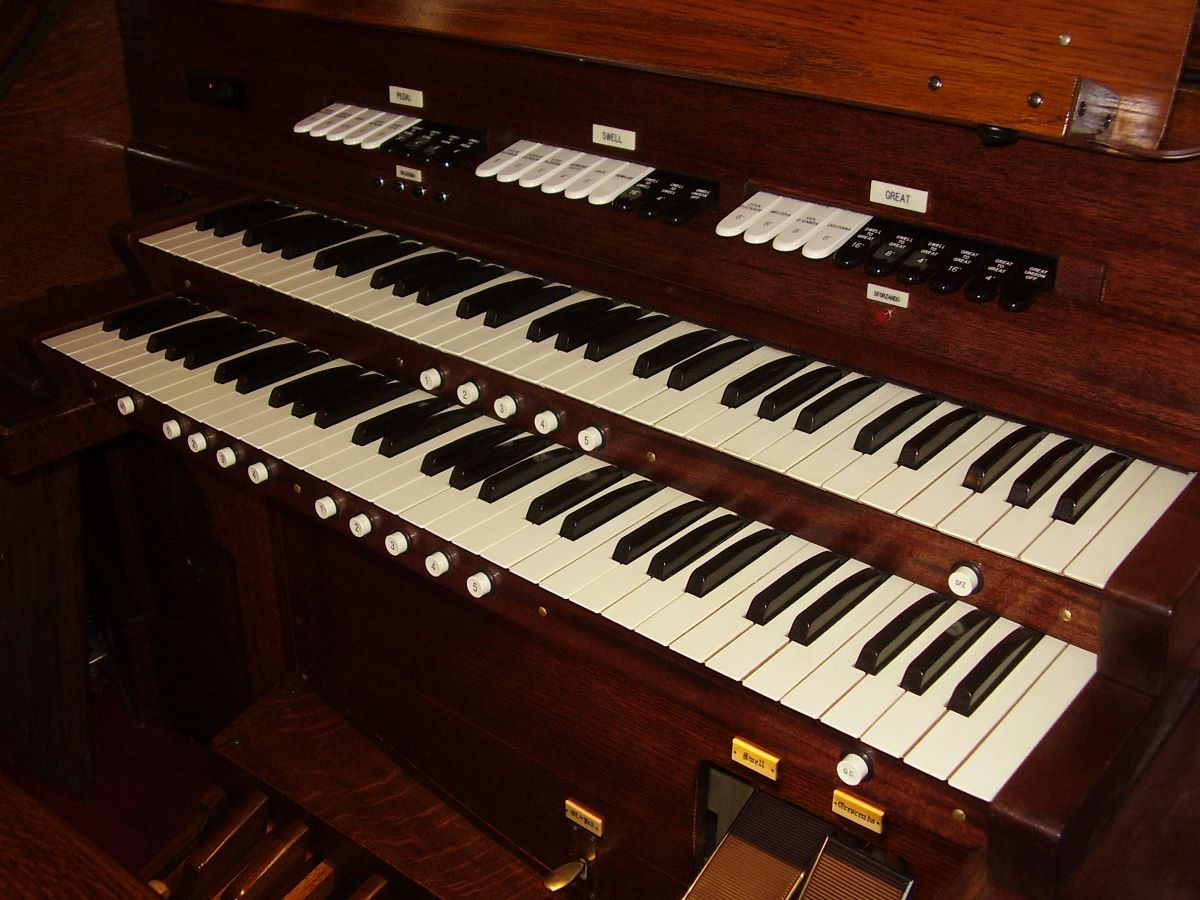

2012 - Console (Photograph by Buzard Pipe Organ Builders, submitted by Jim Stettner/Jim Stettner)
2013-07-17 - Organ case and keydesk (Photograph by David Harris, submitted by Jim Stettner/Jim Stettner)

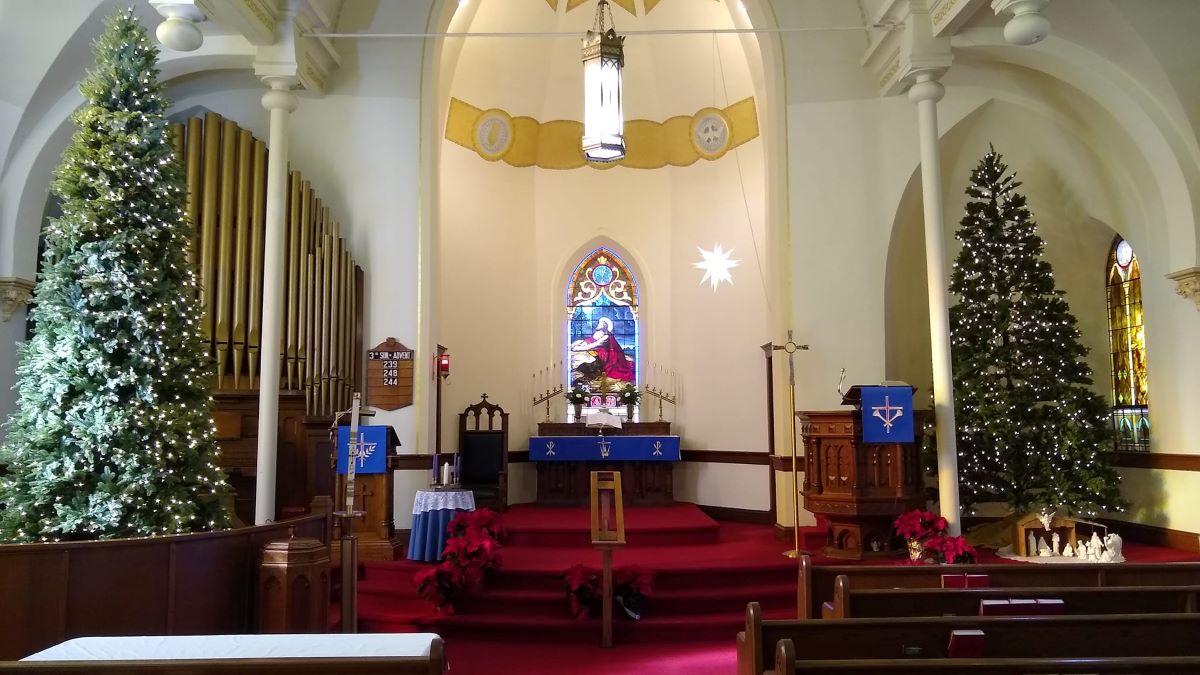

2021-12-19 - Chancel with organ at left (Photograph from an archival source: Church Facebok page, submitted by Jim Stettner/Jim Stettner)
2017-08-29 - Church exterior (Photograph from an archival source: Parish archives via parish website, submitted by Jim Stettner/Jim Stettner)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Left
- 2 manuals
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Tilting/Rocking Tablets Above Top Manual
- Pedal Type: Concave Radiating (Details Unknown)
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
Notes
2014-08-04 - Identified through online information from David Harris. -- Rebuild of existing Hinners Tubular-pneumatic organ, converting it to EP action. Identified by David Harris. Restorative repairs by Buzard. -Database Manager
2022-08-27 - The organ was completely cleaned, releathered, and a new relay added by Buzard Pipe Organ Builders, completed in 2012. -Jim Stettner
Stoplist
Source: Stoplist taken from the Buzard website 2012
Anchor, Illinois
St. John's Lutheran Church
Hinners Organ Co., Opus 2557, 1920
Edward A. Higgins, 1952 - Electrification
Buzard Organ Company, 2012 -Renovated (releathering, relay, no tonal changes)
GREAT (Expressive) – 10 stop tablets 4-stop ventil stop action
and E-P primary windchest + unit chests
8’ Open Diapason 73 1-30 and 62-73 offset on unit chests
8’ Melodia 73 62-73 offset on unit chest
8’ Viol D’Gamba 73 1-7 and 62-73 offset on unit chest
8’ Dulciana 73 1-7 and 62-73 offset on unit chest
(Chimes) Mayland; GG–g (25) No stop tablet, on-off-volume control
Great to Great 16
Great Unison Off
Great to Great 4
SWELL (Expressive) – 9 stop tablets 5-stop ventil stop action
and E-P primary windchest + unit chests
8’ Violin Diapason 73 1-10 and 62-73 offset on unit chests
8’ Stopped Diapason 73 62-73 offset on unit chests
8’ Echo Salicional 73 62-73 offset on unit chest
4’ Harmonic Flute 73 62-73 offset on unit chests
8’ Oboe 73 62-73 offset on unit chests
Tremulant
Swell to Swell 16
Swell Unison Off
Swell to Swell 4
PEDAL (Expressive) – 9 stop tablets42-note Bourdon and 27-note Lieblich
on ep unit chests
16’ Grand Bourdon 30
16’ Lieblich Gedeckt -- 1-30 separate stop action on Bourdon chest
10⅔’ Quint (G.B.) --
8’ Open Diapason (Gt) --
8’ Bass Flute (G.B.) 12
COUPLERS
Great to Pedal 8'
Great to Pedal 4'
Swell to Pedal 8'
Swell to Pedal 4'
Swell to Great 16'
Swell to Great 8'
Swell to Great 4'
FINGER PISTONS
General 1 - 4
Swell 1 - 5
Great 1 - 5
Sfz. (rev)
Set
G.C.
TOE STUDS
Gr. to Ped. (rev)
PEDAL MOVEMENTS
Expression (bal.)
Crescendo (bal.)
