Schantz Opus 788 (1967)

Images

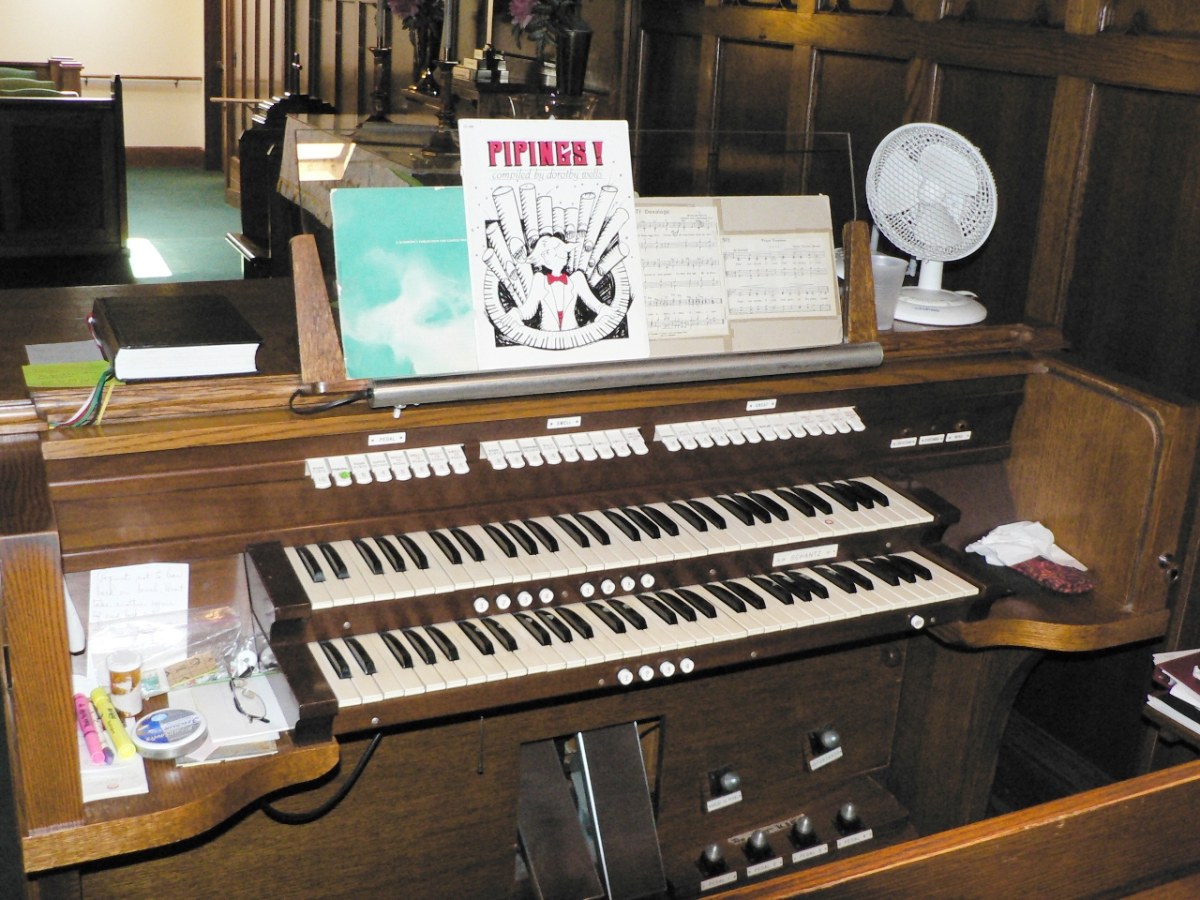

2014-07-30 - Console (Photograph by Russ Kauffman/Database Manager)

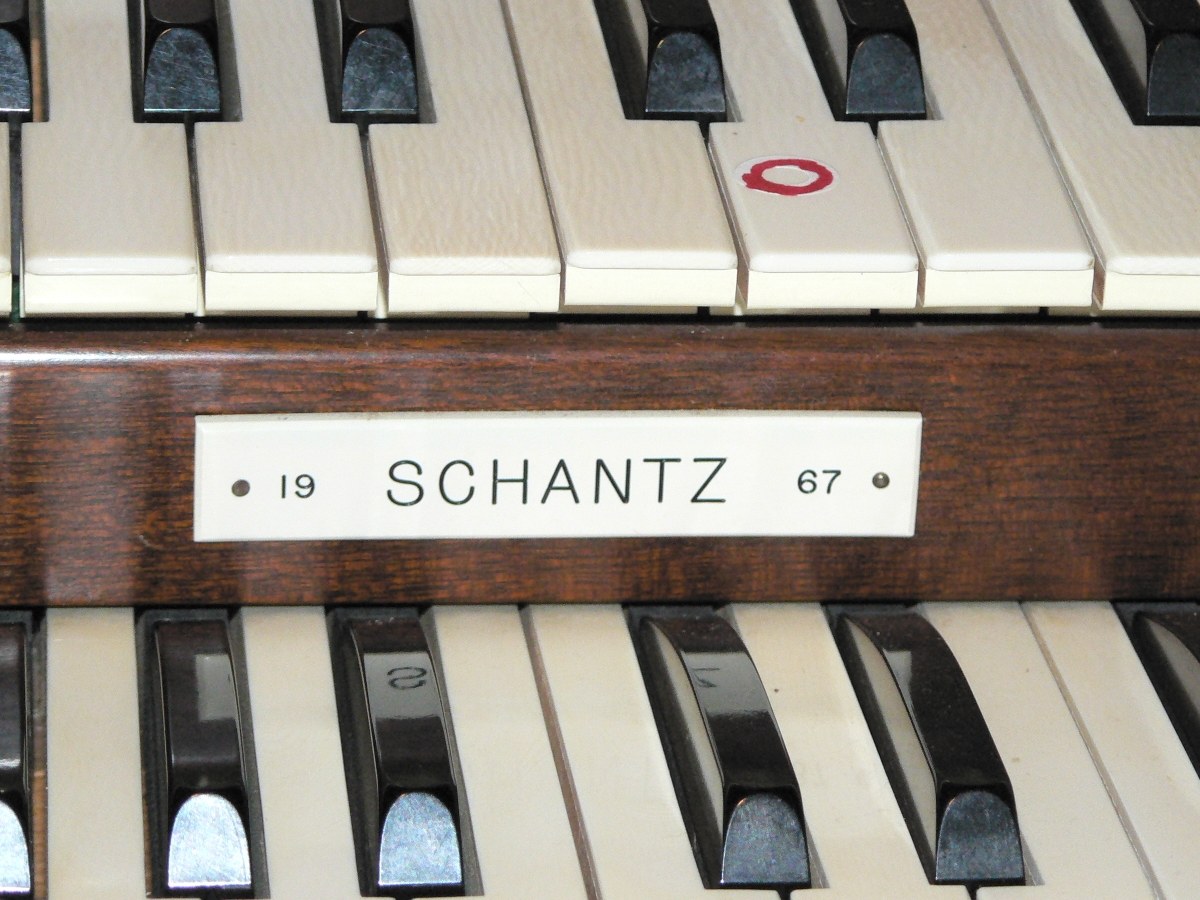

2014-07-30 - Console Detail - Name Plate (Photograph by Russ Kauffman/Database Manager)

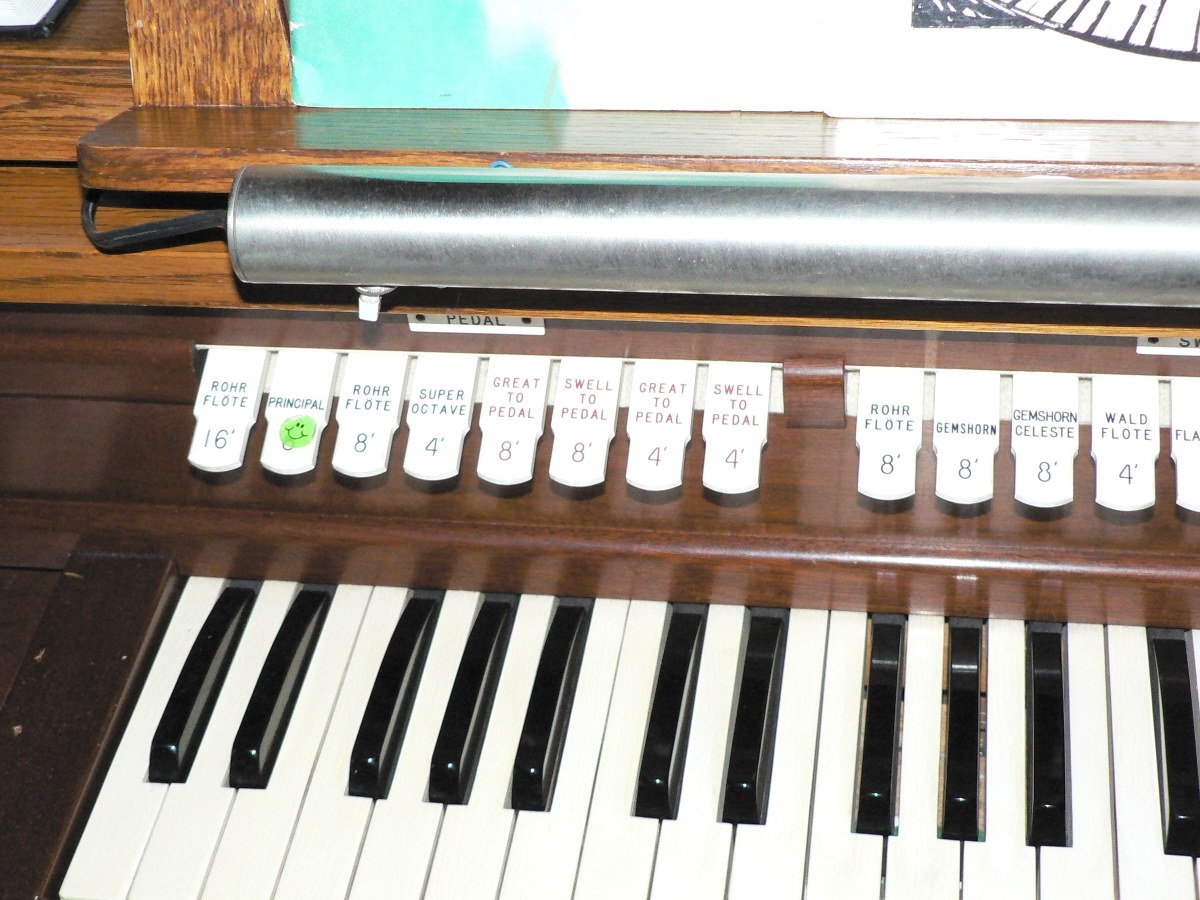

2014-07-30 - Console Detail - Pedal Stopkeys (Photograph by Russ Kauffman/Database Manager)

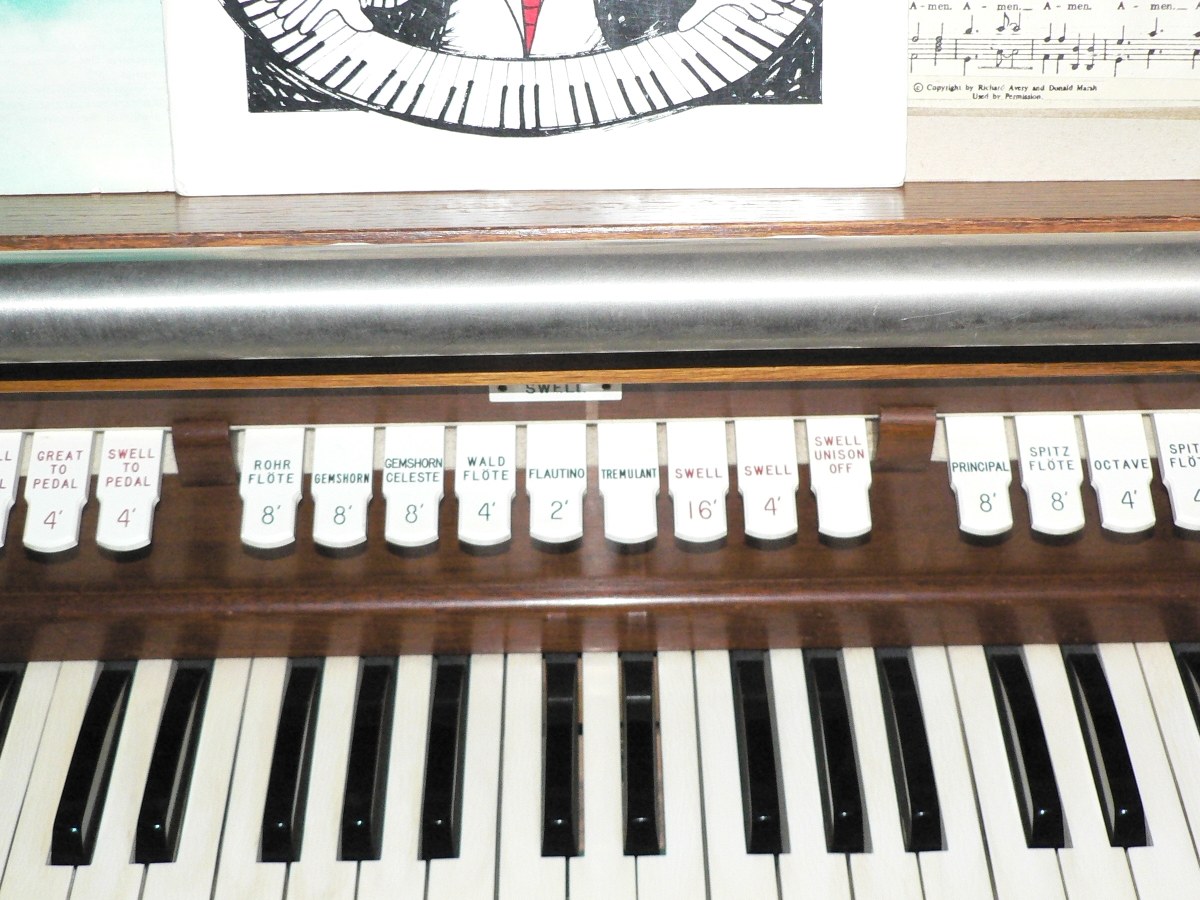

2014-07-30 - Console Detail - Swell Stopkeys (Photograph by Russ Kauffman/Database Manager)

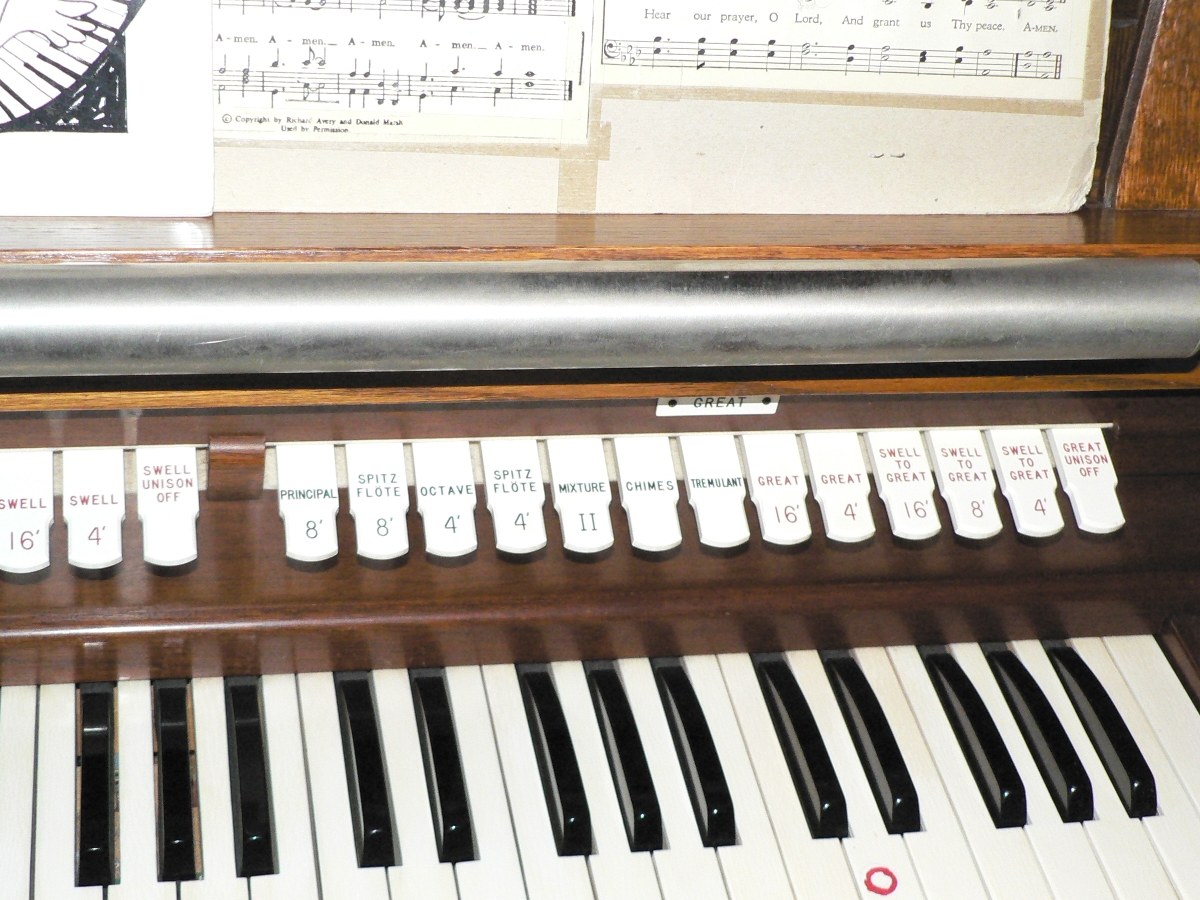

2014-07-30 - Console Detail - Great Stopkeys (Photograph by Russ Kauffman/Database Manager)

Consoles

Main

• Organ type: Traditional With Roll Top
• Console position: Console in Fixed Position, Right
• 2 manuals
• 7 stops
• 14 registers
• 3 divisions
• Key action Type: Electrical
• Stop action Type: Electrical
• Stop layout Type: Stop Keys Above Top Manual
• Manual compass: 61 notes
• Pedal compass: 32 notes
• Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
• Has crescendo
• Combination action: 'Hold and Set' Pneumatic/Mechanical
• Has combination thumb pistons
• Has combination toe pistons
• Has coupler toe pistons
• Has tutti toe pistons

Notes

2014-08-07 - An original installation. Identified by Russ Kauffman, based on personal knowledge of the organ. -- -Database Manager

2014-08-10 - The Schantz opus list gives the address as being in Shamokin, but that address is now listed as in Coal Township. -Database Manager

Stoplist

Stoplist provided by Russ Kauffman Source: Source not recorded Date not recorded

    Shamokin (Coal Township), Pennsylvania
    Salem United Church of Christ

    Schantz   Op. 788   1967   2/8
    _______________________________________________________________

    GREAT                  SWELL                    PEDAL
 8' Principal   61      8' Rohrflöte    61      16' Rohrflöte    12 SW
 8' Spitzflöte  61      8' Gemshorn     61       8' Principal    GT
 4' Octave      61      8' Gemshorn Cel 49       8' Rohrflöte    SW
 4' Spitzflöte  12      4' Waldflöte    12       4' Super Octave GT
II  Mixture    122      2' Flautino     12
    Tremulant              Tremulant
    Sub                    Sub
    Unison Off             Unison Off
    Super                  Super
    Chimes

             [Received from Jeff Scofield August 10, 2014]
