Better Pipe Organ Database

Casavant Frères Ltée. Opus No. 1273 (1928)

St. Philip's Anglican Church: Sanctuary; front
240 Avenue Taché
Winnipeg, MB, CA

Images

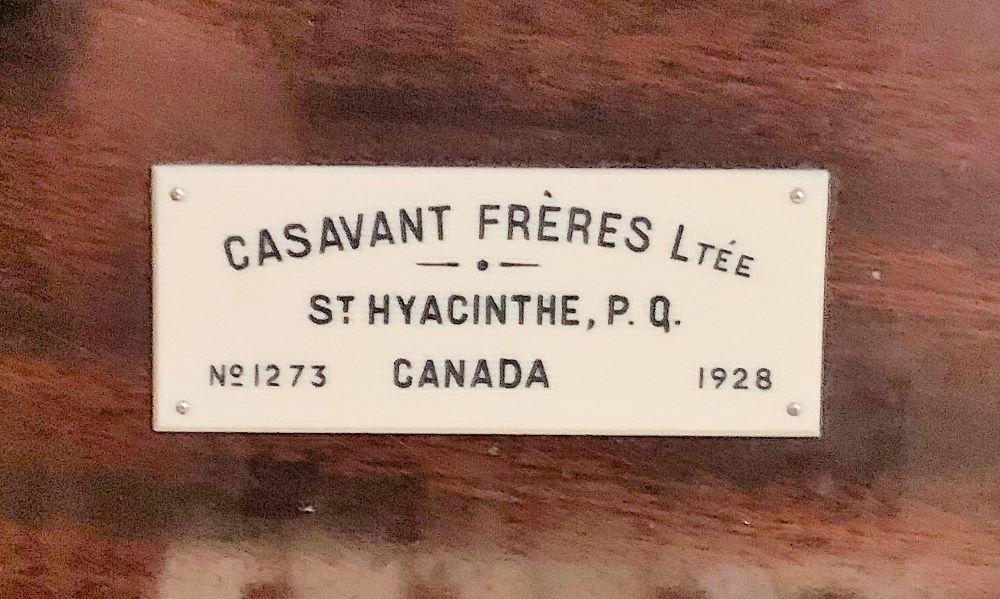

2022-01-14 - Console: builder's nameplate (Photograph by Dr. Stephen Borys, submitted by Jim Stettner/Jim Stettner)

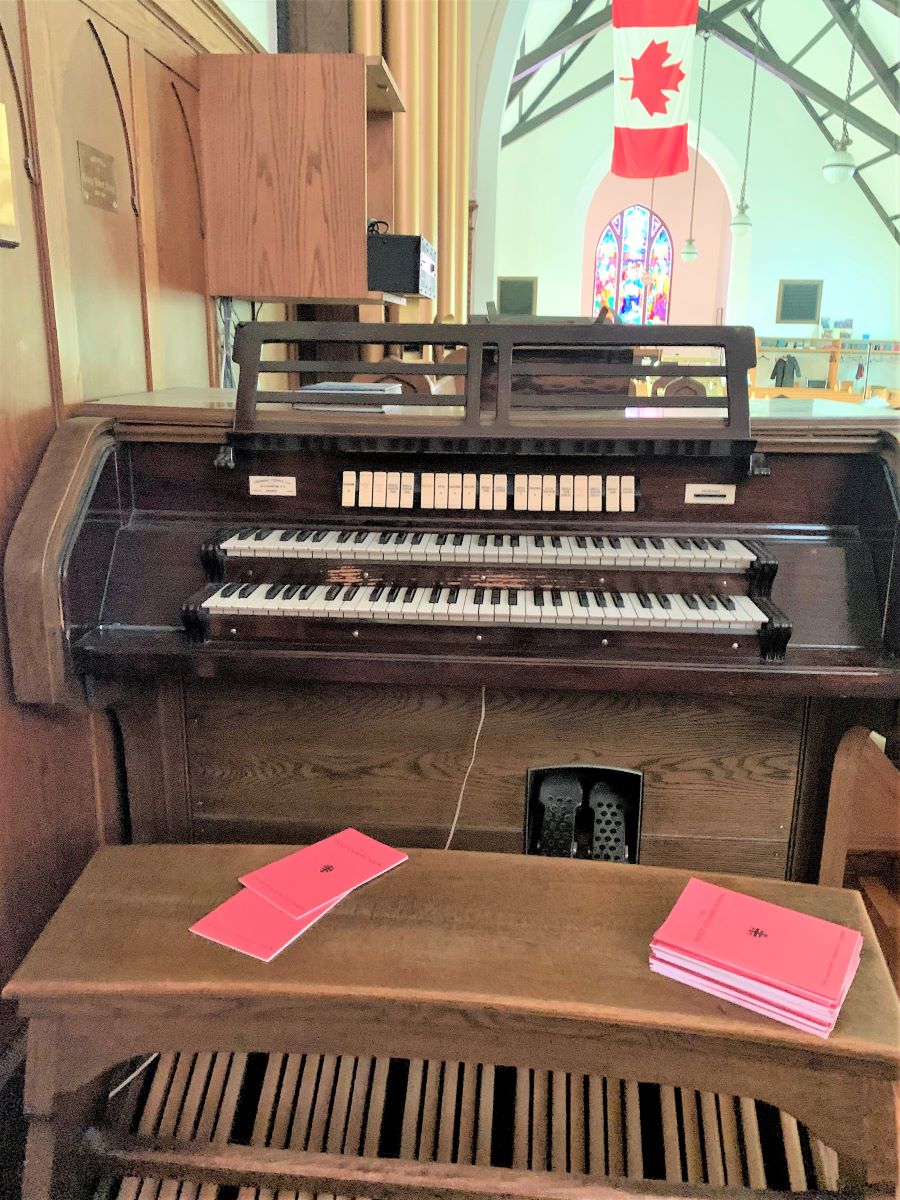

2021-12-09 - Console (Photograph by Dr. Stephen Borys, submitted by Jim Stettner/Jim Stettner)

2021-12-29 - Organ facade (Photograph by Dr. Stephen Borys, submitted by Jim Stettner/Jim Stettner)

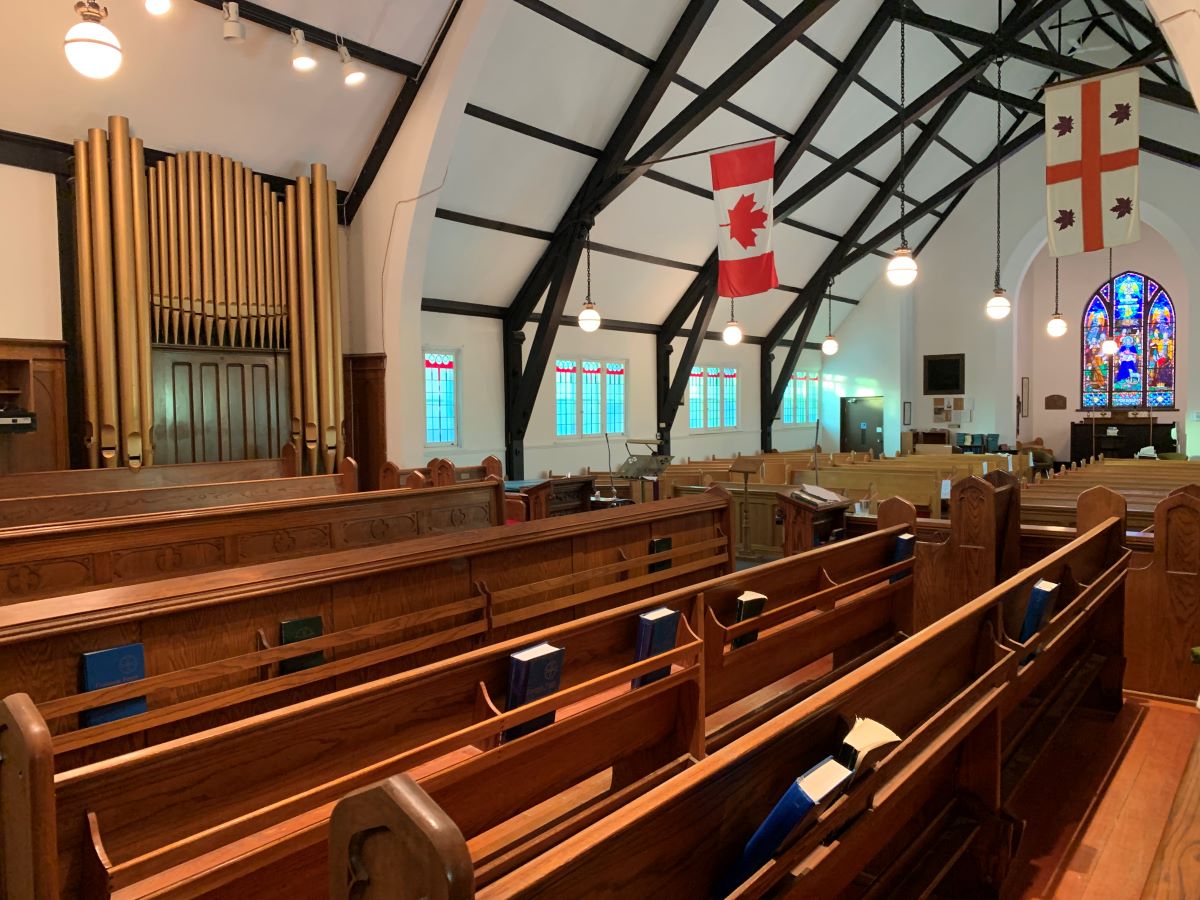

2022-01-07 - Organ case in the chancel (Photograph by Dr. Stephen Borys, submitted by Jim Stettner/Jim Stettner)

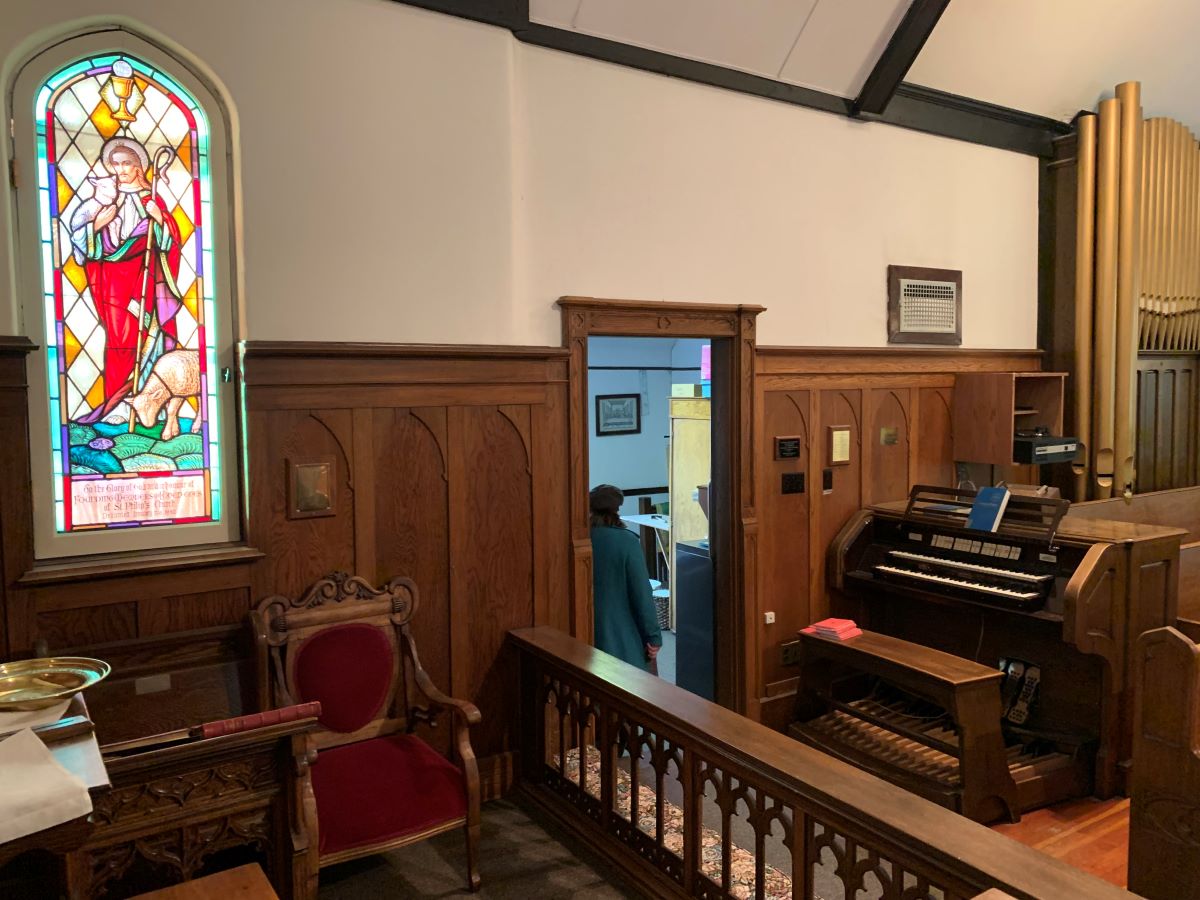

2022-01-07 - Console and organ case (Photograph by D. Stephen Borys, submitted by Jim Stettner/Jim Stettner)

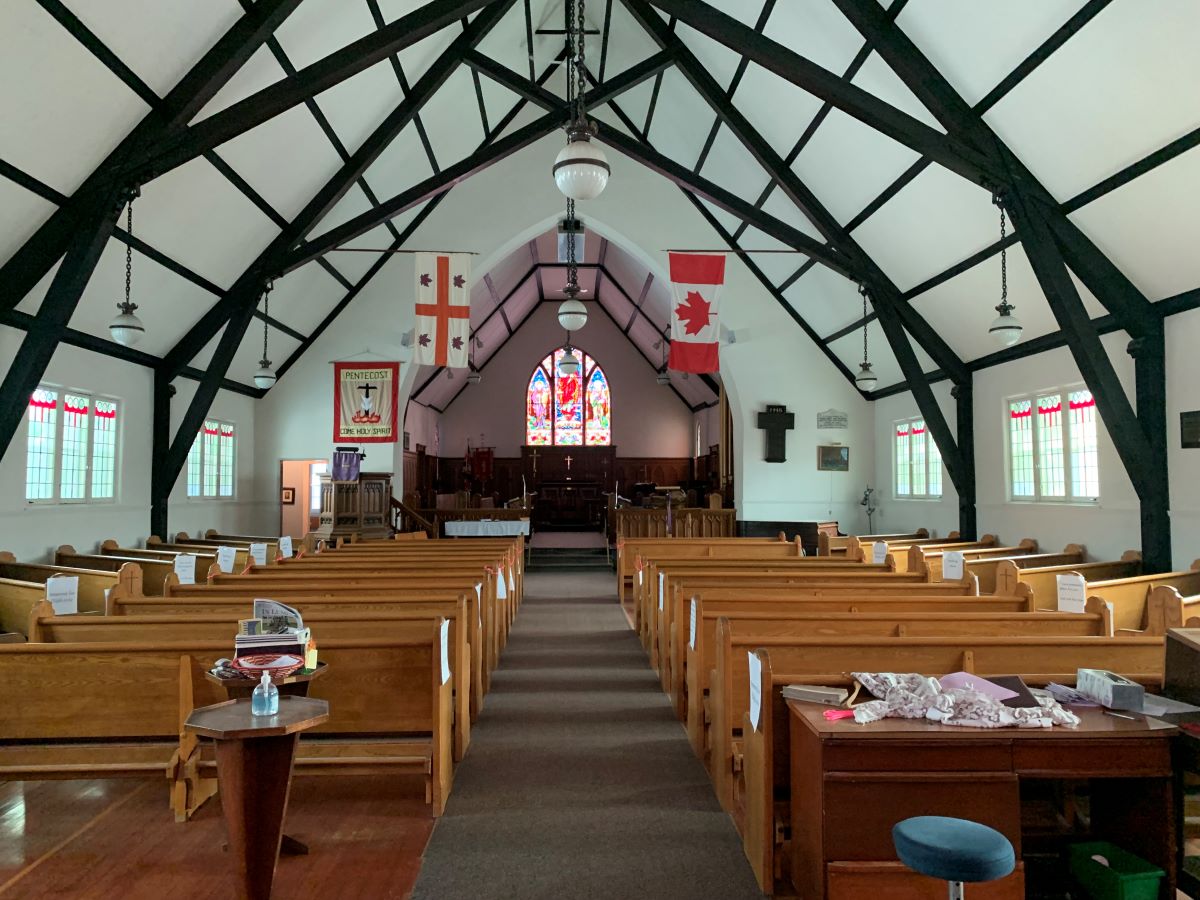

2022-01-07 - View from front to back; organ on the left (Photograph by Dr. Stephen Borys, submitted by Jim Stettner/Jim Stettner)

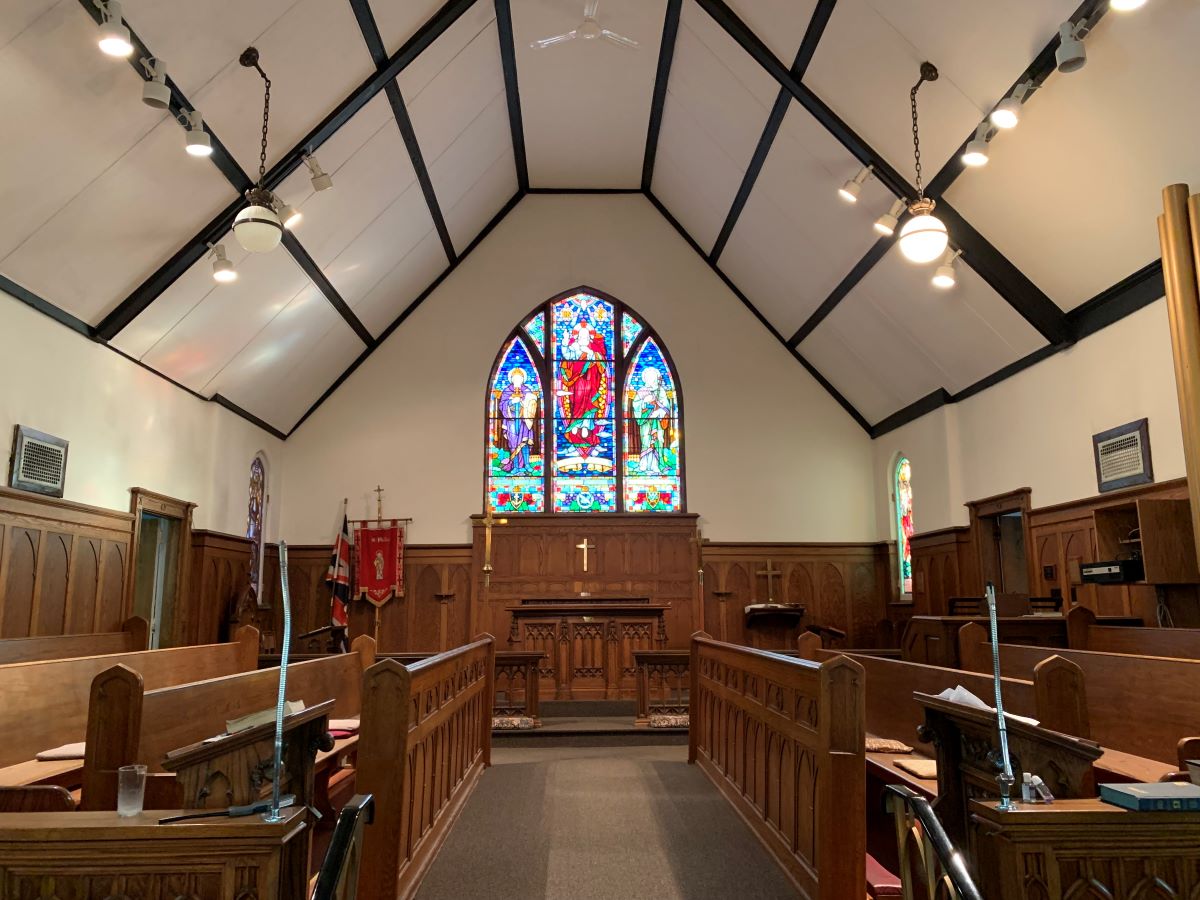

2022-01-07 - Chancel looking at altar. Organ on the right. (Photograph by Dr. Stephen Borys /Stephen Borys)

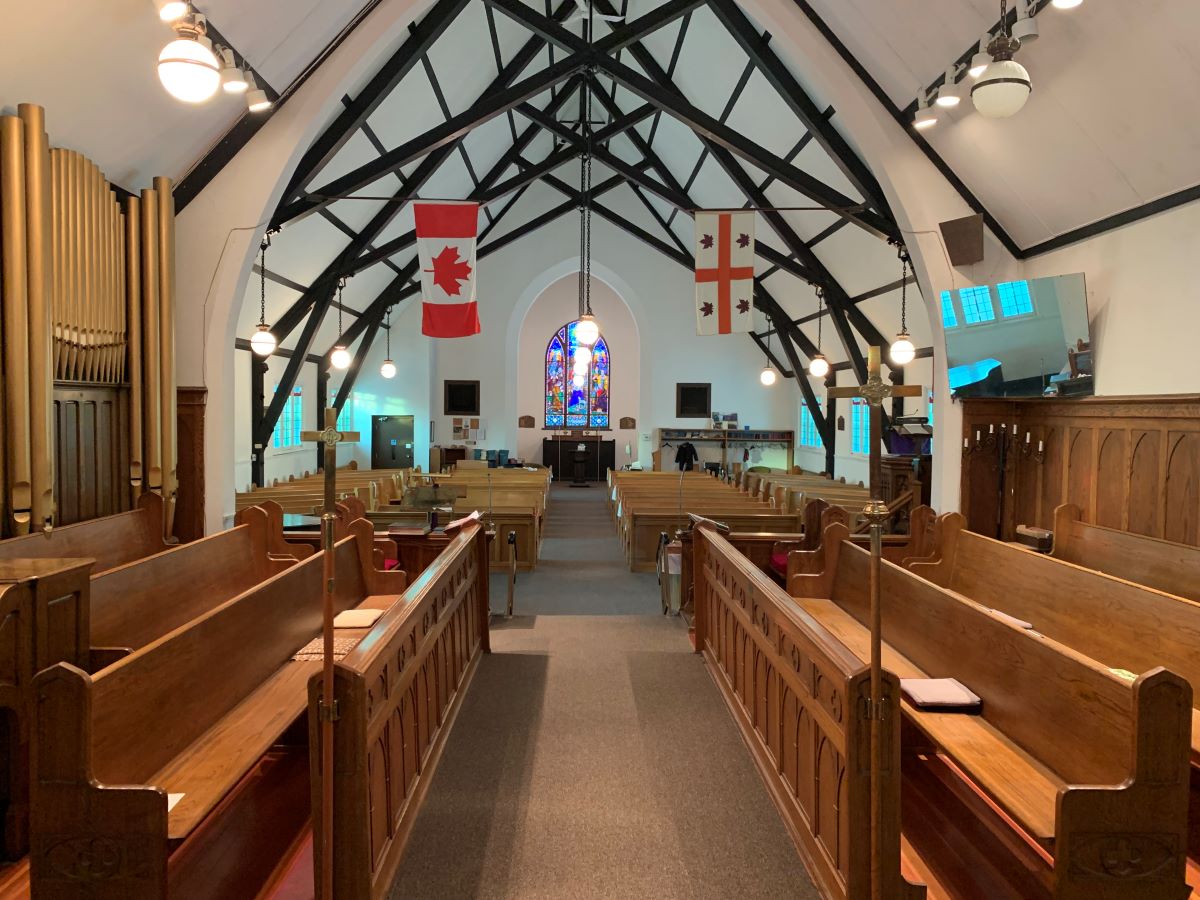

2021-12-22 - Nave interior with organ in chancel at right (Photograph by Dr. Stephen Borys/Stephen Borys)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
2 manuals
6 stops
7 registers
2 divisions
Key action Type: Tubular Pneumatic (Details Unknown)
Stop action Type: Tubular Pneumatic (Details Unknown)
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 30 notes
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: None

Notes

2014-09-04 - Identified through information in Casavant documents, courtesy of Simon Couture and Denis Blaine. -Database Manager

2022-01-22 - I have just purchased the decommissioned/deconsecrated St. Philips Anglican Church in Winnipeg, Manitoba. We are restoring the church and converting the interior narthex, nave and chancel to a single family residence. The Casavant organ (No. 1273) is in the chancel. -Dr. Stephen Borys

Stoplist

Source: Stoplist courtesy of the Casavant Frères Archives Date not recorded

   Winnipeg, Manitoba
   St. Philip's Anglican Church

   Casavant   Op. 1273   1928   2/6
   _________________________________________________________

    GREAT                               INTER-DIVISIONAL COUPLERS
8'  Open Diapason           65          Swell Unison Ped.          [8]
8'  Dulciana                65          Swell Super Ped.           [4]
4'  Wald Flute              65          Great unison Ped.          [8]
                                        Great Super Ped.           [4]
Great Sub
Great Super                             Swell Sub Great           [16]
                                        Swell Unison Great         [8]
                                        Swell Super Great          [4]
    SWELL (Expressive)
8'  Melodia                 65
8'  Salicional              65          FINGER PISTONS
8'  Oboe                    65          None
    Tremulant

Swell Sub                               TOE STUDS
Swell Super                             None


    PEDAL                               PEDAL MOVEMENTS
16' Bourdon           (Sw)  12          Swell Expression        (bal.)
                                        Crescendo               (bal.)


ACTION: Tubular-Pneumatic Key & Stop

VOICES: 6

STOPS:  7

RANKS:  6

PIPES: 402


[Received from Jeff Scofield April 15, 2019]
[Updated from Photos: James R. Stettner  February 21, 2022]
