Better Pipe Organ Database

Orgues Létourneau Ltée Opus 124 (2012)

Braddock Street United Methodist Church
114 West Boscawen Street
Winchester, VA

Images

2016-06-21 - Choirloft, console and Choir Organ case (Photograph by Jeff Scofield/Database Manager)

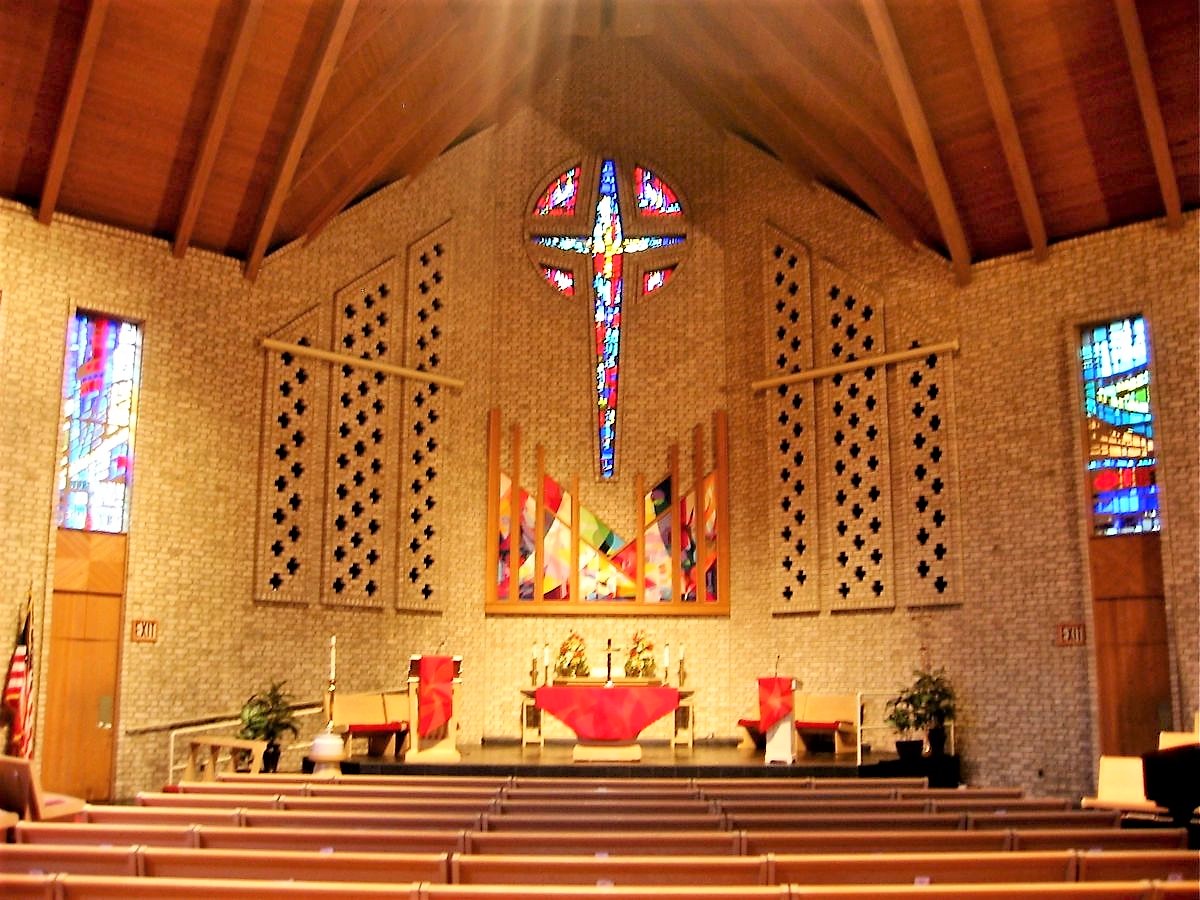

2016-06-21 - Sanctuary interior (Photograph by Jeff Scofield/Database Manager)

2016-06-21 - Console (Photograph by Jeff Scofield/Database Manager)

2016-06-21 - Sanctuary interior to rear and organ case (Photograph by Jeff Scofield/Database Manager)

2016-06-21 - Church Exterior (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

3 manuals
33 stops
45 registers
Key action Type: Electrical
Stop action Type: Electrical
Manual compass: 61 notes
Pedal compass: 32 notes

Notes

2014-09-05 - This entry describes an original installation of a new pipe organ. Identified by John Igoe, using information from an unidentified web site. -- -Database Manager

Stoplist

Stoplist from builder's web site Source: Source not recorded Date not recorded

Winchester, Virginia
Braddock Street United Methodist Church

Orgues Létourneau Ltée   Opus 124   2012           3 manuals, 33 stops, 40 ranks
________________________________________________________________________________

         GREAT ORGAN                               SWELL ORGAN
     16' Bourdon               SW              16' Bourdon              73
      8' Open Diapason         61               8' Gamba                61
      8' Chimney Flute         61               8' Voix Celeste         61
      8' Gemshorn              61               8' Bourdon (fr. 16')    --
      4' Principal             61               4' Principal            61
      2' Fifteenth             61               4' Spill Flute          61
  1 1/3' Mixture IV           244               2' Flageolet            61
      8' Trumpet               66           2 2/3' Cornet II           122
      8' Festival Trumpet      66               2' Mixture III-IV      225
         Tremulant                             16' Fagotto              61
         Chimes                                 8' Trumpet              66
                                                8' Oboe                 61
         CHOIR ORGAN                               Tremulant
     16' Lieblich Gedackt      73
      8' Geigen Diapason       61                  PEDAL ORGAN
      8' Lieblich Gedackt      --              32' Resultant            --
      8' Dulciana              61              16' Principal            32
      8' Unda Maris (GG)       54              16' Subbass              44
      4' Principal             61              16' Bourdon              SW
      4' Harmonic Flute        61              16' Lieblich Gedackt     CH
      2' Octave                61               8' Octave               32
  1 1/3' Larigot               61               8' Bass Flute (fr. SB)  --
      8' Clarinet              61               8' Bourdon              SW
         Tremulant                              4' Choral Bass          32
      8' Festival Trumpet      GT              16' Trombone             44
                                               16' Fagotto              SW
                                                8' Trumpet (fr. Tbn)    --
                                                8' Festival Trumpet     GT

         Usual octave, sub-octave, and unison couplers


[Received from Steven E. Lawson  2016-05-12]

Websites

Builder's web page - Stoplist and photos (Check Internet Archive, archive.is)
