Mount Lebanon United Lutheran Church: Sanctuary; front & antiphonal
975 Washington Road
Pittsburgh, PA
Images
ca. 2009 - builder's nameplate (Photograph by J. Zamberlan, submitted by Jim Stettner/Jim Stettner)
ca. 2009 - Organ case on back wall (Photograph by J. Zamberlan, submitted by Jim Stettner/Jim Stettner)
2021-11-13 - Rear of church and Antiphonal (Photograph by Garrett Michael, via Facebook Organists' Association, submitted by Jeff Scofield/Jeff Scofield)
2021-11-13 - Coupler Rail and Antiphonal Stops (Photograph by Garrett Michael, via Facebook Organists' Association, submitted by Jeff Scofield/Jeff Scofield)
2021-11-13 - Right stopjamb (Photograph by Garrett Michael, via Facebook Organists' Association, submitted by Jeff Scofield/Jeff Scofield)
2021-11-13 - Left stopjamb (Photograph by Garrett Michael, via Facebook Organists' Association, submitted by Jeff Scofield/Jeff Scofield)
2021-11-13 - Console (Photograph by Garrett Michael, via Facebook Organists' Association, submitted by Jeff Scofield/Jeff Scofield)

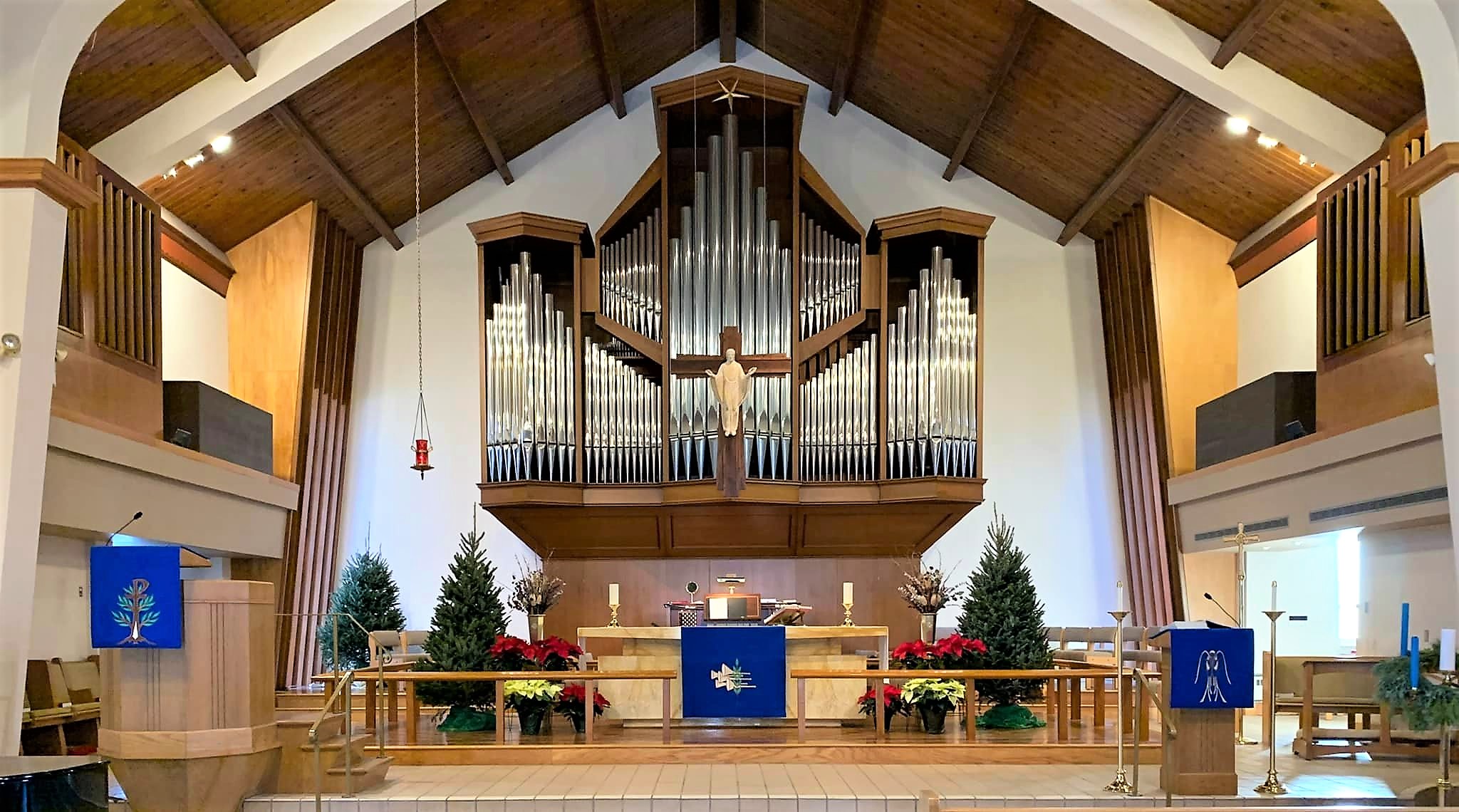

2021-11-13 - Chancel organ case (Photograph by Garrett Michael, via Facebook Organists' Association, submitted by Jeff Scofield/Jeff Scofield)
2021-11-13 - Chancel and organ case (Photograph by Garrett Michael, via Facebook Organists' Association, submitted by Jeff Scofield/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- 3 manuals
- 5 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2014-09-06 - In March 2009, an antiphonal division built by Joe Zamberlan and Co. was added with a Trompette en chamade as well as Principals 8, 4, and 2. [Pittsburgh AGO newsletter, Oct. 2009] -Database Manager
2023-04-10 - Transplanted Note from a related OHS Dtabase entry: **Database Manager on April 22, 2010:**
Identified through on-line information from Joseph G. Zamberlan. -- 4-stop Antiphonal in the rear, suspended from the ceiling, added to a 3-manual Ruffatti in the front. Includes a copper Trompette en Chamade. Chest has two sets of channels; the second set for the Trompette allows it to be used as a floating stop. -Jim Stettner
Stoplist
Source: Specification from builder's web site Date not recorded
Pittsburgh, Pennsylvania
Mount Lebanon United Lutheran Church
Fratelli Ruffatti 2002 3 manuals, 35 stops, 33 ranks
Zamberlan & C0., 2009 - Antiphonal
____________________________________________________________________________
GREAT (Manual II, C1-c61)
8' Montre
8' Flute Harmonique (elec.)
8' Bourdon
4' Octave
4' Flûte Ouverte
2' Doublette
IV Fourniture 1 1⁄3’
8' Trompette (PD + 17 new pipes - 2009)
8' Trompette en Chamade 8’ (Antiphonal - 2009)
Tremulant
Chimes (prep.)
MIDI A
Great 16’
Unison Off
Great 4’
SWELL (Manual III, C1-c61, Expressive)
16' Bourdon Doux
8' Viola Pomposa (CC 1 - BB 12 elec.)
8' Viola Celeste (elec.)
8' Flûte á Cheminée (ext.)
8' Flauto Dolce (elec.)
8' Flûte Celeste (elec.)
4' Prestant
4' Flauto Veneziano
2 2⁄3’ Nazard
2' Flûte á Bec
1 3⁄5’ Tierce
III Plein Jeu 2’
16' Contre Basson (elec.)
8' Trompette Harmonique
8' Hautbois
8' Vox Humana (elec.)
4' Clairon (ext.)
Tremulant
Echo Vox Humana (elec.)
8' Trompette en Chamade 8’ (Antiphonal - 2009)
MIDI A
Swell 16’
Unison Off
Swell 4’
MIDI B
CHOIR (Manual I, C1-c61, Expressive)
8' English Diapason (prep.)
8' Erzähler (prep.)
8' Erzähler Celeste (elec.)
8' Singend Gedackt
4' Principalino
4' Koppelflöte
2' Zauberflöte
1 1⁄3’ Larigot (prep.)
III Ripieno 1 1⁄3’ (prep.)
8' Cromorne (elec.)
Tremulant
8' Trompette en Chamade 8’ (Antiphonal - 2009)
Zimbelstern
MIDI A
MIDI B
Choir 16’
Unison Off
Choir 4’
ANTIPHONAL (floating, C1-c61 - 2009)
8' Diapason
4' Octave
2' Fifteenth
8' Trompette en Chamade
PEDAL (C1-g32, AGO)
32' Contre Principal (elec.)
32' Contre Bourdon (elec.)
16' Open Wood (elec.)
16' Principal
16' Soubasse
16' Bourdon Doux (Sw)
8' Octave (ext.)
8' Flute (ext.)
8' Flûte á Cheminée (Sw)
4' Choral Bass (ext.)
4' Flute (ext.)
IV Mixture 2 2⁄3’
32' Contre Bombarde (elec.)
16' Zombarde
16 Contre Basson 16’ (Sw)
8' Trompette (ext.)
4' Clairon (ext.)
4' Cromorne (Ch)
8' Trompette en Chamade (Antiphonal - 2009)
MIDI A
MIDI B
INTER-DIVISIONAL COUPLERS
Antiphonal to Pedal
Antiphonal to Swell
Antiphonal to Great
Antiphonal to Choir
Great to Pedal 8’
Great to Pedal 4’
Swell to Pedal 8’
Swell to Pedal 4’
Choir to Pedal 8’
Choir to Pedal 4’
Swell to Great 16’
Swell to Great 8’
Swell to Great 4’
Choir to Great 16’
Choir to Great 8’
Choir to Great 4’
Swell to Choir 16’
Swell to Choir 8’
Swell to Choir 4’
Choir to Swell 16’
Choir to Swell 8’
Choir to Swell 4’
Great/Choir manual transfer
[Submitted by James R. Stettner 2023-04-09.]
