Better Pipe Organ Database

Casavant Opus 457 (1911)

St. Andrew's Presbyterian Church
82 Kent Street
Ottawa, ON, CA

Images

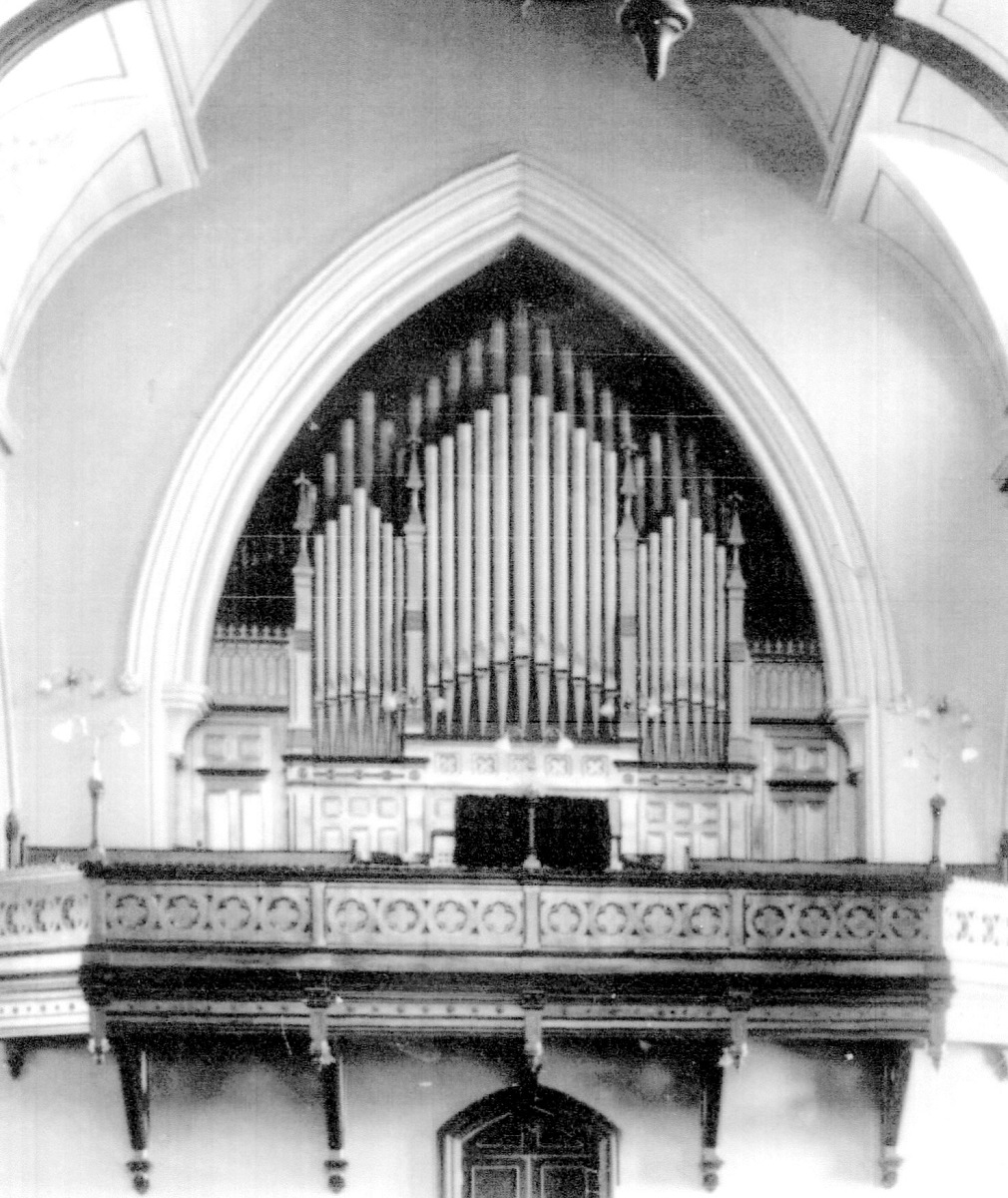

Unknown - Facade (Photographs, 1916, via The Vineer Organ Library/Database Manager)

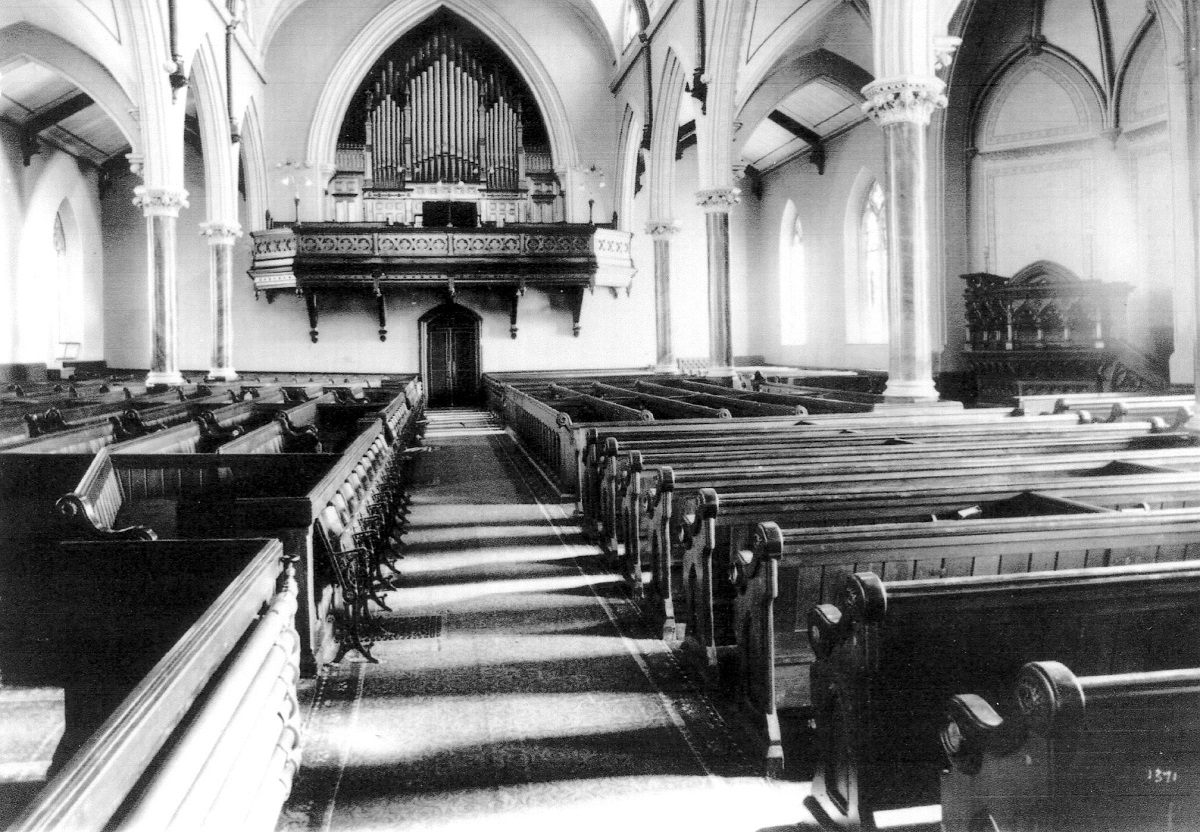

Unknown - Facade and Crossing (Photographs, 1916, via The Vineer Organ Library/Database Manager)

Consoles

Main

4 manuals
46 stops
53 registers
5 divisions
Key action Type: Electrical
Stop action Type: Electrical
Manual compass: 61 notes
Pedal compass: 30 notes

Notes

2014-09-09 - Identified through information in Casavant documents, courtesy of Simon Couture and Denis Blaine. The cost was $ 9,330.00. -Database Manager

2017-06-06 - Retained the facade and 24 ranks of the 1874 Samuel Warren organ, rebuilt by Warren in 1894; rebuilt as 4/63 Casavant Op. 1606 in 1939; replaced in 1987 by 3/63 Guilbaut-Thérien Op. 27. -Database Manager

Stoplist

Source: Stoplist courtesy of the Casavant FrÃ¨res Archives Date not recorded

       Ottawa, Ontario
       St. Andrew's Presbyterian Church

       Casavant   Op. 457   1911   4/52
       ________________________________________________________

       GREAT                               CHOIR

   16' Dbl Open Diapason  53 A a        8' Violin Diapason   61
    8' 1st Open Diapason  61 G *        8' Melodia           61
    8' 2nd Open Diapason  65 A          8' Dulciana          61
    8' Doppel Flute       65 A          4' Harmonic Flute    61
    8' Gamba              65 A *        4' Violina           61
    8' Gemshorn           65 A *        2' Flautino          61
    4' Principal          65 G          8' Clarinet          61
    4' Harmonic Flute     65 G             Tremulant
    2' Fifteenth          61 G             Sub
2 2/3' Twelfth            61 G             Super
  III  Mixture           183 G
    8' Trumpet            61 G *           SOLO
    4' Clarion            61 G
       A Sub                            8' Gross Flute       61 *
       G Super                          8' Cello             61 *
                                        8' Rohr Flute        61 *
       SWELL                            4' Traverse Flute    61 *
                                        8' Tuba Mirabilis    61 *
   16' Bourdon            61            8' Orchestral Oboe   61 *
    8' Open Diapason      61            8' Cor Anglais       61 *
    8' Clarabella         61   *           Tremulant
    8' Stopped Diapason   61               Sub
    8' Viola di Gamba     61               Super
    8' Voix Celeste       49   *
    8' Aeoline            61               ECHO (prepared for)
    4' Octave             61
    4' Flute Traverse     61               PEDAL
    2' Piccolo            61
    V  Cornet            305   *       32' Flute (Resultant) --
   16' Contra Fagotto     61   b       16' Open Diapason     30 c
    8' Cornopean          61           16' Bourdon           30
    8' Oboe               61   b       16' Violone           30
    8' Vox Humana         61           16' Gedackt           SW
       Tremulant                        8' Flute (Open Diap) 12
       Sub                              8' Stopped Diapason  12
       Super                            8' Violoncello       12
                                        4' Flute (OD & Brdn) 12
                                       16' Trombone          30 *
    *  new                              8' Tromba            12 *
    a  1-12 from Pedal Bourdon
    b  1-12 new
    c  enlarged

              [Received from Jeff Scofield June 6, 2017]
