Better Pipe Organ Database

Casavant Frères Ltée. Opus 109 (1900)

All Saints Anglican Church (Westboro)
347 Richmond Road
Ottawa, ON, CA

Images

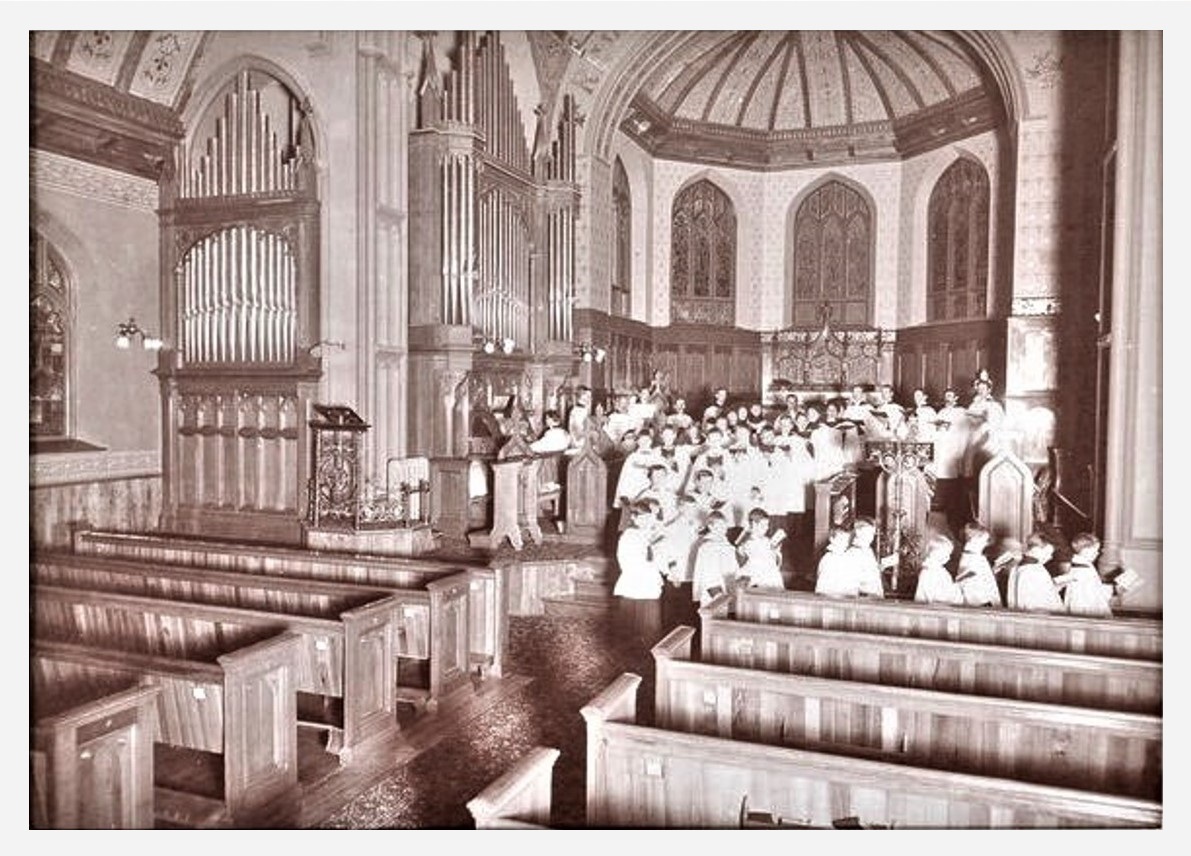

February, 1900 - Cropped and retouched photo showing organ and choristers in front (Photograph from an archival source: Ottawa Museums & Archives, submitted by Jim Stettner/Jim Stettner)

1900 - Nave, Chancel & Organ Cases (Photograph from an archival source: Ottawa Museums & Archives, submitted by Andrew Henderson/Andrew Henderson)

Consoles

Main

3 manuals
24 stops
Key action Type: Tubular Pneumatic (Details Unknown)
Manual compass: 58 notes
Pedal compass: 30 notes

Notes

2014-09-11 - Identified through information in Casavant documents, courtesy of Simon Couture and Denis Blaine. The cost was $ 3,625. -Database Manager

Stoplist

Stoplist courtesy of the Casavant FrÃ¨res Archives Source: Source not recorded Date not recorded

     Ottawa, Ontario
     All Saints' Anglican Church, Westboro

     Casavant   Op. 109   1900   3/26
     ________________________________________________

     GRAND ORGUE                   RÉCIT

 16' Bourdon          46        8' Principal       58
  8' Montre           58 a      8' Bourdon         58
  8' Bourdon          58        8' Salicional      58
  8' Gambe            58        8' Voix Céleste    46
  4' Prestant         58 b      8' Aeoline         58
  2' Doublette        58        4' Flûte Traverse  58
III  Mixture         174        8' Cornopean       58
  8' Trompette        58        8' Hautbois-Basson 58
                                   Trémolo
     POSITIF
                                   PÉDALE
  8' Principal        58 c
  8' Mélodié          58       16' Flûte Ouverte   30
  8' Dulciane         46 d     16' Bourdon         12
  4' Flûte Harmonique 58        8' Violoncelle     30
  8' Clarinette       46

  a  20 en façade
  b  7 en façade
  c  19 en façade
  d  12 from Mélodié

     [Received from Jeff Scofield November 28, 2016]
