Better Pipe Organ Database

Thomas Helms, Jr. (2007)

Trinity-by-the-Cove Episcopal Church: Sanctuary; rear gallery
553 Galleon Drive
Naples, FL

Note: Not extant. Not playable. (in this location)

Images

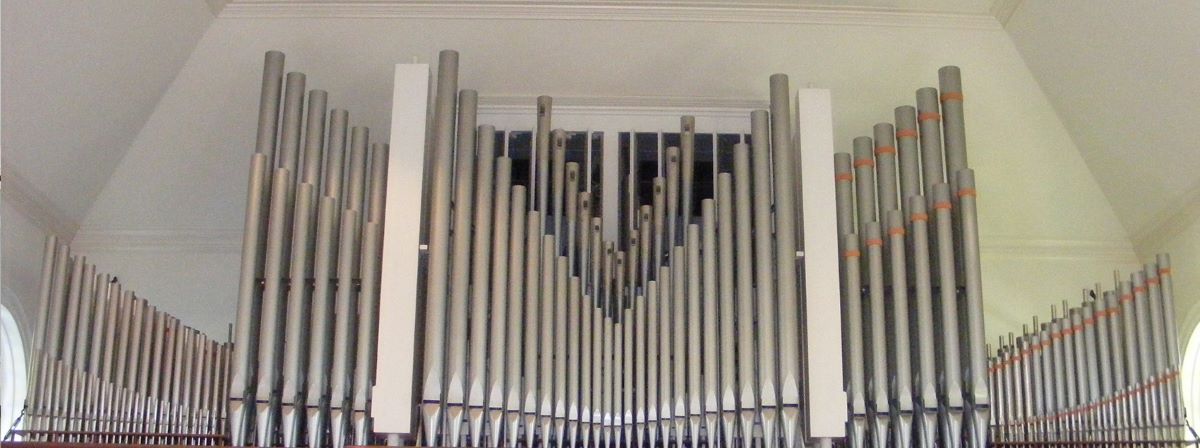

March 2023 - Pipework (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

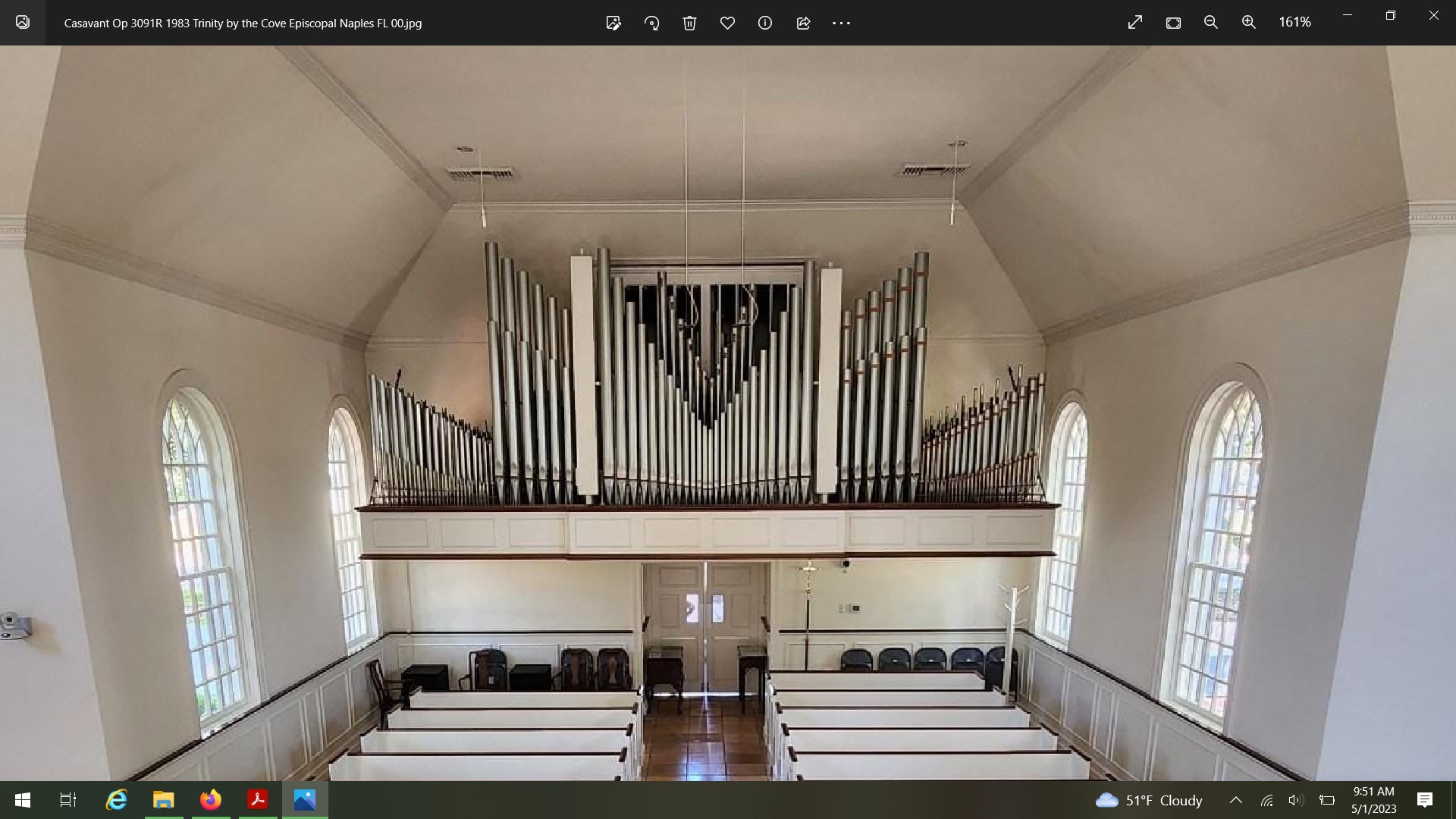

March 2023 - Rear of sanctuary with organ pipes (Photograph from an archival source: Griffin Upholstery Facebook page, submitted by Jim Stettner/Jim Stettner)

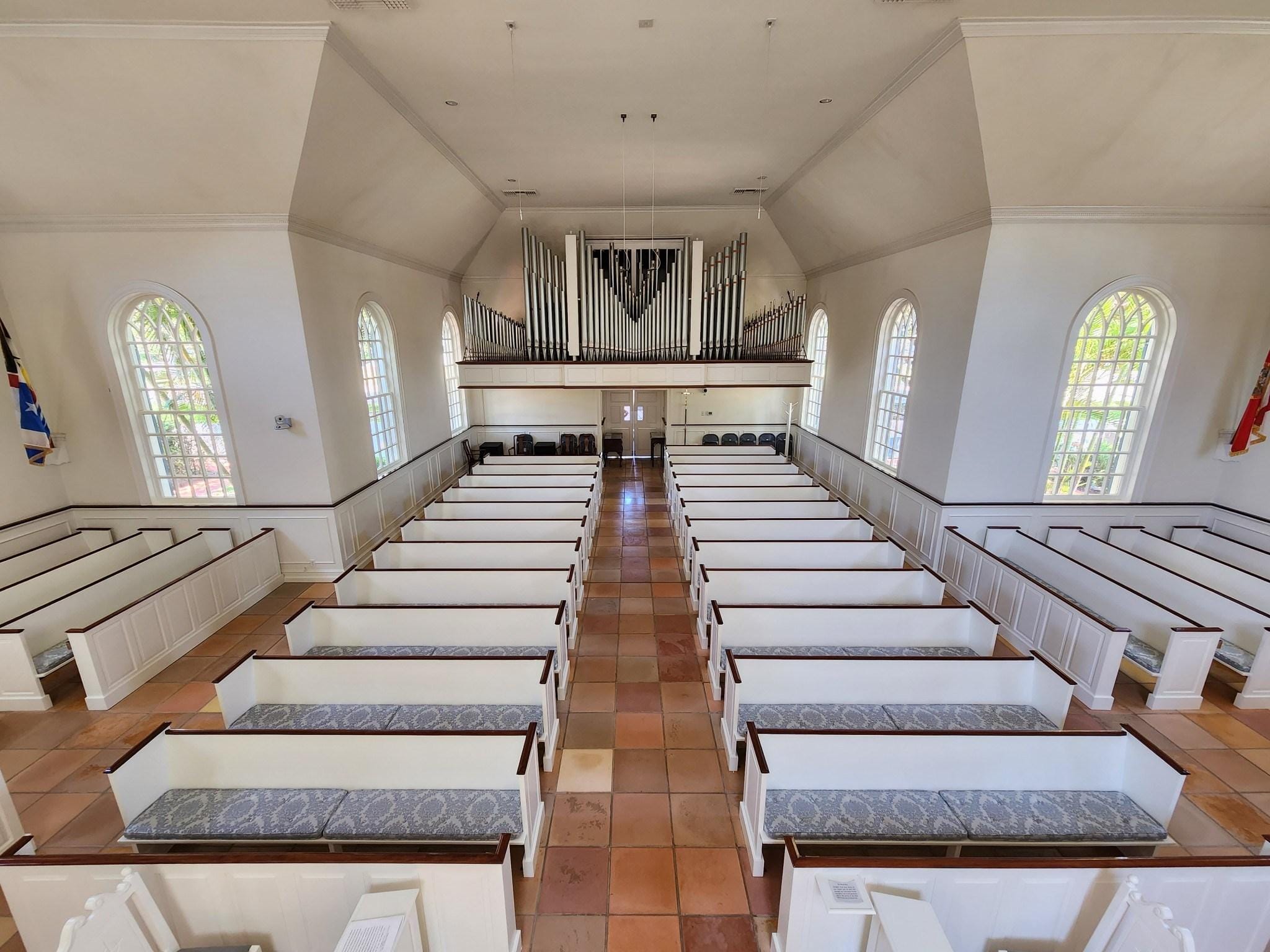

March 2023 - Sanctuary interior with organ at the rear (Photograph from an archival source: Griffin Upholstery Facebook page, submitted by Jim Stettner/Jim Stettner)

Date unknown - Church exterior (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
49 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2014-09-13 - This is a rebuild of an existing organ. Identified by Stephen Hall, using information from this web site: http://www.trinitybythecove.com/theorgan. -- -Database Manager

2023-05-01 - Updated through online information from Jimmy Thompson on April 30, 2023. The organ was damaged beyond repair in Hurricane Ian September 2022. They are in process of raising funds for an organ from Lynn Dobson to be delivered in January 2027. They are currently renting a Rodgers 3-manual "temporary" organ. -Jim Stettner

Stoplist

Source: Stoplist coped from the church website

Naples, Florida
Trinity-by-the-Cove Episcopal Church

Casavant Frères Ltée., Opus 3091, 1971
Casavant Frères Ltée., Opus 3091-R, 1983 - Tonal expansion
Thomas Helms, Jr., 2007 - Tonal Revision


      GRAND ORGUE
16    Bourdon
8     Montre
8     Flute à Cheminée
8     Viole de Gambe 8   (Réc.)  --
4     Prestant
4     Flute conique      (Réc.)  --
2     Petite Flute
II    Cornet
III   Mixture
      Cloches


      POSITIV
8     Bourdon
8     Viole de Gambe 8   (Réc.)  --
8     Voix céleste       (Réc.)  --
8     Flute douce        (Réc.)  --
4     Flute à Fuseau
4     Viole 4            (Réc.)  --
4     Flute douce 4      (Réc.)  --
2 2/3 Nasard
2     Doublette
8     Cromorne
      Tremblant


      RÉCIT (Expressif)
16    Flute douce
8     Flute ouverte
8     Viole de Gambe
8     Voix céleste
8     Flute douce
4     Prestant
4     Flute conique
4     Viole
4     Flute douce
II    Quarte
16    Basson
8     Trompette
8     Hautbois
4     Petit Clairon
8     Voix humaine
      Tremblant
      Clochettes


      PÉDALE
32    Basse acoustique           --  Soubasse
16    Soubasse
16    Bourdon            (G.O.)  --
16 & 8 Flutes douces     (Réc.)  --
8     Octave Basse
8     Viole              (Réc.)  --
8     Bourdon            (G.O.)  --
5 1/3 Quinte         (Soubasse)
4     Octave
4     Bourdon            (G.O.)  --
16    Bombarde
16    Basson             (Réc.)  --
8     Trompette          (Réc.)  --
8     Hautbois           (Réc.)  --
4     Hautbois           (Réc.)  --


      NOTES
The organ console The organ has a full complement of unison,
sub and super couplers; Positiv-Grand Orgue manual transfer;
five pistons for each division; twelve general combination
pistons; fifty memories; and transposer.


[Submitted by James R. Stettner  2023-05-01.]
