Casavant Frères Ltée. Opus 583 (1914)

Timothy Eaton Memorial Church: Sanctuary
230 St. Clair Ave. West
Toronto, ON, CA

Images

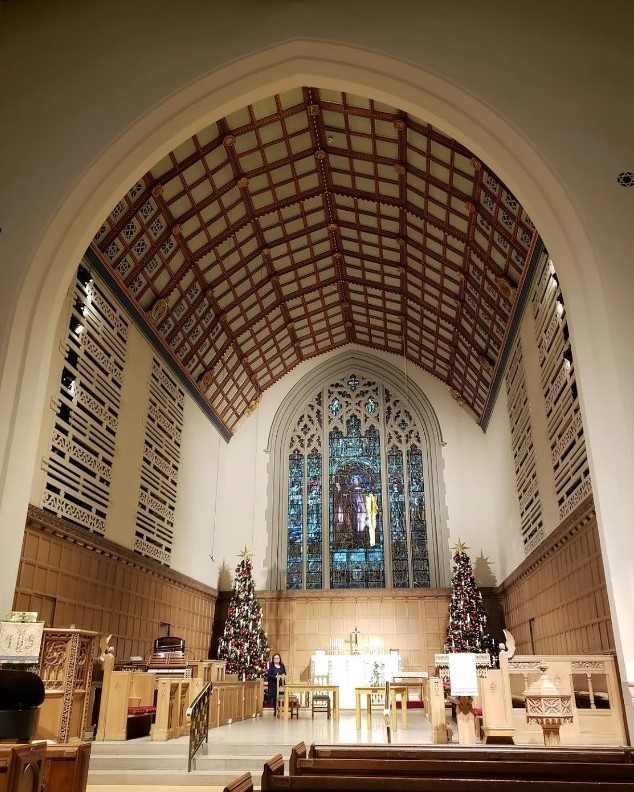

ca. 2020 - Chancel with organ chamber grilles on both sides (Photograph from an archival source: Website: Nicelocal (photgrapher unattributed), submitted by Jim Stettner/Jim Stettner)

ca. 1920 - Church exterior (Photograph from an archival source: Vintage postcard, submitted by Jim Stettner/Jim Stettner)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
4 manuals
73 stops
86 registers
8 divisions
Key action Type: Electrical
Stop action Type: Electrical
Manual compass: 61 notes
Pedal compass: 32 notes
Combination action: Adjustable Combination Pistons

Notes

2014-10-21 - Received a new 5-manual console in 1952 as Casavant Op. 2156; renovations and tonal changes by Casavant 1990-2001 via Alan T. Jackson using the original opus number of 583. -Database Manager

Stoplist

Stoplist courtesy of the Casavant FrÃ¨res Archives Source: Source not recorded Date not recorded

       Toronto, Ontario
       Timothy Eaton Memorial Church

       Casavant   Op. 583   1914   4/84
       ________________________________________________________

       GREAT                           CHOIR

   16' Double Open       68        16' Salicional            68
    8' 1st Open Diapason 68         8' Geigen Principal      68
    8' 2nd Open Diapason 68         8' Melodia               68
    8' Violin Diapason   68         8' Gemshorn              68
    8' Doppelflöte       68         8' Gamba                 68
    8' Tibia Minor       68         8' Dulciana              68
    8' Salicional        68         8' Unda Maris II        136
    4' Octave            68         4' Violina               68
    4' Principal         68         4' Dolce Flute           68
    4' Wald Flute        68     2 2/3' Twelfth               68
2 2/3' Twelfth           68         2' Flageolet             61
    2' Fifteenth         61        16' Contra Fagotto        68
  III  Sesquialtera     204         8' Clarinet              68
    V  Mixture          340            Tremolo
   16' Double Trumpet    68
    8' Tromba            68            SOLO 1
    4' Clarion           68
                                    8' Gedeckt               68
       SWELL                        8' Viole d'Orchestre     68
                                    8' Viole Célestes II    136
   16' Gedeckt           68         4' Orchestral Flute      68
    8' Open Diapason     68         8' Cor Anglais           68
    8' Clarabella        68         8' Orchestral Oboe       68
    8' Stopped Diapason  68            Tremolo
    8' Salicional        68            Harp                  47
    8' Viola di Gamba    68
    8' Voix Celeste      56            SOLO 2
    8' Aeoline           68
    4' Octave            68         8' Stentorphone          68
    4' Flauto Traverso   68         8' Grossflöte            68
    4' Gemshorn          68         8' Violoncello           68
    2' Piccolo           61         8' Tuba Mirabilis        68
   IV  Dolce Cornet     272         4' Tuba Clarion          68
   16' Bassoon           68
    8' Cornopean         68            PEDAL
    8' Oboe              68
    8' Vox Humana        68        32' Double Open            6 *
    4' Clarion           68        16' Open Diapason (large) 32
       Tremolo                     16' Open Diapason (small) 32
                                   16' Open Diapason (metal) GT
       ECHO                        16' Bourdon               32
                                   16' Violone               32
    8' Violin Diapason   68        16' Gedeckt               SW
    8' Rohr Flute        68        16' Salicional            CH
    8' Dulciana          68         8' Octave                12
    8' Echo Gamba        68         8' Principal             GT
    8' Vox Angelica      68         8' Flute                 12
    4' Lieblichflöte     68         8' Violoncello           12
    2' Piccolo           61         4' Super Octave          12
    8' Musette           68        32' Bombardon             32
    8' Vox Humana        68        16' Trombone              12
       Tremolo                     16' Bassoon               SW
       Chimes            25         8' Trumpet               12
                                    4' Clarion               12
       ECHO PEDAL

   16' Gedeckt           32         *  polyphonic

      [Received from Jeff Scofield October 21, 2014]
