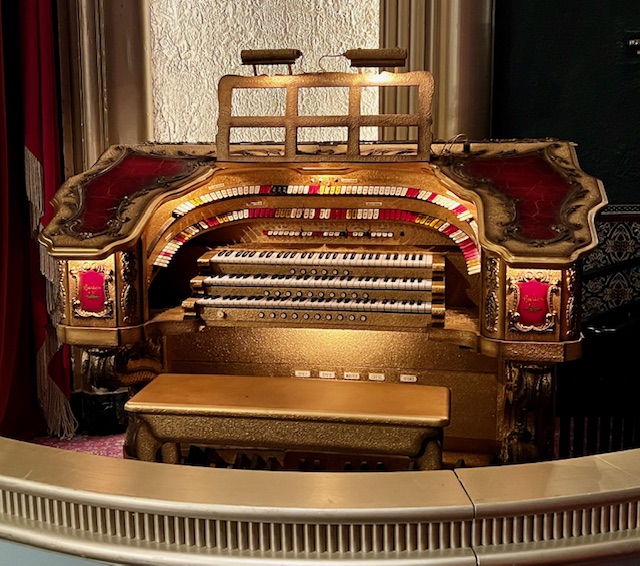

2020s - Console post-restoration by Ken Chrome in 2022 (Nick Renkosik/Nick Renkosik)
2014-12-01 - An original installation. Identified by Bill, using information from an unidentified web site. -- -Database Manager
2018-02-28 - Updated by Reynold Peterson, who has heard or played the organ. Electro-pneumatic (EP) unit chests. Wind pressures: 15", 10", and 7" Horseshoe style console. Stop keys in horseshoe curves. Combination Action: Setterboard. Concave radiating pedalboard. Combination action thumb pistons. -Database Manager
2022-11-16 - Restored by Crome Organ Co, LLC, Reno, NV and JL Weiler, Inc., Chicago, IL. Completed 2022. -Jeff Weiler
Original document from Reynold Peterson. Source: Stoplist taken from console 2018-03-03
Madison, Wisconsin
Capitol Theater, Overture Center for the Arts
Organ by Bartola Organ Company
Pedal
32’ Pedal Resultant
16’ Tibia Clausa
16’ Bourdon
16’ Tuba
8’ Diaphone
8’ Flute
8’ Tibia Clausa
8’ Solo Tibia Clausa
8’ Tuba
8’ Solo String
8’ Cello
4’ Flute
Snare drum
Accompaniment to Pedal 8’
2nd Touch to 1st Touch
Pedal Second Touch
16’ Tuba
8’ Diaphone
Bass Drum
Cymbal
Snare Drum
Kettle Drum
Thunder
Accompaniment
16’ Clarinet (TC)
16’ Vox Humana (TC)
16’ Contra Viole (TC)
16’ Solo String (TC)
8’ Diaphonic Diapason
8’ Claribel Flute
8’ Solo Tibia Clausa
8’ Tibia Clausa
8’ Oboe Horn
8’ Vox Humana
8’ Clarinet
8’ Kinura
8’ Tuba
8’ Viole d’Orchestre
8’ Viole Celeste
8’ Solo String
4’ Orchestra Flute
4’ olo Tibia Clausa
4’ Tibia Clausa
4’ Violin
4’ Viole Celeste
2 2/3’ Twelfth
2’ Flautino
8’ Marimba Harp
8’ Chrysoglott
Tambourine
Castanets
Chinese Block
Tom Tom
Snare Drum
Traps to 2nd Touch
Traps to Pedal 2nd Touch
Accompaniment to
Accompaniment 4’
Accompaniment Second Touch
8’ Solo Tibia Clausa
8’ Tibia Clausa
8’ Tuba
8’ English Post Horn
8’ Chimes
4’ Glockenspiel
Triangle
Solo to Accompaniment 8’
Great
16’ Bourdon
16’ Tibia Clausa
16’ Tuba
16’ Diaphonic Diapason (TC)
16’ Solo Tibia Clausa (TC)
16’ Oboe Horn (TC)
16’ Vox Humana (TC)
16’ Clarinet (TC)
16’ Viole d’Orchestre (TC)
16’ Solo String (TC)
8’ Diapason
8’ Concert Flute
8’ Solo Tibia
8’ Tibia Clausa
8’ Oboe Horn
8’ Vox Humana
8’ Clarinet
8’ Orchestral Oboe
8’ Kinura
8’ Tuba
8’ English Post Horn
8’ Viole d’Orchestre
8’ Viole Celeste
8’ Solo String
4’ Principal
4’ Flute
4’ Solo Tibia Clausa
4’ Tibia Clausa
4’ Vox Humana
4’ Clarion
4’ Violin
4’ Viole Celeste
4’ Solo String
2’ Fifteenth
2 2/3’ Tibia Twelfth
2 2/3’ Nazard
2’ Piccolo
1 3/5’ Tierce
- Tibia Mutation
8’ Marimba Harp
8’ Chrysoglott
8’ Xylophone
8’ Cathedral Chimes
4’ Glockenspiel
4’ Orchestral Bells
Solo to Great 16’
Great to Great 16’
Great to Great 4’
Great Second Touch
16’ Tuba
8’ Solo Tibia Clausa
8’ Tibia Clausa
Solo Pizzicato
Solo
16’ Tibia Clausa
16’ Vox Humana (TC)
16’ Tuba
8’ Diaphonic Diapason
8’ Solo Tibia Clausa
8’ Tibia Clausa
8’ Oboe Horn
8’ Vox Humana
8’ Orchestral Oboe
8’ Kinura
8’ Tuba
8’ English Post Horn
8’ Solo String
8’ Violin
4’ Solo Tibia Clausa
4’ Tibia Clausa
4’ Cornet
2 2/3’ Solo Tibia Twelfth
8’ Xylophone
8’ Cathedral Chimes
4’ Glockenspiel
4’ Orchestral Bells
Toe Studs
(left side)
Fire Gong
Siren
Steam Boat Whistle
Auto Horn
Bird Song
(right side)
Sforzando
Tremulants
Main
Solo
Tibia
Vox Humana
Expression Pedals
I Division (left chamber)
II Division (right chamber)
Master
Crescendo
Manual Pistons
Solo 5 plus cancel
Great and Pedal 9 plus cancel
Accompaniment & Pedal 9 plus cancel
General Cancel
Summary
Three manuals and Pedal
14 Ranks, 1022 Pipes
5 pitched percussion instruments
13 non-pitched instruments
