2023-11-06 - This entry represents the installation of a new organ. Identified from the Wicks opus list. There are 11 pipe ranks, and 36 digital 'ranks'. -Jim Stettner

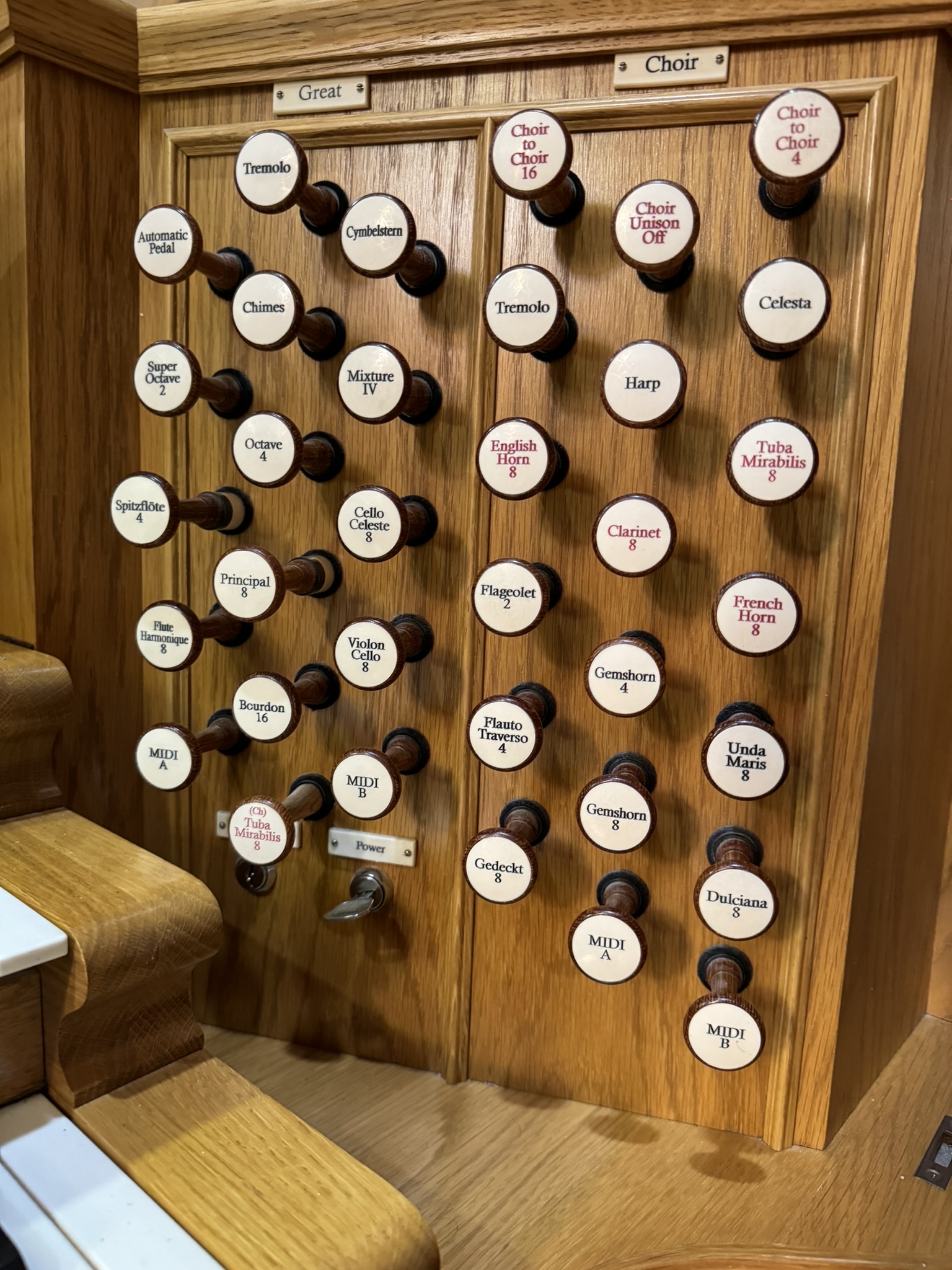

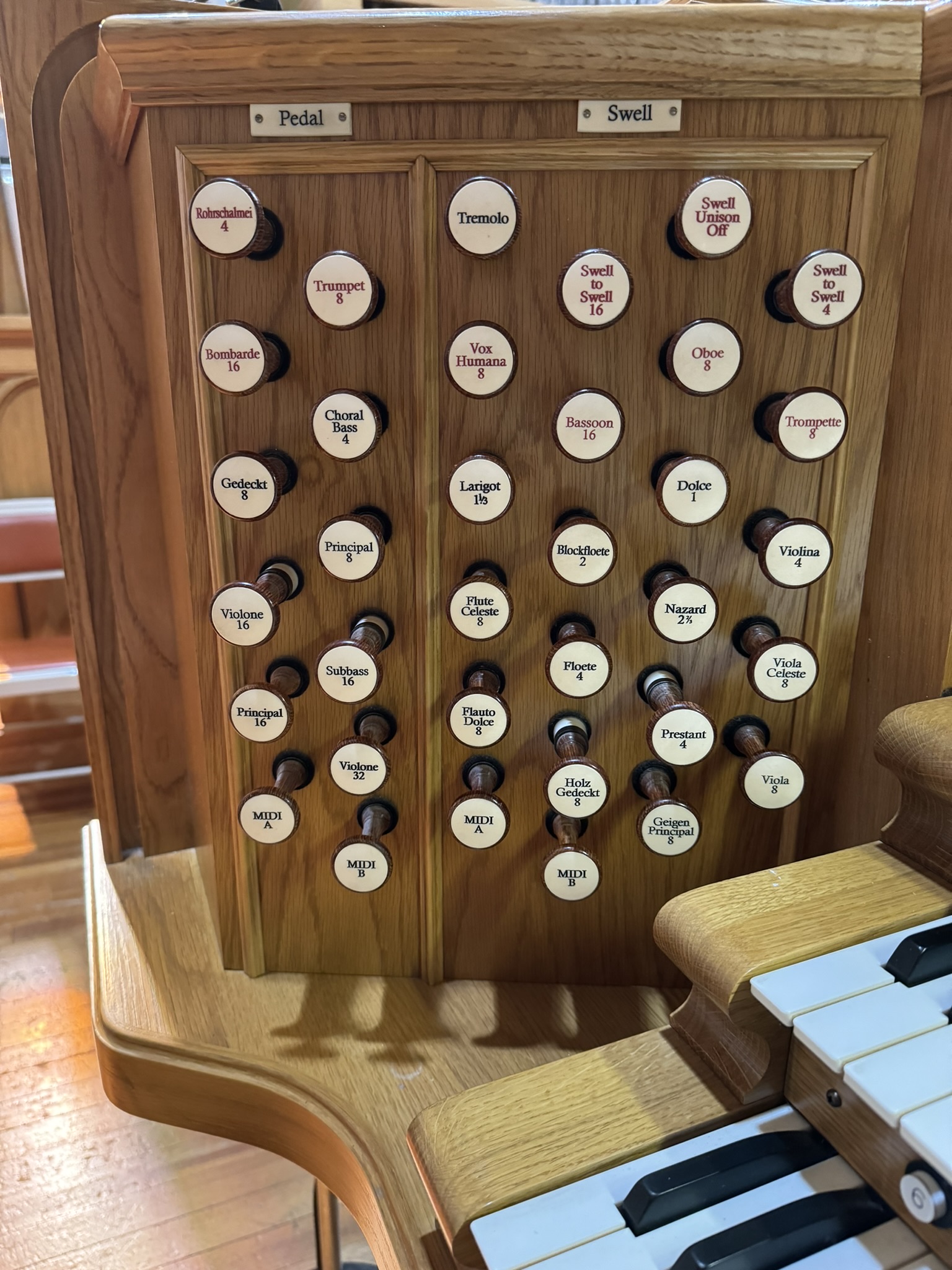

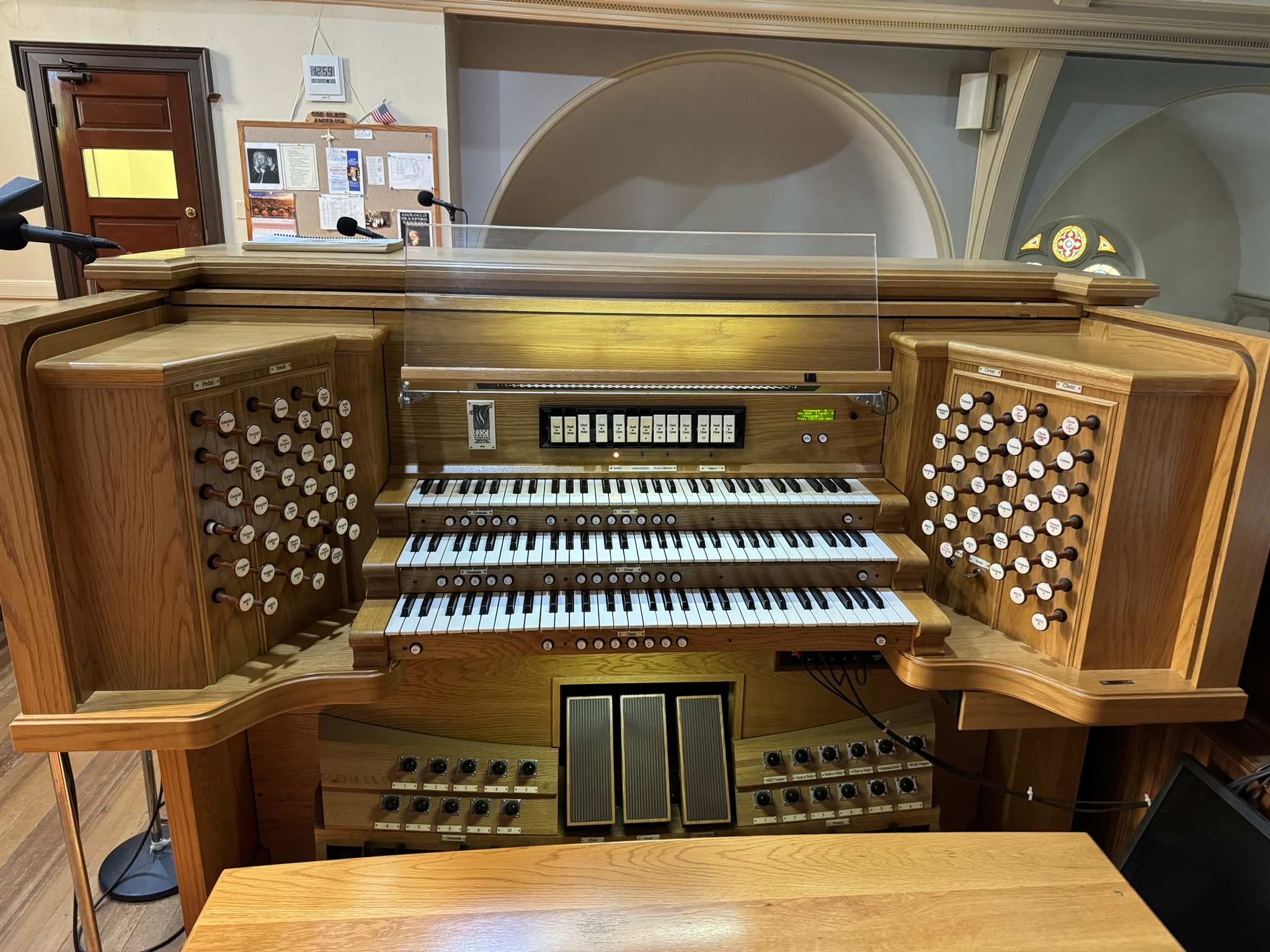

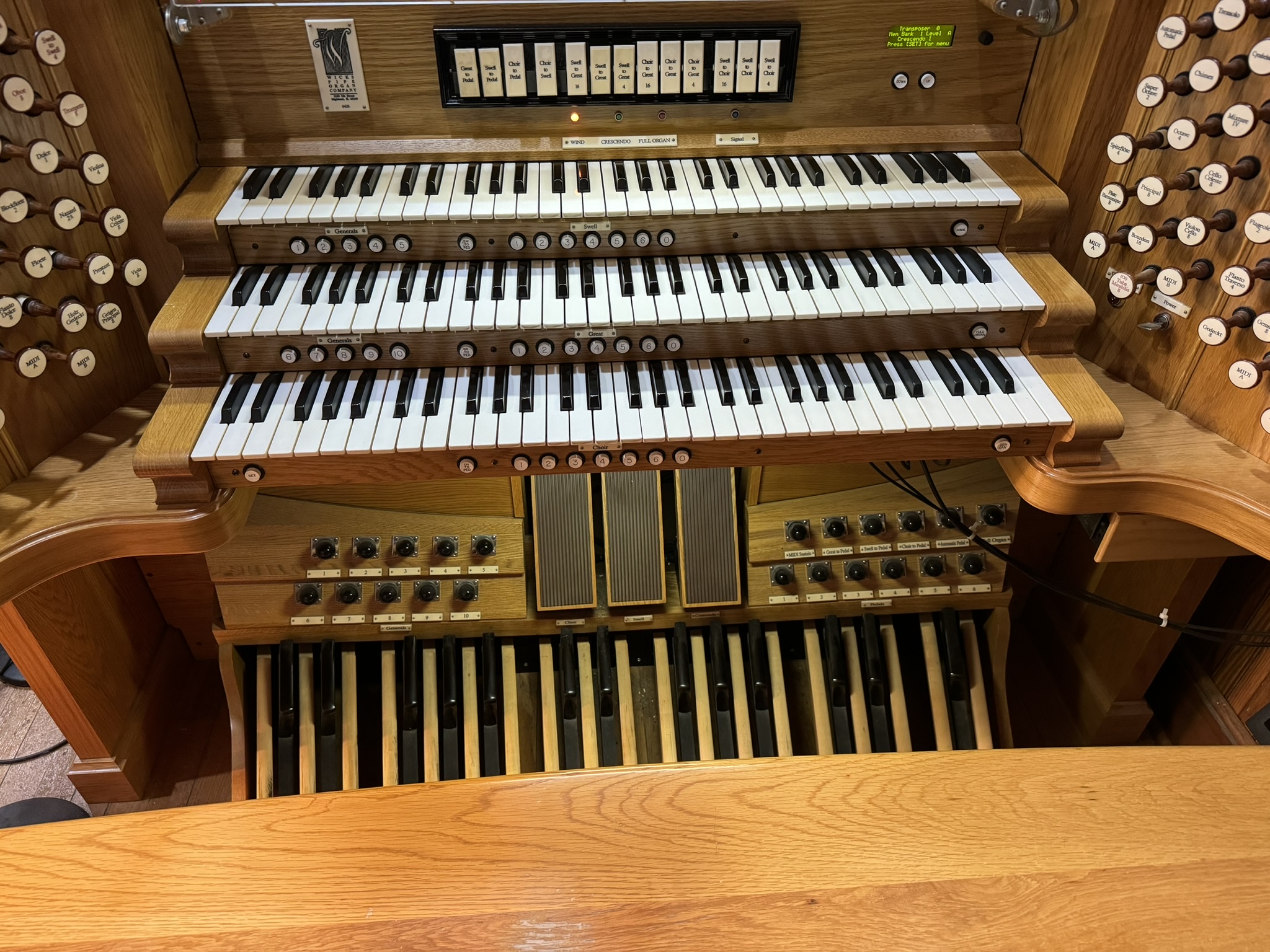

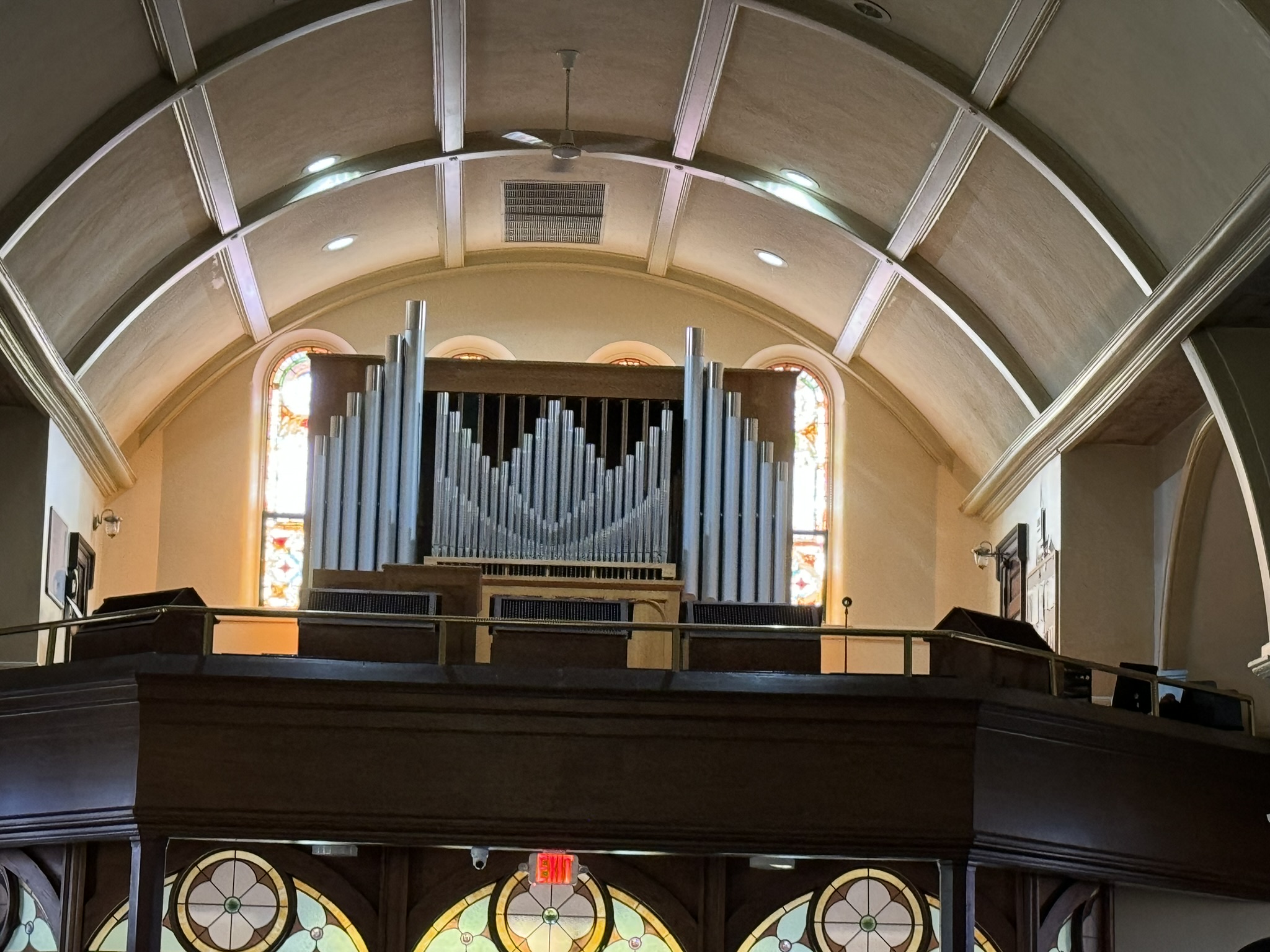

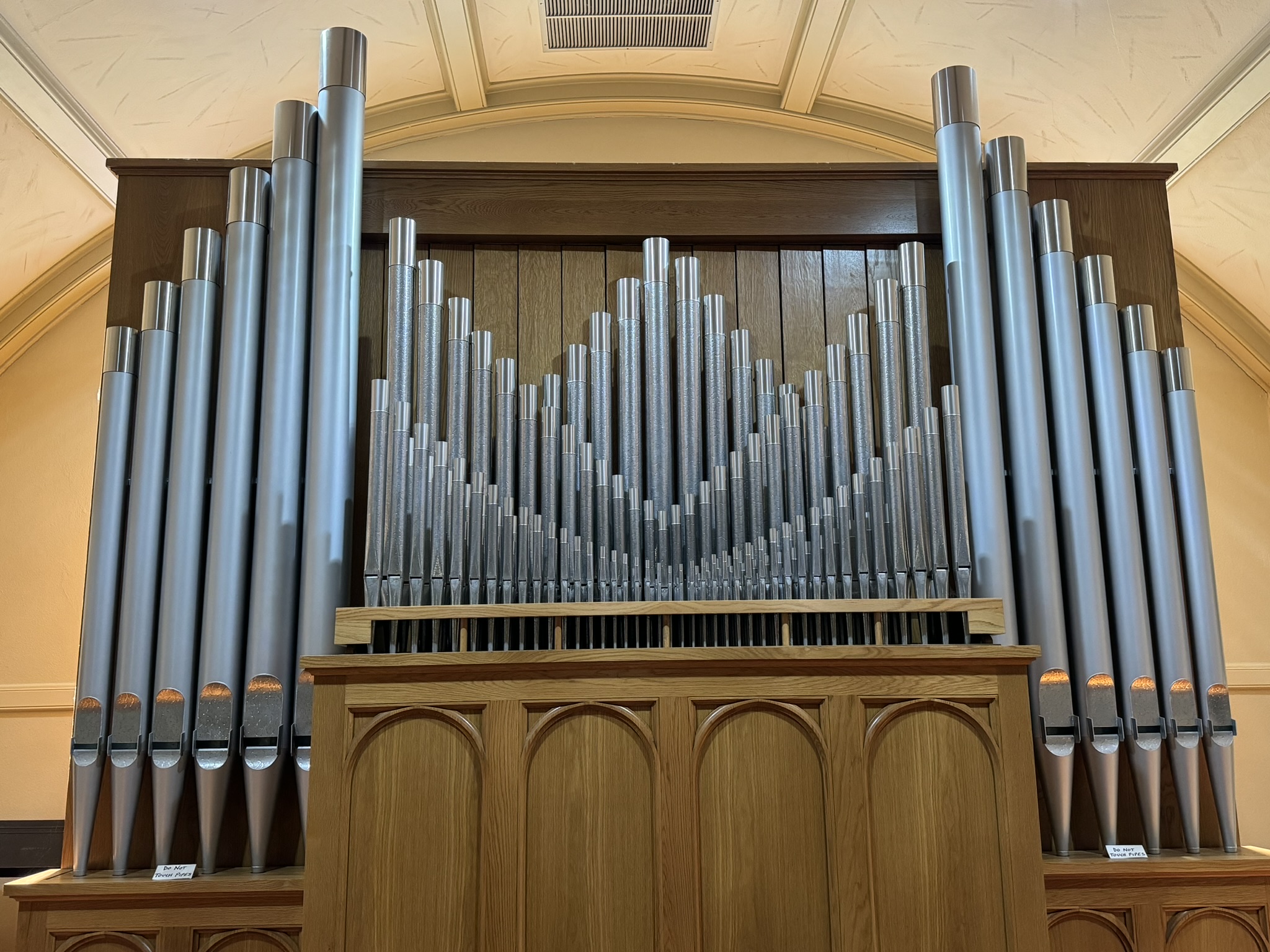

2023-11-12 - I have added additional pictures to further document this organ. The picture of the console detail should provide more clarity. The 'UP' and 'DOWN' buttons below the green display to the right of the coupler panel are for selecting the Combination Memory Level. The small knob to the right of the display is for setting the Transposer. There is no piston sequencer. The two Toe Studs marked 'illegible' are the following: o MIDI sustain - there is a Rodgers midi sound module connected through the visible cables to provide a simulated "piano". I think this is the sustain pedal for that. o Automatic Pedal. Not sure, but I think this is for pianists who don't know how to play pedal. It causes the lowest note played on a keyboard to also sound on the pedal. The closeup views of the two stop jambs give a better understanding of the stops available. The closeup of the organ case gives a good view of this compact instrument. Even though the majority of the instrument is comprised of Walker digital ranks, it is very practical for this modest size church, yet it can "shake the timbers" whenever we want. Wicks has been building hybrid organs like this for years. -Ken Knollman
Source: Stoplist courtesy of the Wicks Organ Co. Date not recorded
Glendale, Cincinnati, Ohio
St. Gabriel R. C. Church
Wicks Pipe Organ Co., Op. 6426, 2005
_________________________________________________
GREAT
16' Bourdon (tc)
8' Principal
8' Flute Harmonique dg
8' Violoncello dg
8' Cello Celeste dg
4' Octave
4' Spitzflöte dg
2' Super Octave
IV Mixture dg
Flute Tremolo
Chimes dg
Cymbelstern 7 bells
Automatic Pedal
MIDI A
MIDI B
SWELL (Expressive)
8' Geigen Principal dg
8' Holzgedeckt
8' Viola 1-12 dg
8' Viola Celeste dg
8' Flauto Dolce dg
8' Flute Celeste dg
4' Prestant dg
4' Floete
4' Violina
2 2/3' Nazard
2' Blockfloete
1 1/3' Larigot
1' Dolce
16' Bassoon dg
8' Trompette dg
8' Oboe dg
8' Vox Humana dg
Tremolo
MIDI A
MIDI B
Swell to Swell 16'
Swell Unison Off
Swell to Swell 4'
CHOIR (all-digital)
8' Gedeckt dg
8' Gemshorn dg
8' Dulciana dg
8' Unda Maris dg
4' Gemshorn dg
4' Flauto Traverso dg
2' Flageolet dg
8' Tuba Mirabilis dg
8' French Horn dg
8' Clarinet dg
8' English Horn dg
Tremolo
Harp
Celesta
MIDI A
MIDI B
Choir to Choir 16'
Choir Unison Off
Choir to Choir 4'
PEDAL
32' Violone dg
16' Principal dg
16' Subbass dg
16' Violone dg
8' Principal (Gt) --
8' Gedeckt (Sw) --
4' Choralbass (Gt) --T
4' Harmonic Flute (Sw) --
16' Bombarde dg
8' Trumpet dg
4' Rohrschalmei dg
MIDI A
MIDI B
COUPLERS
Swell to Pedal [8]
Great to Pedal [8]
Choir to Pedal [8]
Swell to Great 16,[8],4
Choir to Great 16,[8],4
Swell to Choir 16,[8],4
Choir to Swell [8]
FINGER PISTONS
General 1 - 10
Swell 0,1 - 6
Sw to Ped (rev)
Great 0,1 - 6
Gt to Ped (rev)
Choir 0,1 - 6
Ch to Ped (rev)
Up
Down
[illegible]
Full Organ (rev)
Set
Gen Can
TOE STUDS
General 1 - 10
Pedal 1 - 6
Swell to Pedal (rev)
Great to Pedal (rev)
Choir to Pedal (rev)
[illegible]
[illegible]
Full Organ (rev)
PEDAL MOVEMENTS (l - r)
Choir Expression (bal.)
Swell Expression (bal.)
Crescendo (bal.)
[Received from Jeff Scofield December 8, 2014]
[Augmented by James R. Stettner November 6, 2023]
