Better Pipe Organ Database

M. P. Möller Opus M-3792 (1969)

Notre Dame des Victoires Roman Catholic Church
659 Pine Street
San Francisco, CA

Images

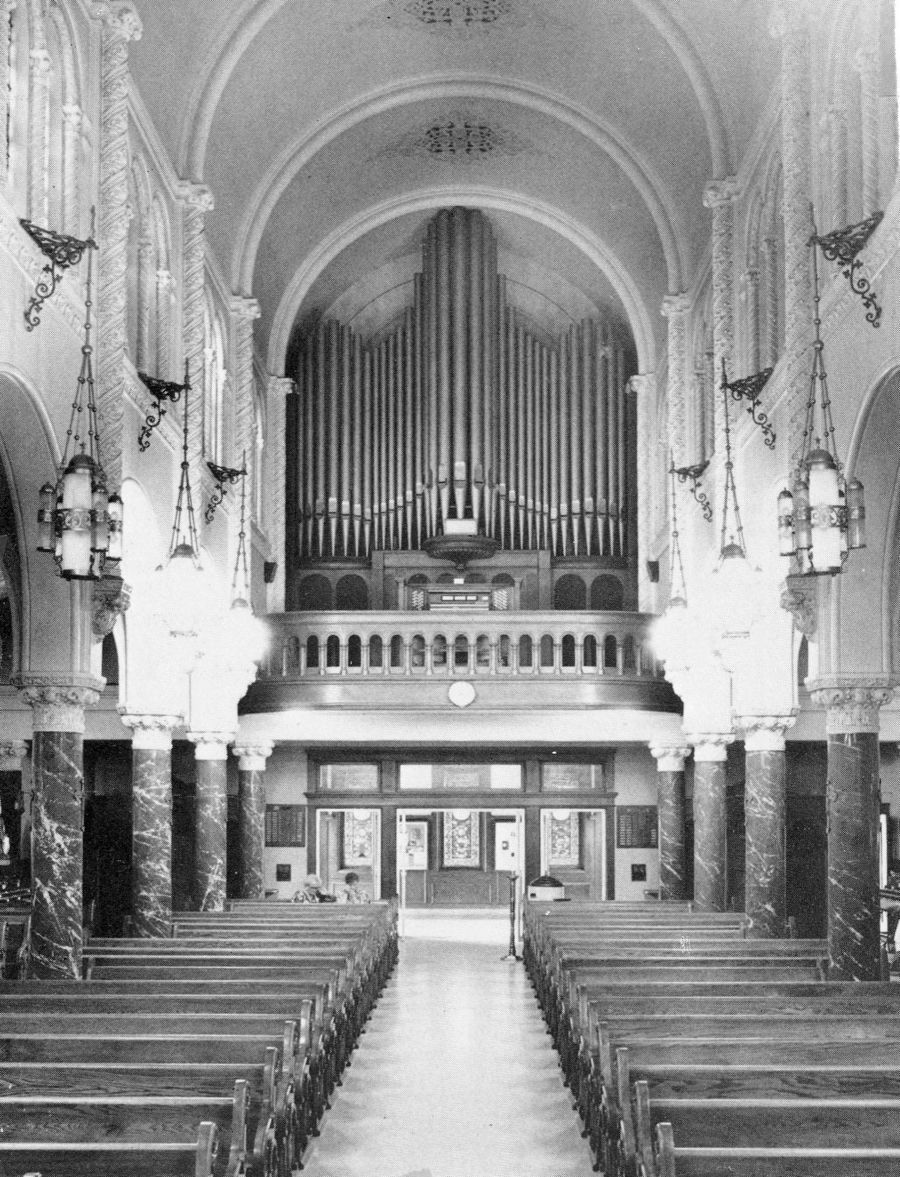

Unknown - Nave, Gallery, and Organ Case (Photograph from the 1988 OHS Convention Handbook; image courtesy of Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
4 manuals
28 stops
33 registers
5 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2015-02-06 - Originally installed in 1915 by the Johnson Organ & Piano Manufacturing Co. as their Op. 148; new Moller console in 1969; in 1988, Schoenstein & Co. made the Violone available in the Pedal at 8' and 4'. -Database Manager

Stoplist

Stoplist copied from the factory specifications via the OHS Archives Source: Source not recorded Date not recorded

    San Francisco, California
    Église Notre Dame des Victoires, R.C.

    Johnson Organ & Piano      1915   Op. 148     3/28
    Möller (4-manual console)  1969   Op. M-3792  4/
    __________________________________________________

    GREAT                       CHOIR

16' Diapason         61      8' Geigen Principal    73
 8' Diapason I       61      8' Melodia             73
 8' Diapason II      12      8' Dulciana            73
 8' Doppelflöte      61      4' Flute d'Amour       73
 8' Viol de Gambe    61      8' Clarinet            73
 4' Octave           12         Tremolo
 8' Trumpet          61         Sub
    Sub                         Unison Off
    Super                       Super
    Blank                       Blank
    Blank                       Blank
    Blank                       Blank

    SWELL                       CHANCEL

16' Bourdon          73     16' Quintaton           61
 8' Diapason         73      8' Orchestral Flute    61
 8' Stopped Diapason 73      8' Viol Etheria        61
 8' Salicional       73      8' Viol Celeste        61
 8' Vox Celeste      49      4' Flauto Traverso     61
 4' Harmonic Flute   73      8' Vox Mystica         61
 8' Cornopean        73         Cathedral Chimes
 8' Oboe             73         Blank
 8' Vox Humana       61         Blank
    Tremolo                     Blank
    Sub
    Unison Off                  PEDAL
    Super
    Blank                   32' Resultant Bass      --
    Blank                   16' Diapason            32
    Blank                   16' Bourdon             32
                            16' Violone             GT
                            16' Lieblich Gedeckt    SW
                             8' Flute               32
                                Blank
                                Blank
                                Blank

     [Received from Jeff Scofield February 6, 2015]

Documents

(1969-07-03) Factory Documentation Factory Documentation courtesy of the OHS Archive -Roman Lizak

Related Pipe Organ Database Entries

#54205 - Johnston Organ & Piano Manufacturing Co. Opus 148 (1915)
