Hook & Hastings (1895)

Universalist Church
484 Washington Street
Norwell (Assinippi), MA

Images

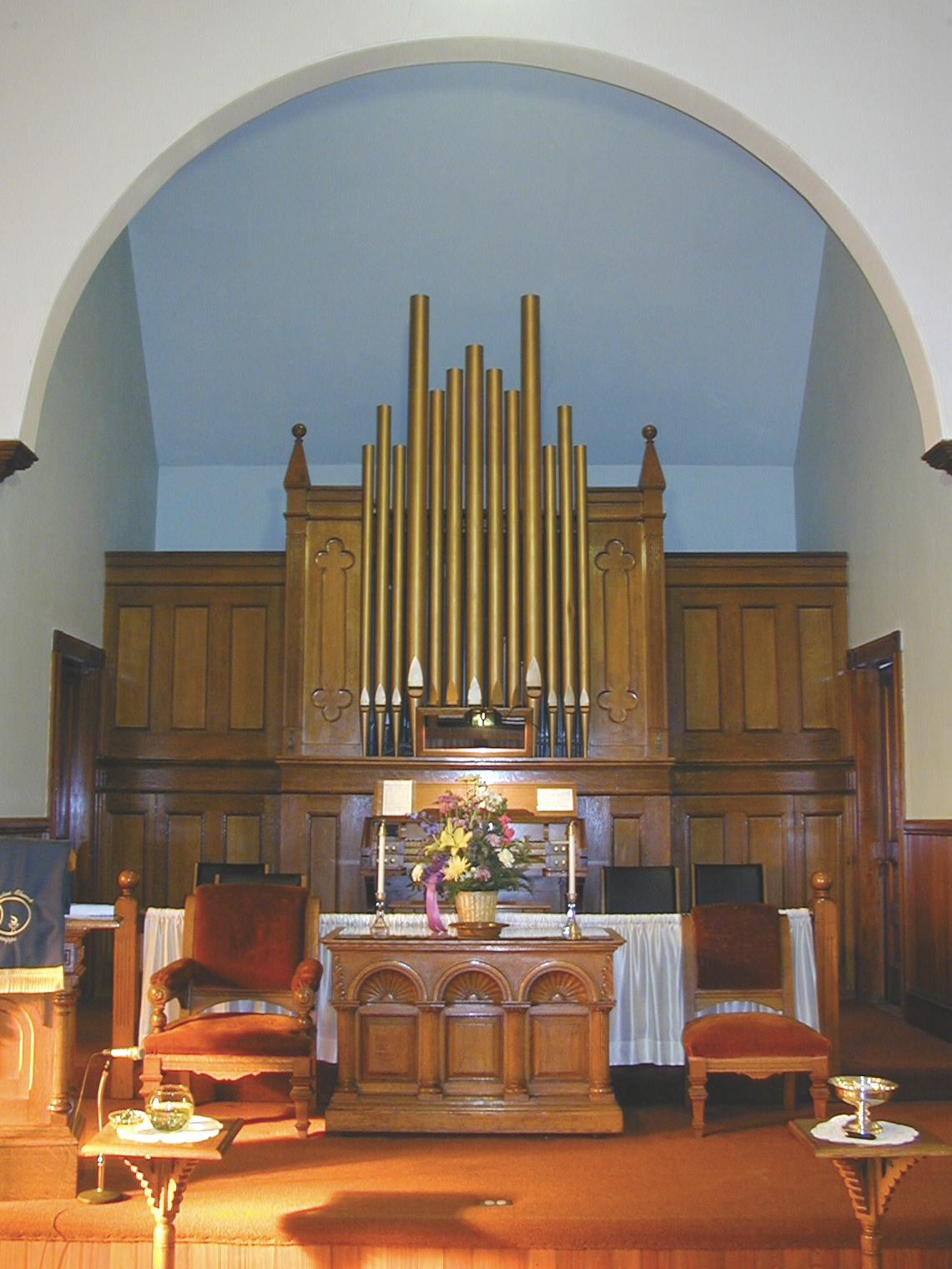

2007-11-05 - Organ case (Photograph by Doug Ulwick/Database Manager)

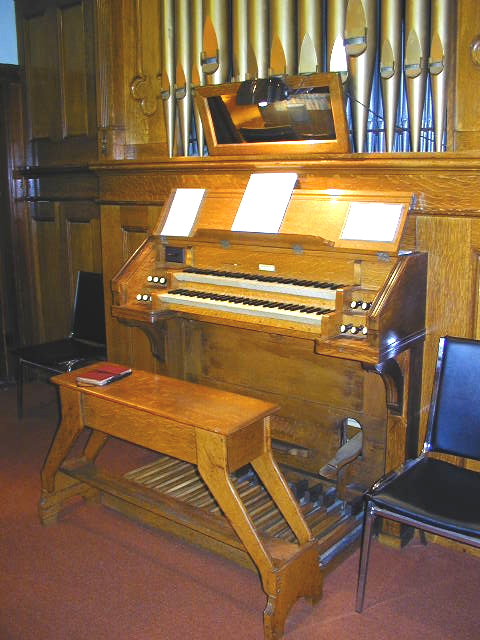

2007-11-05 - Keydesk (Photograph by Doug Ulwick/Database Manager)

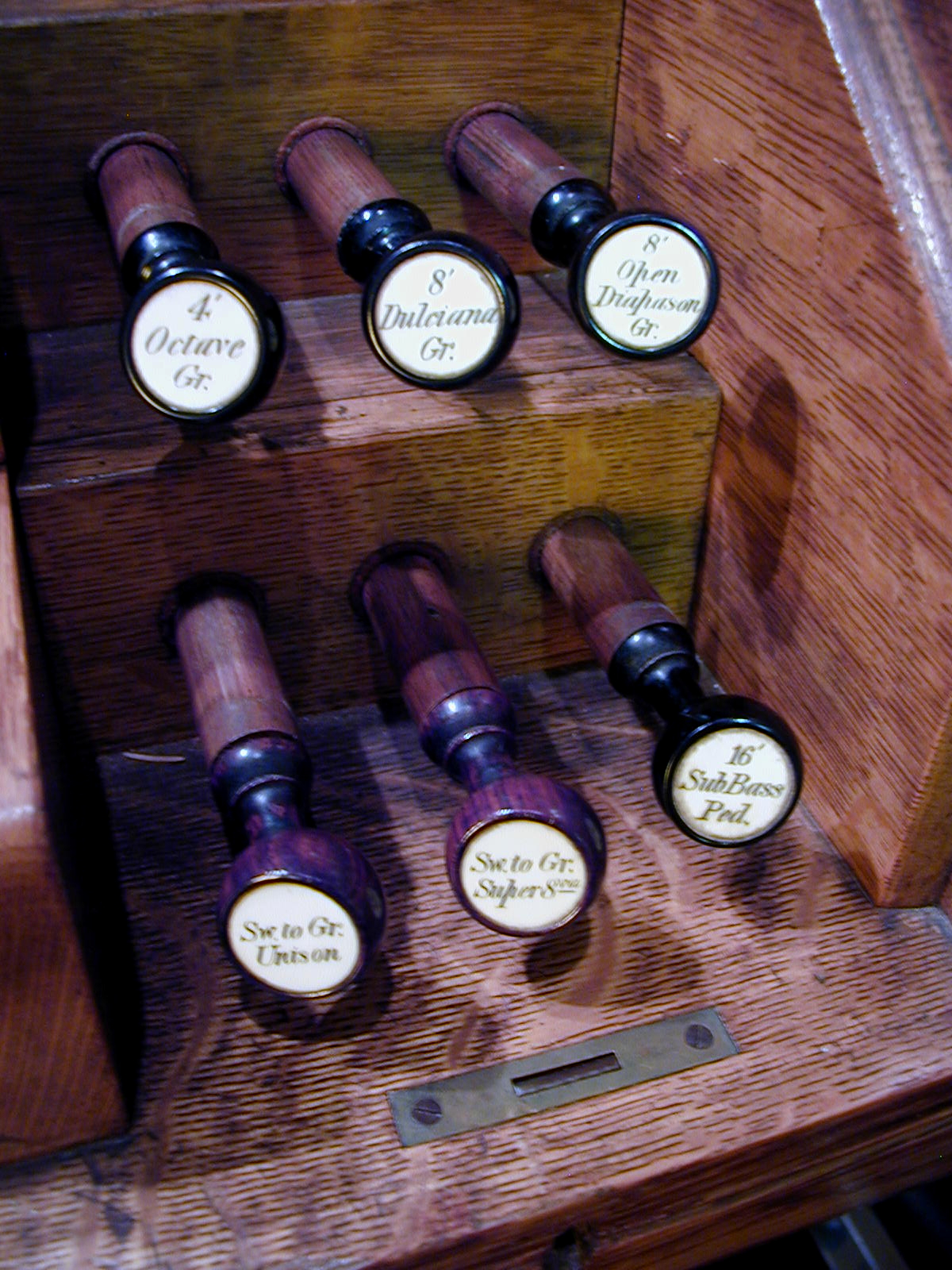

2007-11-05 - Drawknobs, left of manual keyboards (Photograph by Doug Ulwick/Database Manager)

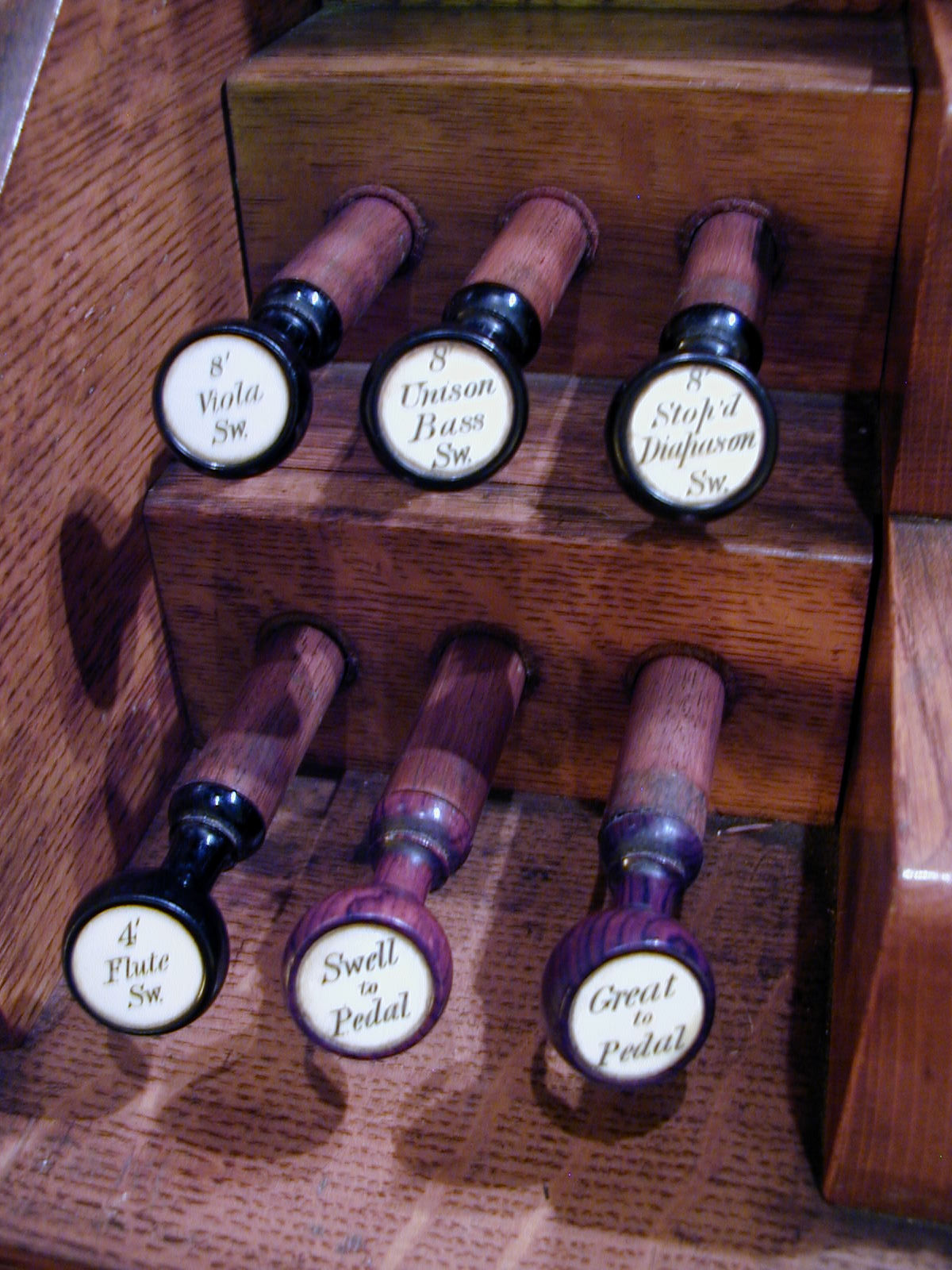

2007-11-05 - Drawknobs, right of manual keyboards (Photograph by Doug Ulwick/Database Manager)

Consoles

Main

Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
Console position: Keydesk Attached
2 manuals
7 stops
8 registers
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Manual compass: 58 notes
Pedal compass: 27 notes
Pedal Type: Flat Straight
Expression Type: Balanced Expression Shoes/Pedals (Not Meeting AGO Standards)
Combination action: None

Notes

2009-04-22 - Updated through online information from Doug Ulwick. -- The only apparent upgrade to this instrument is the electric blower which is located on the same level in an anteroom to the left of the console. The lever to manually pump the organ still remains. There is a full size door to access the area behind the console for tuning and maintenance located in an anteroom to the right of the console, and a small access door in the face of the case to the lower right hand side of the console. -Database Manager

2009-05-12 - Updated through online information from James R. Stettner. -- Size #5. 13 gold pipes en façade. -Database Manager

2018-12-29 - Updated by Doug Ulwick, who has heard or played the organ. <br> <br> -Database Manager

Stoplist

Stoplist copied from OHS Database photos of the organ Source: Source not recorded Date not recorded

Norwell (Assinippi), Massachusetts
Universalist Church

Hook & Hastings, Opus 1626, 1894

GREAT
   Gr.  8'  Open Diapason        58
   Gr.  8'  Dulciana             58
   Gr.  4'  Octave               58

SWELL (Expressive)
   Sw.  8'  Viola                46
   Sw.  8'  Stop'd Diapason      46
   Sw.  8'  Unison Bass          12
   Sw.  4'  Flute                58

PEDAL
   Ped. 16' SubBass              27

COUPLERS (Drawknob)
   Swell to Pedal               [8]
   Great to Pedal               [8]
   Sw. to Gr. Unison            [8]
   Sw. to Gr. Super 8ve         [4]

PEDAL MOVEMENTS
   Swell Expression          (bal.)

ACTION: Mechanical key & stop
VOICES: 7
STOPS: 8
RANKS: 7
PIPES: 363

[Received on line from James R. Stettner May 12, 2009.]
