Wicks Organ Co. Opus 5634 (1977)

Holy Trinity Lutheran Church
350 E. Madison St.
Lombard, IL

Images

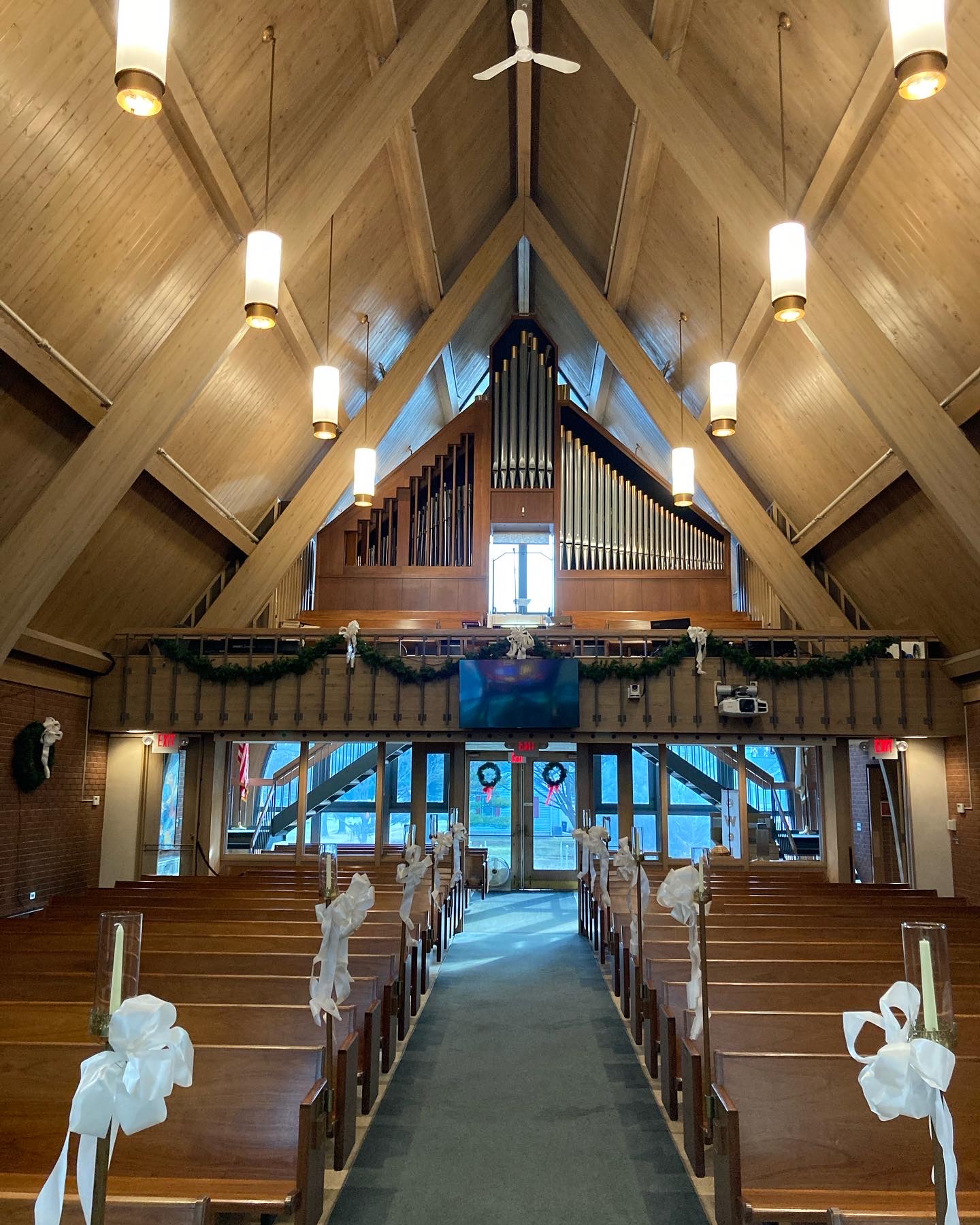

2021-12-21 - Organ in rear gallery (Photograph by Ethan Mellema/Ethan Mellema)

Consoles

Main

Organ type: Non-Traditional Style, As Consoles by Holtkamp, Schlicker, et al
Console position: Console in Fixed Position, Center
2 manuals
12 stops
28 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has coupler thumb pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2022-04-20 - This entry represents the first installation of a new organ. Identified from *The American Organist*, October 1978. -Jim Stettner

Stoplist

Stoplist copied from <i>The American Organist</i> October 1978 Source: Source not recorded Date not recorded

    Lombard, Illinois
    Holy Trinity Lutheran Church

    Wicks   Op. 5634   1977   2/13
    ________________________________________________________________

    GREAT                     SWELL                   PEDAL

 8' Principal    61        8' Rohrflöte    61     16' Contra Bass 32
 8' Holz Bourdon 61        8' Gemshorn     49     16' Bourdon     12 GT
 8' Gemshorn     SW        8' Gemshorn Cel 49     16' Gedeckt     **
 4' Octave       61        4' Principal    61      8' Principal   12
 4' Rohrflöte    SW        4' Gemshorn     12      8' Rohrflöte   SW
 2' Flachflöte   61    2 2/3' Nasat        61      4' Octave      12
II  Mixture     122        2' Rohrpfeife   24      2' Fifteenth   SW
 8' Trompette    SW    1 1/3' Nineteenth   12     16' Posaune     12 GT
                           8' Trompette    61      8' Trompette   SW
                           4' Clarion      12      4' Trompette   SW
                              Tremolo

**  Bourdon on soft wind

            [Received from Jeff Scofield February 22, 2015]
