Sisters, Servants of the Immaculate Heart of Mary: Motherhouse Chapel
610 West Elm Street
Monroe, MI
Images
Unknown - Academy buildings and grounds (Photograph from an archival source: cardcow.com, submitted by Jeff Scofield/Jeff Scofield)

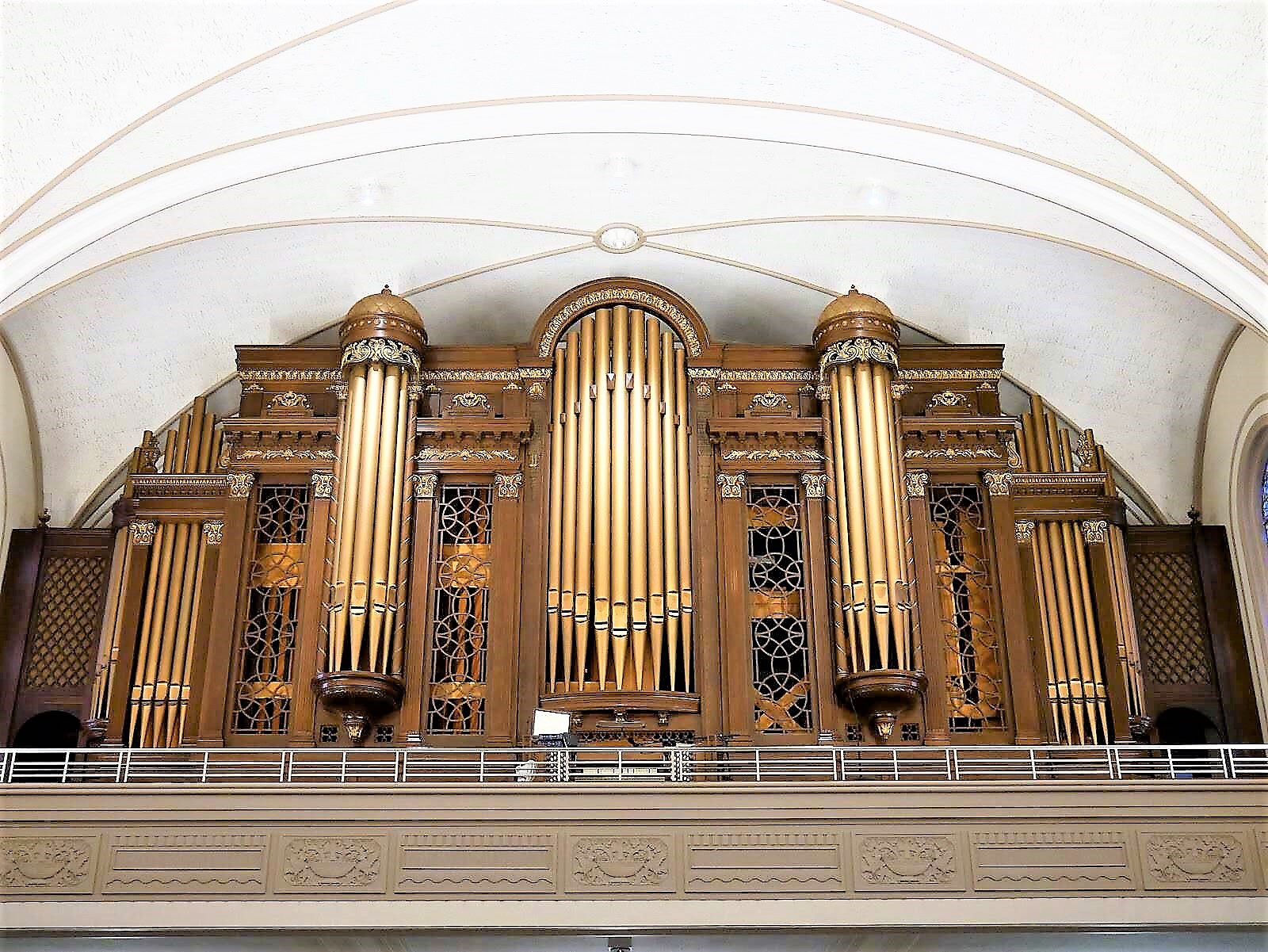

Unknown - Organ case (Photograph by livingpath.com, submitted by Jeff Scofield/Jeff Scofield)
2013-05-08 - Chapel interior and organ case (Photograph by Foresight Architects, submitted by Jeff Scofield/Jeff Scofield)
2021-07-09 - Left: 16' Double Trumpet, Middle: 8' Trumpet, Right: 4' Clarion (Photograph by Roman Lizak/Roman Lizak)
2021-07-09 - Choir Pppes (Photograph by Roman Lizak/Roman Lizak)
2021-07-09 - Swell pipes (Photograph by Roman Lizak/Roman Lizak)
2021-07-09 - Great pipes (Photograph by Roman Lizak/Roman Lizak)
1940-11-01 - Nave, Gallery, and Organ Case (Photograph courtesy of the Casavant Frères Archives/Database Manager)
1940-11-01 - Organ Case and Console (Photograph courtesy of the Casavant Frères Archives/Database Manager)
1940-11-01 - Drawing of Organ Case (Photograph courtesy of the Casavant Frères Archives/Database Manager)
2024-07-16 - 7-1/2 Horsepower Casavant manufactured Blower (Roman Lizak/Roman Lizak)
2024-07-16 - Blower nameplate (Roman Lizak/Roman Lizak)
Consoles
Main
- 3 manuals
- 51 stops
- 60 registers
- 6 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Has crescendo
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2004-10-30 - 11/91 form - stop list. -Database Manager
2007-03-03 - Updated through online information from Terry Jankowski. -Database Manager
2009-10-15 - Updated through online information from Ray Ahrens. -Database Manager
2010-06-14 - Updated through online information from Jeff Scofield. -Database Manager
2018-08-09 - Updated by Terry Jankowski, who has heard or played the organ. -Database Manager
2022-05-04 - In 2019, the Antiphonal division in the front of the chapel was thoroughly cleaned. All the pipes were washed and the chests were vacuumed out. -Roman Lizak
Stoplist
Stoplist copied from the factory specifications Source: Source not recorded Date not recorded
Monroe, Michigan
The Immaculate Heart of Mary Academy
Moutherhouse Chapel
Casavant Op. 1642 1940 3/62
Courtesy of the Casavant Frères Archives
St. Hyacinthe, Québec, Canada
____________________________________________________
GREAT SWELL
16' Double Diapason 73 16' Contra Gamba 73
8' Open Diapason #1 73 8' Geigen Principal 73
8' Open Diapason #2 73 8' Stopped Diapason 73
8' Rohrflöte 73 8' Viola da Gamba 73
8' Gemshorn 73 8' Voix Céleste 73
4' Octave 73 8' Aeoline 73
4' Flute Triangulaire 73 4' Octave Geigen 73
2' Super Octave 61 4' Flauto Traverso 73
V Mixture 305 2' Piccolo 61
8' Tromba 73 V Cornet 305
4' Octave Tromba 73 IV Cymbale 244
Sub 8' Oboe 73
Super 8' Vox Humana 73
Chimes CH Tremulant
16' Double Trumpet 73 *
ANTIPHONAL 8' Trumpet 73 *
8' Open Diapason 73 4' Clarion 73 *
8' Harmonic Flute 73 Sub
8' Gamba 73 Super
8' Lieblichflöte 73 Chimes CH
8' Dolce 73
4' Octave 73 CHOIR
4' Flauto Dolce 73 16' Gedeckt 73
8' Cornopean 73 8' Violin Diapason 73
Tremulant 8' Melodia 73
8' Dulciana 73
ANTIPHONAL PEDAL 8' Unda Maris tc 61
16' Bourdon 32 4' Violina 73
8' Flute 12 4' Flûte d'Amour 73
2 2/3' Nazard 61
PEDAL 2' Flageolet 61
16' Open Diapason 32 1 3/5' Tierce 61
16' Principal GT 8' Clarinet 73 *
16' Bourdon 32 Tremulant
16' Viola SW Sub
16' Gedeckt CH Super
8' Octave 12 Chimes (Deagan A) 25
8' Stopped Flute 12
8' Cello 32 * on heavier wind
4' Super Octave 12
16' Trombone 32 * Case of oak to extend
8' Trumpet 12 * the full width of the
4' Clarion 12 * gallery, 46 feet wide.
Chimes CH
[Received on line from Jeff Scofield June 14, 2010.]
