Immanuel United Church of Christ
Plymouth, WI
Images
2011-05-11 - Console (Photograph by Shawn P. Keith/Database Manager)

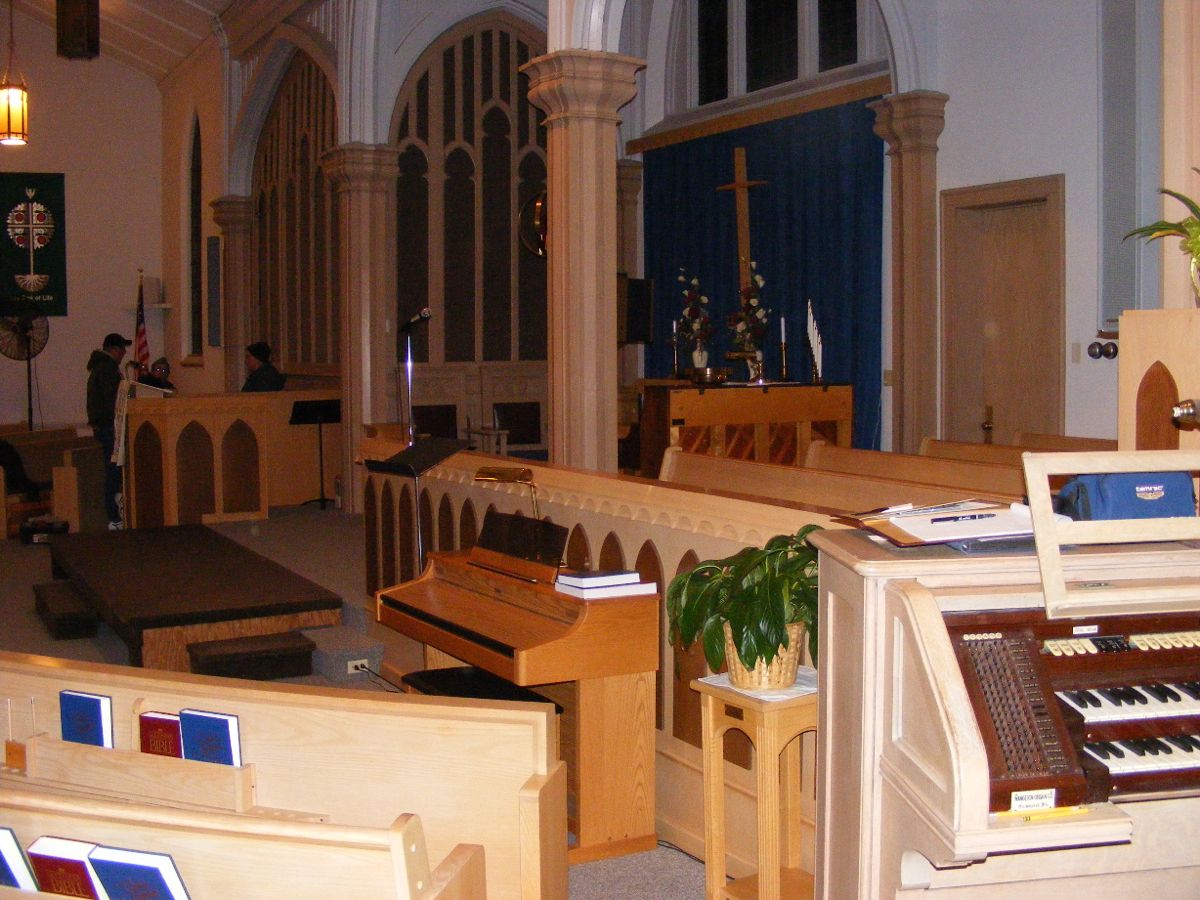

2011-05-11 - Console, Chancel, and Chamber Grillework (Photograph by Shawn P. Keith/Database Manager)
2011-05-11 - Back of Console (Photograph by Shawn P. Keith/Database Manager)
2011-05-11 - Setter Board (Photograph by Shawn P. Keith/Database Manager)
2011-05-11 - Chamber Grillework (Photograph by Shawn P. Keith/Database Manager)
2011-05-11 - Pouches inside Unit Chest (Photograph by Shawn P. Keith/Database Manager)
2011-05-11 - Great Pipework (8' Open Diapason, 8' Melodia, 8' Dulciana, and 8' Tuba) (Photograph by Shawn P. Keith/Database Manager)
2011-05-11 - Pipework (Unit Bourdon in front) (Photograph by Shawn P. Keith/Database Manager)
2011-05-11 - Swell Pipework (Photograph by Shawn P. Keith/Database Manager)
2011-05-11 - Swell Pipework (8' Salicional, 8' Vox Humana) (Photograph by Shawn P. Keith/Database Manager)
2011-05-11 - Swell Pipework (8' Open Diapason, 8' Voix Celeste, 8' Salicional, and 8' Vox Humana) (Photograph by Shawn P. Keith/Database Manager)
2011-05-11 - Chamber Relay (Photograph by Shawn P. Keith/Database Manager)

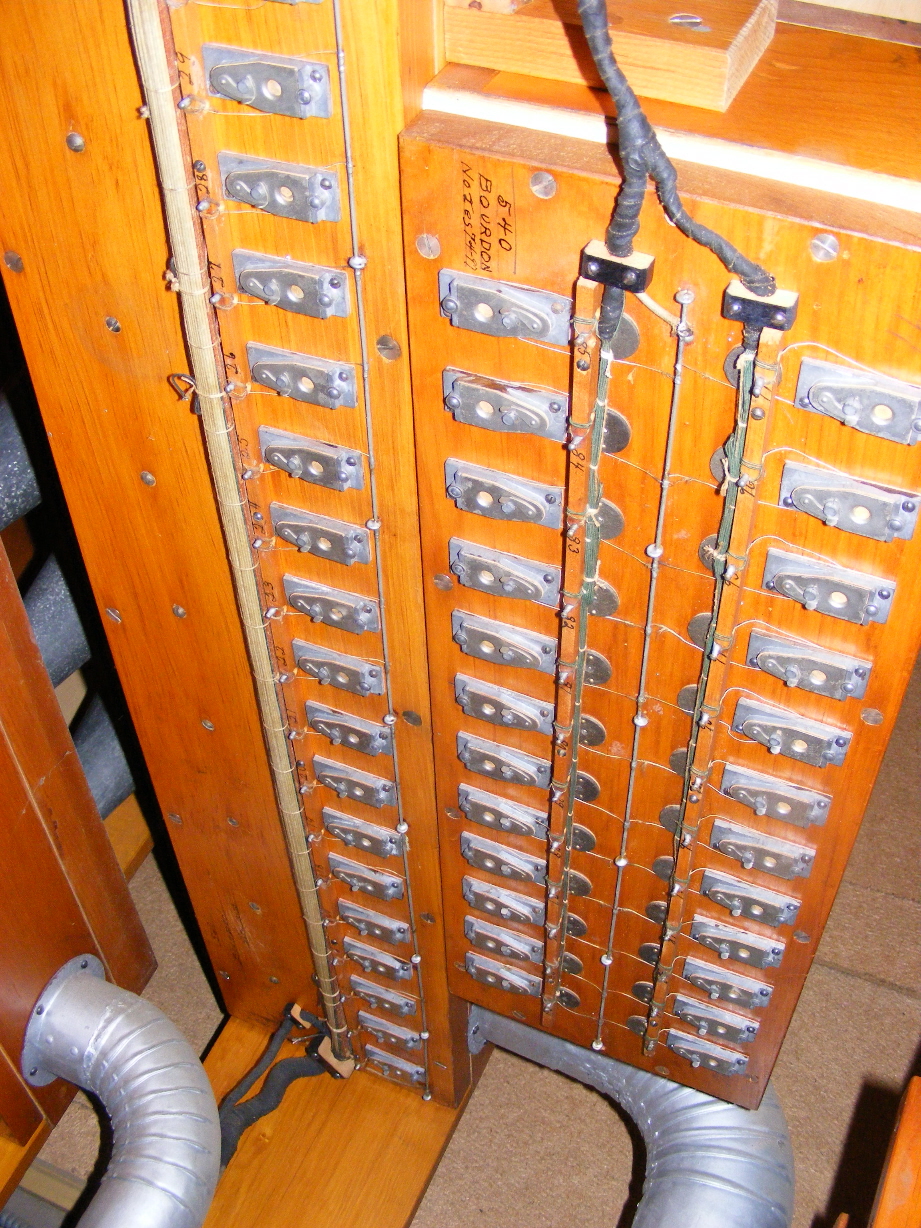

2011-05-11 - Bottom of the unit chests for the 16' Bourdon (Photograph by Shawn P. Keith/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Right
- 2 manuals
- 9 stops
- 17 registers
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Stop Keys Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Setterboard
- Has combination thumb pistons
- Has coupler toe pistons
Notes
2015-03-04 - This entry describes an original installation of a new pipe organ.
Identified by Shawn P. Keith, based on personal knowledge of the organ.
-- -Database Manager
2015-03-05 - Updated through online information from Shawn P. Keith. -Database Manager
Stoplist
Stoplist taken from the console January 2011 Source: Source not recorded Date not recorded
Plymouth, Wisconsin
Immanuel United Church of Christ
Wangerin Organ Company, Opus 540, vintage 1928
Enclosed in a single expression chamber
GREAT
8' Open Diapason - notes 1-20 unit action
8' Melodia
8' Dulciana
4' Flute (from 16' Bourdon)
8' Tuba
Chimes - A2-E4, 20 bells
16' Great to Great
4' Great to Great
16' Swell to Great
8' Swell to Great
4' Swell to Great
Great Unison Off
SWELL
16' Bourdon - 97 pipes, unit action
8' Open Diapason
8' Gedackt (from 16' Bourdon)
8' Salicional
8' Voix Celeste (from TC)
4' Flute (from 16' Bourdon)
2-2/3' Nazard (from 16' Bourdon)
2' Flautino (from 16' Bourdon)
8' Vox Humana
16' Swell to Swell
4' Swell to Swell
Swell Unison Off
Tremulant
PEDAL
16' Contra Bass - 12 pipes, remainder from Great 8' Open Diapason
16' Lieblich Gedackt (from 16' Bourdon)
8' Flauto Dolce (from 16' Bourdon)
8' Great to Pedal
8' Swell to Pedal
4' Swell to Pedal
ACCESSORIES
6 General thumb pistons
Great to Pedal reversible toe piston
General Cancel thumb piston
Expression Pedal
Separate expression openings for Chancel/Sanctuary
Crescendo Pedal
Wind indicator light
[Received from Shawn P. Keith 2015-03-06.]
