Austin Organs, Inc. Opus 2086 (1946)

Images

2017-10-31 - Console (Photograph by Andrew A. Clark/Database Manager)

2017-10-31 - Organ Chamber Grilles (Photograph by Andrew A. Clark/Database Manager)

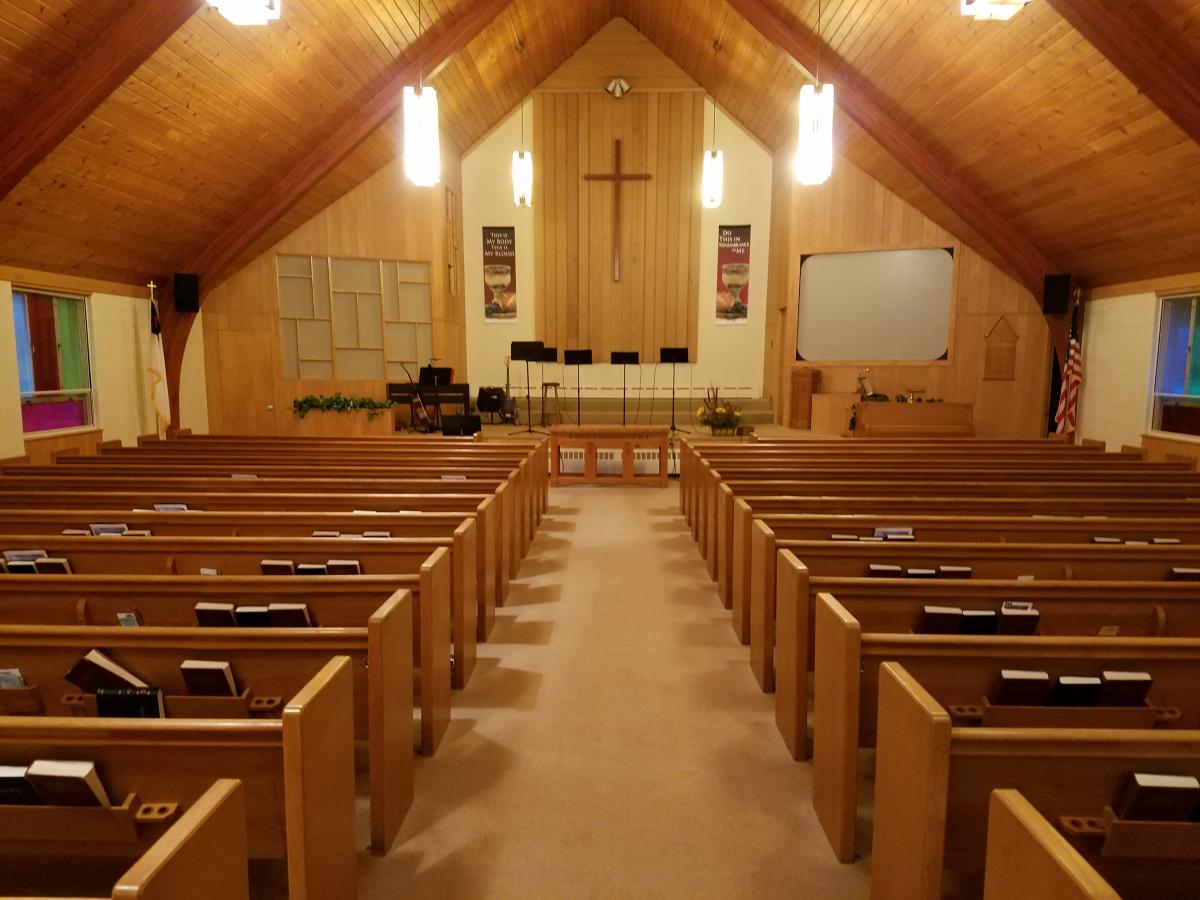

2017-10-31 - Nave and Chancel (Photograph by Andrew A. Clark/Database Manager)

2017-10-31 - Nave and rear stained glass window (Photograph by Andrew A. Clark/Database Manager)

2017-10-31 - Church exterior (Photograph by Andrew A. Clark/Database Manager)

2023-11-29 - Pipework inside chamber (Andrew A Clark/Andrew A Clark)

Consoles

Main

• Organ type: Traditional With Roll Top
• Console position: Console in Fixed Position, Right
• 2 manuals
• Key action Type: Electrical
• Stop action Type: Electrical
• Stop layout Type: Stop Keys Above Top Manual
• Manual compass: 61 notes
• Pedal compass: 32 notes
• Pedal Type: Concave Radiating (Details Unknown)
• Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
• Has crescendo
• Combination action: 'Hold and Set' Pneumatic/Mechanical
• Has combination thumb pistons

Notes

2015-04-15 - This entry describes an original installation of a new pipe organ. Identified by Shawn P. Keith, based on personal knowledge of the organ. -- Relocated to a new edifice for the same congregation, without alteration. -Database Manager

2017-11-24 - Updated by Andrew A. Clark, who maintains the organ. -Database Manager

2017-11-24 - Updated by Andrew A. Clark, who maintains the organ. -Database Manager

Stoplist

Original document from Andrew A. Clark. Source: Unknown 2017-11-11

Ellsworth, Michigan
Belltower Reformed Church

Organ by Austin Organs, Inc.
Opus 2086 ca. 1946
2 manuals 4 ranks

GREAT
8' Open Diapason
8' Concert Flute
8' Dulciana
Great 16'
Great 4'
Swell to Great 16'
Swell to Great 8'
Swell to Great 4'

SWELL
8' Concert Flute from Gt.
8' Dulciana from Gt.
8' Unda Maris
4' Flute
Tremulant
Swell 16'
Swell 4'

PEDAL
16' Bourdon
Great to Pedal 8'
Great to Pedal 4'
Swell to Pedal 8'
Swell to Pedal 4'

Great on  (Unison on/off)
Swell on  (Unison on/off)

Entire organ is in a single chamber and expressive.
