J.W. Walker & Sons Ltd. (1986)

St. Bernard Roman Catholic Church
1617 W. Pine Street
Appleton, WI

Images

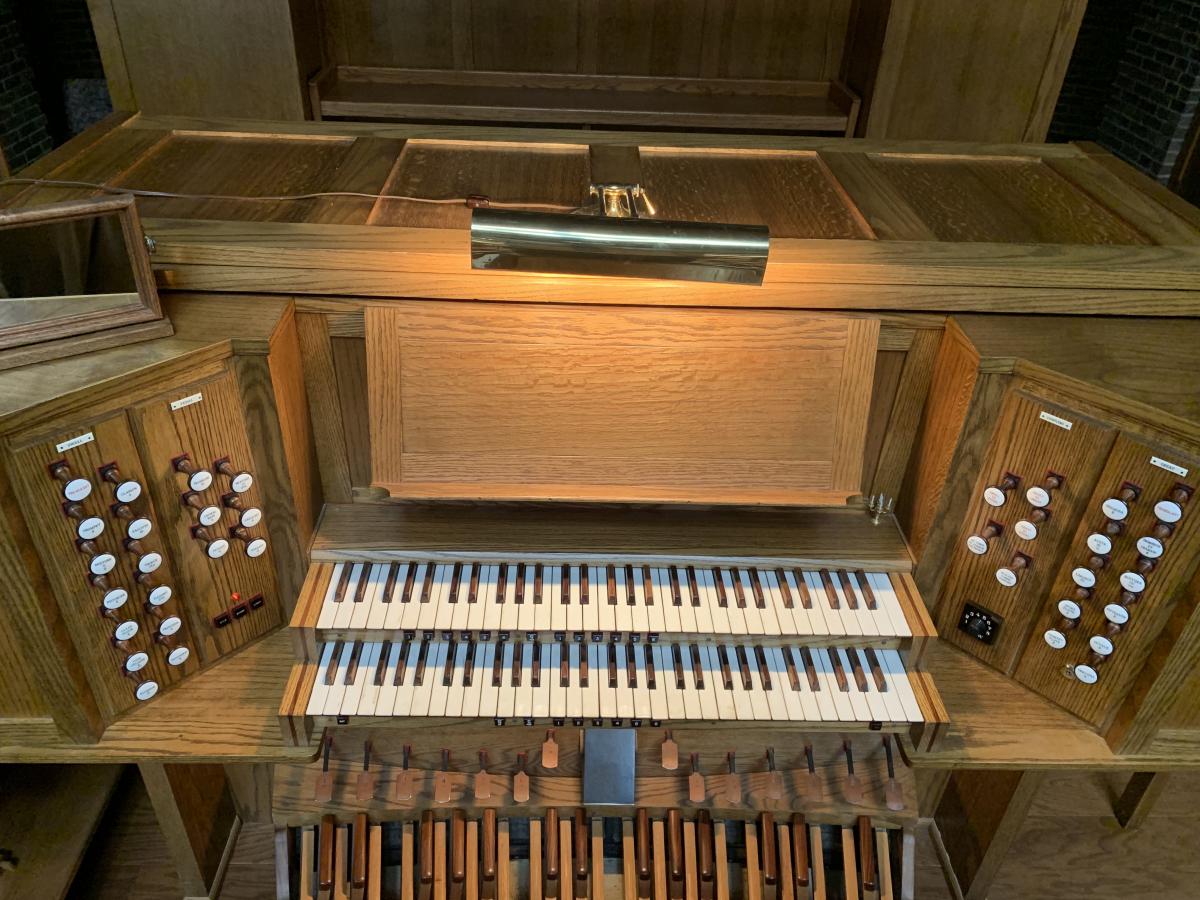

2019-07-17 - Keydesk (Photograph by Andrew Schaeffer/Database Manager)

2019-07-17 - Right Stop Jamb (Photograph by Andrew Schaeffer/Database Manager)

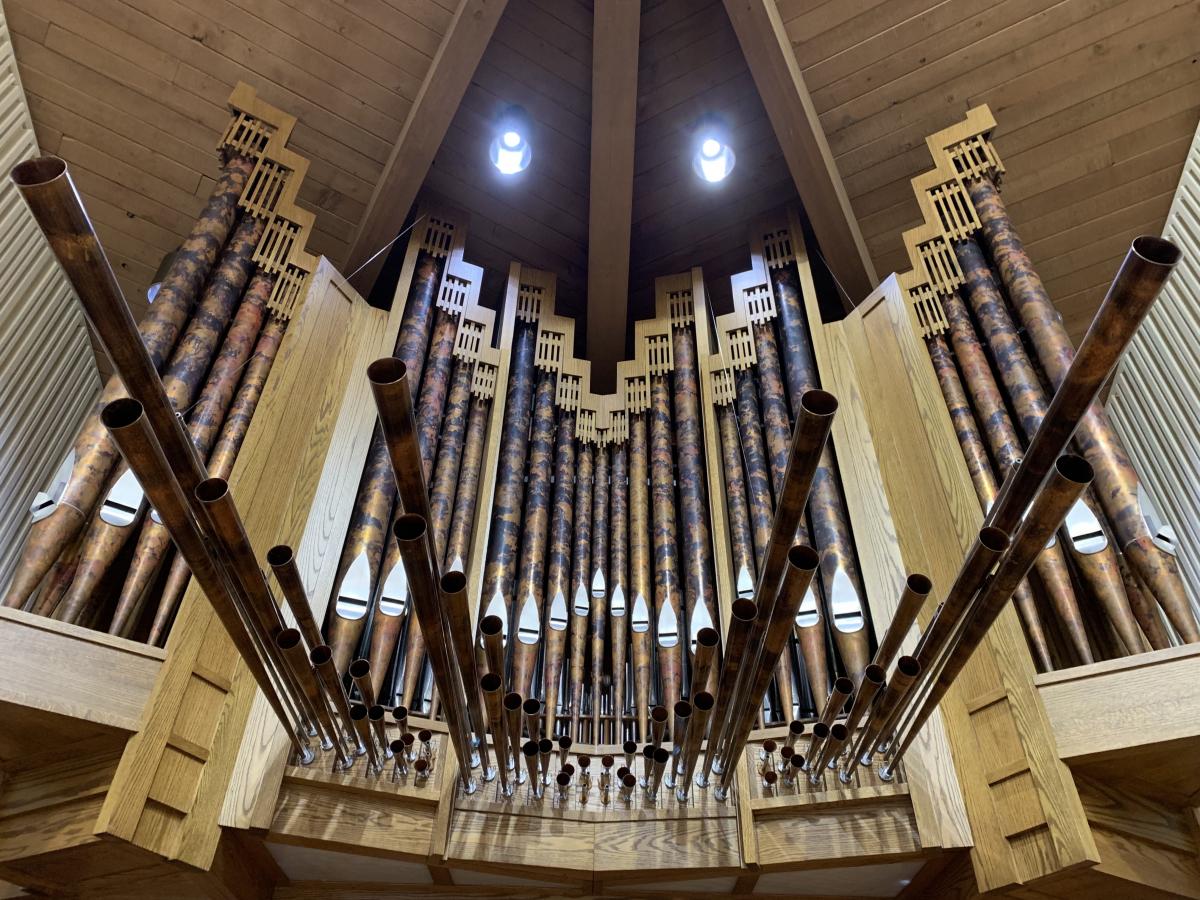

2019-07-17 - Facade (Photograph by Andrew Schaeffer/Database Manager)

Consoles

Main

Organ type: Traditional With Hinged Doors That Enclose Keyboards
Console position: Console in Fixed Position, Center
2 manuals
28 stops
Key action Type: Mechanical (Details Unknown)
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2015-06-08 - Installed August 1986. Cost $186,000. Cleaned and restored by J.W. Walker in 2008. -Database Manager

2019-07-24 - Updated by Andrew Schaeffer, who has heard or played the organ. <br> <br> -Database Manager

Stoplist

Stoplist from photos taken by Stephen Schnurr Source: Source not recorded Date not recorded

Appleton, Wisconsin
St. Bernard Roman Catholic Church

J.W. Walker & Sons Ltd.   1986                   2 manuals, 28 stops, 40 ranks
______________________________________________________________________________

        GREAT ORGAN                              SWELL ORGAN
     8' Principal             61              8' Bourdon               61
     8' Chimney Flute         61              8' Salicional            61
     4' Octave                61              8' Voix Celeste (tc)     49
     4' Spire Flute           61              4' Principal             61
     2' Fifteenth             61              4' Clear Flute           61
 1 1/3' Larigot               61          2 2/3' Nazard                61
 1 1/3' Mixture IV           244              2' Recorder              61
   1/2' Acuta III            183          1 3/5' Tierce                61
     8' Trompette en Chamade  61              2' Mixture V            305
     8' Cremona               61             16' Fagotto               61
        Tremulant                             8' Trumpet               61
                                              4' Clarion               61
        PEDAL ORGAN                              Tremulant
    16' Subbass               32
     8' Octave                32                 COUPLERS
     8' Gedackt               32                 Swell to Great
     4' Choralbass            32                 Great to Pedal
 2 2/3' Mixture IV           128                 Swell to Pedal
    16' Trombone              32                 SW Combs on General Toe Pedals
                                                 GT & PED Combs Coupled


[Received from Steven E. Lawson  2015-06-08]
