St. Andrew's Episcopal Church: Front of main nave, at right
11 Glidden Street
Newcastle, ME
OHS convention: 1992
Images
2023-07-18 - Right stop jamb (Photograph by Anonymous/Christian Longobardi)
2023-07-18 - Left stop jamb (Photograph by Anonymous/Christian Longobardi)

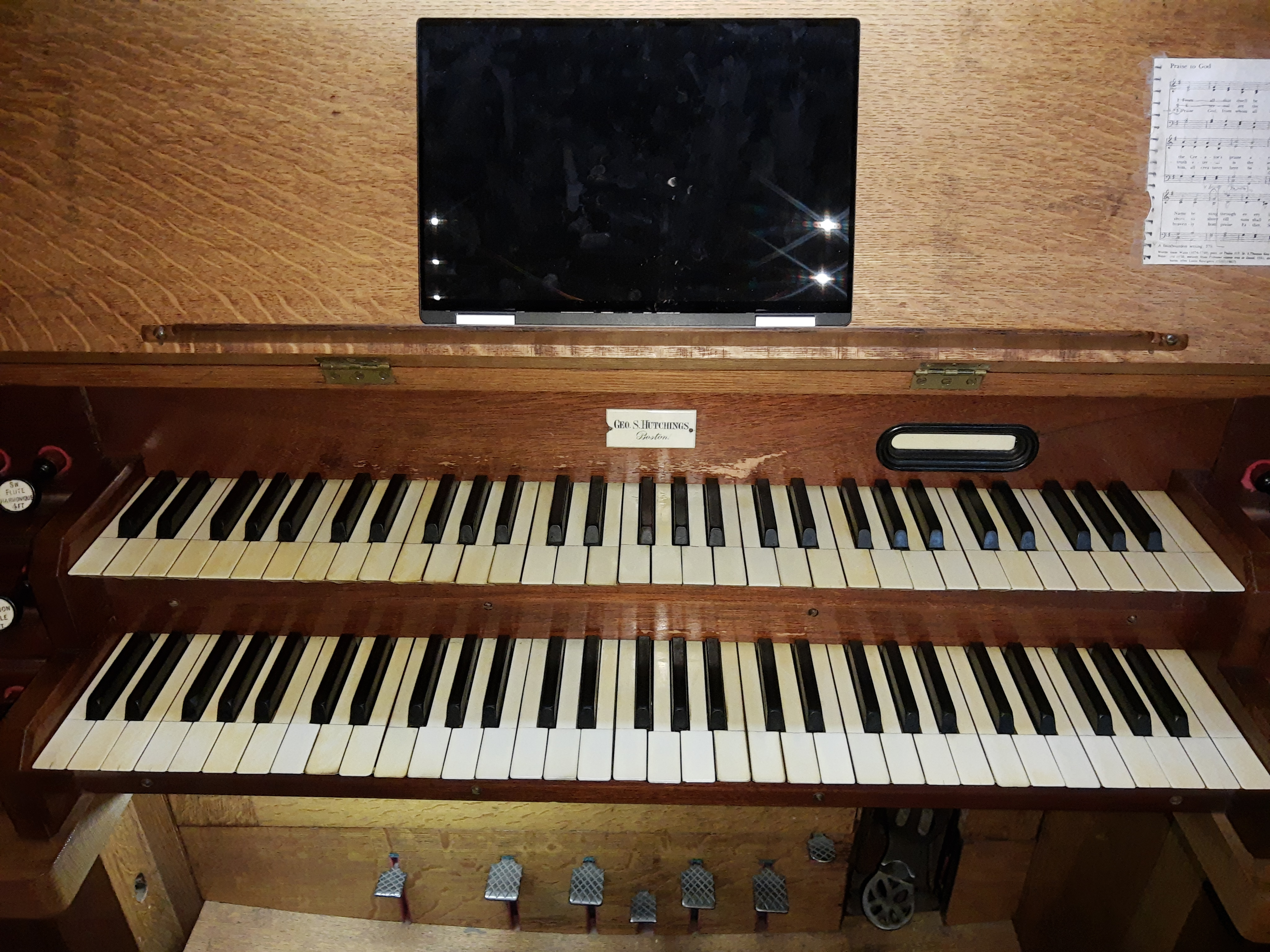

2023-07-18 - Manuals and music rack (Photograph by Anonymous/Christian Longobardi)

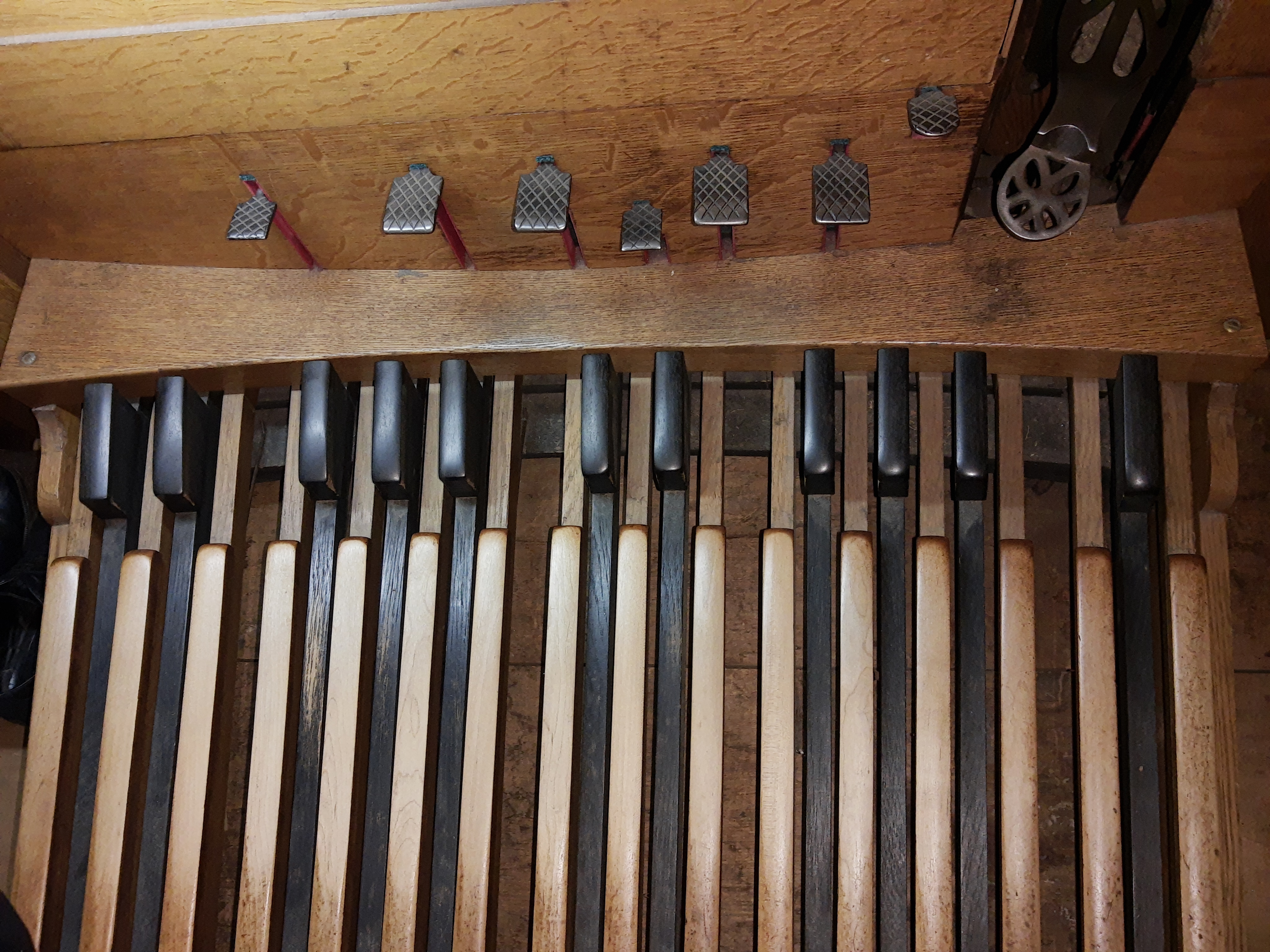

2023-07-18 - Pedalboard, foot trundles and Swell expression pedal (Photograph by Anonymous/Christian Longobardi)

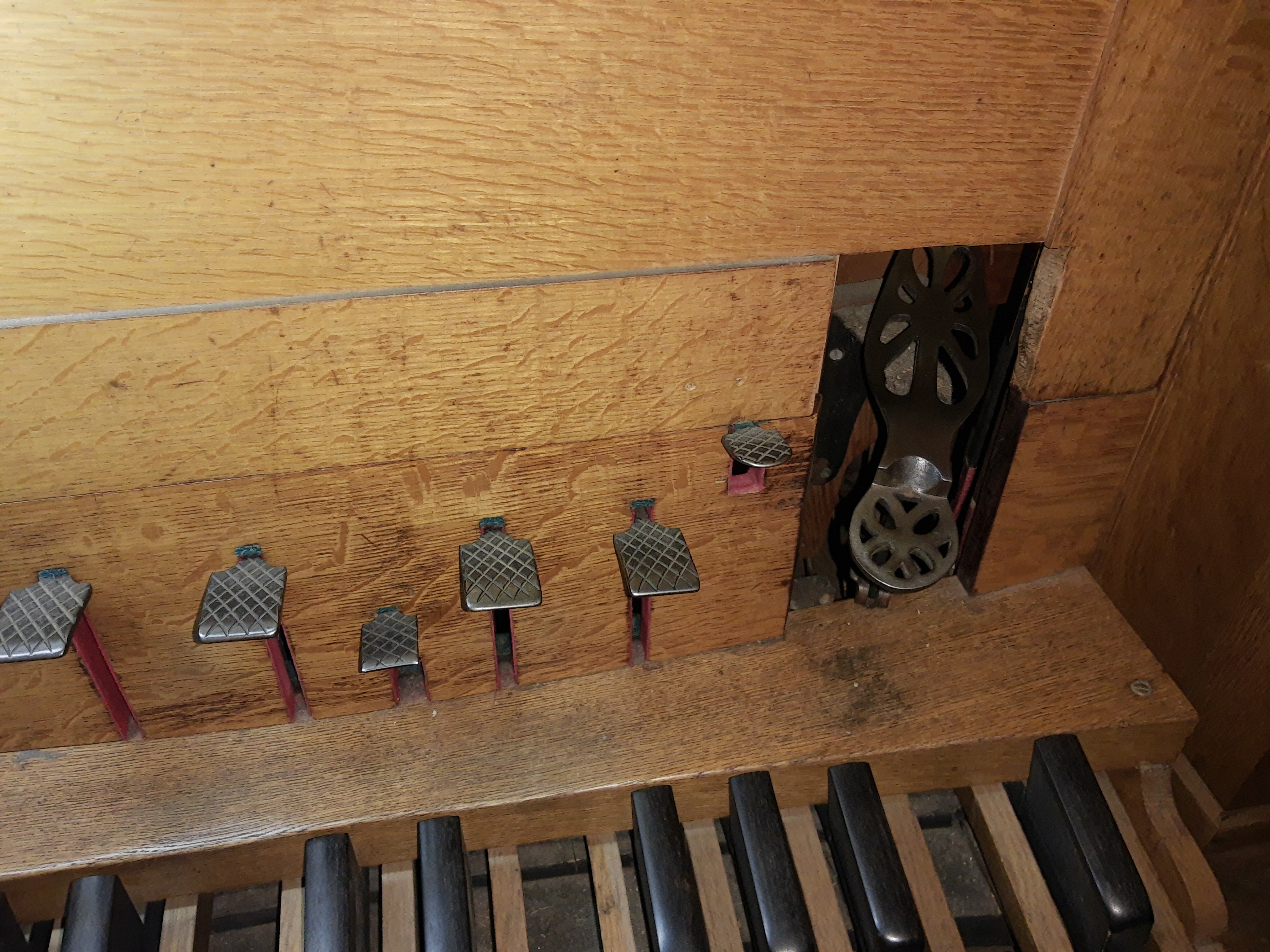

2023-07-18 - Swell pedal and pulldowns at right of pedalboard (Photograph by Anonymous/Christian Longobardi)

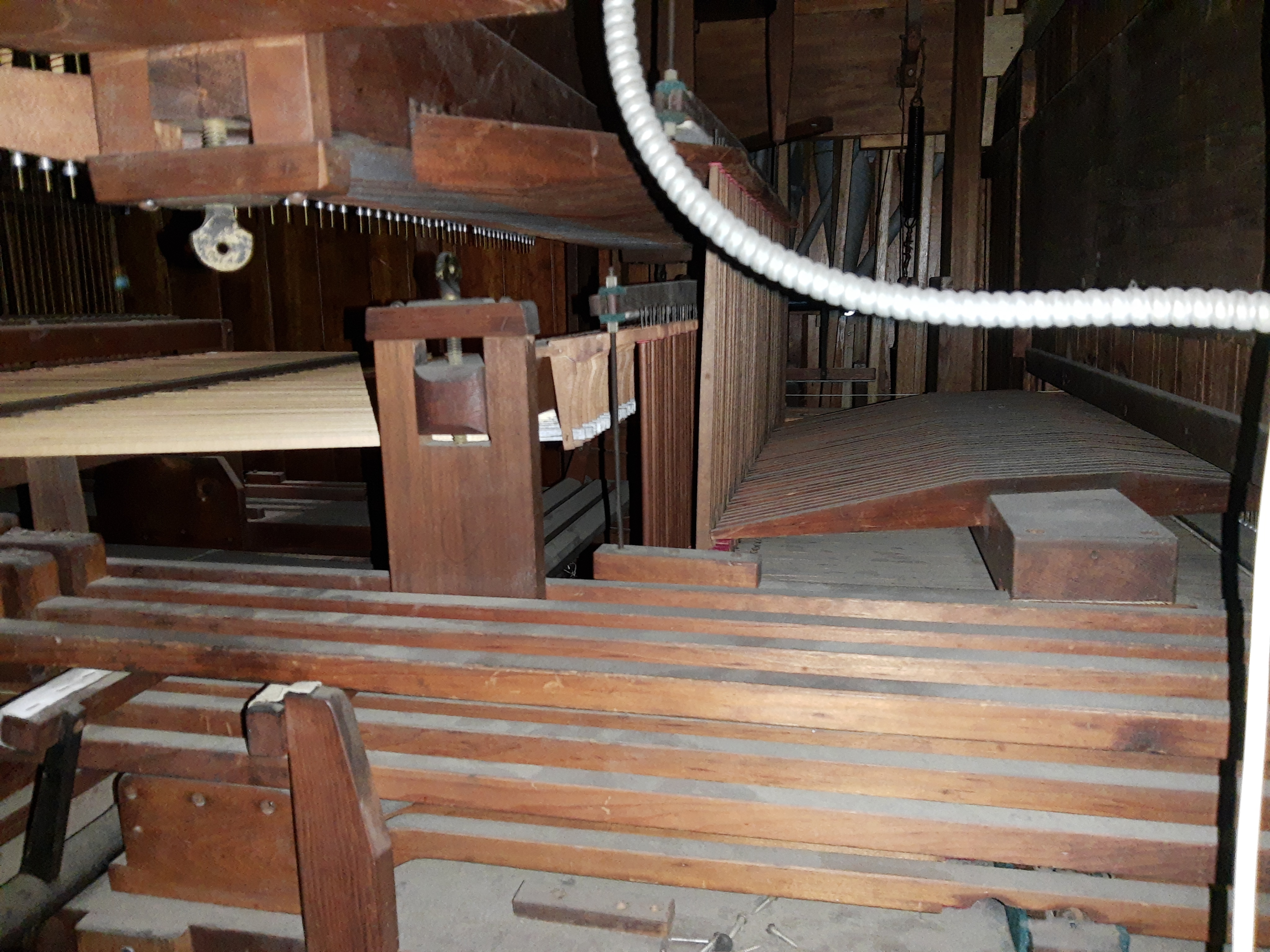

2023-07-18 - Stop actions, and trackers behind manuals (Photograph by Anonymous/Christian Longobardi)

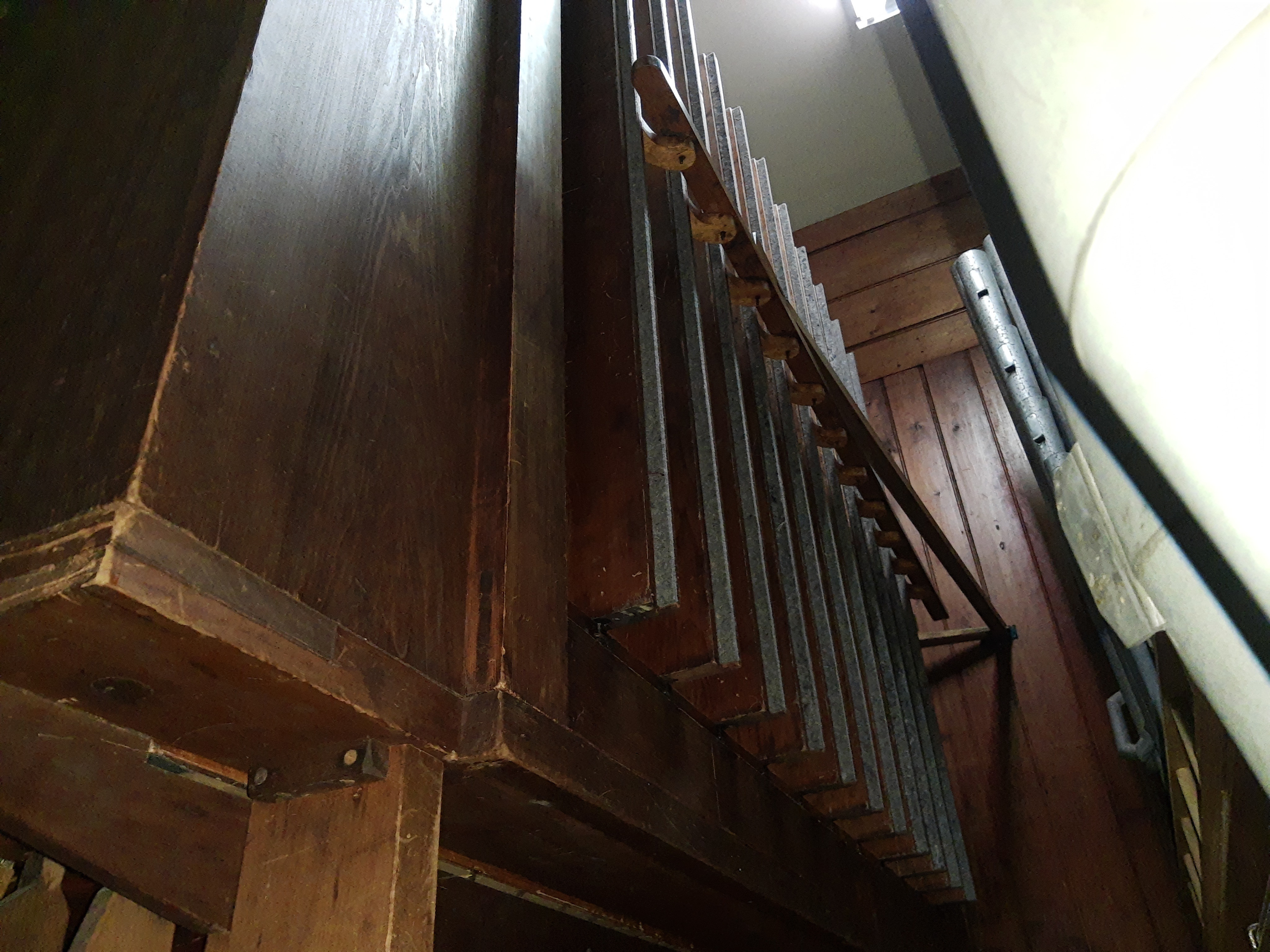

2023-07-18 - Pedal Bourdon 16' (Photograph by Anonymous/Christian Longobardi)
2023-07-18 - Front of Swell box (Photograph by Anonymous/Christian Longobardi)

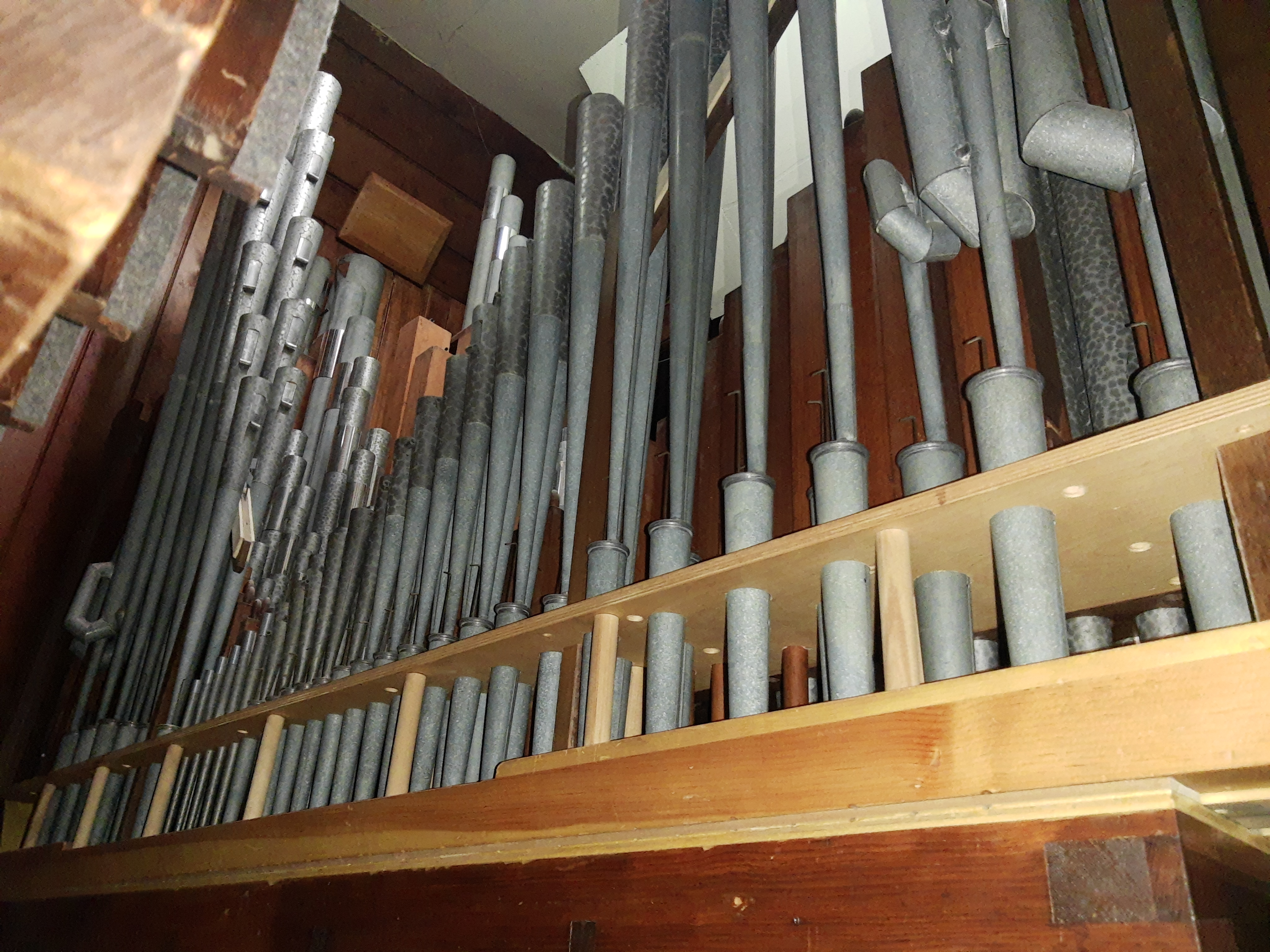

2023-07-18 - Great pipework, Trumpet 8' at front (Photograph by Anonymous/Christian Longobardi)
2023-07-18 - Great 8' Trumpet pipework (Photograph by Anonymous/Christian Longobardi)
1991 - Console (Photograph from an archival source: 1992 OHS Handbook, William T. Van Pelt, submitted by Paul R. Marchesano/Paul R. Marchesano)

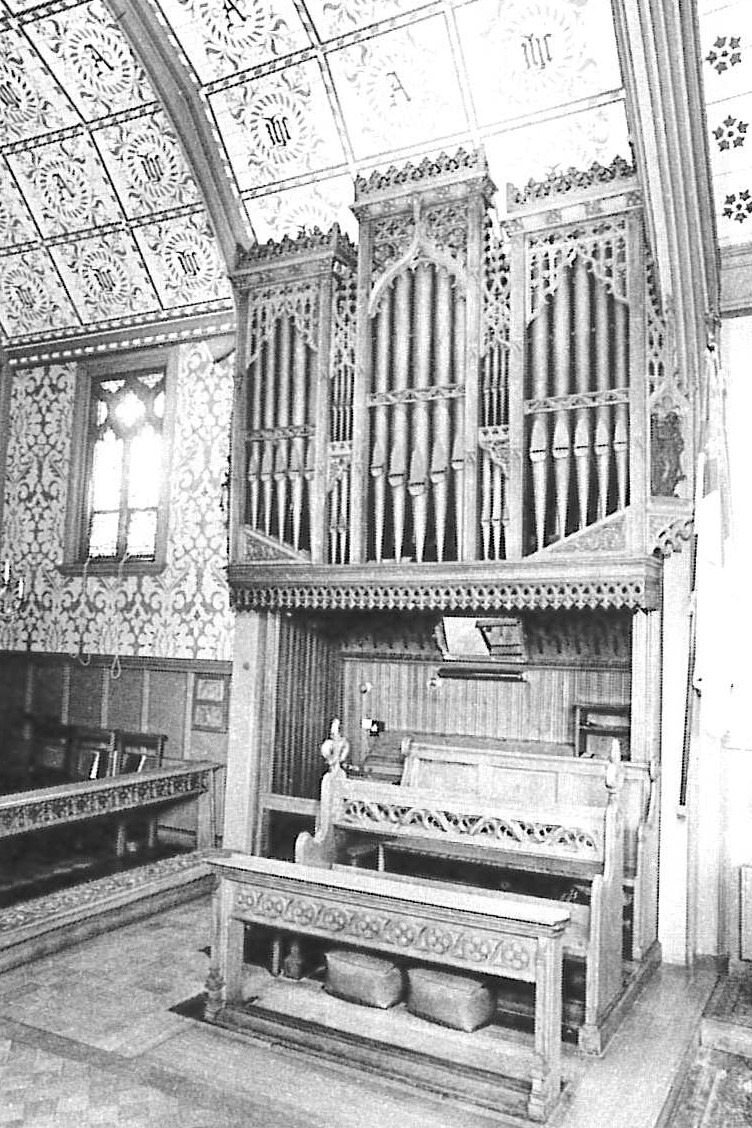

1991 - Organ case and console (Photograph from an archival source: 1992 OHS Handbook, William T. Van Pelt, submitted by Paul R. Marchesano/Paul R. Marchesano)

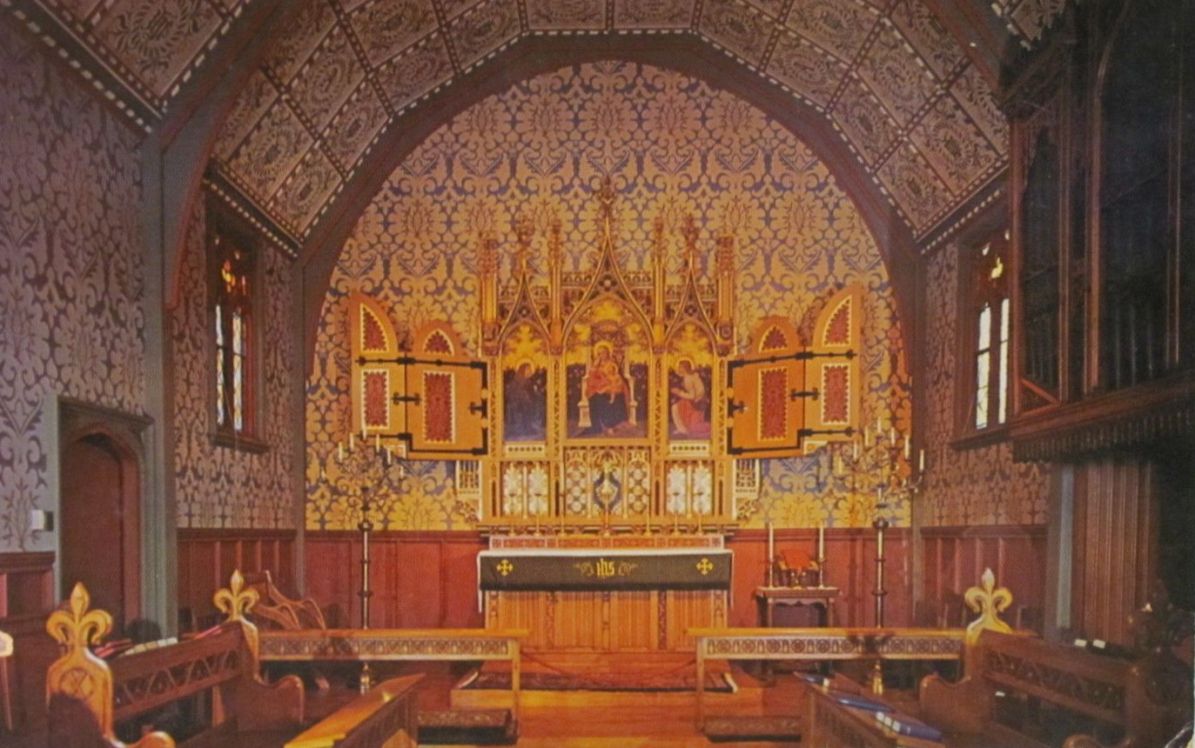

Unknown - Chancel and Organ Case at right ((ca. 1960) Vintage Postcard; image courtesy of William Dunklin/Database Manager)
Consoles
Main
- Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
- Console position: Keydesk Attached
- 2 manuals
- 16 stops
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Mechanical
- Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
- Pedal Type: Concave Radiating (Not Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Not Meeting AGO Standards)
- Combination action: Fixed Mechanical
- Has hitchdown couplers
Notes
2004-10-30 - Status Note: There 1992. -Database Manager
2004-10-30 - Slightly altered by 1980. Building and case designed by Henry Vaughan. -Database Manager
2008-08-12 - Updated through online information from Michael J Smith. -- It's in fine shape. Winding has been electrified and somebody (Andover?) has fitted some of the ranks with shiny new tuning slides, but otherwise it appears original. -Database Manager
2014-02-24 - Updated through online information from John Igoe. -- Renovated by Andover. -Database Manager
2022-09-09 - **From the *1992 OHS Handbook*:**
The organ, the gift of Charles Perkins Glidden in memory of Mary S. Glidden, was installed in 1888 at a cost of $1,885 exclusive of the handsome Gothic casework, which was almost certainly designed by Henry Vaughan. The radiating and concave pedalboard is not original; neither are the pipes of the Oboe 8'. Renovation of the instrument is planned for the near future. -Paul R. Marchesano
Stoplist
Typed Stoplist. On-line update from Michael J Smith. Source: Source not recorded Date not recorded
Newcastle, Maine
St. Andrew's Episcopal
1888 Hutchings
Stoplist
Great --
Open Diapason 8
Melodia 8
Dolcissima 8
Octave 4
Flute d'Amour 4
Twelfth 2-2/3
Fifteenth 2
Trumpet 8
Swell --
Bourdon Treble(*) 16
Open Diapason 8
Salicional 8
Stop'd Diapason 8
Flute Harmonique 4
Violina 4
Flautino 2
Oboe 8
(*) I don't know what this stop name is supposed to mean. It's
a substantial 16' Bourdon that runs right through the compass.
Does not appear to share pipes with the Pedal 16.
Pedal --
Bourdon 16
Couplers: Sw -> Gt Sw -> Ped Gt -> Ped
The manuals couple through -- i.e. if you have Gt->Ped and Sw->Gt
you effectively have Sw->Ped too.
Mechanisms, operated by foot pedals:
Sw->Gt superoctave (hitchdown)
Gt->Ped (reversible)
Tremulant (whole instrument) -- hitchdown
Combinations (foot pedals, L to R)
I -- Retires all engaged Sw stops except Stop'd Diapason and Flute Harmonique
II -- Enagages all Sw stops
III -- Retires all engaged Gt stops except Melodia and Flute d'Amour
IV -- Engages Gt Open 8, Melodia, Octave, Flute d'Amour, Twelfth, and Fifteenth.
It's quite a splendid assertive instrument in a small but nice live space.
[Received on line from Michael J. Smith, August 11, 2008]
