Better Pipe Organ Database

Casavant Opus 1501 (1935)

St-Alphonse-de-Ligouri
7 rue Notre-Dame
Chapeau, QC, CA

Images

2024-12-06 - Right stopjamb (Tate Pumfrey /Tate Pumfrey )

2024-12-06 - Left stopjamb (Tate Pumfrey /Tate Pumfrey )

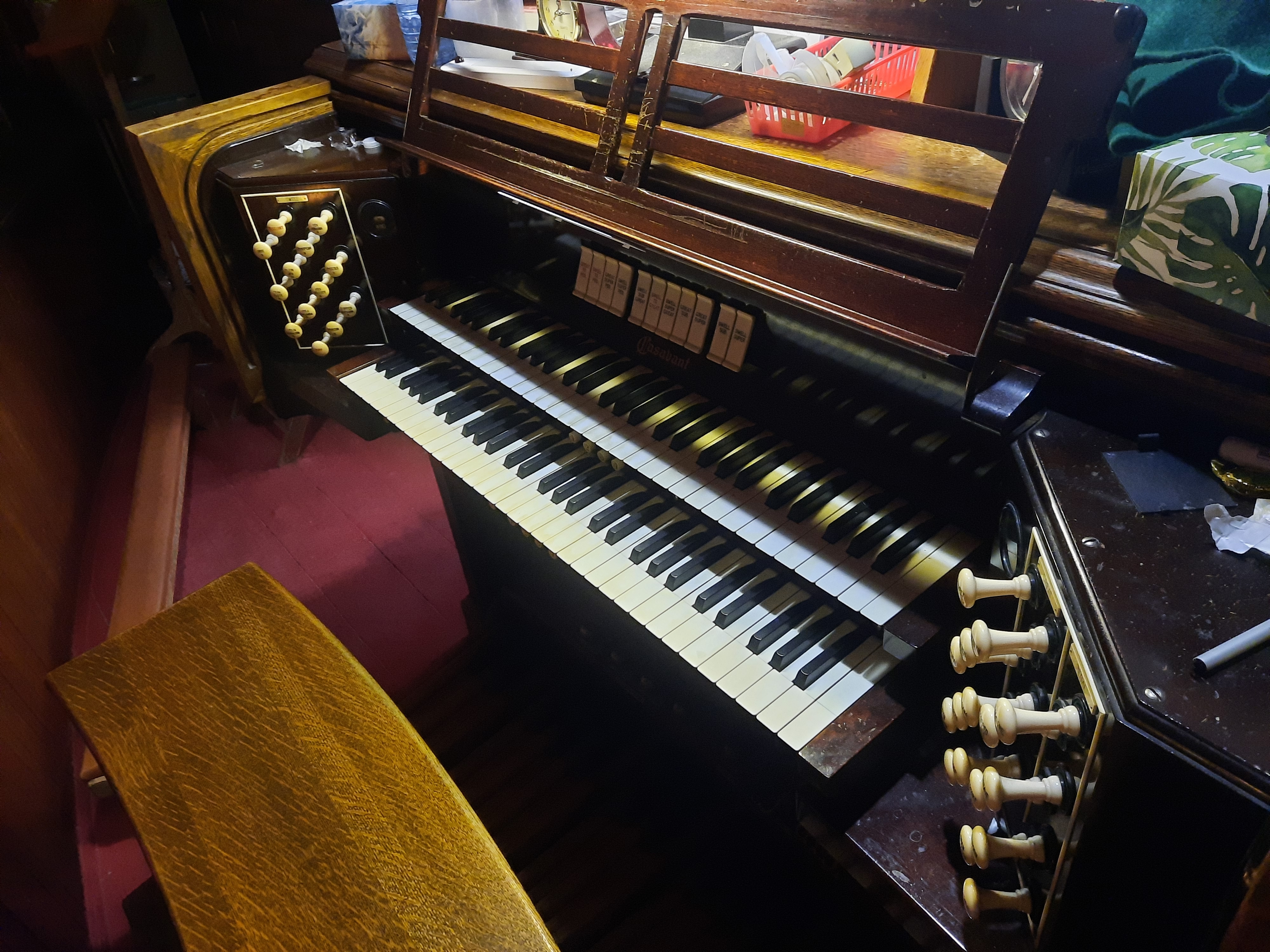

2024-12-06 - Console (Tate Pumfrey /Tate Pumfrey )

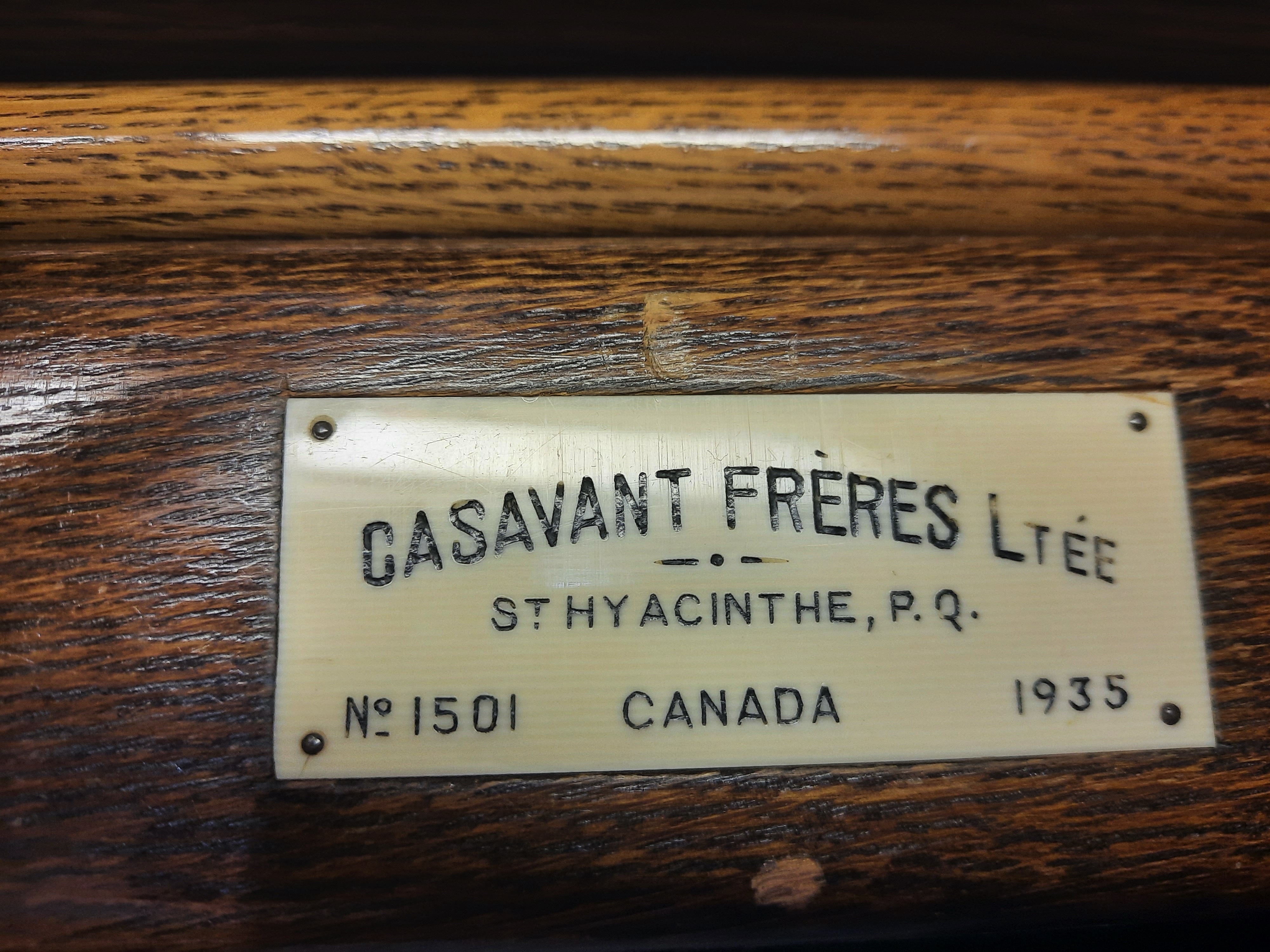

2024-12-06 - Builder's nameplate (Tate Pumfrey /Tate Pumfrey )

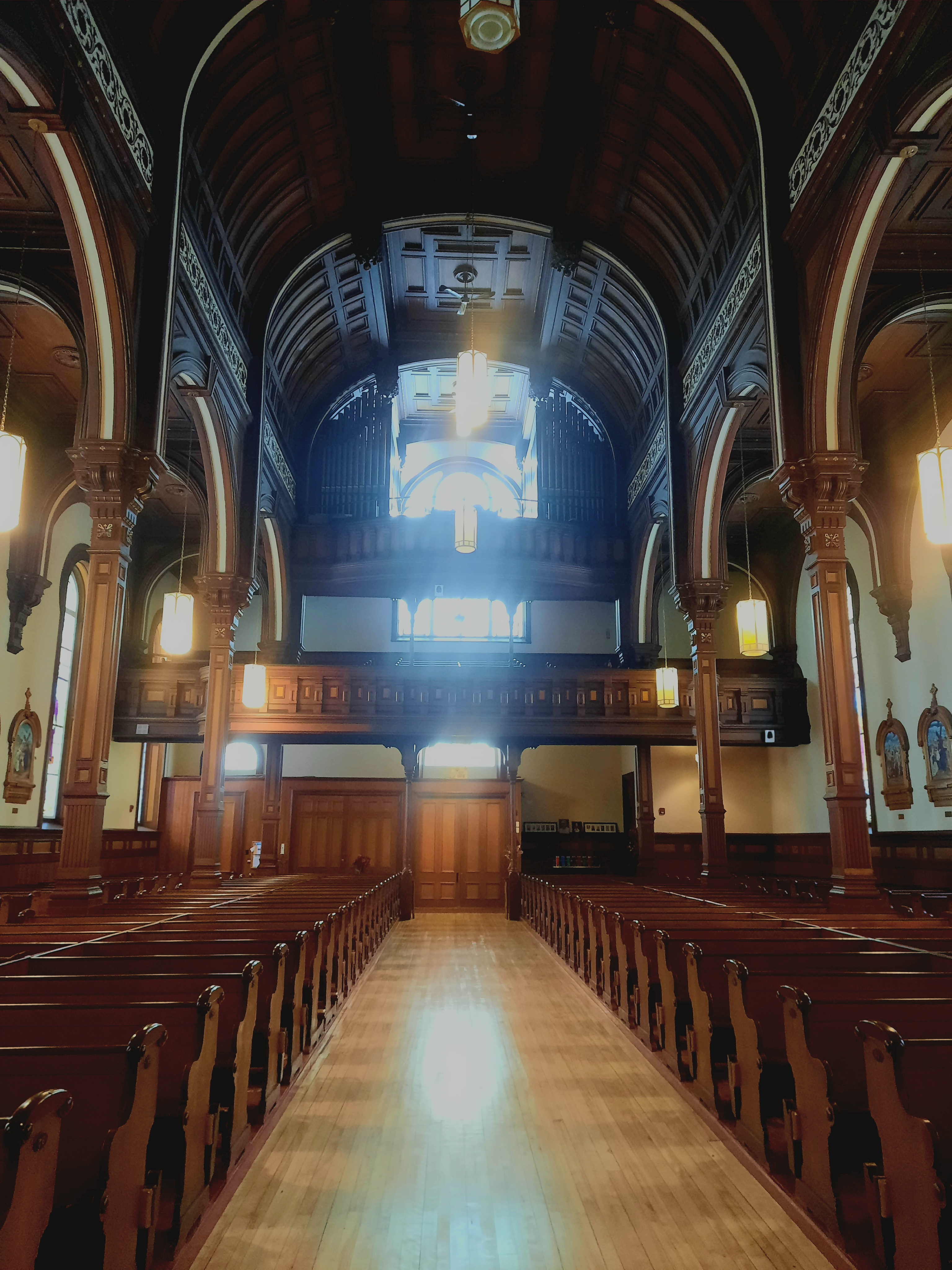

2024-12-06 - Church interior (Tate Pumfrey /Tate Pumfrey )

2024-12-06 - Organ in upper choir loft (Tate Pumfrey /Tate Pumfrey )

2024-12-06 - Church exterior (Tate Pumfrey /Tate Pumfrey )

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
2 manuals
20 stops
24 registers
3 divisions
Key action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has coupler toe pistons

Notes

2015-08-06 - Identified through information in Casavant documents, courtesy of Simon Couture and Denis Blaine. The tonal director was Stephen Stoot. -Database Manager

Stoplist

Source: Stoplist courtesy of the Casavant Frères Archives Date not recorded

   Chapeau, Québec
   St. Alphonsus-de-Ligouri R. C. Church

   Casavant   Op. 1501   1935   2/23
   _______________________________________________________________________

   GREAT                     SWELL                        PEDAL

8' Open Diapason  68     16' Bourdon           68     16' Open Diapason 32
8' Melodia        68      8' Violin Diapason   68     16' Bourdon       32
8' Dulciana       68      8' Stopped Diapason  68     16' Gedeckt       SW
4' Principal      68      8' Viola da Gamba    68      8' Octave        12
4' Lieblich Flute 68      8' Voix Celeste      61      8' Stopped Flute 12
2' Fifteenth      61      4' Traverse Flute    68     16' Trombone      12 SW
8' Trumpet        68      2' Piccolo           61         Chimes        GT
   Sub                   IV  Plein Jeu        272
   Super                  8' Cornopean         68
   Chimes         20      8' Oboe              68
   Harp           SW      8' Vox Humana        68
                             Tremulant
                             Sub
                             Super
                             Harp              49

               [Received from Jeff Scofield December 29, 2019]
