M. L. Bigelow & Co. Opus 19 (1989)

All Saints Episcopal Church
1350 Waller Street
San Francisco, CA

Images

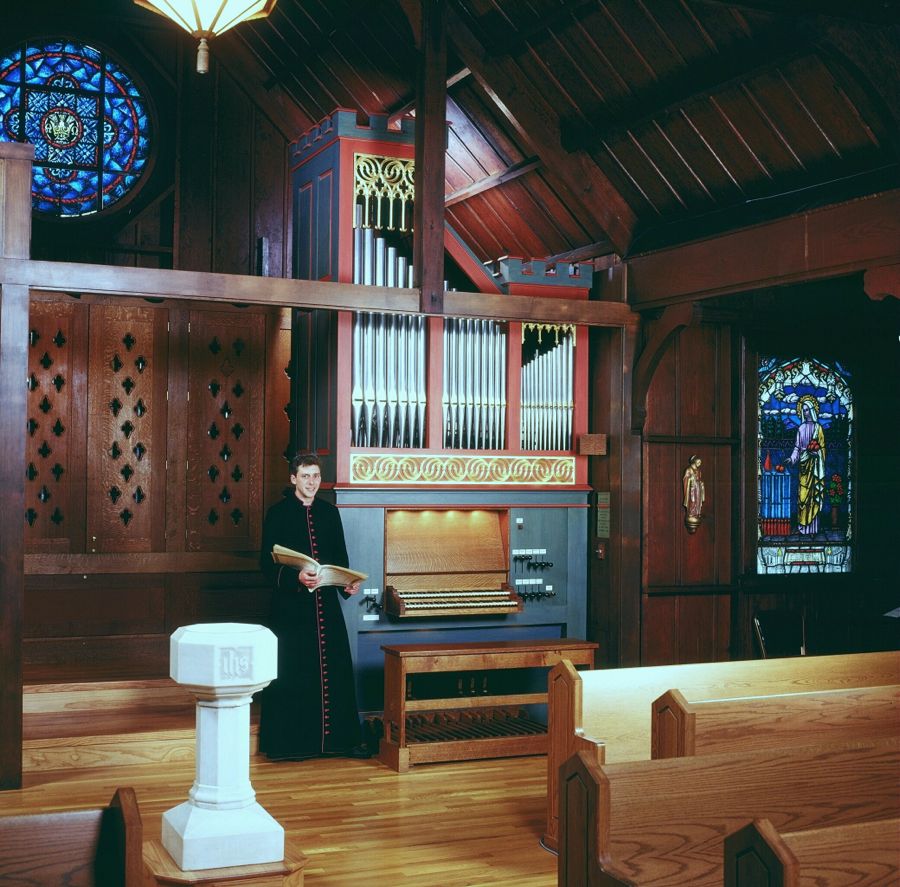

1992-05-04 - Organ Case (Photograph supplied by Michael Bigelow/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached
2 manuals
11 stops
11 registers
2 divisions
Key action Type: Mechanical (Suspended Tracker)
Stop action Type: Mechanical
Stop layout Type: Sliding Stop Controls/Levers
Manual compass: 58 notes
Pedal compass: 30 notes
Pedal Type: Flat Straight
Expression Type: No Enclosed Divisions
Combination action: None
Has hitchdown couplers

Notes

2004-10-30 - Status Note: There 1997 -Database Manager

2004-10-30 - Most stops duplexed to play from either manual, but not both at once. Compass 58/30. -Database Manager

2012-07-28 - Updated through online information from Michael L Bigelow. -- The case is inspired by the Gothic organ at Notre Dame de Valere, Sion, Switzerland. A single fold wedge bellows is located above the narthex, adjacent to the organ. The bottom octave of the manuals division and all pedal pipes are located behind the main case, against the rear wall, hidden by an oak screen. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

San Francisco, California
All Saints Episcopal Church

M. L. Bigelow & Co., Opus 19,  1989

Two manuals and pedal: 58/30 notes
	11 stops, 14 ranks


    MANUALS:           I    or   II

1.  Praestant          8'         8'     31% Tin
2.  Gedackt            8'         8'     Poplar
3.  Viola da Gamba     8'         8'     Copper/50% Tin
4.  Octave             4'         4'     Hammered Lead
5.  Chimney Flute      4'         4'     "
6.  Quint/         2 2/3'         -      31% Tin
      Sesquialtera     -         II      "
7.  Octave             2'         2'     "
8.  Quint/             -      1 1/3'     "
      Mixture        III          -      "
9.  Trumpet            8'         8'     Hammered Lead

    PEDAL

10. Subbass           16' 42 pipes       Poplar
11. Fagot             16' 42 pipes       Hammered Lead


Foot operated couplers (located above pedal board, from left):
	Left side: [Pedal] 16' OFF, [Pedal] 8' ON;
	Right side: I/Ped, II/Ped, II/I.

Flexible Wind / Tremulant


[Received from Michael Bigelow 2012-07-28]
