Better Pipe Organ Database

W. W. Kimball Co. (1926)

Emmanuel Episcopal Church
203 S. Kensington Ave.
La Grange, IL

Note: Not extant. Not playable. (in this location)

Consoles

Main

3 manuals

Notes

2015-08-19 - An original installation. Identified by John Igoe, using information found in The Diapason, August 2015, p. 22.<br><br>Replaced by Casavant Op. 3062, 1970. -Database Manager

Stoplist

Original document from Eugene Walter. Source: The Diapason, August 2015, pg. 22 2017-08-07

La Grange, IL
Emmanuel Episcopal Church

Organ by W. W. Kimball Co.

3 manuals, 22 ranks
Compass 61/32

       GREAT (Manual II)
    8' Diapason Phonon   73 pipes
    8' Viola Diapason    73 pipes
    8' Tibia Minor       73 pipes
    8' Melodia           85 pipes *
    8' Gemshorn          73 pipes
    8' Dulciana          85 pipes *
    4' Flute             ext Melodia
    8' Trumpet           85 pipes
       Chimes            20 tubes
       * Enclosed with Choir

       SWELL (Manual II, enclosed)
   16' Bourdon           101 pipes
    8' Open Diapason     73 pipes
    8' Chimney Flute     ext Swell 16' Bourdon
    8' Viola             85 pipes
    8' Voix Celeste      73 pipes
    8' Salicional        73 pipes
    4' Flute d'Amour     ext Swell 16' Bourdon
    4' Violina           73 pipes
2-2/3' Nazard            ext Swell 16' Bourdon
    2' Piccolo           ext Swell 16' Bourdon
1-3/5' Tierce            ext Swell 16' Bourdon
  IIIr Mixture           183 pipes
    8' Tromba            73 pipes
    8' Oboe Horn         73 pipes
    8' Vox Humana        61 pipes ("with vibrato")
       Tremolo

       CHOIR (Manual I, enclosed)
    8' Melodia            from Gt. 8' Melodia
    8' Dulciana           from Gt. 8' Dulciana
    8' Unda Maris         61 pipes
    4' Flute              from Gt. 8' Melodia
    4' Dulcet             from Gt. 8' Dulciana
    2' Piccolo            from Gt. 8' Melodia
    2' Dolce Fifteenth    from Gt. 8' Dulciana
    8' Clarinet           73 pipes
    8' French Horn        73 pipes
       Tremolo

       PEDAL
   16' Diaphone           12 pipes (metal) remainder from Gt. Diapason Phonon
   16' Bourdon            12 pipes
   16' Lieblich Gedeckt   from Sw. 16' Bourdon
    8' Octave             32 notes
    8' Still Gedeckt      from Sw. 16' Bourdon
    8' Viola              32 notes
    4' Flute              32 notes
   16' Trombone           from Gt. 8' Trumpet
       Chimes             from Gt. Chimes

Documents

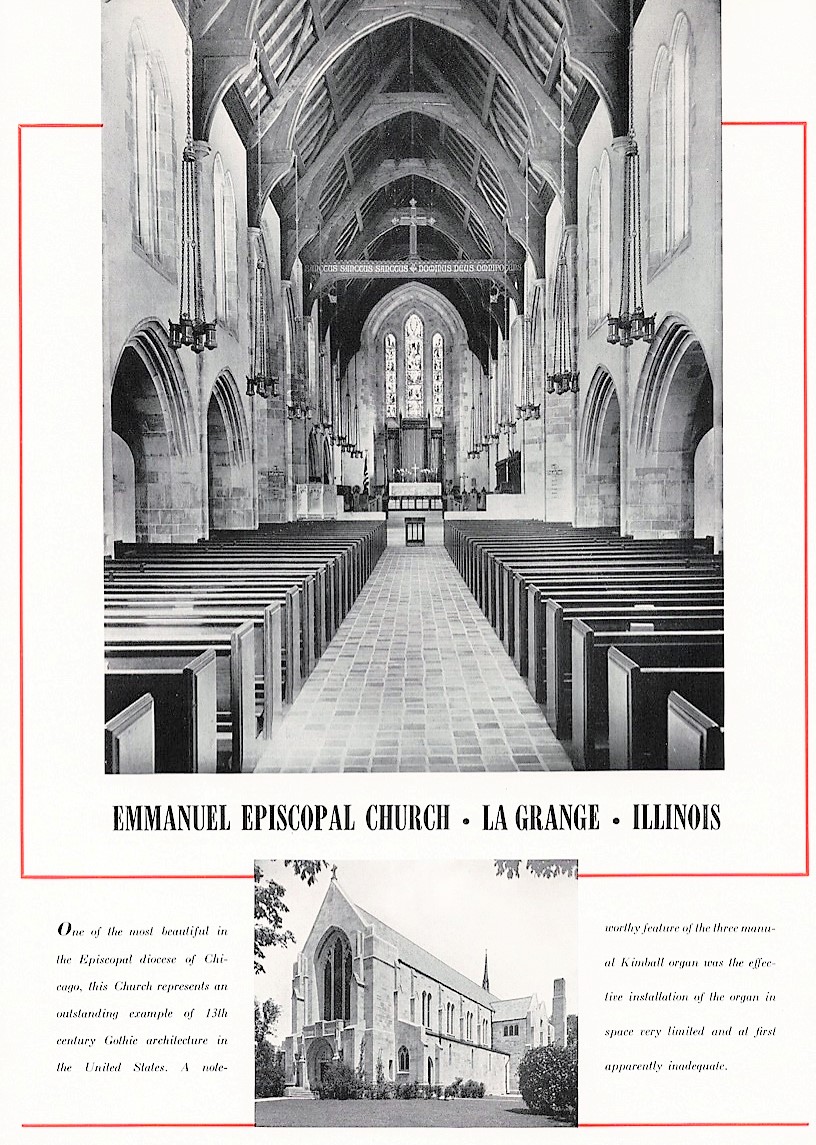

From the 1938 Kimball catalog, via Morel & Associates Photo of church interior -Jeff Scofield
