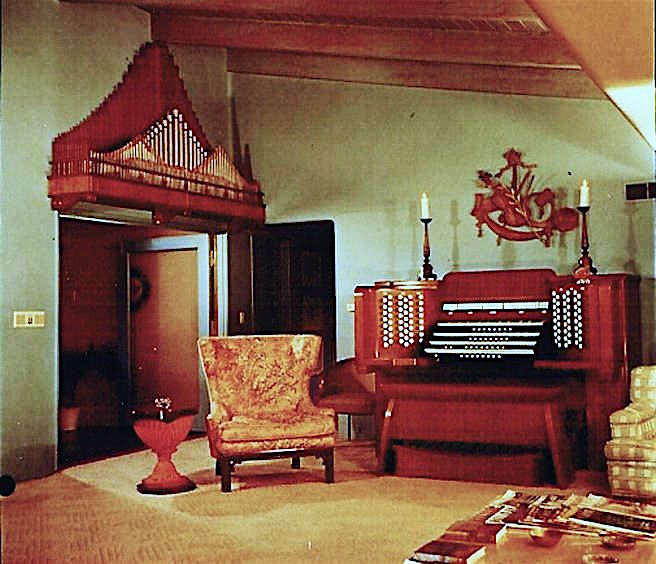

Unknown - Exposed chest and Console (from Jim Lewis Collection/Database Manager)
Note: Not extant. Not playable. (in this location)
2015-09-13 - This entry describes an original installation of a new pipe organ. Identified by Michael Williamson, based on personal knowledge of the organ.<br> <br> Organ assembled from various components. Console was the 4 manual console from the Welte organ at the Barker Brothers store Los Angeles, California. Pipework from a variety of builders; mostly Aeolian-Skinner (as Simonton was an investor in Aeolian-Skinner).<br><br>All of the main windchests were built by Ross Kershaw (Aeolian-Skinner chest maker), and the offset windchests were built by Pipe Organs, Inc., of Los Angeles.<br><br>The installation was also assumed to have been done by Pipe Organs, Inc. as well (Simonton had also invested in them). The organ also contained a 14-stop echo of electronic voices, and 5 electronic voices in the pedal (including a 32- Bourdon through a 30" Electro-Voice sub-woofer bolted to the floor joists). Organ was sold after his death, and removed from his home. -Database Manager
Typed Specification Source: from Ralph Beaudry Collection, American Organ Institute Archives, courtesy Bailey Hoffner Date not recorded
Toluca Lake, California
Richard C. Simonton Residence
Pipe Organs, Inc. ca. 1960 4 manuals, 47 stops, 58 ranks
_________________________________________________________________________________
Pipe counts are estimated
GREAT ORGAN (II) SWELL ORGAN (III)
16' Quintaton 61 16' Lieblich Gedeckt 61
8' Principal 61 8' Geigen Principal 61
8' Doppel Flute 61* 8' Holzflöte 61
8' Spitzflöte 61* 8' Salicional 61
4' Octave 61 8' Voix Celeste 61
4' Rohrflöte 61* 8' Kleine Erzähler 61
2 2/3' Twelfth 61 8' Kl. Erzähler Celeste (TC) 49
2' Super Octave 61 4' Principal 61
Fourniture III-V 269 4' Flauto Traverso 61
Tremolo 2' Flageolet 61
Chimes Plein Jeu III 183
Great to Great 16' 16' Fagot 61
Great to Great 4' 8' Trompette 61
* enclosed in Choir box 8' Oboe 61
8' Vox Humana f 61
CHOIR ORGAN (I) 8' Vox Humana p --
8' Holzgedackt 61 4' Rohr Schalmei 61
8' Viola 61 Tremolo
8' Viola Celeste (TC) 49 Swell to Swell 16'
4' Prestant 61 Swell Unison Off
4' Koppelflöte 61 Swell to Swell 4'
2 2/3' Rohrnazard 61
2' Blockflöte 61 POSITIV ORGAN (IV)
1 3/5' Tierce 61 8' Nason Flute 61
16' Bassoon 61 4' Nachthorn 61
8' English Horn 61 2' Oktav 61
8' Krummhorn 61 1 1/3' Larigot 61
Tremolo 1' Sifflöte 61
Harp Cymbel III 183
Choir to Choir 16' Tremolo
Choir Unison Off Zymbelstern
Choir to Choir 4'
PEDAL ORGAN
ECHO ORGAN (IV) 32' Contra Bourdon elec
16' Flute Conique elec 16' Diapason elec
8' Violin Diapason elec 16' Violone elec
8' Flauto Dolce elec 16' Bourdon elec
8' Aeoline elec 16' Quintaton (Gt) --
4' Flute d'Amore elec 16' Lieblich Gedeckt (Sw) --
2 2/3' Quint elec 16' Echo Lieblich elec
2' Flautino elec 8' Principal 32
1 3/5' Tierce elec 8' Violoncello 32
8' Hautbois elec 8' Quintaton (Gt) --
8' Vox Angelica elec 8' Still Gedeckt (Sw) --
Tremolo 4' Choral Bass 32
Harp Mixture IV 128
Chimes 32' Bombarde 32
Echo to Echo 16' 16' Fagot (Sw) --
Echo Unison Off 16' Bassoon (Ch) --
Echo to Echo 4'
COMBINATION PISTONS INTER-MANUAL COUPLERS
Great 7 (thumb) Great to Pedal 8 4
Swell 7 (thumb) Swell to Pedal 8 4
Choir 7 (thumb) Choir to Pedal 8 4
Positiv 3 (thumb) Echo to Pedal 8
Echo 3 (thumb) Swell to Great 16 8 4
Pedal 7 (thumb & toe) Choir to Great 16 8 4
General 7 (thumb) Echo to Great 16 8 4
General Cancel (thumb) Choir to Swell 16 8 4
Setter (thumb) Echo to Swell 16 8 4
Swell to Choir 16 8 4
REVERSIBLES Echo to Choir 8
Great to Pedal (thumb) Great to Echo 8
Swell to Pedal (thumb) Swell to Echo 8
Choir to Pedal (thumb) Choir to Echo 8
Positiv to Pedal (thumb) Note: Couplers marked Echo
Swell to Great (thumb) operate Positiv also.
Choir to Great (thumb)
Positiv to Great (thumb) MECHANICALS
Choir to Swell (thumb) All Swells to General
Positiv to Swell (thumb) Zymbelstern Fast/Slow Switch
Swell to Choir (thumb) Echo Off
Positiv to Choir (thumb) Positiv Off
Full Organ (thumb)
EXPRESSION PEDALS
INDICATOR LIGHTS Echo
Master Swell Swell
Sforzando Great-Choir/General
Crescendo Adjustable Crescendo Pedal
[Received from Steven E. Lawson 2018-04-24]
