Better Pipe Organ Database

Fritts-Richards Organ Builders Opus 2a (1981)

St. David of Wales Episcopal Church: Sanctuary
218 N. 3rd St.
Shelton, WA

Images

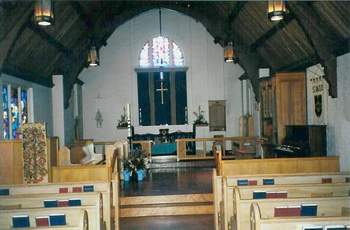

2006-11-04 - Chancel front` (Photograph by James R. Stettner/Database Manager)

2006-11-04 - Chancel and Organ (Photograph by James R. Stettner/Database Manager)

2006-11-04 - Organ case (Photograph by James R. Stettner/Database Manager)

2006-11-04 - Keydesk (Photograph by James R. Stettner/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached
2 manuals
8 stops
8 registers
3 divisions
Key action Type: Mechanical (Suspended Tracker)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
Manual compass: 54 notes
Pedal compass: 30 notes
Pedal Type: Flat Straight
Expression Type: No Enclosed Divisions
Combination action: None

Notes

2005-11-05 - Updated through on-line information from the builder's web site. -Database Manager

2006-12-01 - Updated through on-line information from James R. Stettner. -- 5-sectional façade containing 27 pipes arranged: 4-7-5-7-4. These are notes 1-8, 11, and 13-29 of the Man. I 4' Principal. -Database Manager

Stoplist

Source: Taken from keydesk Visit on January, 2023

Shelton, Washington
St. David's Episcopal Church

Fritts - Richards, Opus 2a, 1981 - Original Specifications


    MANUAL I:
8'  Rohrflöte                    54
4'  Principal      [facade]      54
2'  Octave                       54
II  Mixture        [22-26]      108


    MANUAL II:
8'  Gedackt                      46  1-8 shared
4'  Rohrflöte                    54
8'  Regal                        54
    Tremulant                        Adjustable


    PEDAL:
16' Subbass                      30


    COUPLERS:
II / Pedal               (drawstop)
I / Pedal                (drawstop)

II / I              (shove coupler)


    NOTES
The organ is free-standing and encased with an attached,
projecting keydesk. The 5-sectional façade contains 2
7 pipes arranged: 4-7-5-7-4. These are notes 1-8, 11,
and 13-29 of the Man. I 4' Principal.

The Man. I 8' Rohrflöte and Man. II 8' Gedackt share
pipes 1-8. The Man. I, II Mixture composition is:

1 - 12                22-26
13 - 24            19-22
25 - 54         12-19


ACTION: Susp. Mech. Key & Mech. Stop

VOICES: 8

STOPS: 8

RANKS: 9

PIPES: 454


[Orig. received from Connor Annable  2013-01-09.]
[Updated by Dennis E. Northway  2023-01-21.]
[Corrected/Updated by James R. Stettner  2023-02-04.]
