Zion Evangelical Lutheran Church
912 North Oneida Street
Appleton, WI
Images

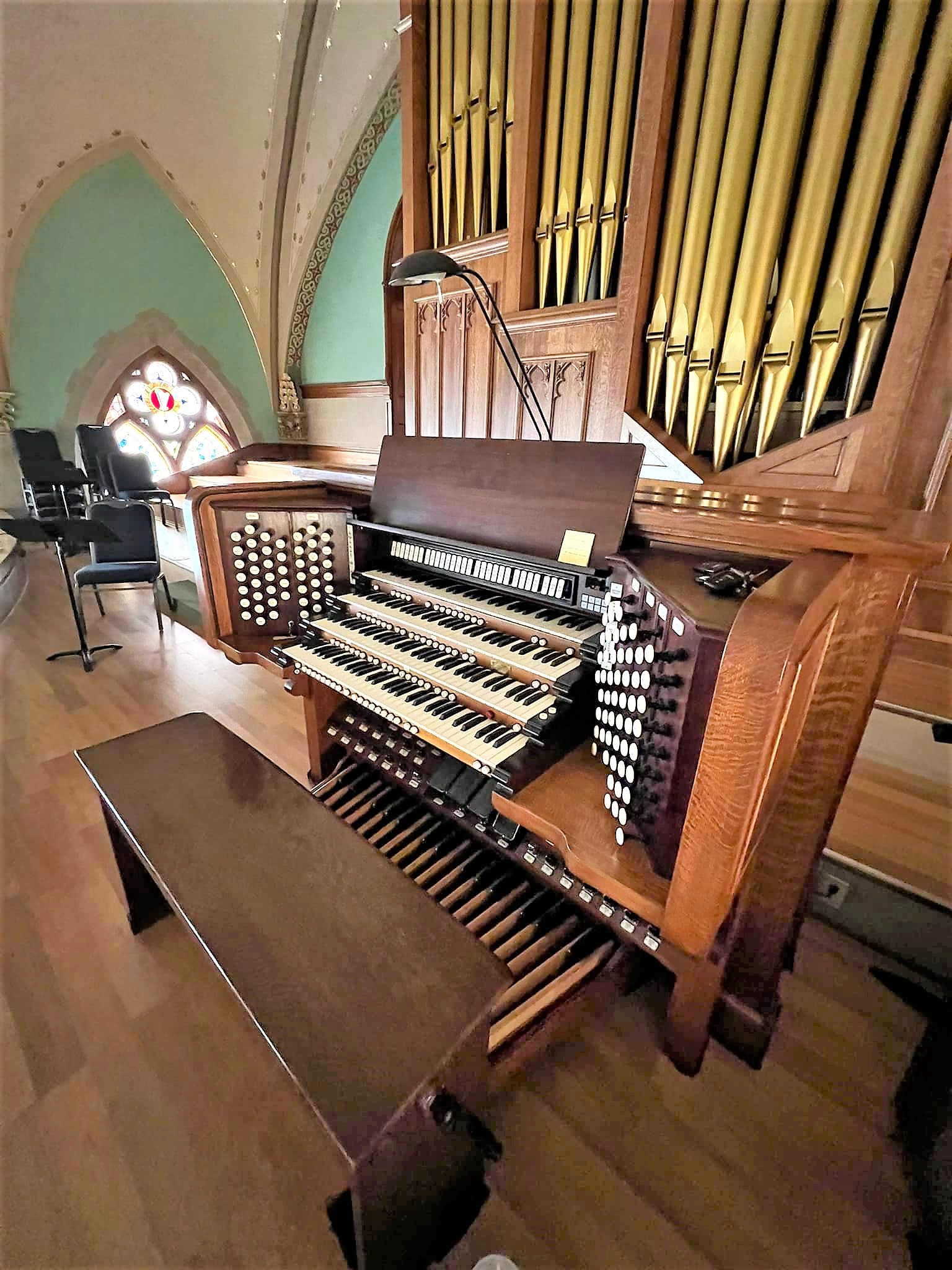

2022-08-09 - Console (Photograph by Don Verkuijlen, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2017-06-07 - Facade (Photograph by Allen Blodgett./Database Manager)

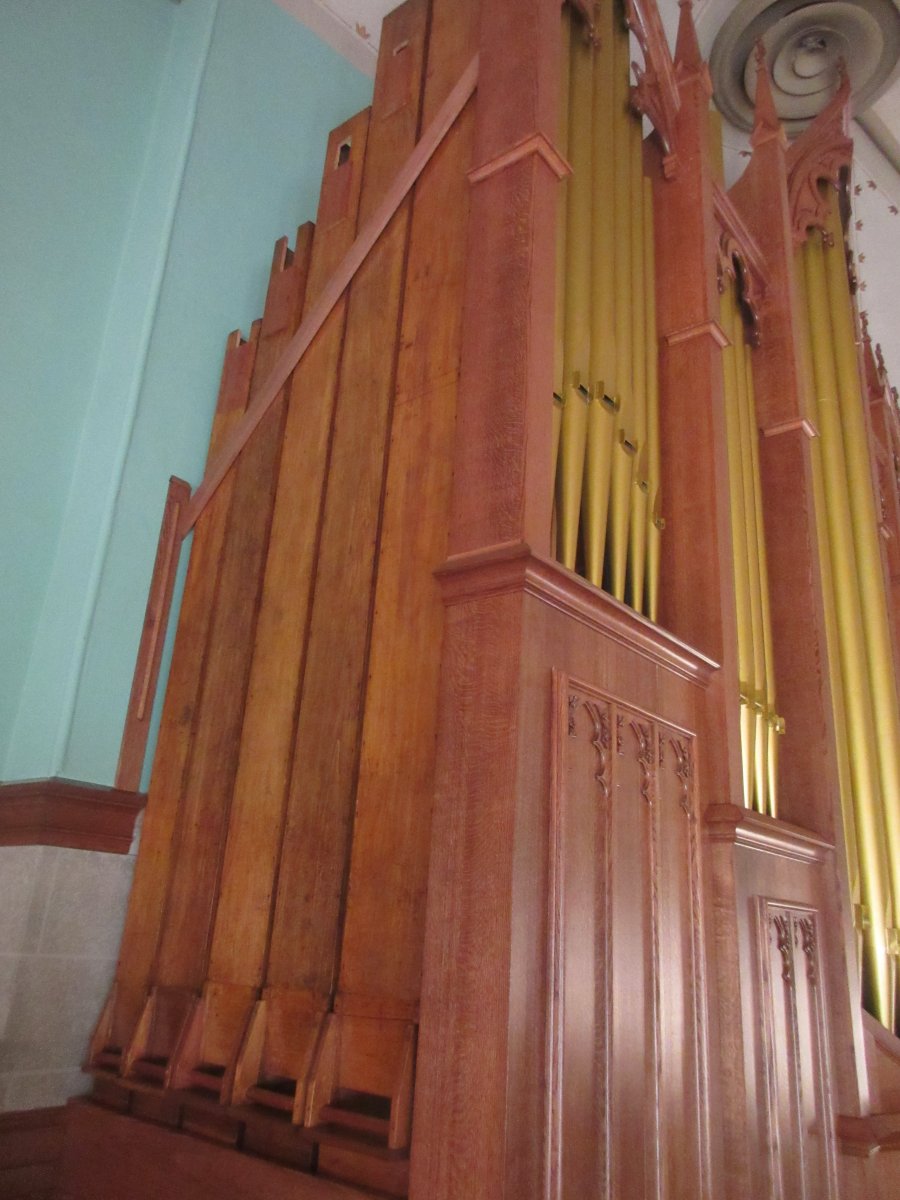

2017-06-07 - Wood Pipes Forming Case, Left Side (Photograph by Allen Blodgett./Database Manager)

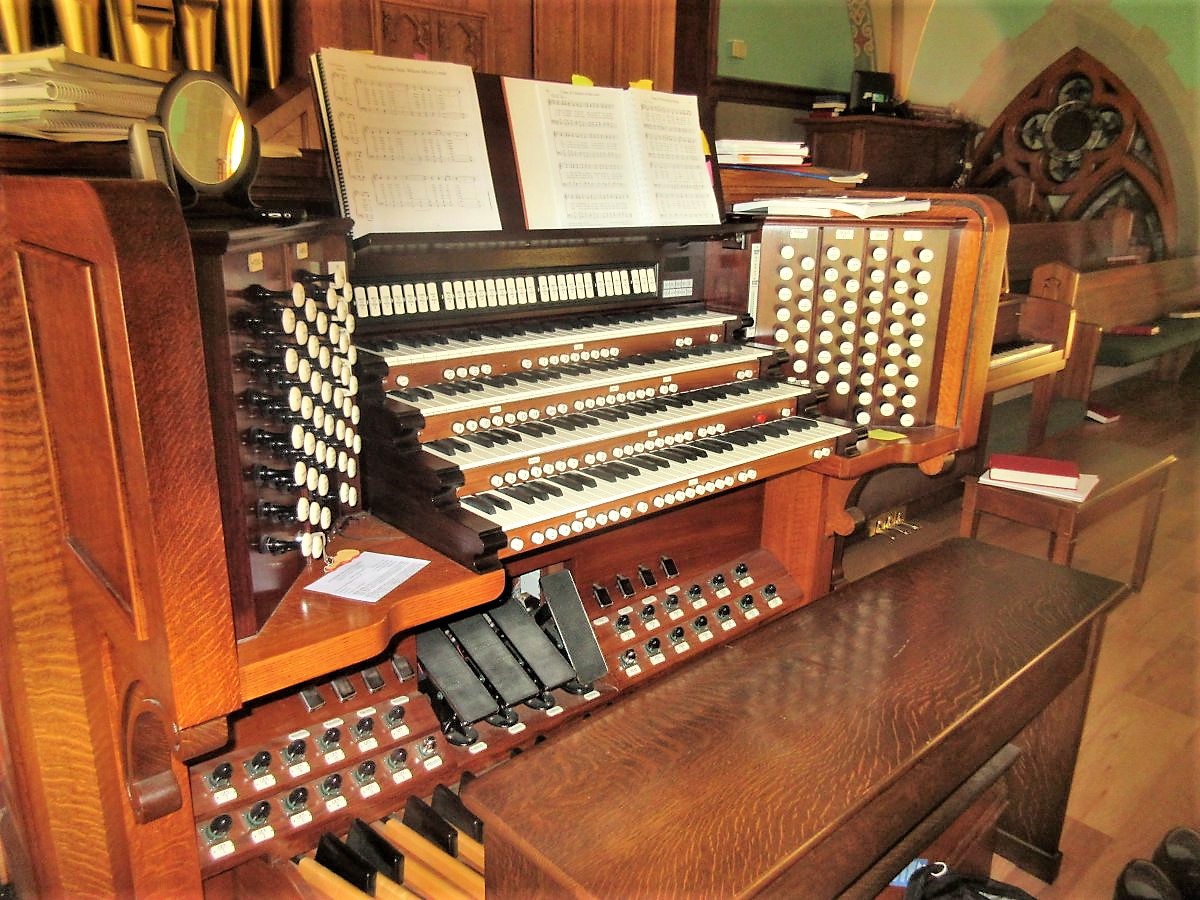

2017-06-07 - Console (Photograph by Allen Blodgett./Database Manager)

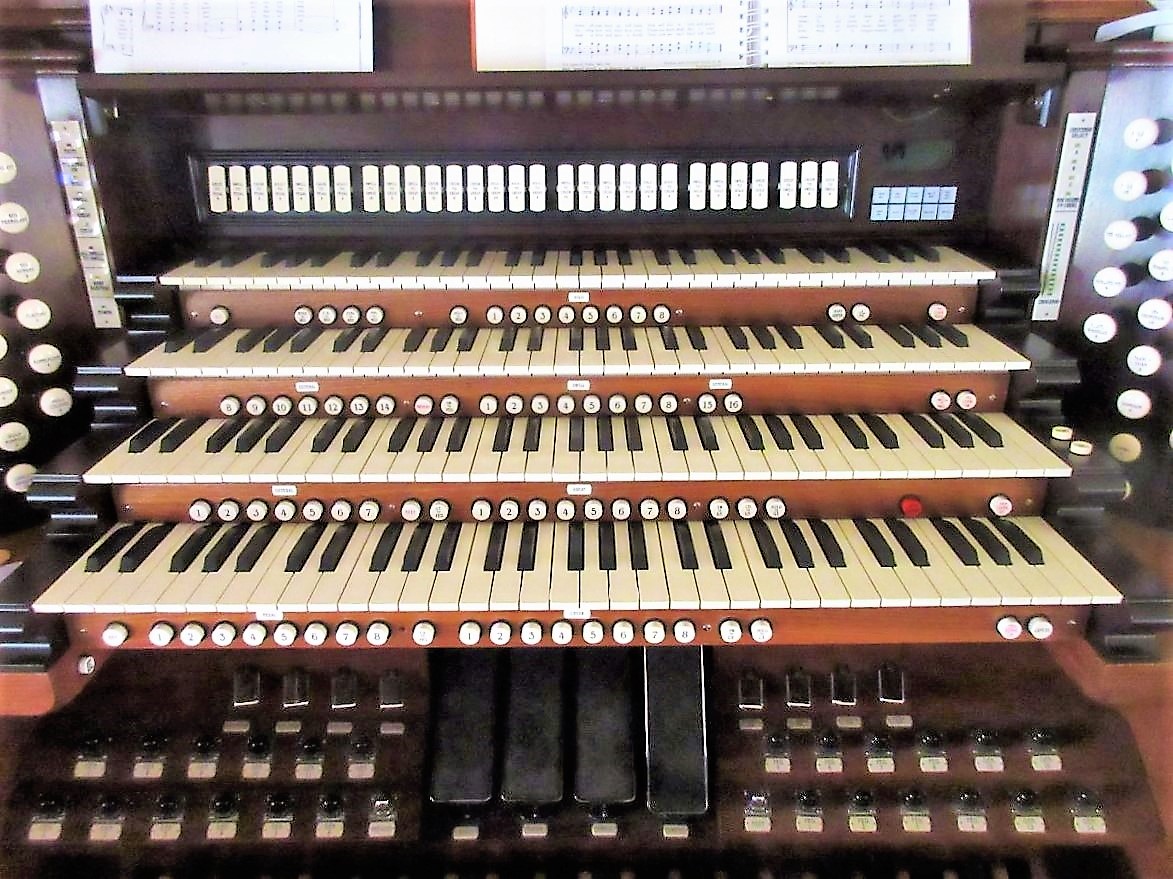

2017-06-07 - Console, from the Center (Photograph by Allen Blodgett./Database Manager)

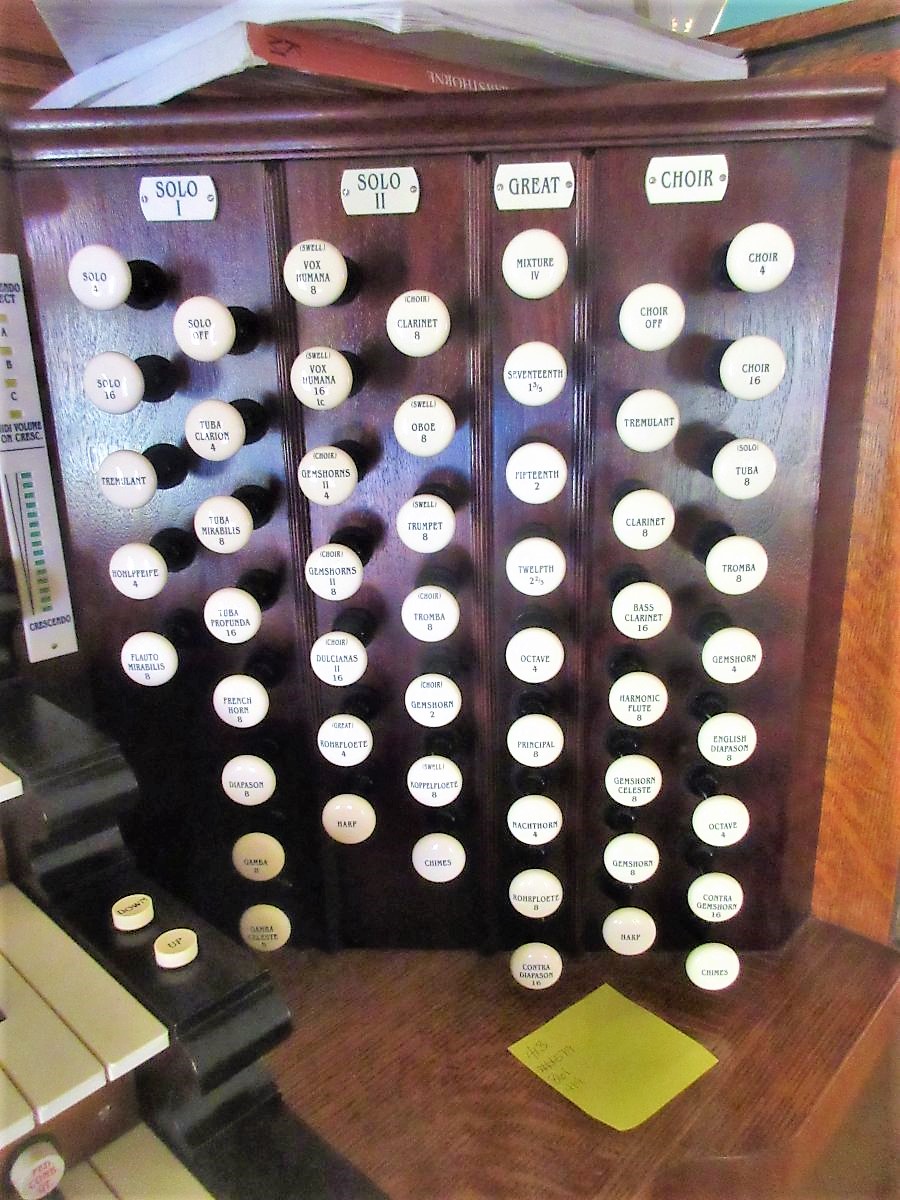

2017-06-07 - Console - Left Stop Jamb (Photograph by Allen Blodgett./Database Manager)

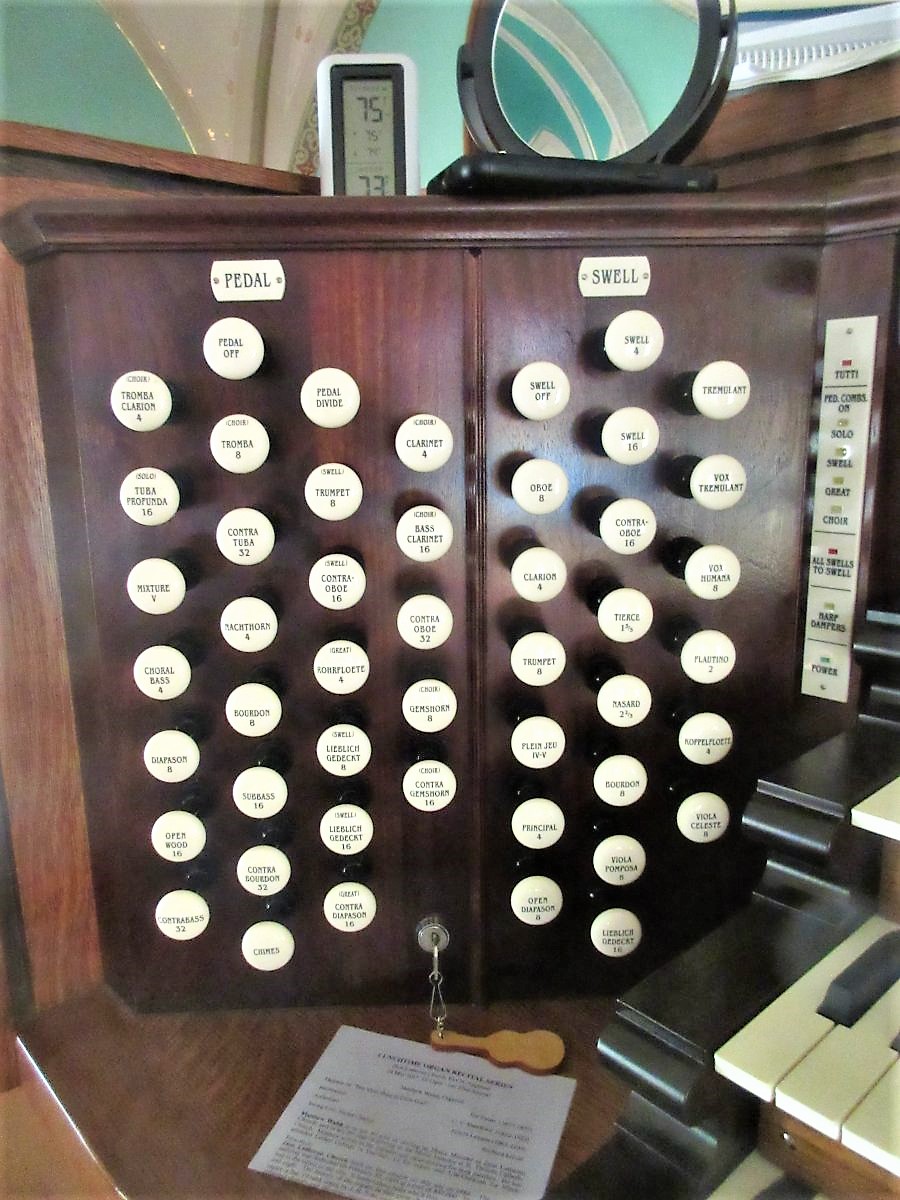

2017-06-07 - Console - Right Stop Jamb (Photograph by Allen Blodgett./Database Manager)

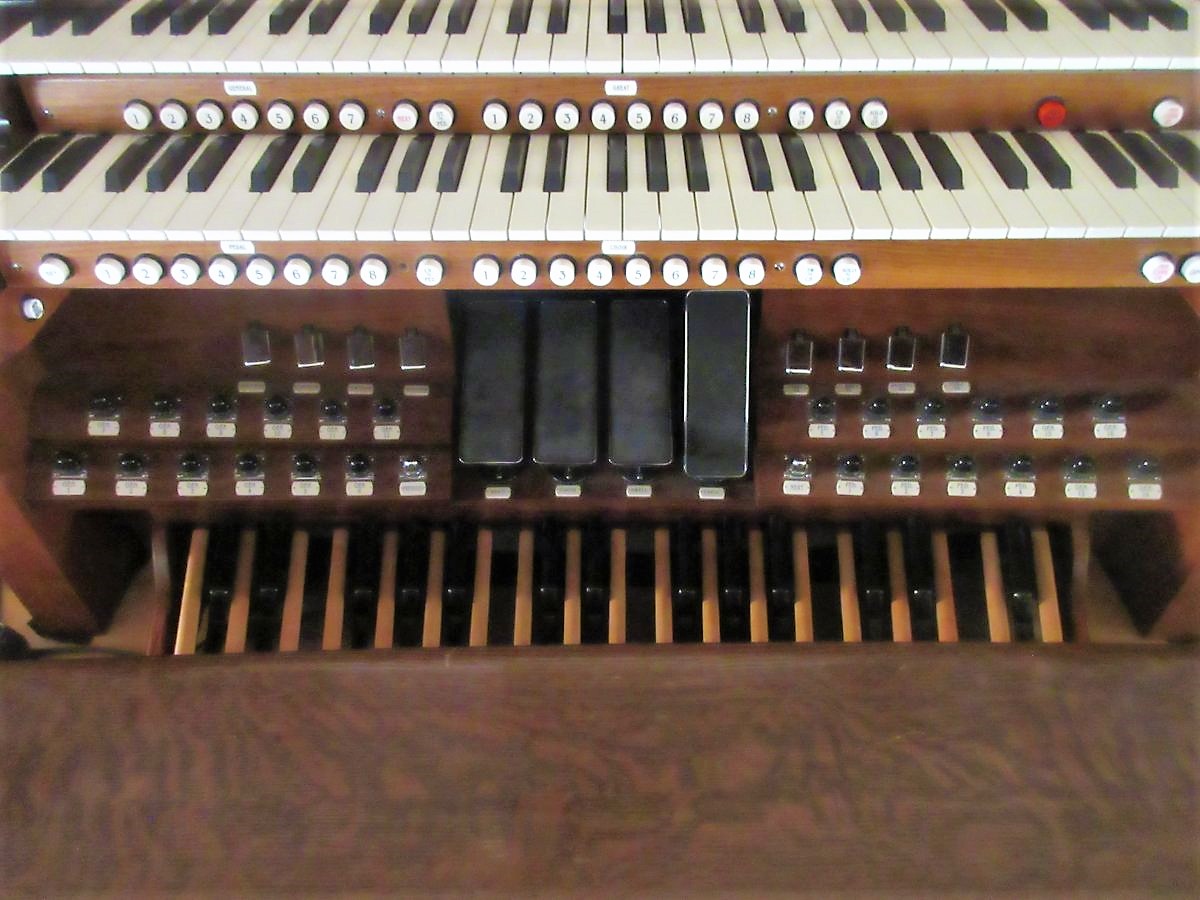

2017-06-07 - Console - Pedal Board Details (Photograph by Allen Blodgett./Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 4 manuals
- 42 stops
- 80 registers
- 5 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has hitchdown couplers
Notes
2017-06-13 - Updated by Allen Blodgett <br>A fifth division is a borrow division from the swell, great, and choir. Played the organ this past Wednesday. -Database Manager
2017-06-16 - The exposed wood pipes forming the left and right sides of the present case were laying on their sides horizontally to form the top of the case in the original J.H. McGraw organ. (Note by Allen Blodgett accompanying photos sent to the database) -Database Manager
Stoplist
Typed stoplist Source: From builder's website / Updated from console photos Updated April 12, 2022
Appleton, Wisconsin
Zion Evangelical Lutheran Church
Russell & Co. Organ Builders Opus 57 2014 4 manuals, 42 stops, 53 ranks
___________________________________________________________________________________________
GREAT SWELL (Expressive)
16' Contra Diapason 24 [1] 16' Lieblich Gedeckt 24
8' Principal 61 8' Open Diapason 61
8' Rohrfloete 61 8' Bourdon 61
4' Octave 61 8' Viola Pomposa 61
4' Nachthorn 61 8' Viola Celeste 61
2 2/3' Twelfth 61 4' Principal 61
2' Fifteenth 61 4' Koppelfloete 61
1 3/5' Seventeenth 61 2 2/3' Nasard 61
IV Mixture [1 1/3'] 244 2' Flautino 61
1 3/5' Tierce 61
[1] extension of Pedal Choralbass IV-V Plein Jeu [2'] 296
16' Contra-Oboe 73
8' Trumpet 73
CHOIR (Expressive) 8' Oboe (fr. 16') --
16' Contra Gemshorn 12 8' Vox Humana 61
8' English Diapason 61 4' Clarion (fr. Trpt) --
8' Harmonic Flute 49 [2] Tremulant
8' Gemshorn 61 Vox Tremulant
8' Gemshorn Celeste 61
4' Octave 73 Swell 16'
4' Gemshorn (fr. 8') 12 Swell Off
16' Bass Clarinet 61 Swell 4'
8' Tromba 61
8' Tuba (So) --
8' Clarinet (fr. 16') 12 PEDAL ORGAN
Tremulant 32' Contrabass (res) --
Harp (So) -- 32' Contra Bourdon (res) --
Chimes 25 tubes 16' Open Wood 24
16' Contra Diapason (Gt) --
Choir 16' 16' Subbass 32
Choir Off 16' Lieblich Gedeckt (Sw) --
Choir 4' 16' Contra Gemshorn (Ch) --
8' Diapason 32
[2] 1-12 common with Gemshorn 8' Bourdon 32
8' Lieblich Gedeckt (Sw) --
8' Gemshorn (Ch) --
SOLO I (IV - Expressive) 4' Choral Bass 44
8' Diapason (unenc.) 61 4' Nachthorn 32
8' Flauto Mirabilis 49 [3] 4' Rohrfloete (Gt) --
8' Gamba 61 V Mixture [2 2/3'] 160
8' Gamba Celeste 61 32' Contra Tuba (So) 12
4' Hohlpfeife 61 32' Contra Oboe (res) --
8' French Horn 61 16' Tuba Profunda (So) --
Tremulant 16' Contra-Oboe (Sw) --
16' Tuba Profunda 85 16' Bass Clarinet (Ch) --
8' Tuba Mirabilis (16') -- 8' Tromba (Ch) --
4' Tuba Clarion (16') -- 8' Trompette (Sw) --
4' Tromba Clarion (Ch) --
Solo 16' 4' Clarinet (Ch) --
Solo Off Chimes (Ch) --
Solo 4'
Pedal Divide
[3] 1-24 common with Pedal Open Wood Pedal Off
SOLO II (IV) - borrows COUPLERS
16' Dulcianas II (Ch) -- Great to Pedal 8
8' Gemshorns II (Ch) -- Swell to Pedal 8 4
4' Gemshorns II (Ch) -- Choir to Pedal 8
8' Koppelfloete (Sw) -- Solo to Pedal 8 4
4' Rohrfloete (Gt) -- Swell to Great 16 8 4
2' Gemshorn (Ch) -- Choir to Great 16 8 4
8' Tromba (Ch) -- Solo to Great 16 8 4
8' Trumpet (Sw) -- Swell to Choir 16 8 4
8' Oboe (Sw) -- Solo to Choir 16 8 4
8' Clarinet (Ch) -- Swell to Solo 16 8 4
16' Vox Humana (TC) (Sw) -- Great to Solo 8
8' Vox Humana (Sw) -- [4] All Swells to Swell
Harp 61 bars
Chimes (Ch) -- Hidden MIDI Control Panel
with lighted pistons
[4] draws Vox Tremulant MIDI on Solo 1, 2, 3
Solo II not affected by couplers MIDI on Swell 1, 2, 3
MIDI on Great 1, 2, 3
MIDI on Choir 1, 2, 3
MIDI on Pedal 1, 2, 3
[Received from Steven E. Lawson 2017-02-15]
[Corrected/Updated by James R. Stettner 2022-04-12]
