Immaculate Heart of Mary Catholic Church: Sanctury; front & gallery
8501 Loch Raven Blvd.
Baltimore, MD
Images

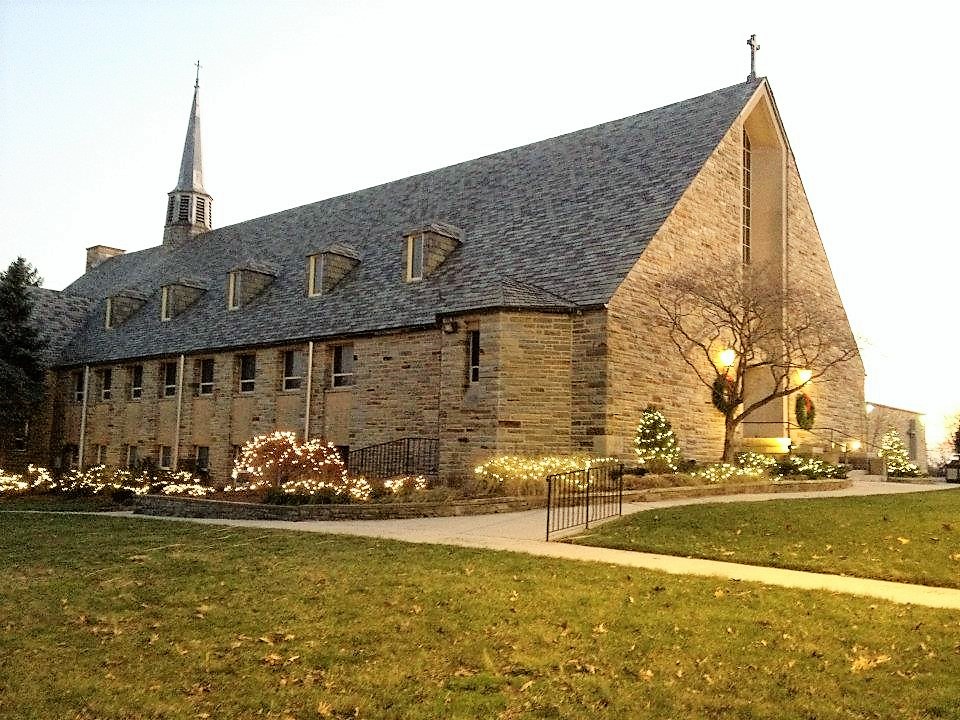

2021-12-19 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

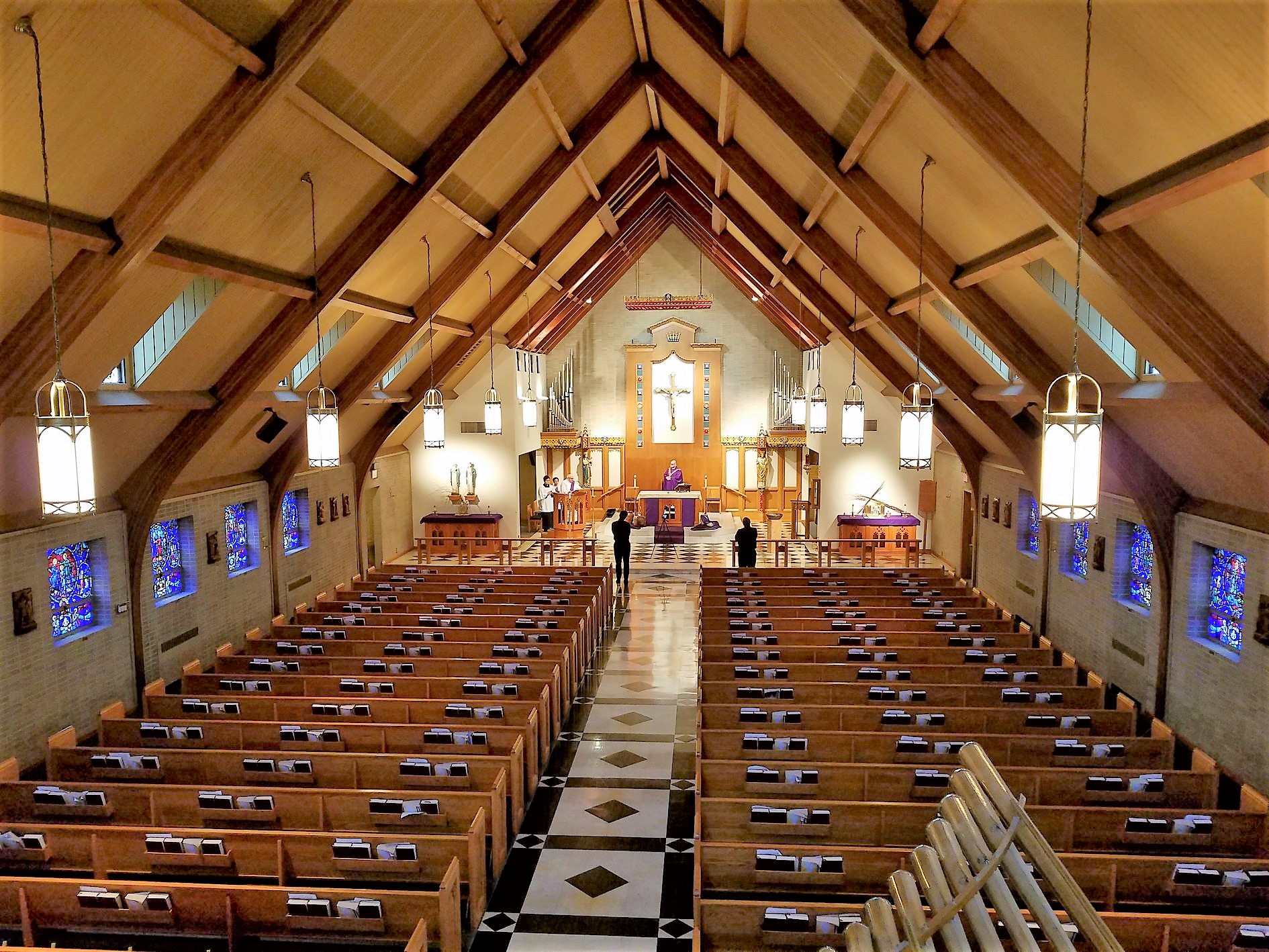

2020-03-28 - Church interior (Photograph by Church Facebook/Jeff Scofield)

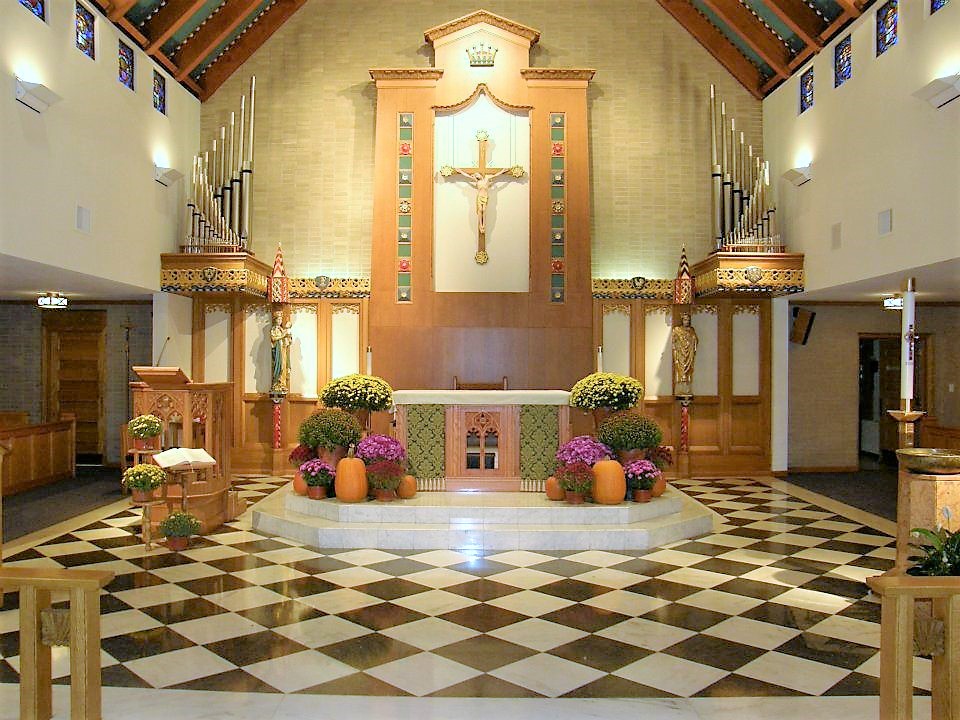

2011-10-29 - Chancel division, exposed pipes (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

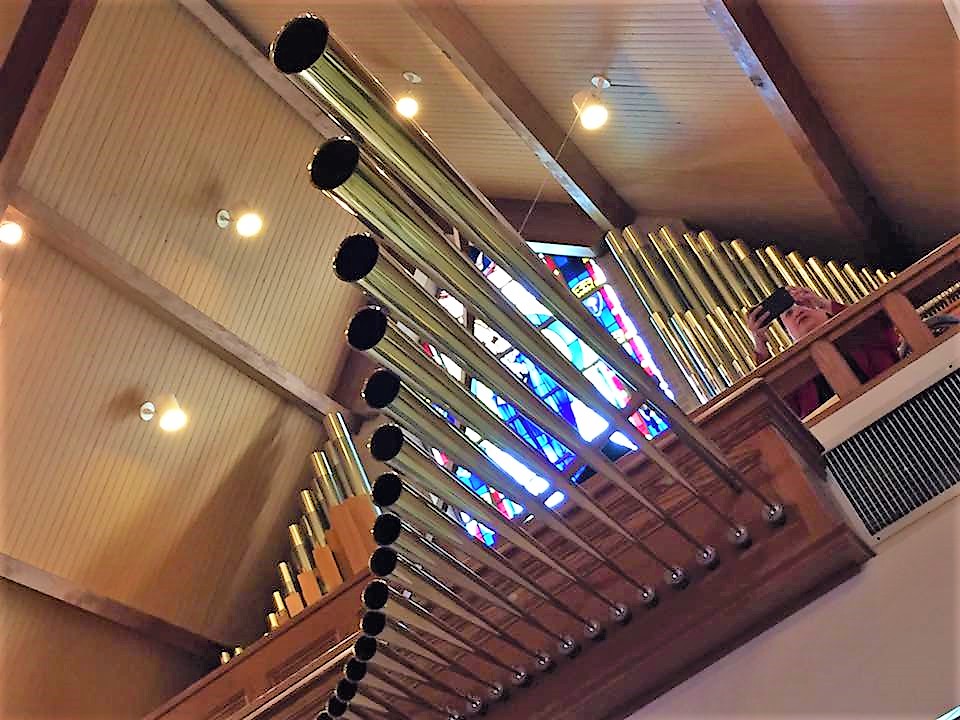

2017-02-26 - Trompette-en-Chamade (Photograph by Baltimore AGO Chapter, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

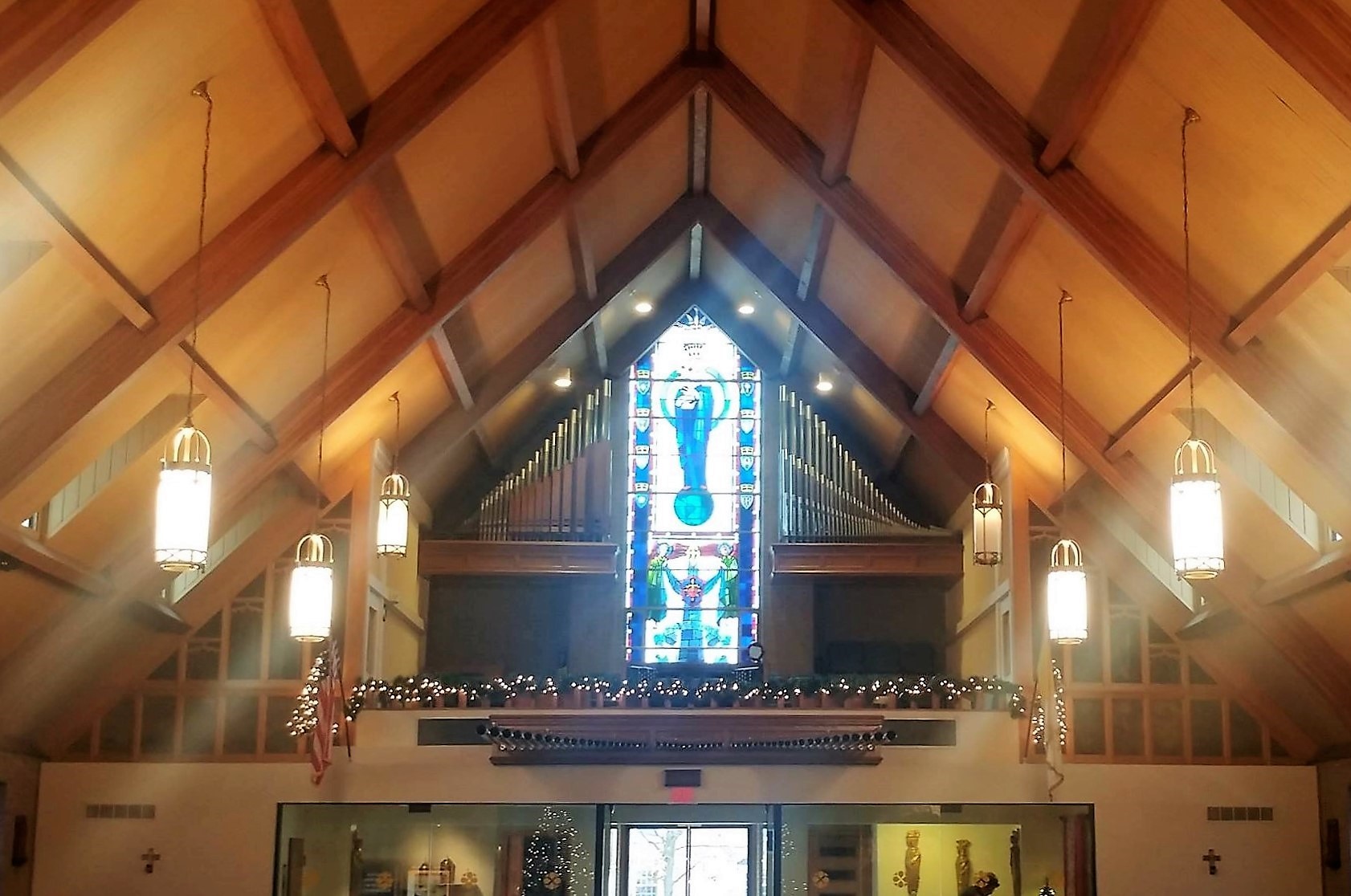

2017-12-17 - Gallery, main organ, exposed pipes, en-chamade (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 2 manuals
- 53 stops
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2016-03-07 - This entry describes an original installation of a new pipe organ. Identified by James R. Stettner, using information from an unidentified web site.<br><br>Some ranks from the previous Austin were reportedly retained but on new chests. -Database Manager
2016-03-31 - Updated through online information from James R. Stettner. <br>The information for the original entry as well as this update was gleaned from the church's Flickr photo album. The organ is installed in the rear gallery with the Great exposed on the back wall on either side of a central window. The Swell is in a chamber on the right. There is also an exposed, divided chancel division of what appears to be 2-ranks: Gemshorn and metal Gedeckt. -Database Manager
Stoplist
Source: Factory Records
Schantz Organ Co. (#2290 - 2008)
Two manuals - 33 ranks
Immaculate Heart of Mary R.C. Church
Baltimore, MD
Great
(* denotes stops which are exposed. All others are expressive)
16' Lieblich Gedeckt
*8' Open Diapason
8' Stopped Diapason (from 16')
8' Flauto Dolce
8' Flute Celeste (TC)
*4' Octave
4' Koppelflöte
*2' Fifteenth
IV Mixture
8' Trumpet (Swell)
8' Clarinet
Tremulant
8' Trompette en Chamade
Chimes
Harp
Celesta
Cymbelstern
Chancel on Great
Swell
8' Diapason
8' Viola
8' Viola Celeste (GG)
8' Chimney Flute
4' Principal
4' Hohlflöte
2-2/3' Nazard
2' Piccolo
1-3/5' Tierce
IV Plein Jeu
8' Trumpet
8' Oboe
4' Clarion (from Trumpet)
Tremulant
16' Trompette en Chamade (TC)
8' Trompette en Chamade
Chancel on Swell
Chancel
8' Gemshorn
8' Gedeckt
4' Principal
4' Flute (from 8' Gedeckt)
2' Gemshorn (from 8' Gemshorn)
Pedal
32' Violone (Digital)
16' Principal
16' Subbass
16' Lieblich Gedeckt (from Great)
8' Octave (from 16')
8' Subbass (from 16')
8' Stopped Diapason (from 16')
4' Super Octave (from 16')
4' Open Flute (from 16' Subbass)
32' Contra Trombone (Digital)
16' Double Trumpet (from Swell Trumpet)
8' Trumpet (from Swell)
4' Clarion (from Swell)
4' Oboe (from Swell)
8' Trompette en Chamadde
