Better Pipe Organ Database

Casavant Frères (2016)

Christ the King Roman Catholic Cathedral-Basilica
714 King Street W
Hamilton, ON, CA

Images

2019-03-09 - Console (Photograph by Cathedral Facebook/Jeff Scofield)

Unknown - Cathedral exterior (Photograph by Pinterest, submitted by Jeff Scofield/Jeff Scofield)

2019-06-02 - Chancel, with organ chambers to each side (Photograph by Diocese of Hamilton, submitted by Jeff Scofield/Jeff Scofield)

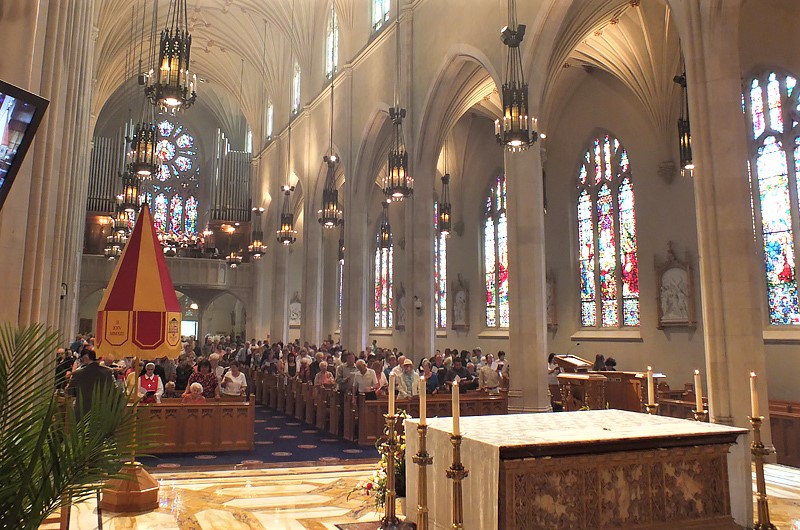

Unknown - Cathedral interior to gallery and organ cases (Photograph by Diocese of Hamilton, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Gallery

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Center
4 manuals
60 stops
68 registers
7 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Classic Organ Works Capture and Coupling System
Has sequencer
Has combination thumb pistons
Has combination toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Chancel

Console position: Movable Console
2 manuals
14 stops
16 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)

Notes

2016-04-14 - New 4-manual French-terrace Gallery console by Casavant Frères installed in 2016; the project was a collaboration with Alan T. Jackson & Co.; the rebuilt Chancel console is capable of playing both the sanctuary and gallery organs and is placed on a moveable platform. All the memory, pistons and crescendo programs of the gallery organ, except for the sequencer, are playable from the sanctuary console. -Database Manager

Stoplist

Source: Courtesy of the Casavant Frères Archives

       Hamilton, Ontario
       Cathedral Basilica of Christ the King

       Steinmeyer   Op. 1570   1933    4/82
       R A Denton              1990s   Console, renovation
       Casavant                2017    Console, blowers
       ___________________________________________________

       GREAT  (II)                    AUXILIARY (IV)
   16' Diapason          61           (Coupling Manual)
    8' Diapason          61           Echo on Auxiliary  8
    8' Violoncello       61           Echo on Auxiliary  4
    8' Gemshorn          61           Ant on Auxiliary   8
    8' Gedeckt           61           Ant on Auxiliary   4
    4' Octave            61           Blank
    4' Rohrfloete        61
2 2/3' Quint             61           ANTIPHONAL (floating)
    2' Super Octave      61        8' Salicional        61
    V  Cornet           274        8' Quintade          61
    V  Mixture   2'     287        4' Prestant          61
   IV  Scharff   1'     244    2 2/3' Twelfth           61
   16' Tuba              61        2' Schwiegel         61
    8' Trumpet           61      III  Cimbel   1/2'    183
    4' Clarion           61           Chimes  G2-G4
       Sub                            Cimbelstern        5
       Unison Off
       Super                          ECHO (floating)
       Celesta           CH        8' Geigen Principal  73
       Antiph on Great 8           8' Dulzfloete        73
       Antiph on Great 4           8' Nachthorn         73
       Blank                       4' Rohrfloete        73
                                   2' Octave            61
       SWELL  (III)               II  Sesquialtera     122
   16' Rohrgedeckt       73           Tremulant
    8' Diapason          73
    8' Tibia Clausa      73           GALLERY PEDAL
    8' Viole             73           Blank
    8' Viole Celeste     61       16' Diapason I        32
    4' Octave            73       16' Diapason II       GT
    4' Salicet           73       16' Bourdon           32
2 2/3' Twelfth           61       16' Violone           32
    2' Nachthorn         61       16' Gedeckt           SW
1 3/5' Tierce            61   10 2/3' Quintbass         32
    V  Plein Jeu 2 2/3' 305        8' Octave            SW
  III  Cymbell   1'     183        8' Gedeckt           SW
   16' Rankett           73        4' Choralbass        32
    8' Trumpet Harmonic  73        2' Bachfloete        32
       Tremulant                  IV  Mixture  2 2/3'  128
       Sub                        16' Posaune           32
       Unison Off                 16' Rankett           SW
       Super                       8' Trumpet           SW
       Echo on Swell 8                Blank
       Echo on Swell 4
                                      ANTIPHONAL PEDAL
       CHOIR  (I)                 16' Diapason          32
    8' Violfloete        73       16' Bourdon           32
    8' Unda Maris        61        8' Diapason          EC
    8' Coppergedeckt     73        8' Rohrfloete        EC
    4' Geigenprincipal   73           Blank
    4' Blockfloete       73
2 2/3' Nazard            61
    1' Siffloete         61
   II  Larigot 1 1/3'   122
    8' Krummhorn         73
       Tremulant
       Sub
       Unison Off
       Super
       Celesta           49
       Blank

          [Received from Jeff Scofield April 30, 2021]
