Schantz Organ Co. Opus 2312 (2012)

St. Mary's Catholic Basilica
231 N. 3rd Street
Phoenix, AZ

Images

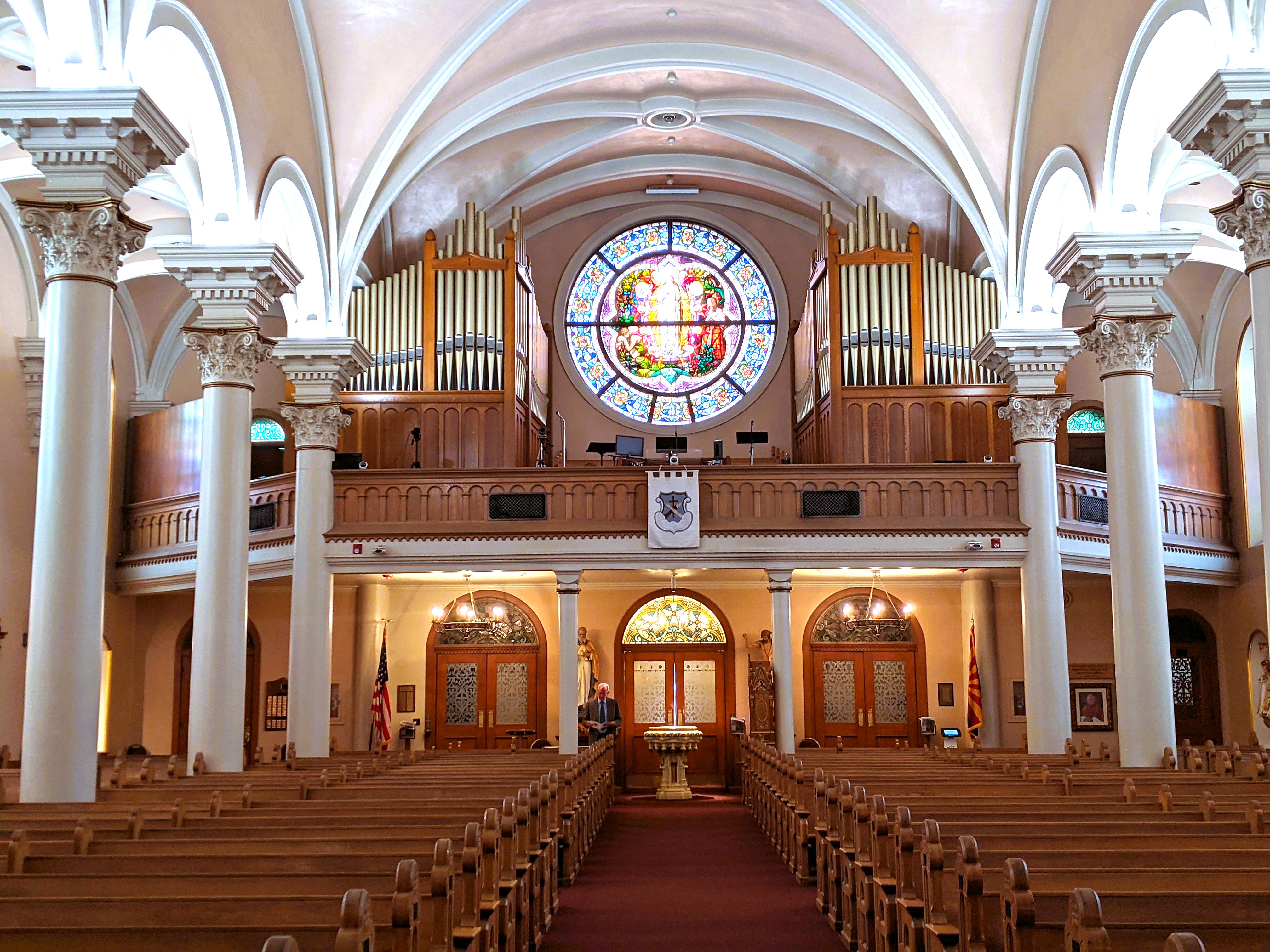

Unknown - Church interior to rear (Central AZ AGO, Facebook via Jeff Scofield/Jeff Scofield)

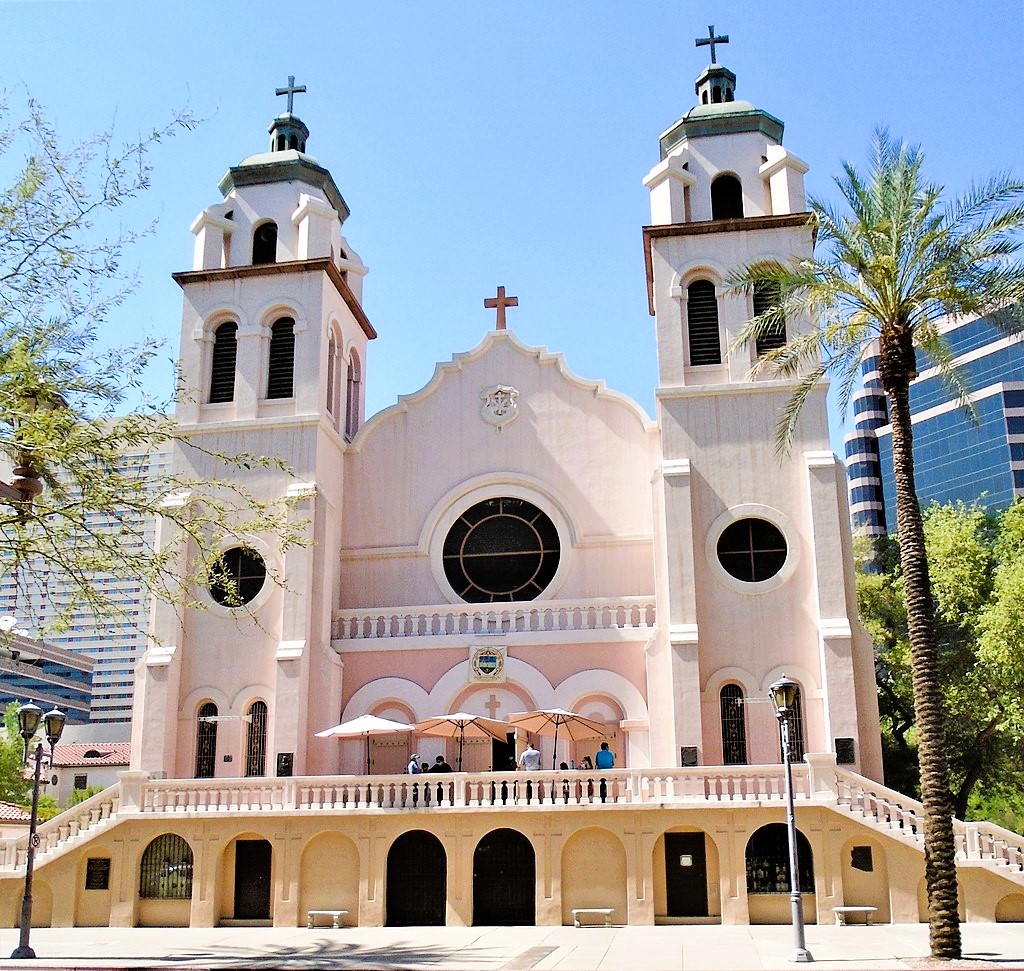

2021-06-27 - Building exterior (Wikipedia/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
2 manuals
20 stops
39 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Has transposer
Combination action: Computerized/Digital
Has record/playback
Has midi
Has combination thumb pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Stoplist

Specification from church web site Source: Source not recorded Date not recorded

Phoenix, Arizona
St. Mary's Roman Catholic Basilica

Schantz Organ Co.   Opus 2312   2012              2 manuals, 20 stops, 26 ranks
_______________________________________________________________________________

         GREAT ORGAN (expressive)                 SWELL ORGAN (expressive)
     16' Lieblich Gedeckt      73              8' Chimney Flute         61
      8' Open Diapason         61              8' Salicional            61
      8' Harmonic Flute        61 *            8' Celeste (GG)          54
      8' Gedeckt (fr. 16')     --              4' Principal             61
      4' Octave                61              4' Open Flute            61
      4' Harmonic Flute        --          2 2/3' Nazard                61
      2' Fifteenth             61              2' Octavin               61
         Mixture IV           244          1 3/5' Teirce                61
      8' Clarinet              pf                 Plein Jeu IV         244
      8' Trompeta de Papa      pf             16' Bassoon               61
         Tremulant                             8' Trumpet               61
         Great to Great 16'                    4' Oboe                  61
         Great Unison Off                         Tremulant
         Great to Great 4'                        Swell to Swell 16'
                                                  Swell Unison Off
      *  1-12 from Gedeckt                        Swell to Swell 4'

         COUPLERS                                 PEDAL ORGAN
         Great to Pedal      8  4             32' Resultant             --
         Swell to Pedal      8  4             16' Subbass               56
         Swell to Great  16  8  4             16' Lieblich Gedeckt      GT
         MIDI on Great                         8' Octavebass            44
         MIDI on Swell                         8' Bourdon (fr. Sub)     --
         MIDI on Pedal                         8' Lieblich Gedeckt      GT
                                               4' Choralbass (fr. Oct)  --
         COMBINATIONS (255 levels)             4' Flute (fr. Sub)       --
         General        12  (thumb & toe)     16' Double Trumpet (SW)   12
         Great           6  (thumb)           16' Bassoon               SW
         Swell           6  (thumb)            8' Trumpet               SW
         Pedal           6  (toe)              4' Oboe                  SW
         General Cancel     (thumb)
         Setter             (thumb)               ACCESSORIES
                                                  Balanced Pedal - Swell
         REVERSIBLES                              Balanced Pedal - Great
         Great to Pedal     (thumb & toe)         Crescendo Pedal
         Swell to Pedal     (thumb & toe)         Transposer
         Swell to Great     (thumb)
         Sforzando          (thumb & toe)


[Received from Steven E. Lawson  2016-05-02]

Documents

(2012-01-04) Factory specifications via Schantz Organ Co. -Jeff Scofield
